Indledning
This manual provides detailed instructions for the proper use, care, and maintenance of your Timex Men's Essex Avenue Day-Date 44mm Quartz Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

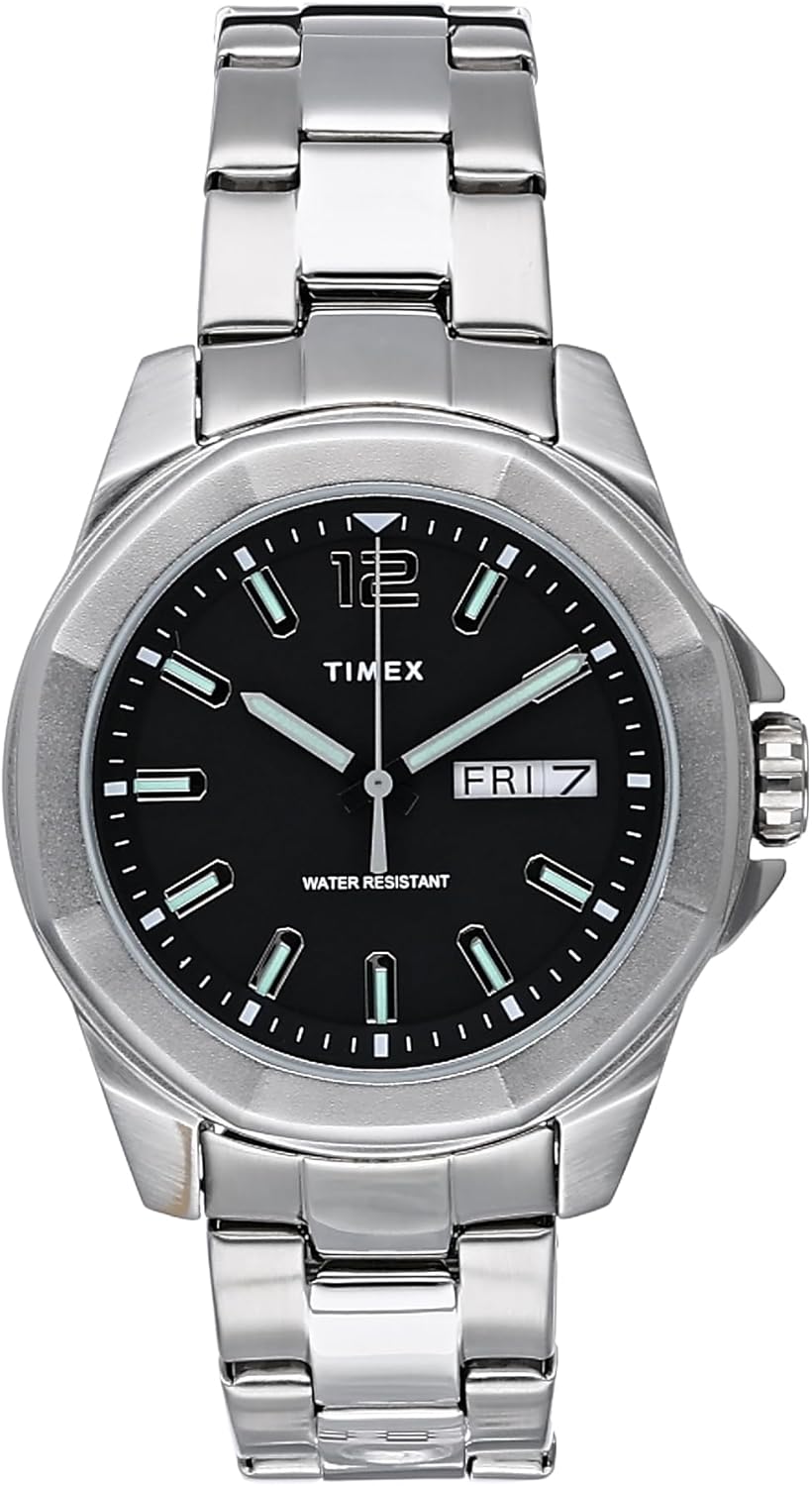

Figure 1: Timex Men's Essex Avenue Day-Date 44mm Quartz Watch (Front View)
Produktegenskaber
- Silver-tone 22mm stainless steel bracelet fits up to 8-inch wrist circumference.
- Black dial with full markers.
- Day & date window at 3 o'clock.
- Silver-tone octagonal 44mm low lead brass case with mineral glass crystal.
- Water resistant to 50m (165 ft): Suitable for short periods of recreational swimming, but not diving or snorkeling.
Opsætning
Indstilling af tid og dato
- Træk kronen: Gently pull the crown (the small knob on the side of the watch case) out to position 2 for setting the date and day, or position 3 for setting the time.
Figure 2: Watch Crown (Side View)
- Setting the Date and Day: I position 2 skal du dreje kronen med eller mod uret for at justere dag og dato. Undgå at indstille datoen mellem kl. 9 og 3, da dette kan forstyrre den automatiske datoændringsmekanisme.
- Indstilling af tid: In position 3, rotate the crown to move the hour and minute hands. Set the time a few minutes ahead, then push the crown back to position 1 (normal operating position) to start the watch.
- Skub kronen tilbage: Once the time and date are set, push the crown fully back into position 1 against the watch case to ensure water resistance and to start the watch movement.
Justering af armbåndet
The stainless steel bracelet may require adjustment for a comfortable fit. This typically involves removing or adding links. It is recommended to have this procedure performed by a qualified jeweler or watch repair professional to prevent damage to the bracelet or watch.
Figure 3: Watch on Wrist (Fit Exampdet)
Betjeningsvejledning
Your Timex Essex Avenue watch is a quartz movement timepiece, powered by a battery. It operates continuously once the crown is pushed in. The day and date will automatically advance at midnight.
Vandmodstand
Dette ur er vandtæt ned til 50 meter (165 fod). Denne klassificering betyder, at uret er egnet til korte perioder med rekreativ svømning. Det er ikke suitable for diving, snorkeling, or high-impact water sports. Avoid operating the crown or pushers when the watch is wet to prevent water ingress.
Opretholdelse
- Rensning: Wipe the watch case and bracelet regularly with a soft, dry cloth to remove dirt and perspiration. For the stainless steel bracelet, a slightly damp en klud kan bruges, efterfulgt af en tør klud.
- Udskiftning af batteri: The quartz movement is powered by a battery. When the watch stops or the second hand begins to jump erratically (indicating low battery), have the battery replaced by a qualified watch technician. This ensures proper sealing for water resistance.
- Undgå ekstreme temperaturer: Do not expose your watch to extreme temperatures (above 60°C / 140°F or below 0°C / 32°F) or sudden temperature changes, as this can affect the movement and battery life.
- Undgå kemikalier: Keep the watch away from solvents, detergents, perfumes, and cosmetic sprays, as these can damage the case, gasket, or bracelet.
- Magnetiske felter: Avoid exposing the watch to strong magnetic fields, which can temporarily affect the accuracy of the quartz movement.
Figure 4: Watch Component Cleaning
Figure 5: Watch Component Inspection
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Uret går ikke eller går periodisk. | Dead battery; Crown not pushed in; Exposure to strong magnetic fields. | Replace battery; Push crown fully in; Move watch away from magnetic sources. If problem persists, consult a technician. |
| Date/Day not changing or changing at wrong time. | Incorrect time setting (AM/PM); Date set during restricted hours. | Advance time by 12 hours if date changes at noon. Avoid setting date between 9 PM and 3 AM. |
| Kondens inde i uret. | Exposure to extreme temperature changes; Compromised water resistance. | Immediately take the watch to a qualified technician for inspection and repair to prevent internal damage. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | TW2U14700 |
| Æske diameter | 44 mm |
| Etui materiale | Messing med lav bly |
| Krystal materiale | Mineralglas |
| Bevægelsestype | Kvarts |
| Vandmodstand | 50 meter (165 fod) |
| Båndmateriale | Rustfrit stål |
| Båndbredde | 22 mm |
| Vægt | 6.08 ounce (ca.) |
Garanti og support
Timex watches are manufactured to high quality standards and are covered by a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Timex webwebsted.
For teknisk support, service eller reservedele, kontakt venligst Timex kundeservice. Kontaktoplysninger kan typisk findes på Timex webwebstedet eller på produktemballagen.
Note: Unauthorized repair or modification of the watch may void the warranty.
