Ezonetronics 9-inch Android Car Stereo with Wireless CarPlay & Android Auto for 2010-2013 Mazda 3

Indledning

This manual provides comprehensive instructions for the Ezonetronics 9-inch Android Car Stereo, featuring wireless CarPlay and Android Auto, designed for 2010-2013 Mazda 3 vehicles. This system offers a 1280x720 touch screen, GPS navigation, Bluetooth connectivity, USB player functionality, 2GB RAM, 32GB ROM, and Mirror Link capabilities. Please read these instructions carefully before installation and operation to ensure proper use and longevity of your device.

Hvad er der i æsken

Pakken indeholder følgende komponenter:

• 1x Ezonetronics 9-inch Android Car Stereo Unit with Install Kit
• 1x netledning
• 1x RCA-kabel
• 1 x GPS antenne
• 2x USB-kabler

Billede: Overview of the Ezonetronics car stereo components, including the main unit, power cables, RCA cables, GPS antenna, and USB cables.

Opsætning og installation

Proper installation is crucial for optimal performance. It is recommended to consult a professional for installation if you are unfamiliar with car audio systems. The following steps provide a general overview:

1. Forberedelse: Sørg for, at køretøjets tænding er slukket, og at batteriet er frakoblet, før du påbegynder elektrisk arbejde.
2. Fjern eksisterende enhed: Carefully remove the factory radio and dashboard trim using appropriate tools to avoid damage.
3. Tilslut ledningsnet: Connect the provided power cord, RCA cable, and USB cables to the corresponding ports on the new Ezonetronics unit and the vehicle's wiring. Ensure all connections are secure.
4. Installer GPS-antenne: Monter GPS-antennen på et sted med frit view af himlen, typisk på instrumentbrættet eller under forruden.
5. Test funktionalitet: Before fully reassembling the dashboard, reconnect the battery and test the unit's basic functions (power, audio, touch screen, etc.).
6. Secure Unit & Reassemble: Once tested, secure the new unit in the dashboard and reassemble all trim pieces.

Video: Detailed installation and introduction for the Ezonetronics car stereo, demonstrating the process of removing the old unit and installing the new one.

Video: Demonstration of central control installation, providing visual guidance for the installation process.

Image: The Ezonetronics 9-inch Android Car Stereo seamlessly integrated into the dashboard of a Mazda 3.

Ledningsdiagram

Refer to the following diagram for proper wiring connections. Ensure each wire is connected to its corresponding function in the vehicle's harness.

Image: A comprehensive wiring diagram illustrating the various connections for the Ezonetronics car stereo, including power, audio inputs/outputs, and peripheral connections.

Video: Guide on car radio connection, detailing how to connect the various wires and harnesses.

Video: Instructions on how to connect the included camera to the car stereo system.

Betjeningsvejledning

Trådløs CarPlay og Android Auto

Connect your smartphone via the original USB cable to enable wireless Apple CarPlay or wired Android Auto. This allows access to navigation, music, calls, and messages through the touch screen or voice commands.

Video: Short preview demonstrating the CarPlay interface and functionality.

Video: Instructions on how to display original car door and A/C information on the radio screen.

Bluetooth & AM/FM/RDS Radio

The unit features Bluetooth 4.0 for hands-free calling and audio streaming. The built-in FM/AM/RDS radio allows you to listen to live traffic, news, and weather updates.

Image: The car stereo screen showing the Bluetooth music interface, indicating active music playback.

Image: The car stereo screen showing the FM radio interface with frequency display and preset station options.

GPS-navigation

Utilize the built-in GPS receiver for navigation. Compatible with popular navigation apps like Waze, Navfree, and Yandex Map (downloadable from the Play Store after connecting to Wi-Fi).

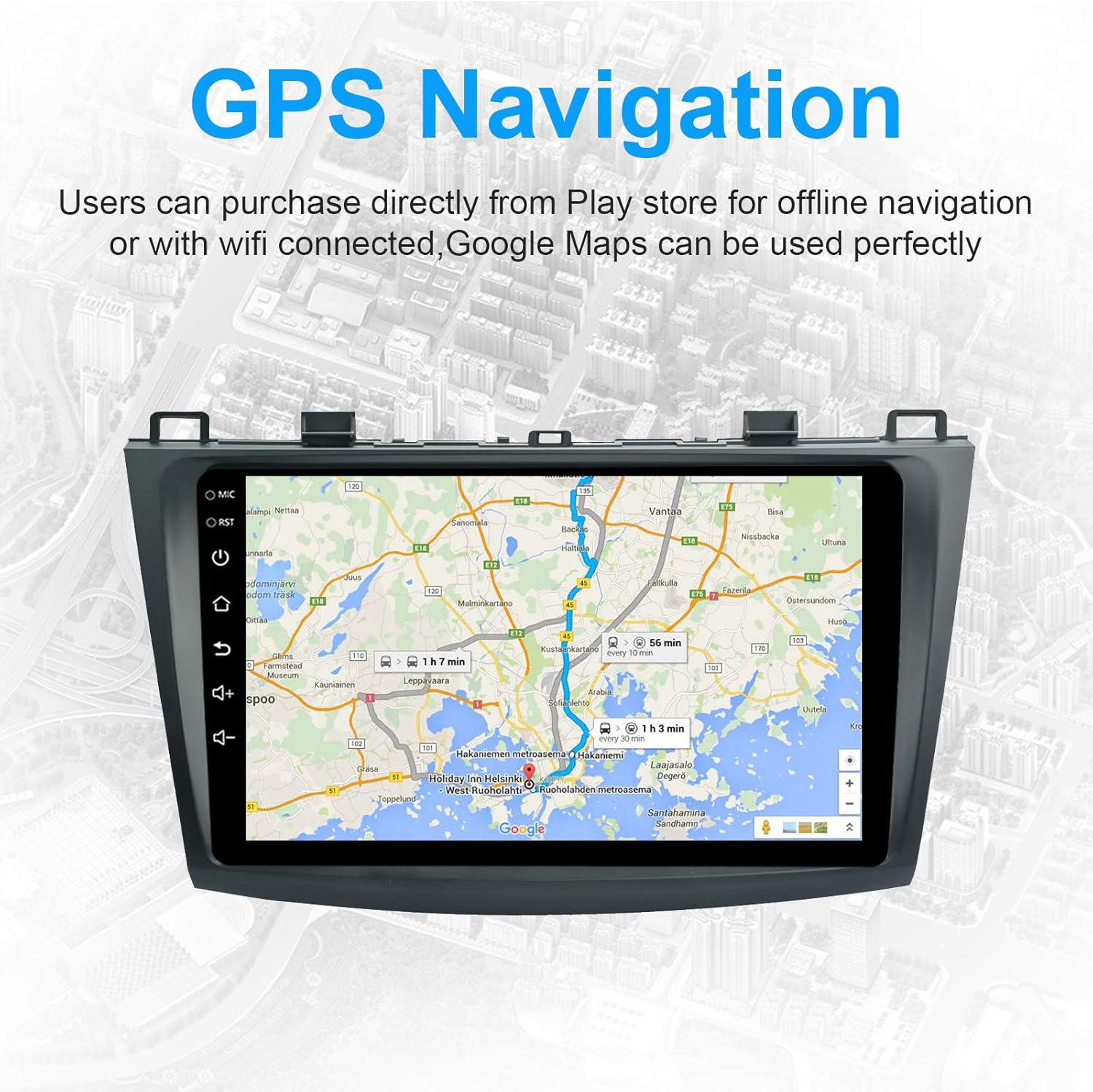

Image: The car stereo screen showing a detailed GPS navigation map with a highlighted route and estimated travel time.

Opdelt skærmfunktion

The Android 10.1 system supports multi-tasking with its split-screen function, allowing you to run two applications simultaneously, such as navigation and music playback.

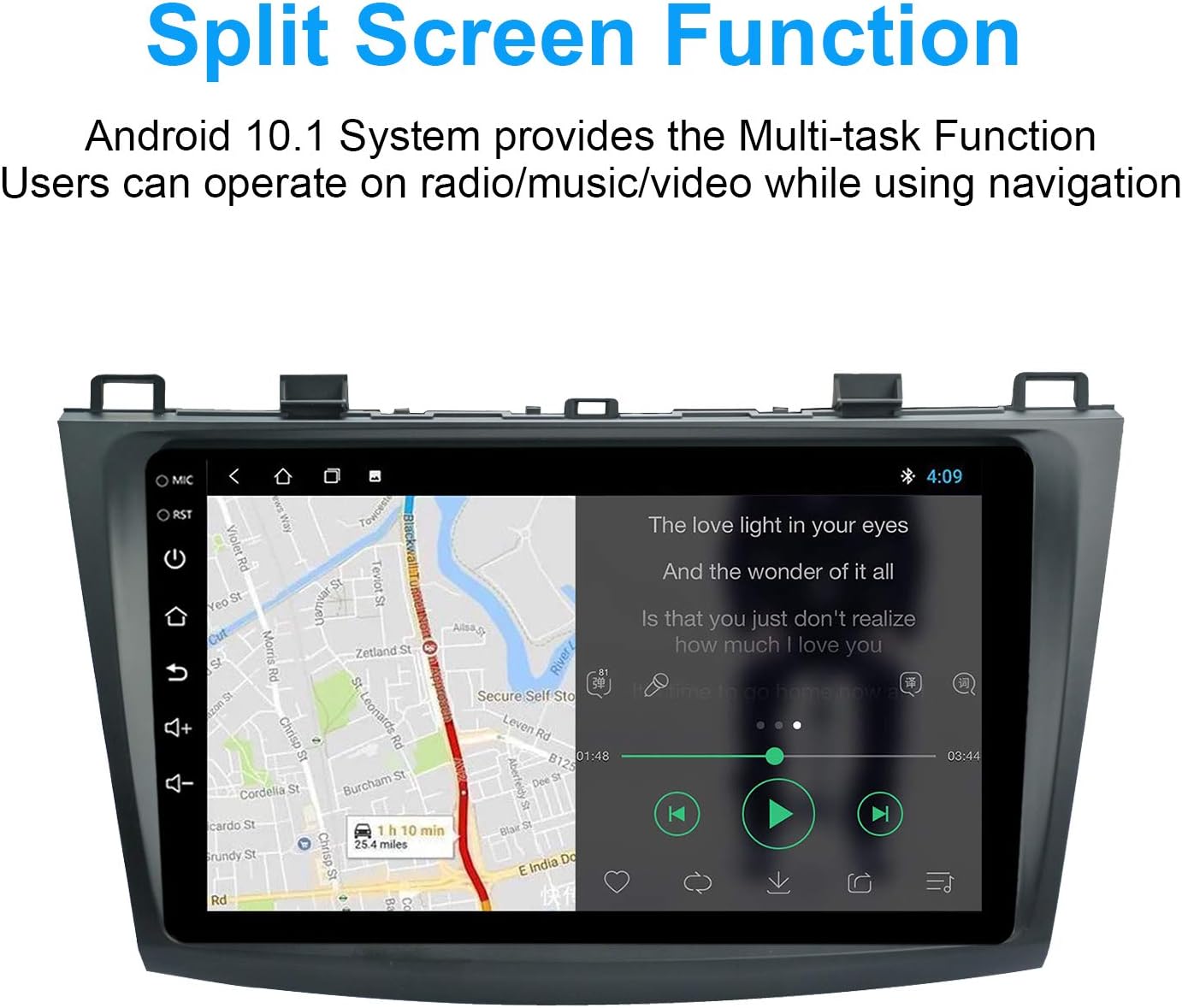

Image: The car stereo screen in split-screen mode, showing a navigation map on one side and a music player on the other.

Mirror Link

Mirror Link allows you to display your smartphone's screen directly on the car stereo. Connect iOS devices via AirPlay mirroring and Android devices via USB cable.

Image: The car stereo screen showing a mirrored display from a smartphone, demonstrating the Mirror Link feature.

Skrivebordsindstillinger

Customize your main page by downloading launchers from the app market after connecting to the internet. Access settings to change the desktop display.

Image: The car stereo screen showing options for customizing the desktop layout and appearance.

Specifikationer

Fejlfinding

If you encounter issues, refer to the troubleshooting section in the full user manual or contact customer support. Common issues may include connectivity problems, audio output issues, or display malfunctions. Ensure all wiring is correctly connected and the device is powered properly.

Garanti & Support

For garantioplysninger og kundesupport henvises til producentens officielle webwebstedet eller kontakt din forhandler. Gem din købskvittering til garantikrav.
