Brugermanual til kommerciel elektrisk 2 cm integreret LED dæmpbar højbay-lys

1. Produktet er slutview

The Commercial Electric 2 ft. Integrated LED Dimmable High Bay Light is designed for illuminating large indoor spaces such as warehouses, industrial facilities, commercial areas, and garages. This high-output LED fixture provides 18,000 lumens of 5000K Daylight illumination, offering an energy-efficient alternative to traditional 400-Watt equivalent lighting. It features a durable post-painted steel and polycarbonate construction, and is suitable for damp locations with ambient temperatures ranging from -40°C to 50°C (-40°F to 122°F).

Key features include multi-volt compatibility (120-277V), 0-10V dimming capability, and multiple mounting options for versatile installation.

Billede 1.1: Forside view of the Commercial Electric 2 ft. Integrated LED Dimmable High Bay Light.

2. Sikkerhedsoplysninger

Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards that could cause personal injury or property damage.

• ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringen eller strømafbryderen før installation eller servicering.
• ADVARSEL: Risk of fire. Use only on circuits specified in the instructions.
• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med alle nationale og lokale el-forskrifter.
• Sørg for, at armaturet er korrekt jordforbundet for at undgå potentielle elektriske farer.
• Do not handle the fixture with wet hands or while standing on wet or damp overflader.
• Do not install near heat sources or in areas with flammable materials.
• Kontroller, at forsyningen voltage is compatible with the fixture's requirements (120-277V).
• Brug passende personlige værnemidler (PPE) såsom sikkerhedsbriller og handsker under installationen.

3. Pakkens indhold

Carefully unpack the fixture and inspect for any damage. Ensure all components are present before proceeding with installation.

• Integrated LED High Bay Light Fixture
• Chain-mount kit
• V hooks
• Instruktionsmanual

4. Installation

This fixture supports Suspension, Surface, and Stem installations. The following instructions detail the general steps for suspension mounting using the included chain-mount kit and V hooks.

4.1 Suspension Mounting (Chain/Cable)

1. Forbered installationsområdet: Ensure power is disconnected at the circuit breaker. Identify suitable structural support for hanging the fixture. The suggested mounting height is 16 ft. to 24 ft. for optimal light distribution.
2. Attach V Hooks: Securely attach the provided V hooks to the designated mounting points on the top of the fixture.
3. Install Chains/Cables: Connect the chain-mount kit or appropriate suspension cables (not included, if using cables) to the V hooks.
4. Secure to Structure: Attach the other end of the chains or cables to the structural support in the ceiling. Ensure the fixture is level and securely suspended.
5. Ledningsføring: Open the wiring compartment on the fixture. Connect the electrical supply wires (Line, Neutral, Ground) to the corresponding wires on the fixture according to local electrical codes. This fixture is multi-volt (120-277V). For dimming functionality, connect 0-10V dimming wires if applicable.
6. Luk rum: Luk dækslet til ledningsrummet forsvarligt.
7. Gendan strøm: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved afbryderen.

Image 4.1: The high bay light prepared for suspension mounting with V hooks and chains.

4.2 Surface and Stem Mounting

For surface or stem mounting, consult the detailed diagrams and instructions provided in the included instruction manual. These methods typically involve securing the fixture directly to a surface or using a rigid stem for support, requiring specific hardware and adherence to structural requirements.

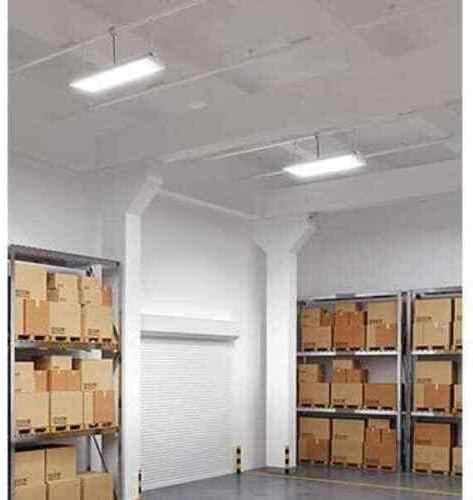

Billede 4.2: Eks.ample of Commercial Electric high bay lights installed in a warehouse setting.

5. Betjeningsvejledning

After successful installation and power restoration, the fixture will illuminate. This LED high bay light is designed for simple operation.

5.1 Tænd/sluk

The light can be turned on or off using the wall switch connected to its power supply circuit.

5.2 Dæmpningsfunktionalitet

This fixture is dimmable using a 0-10V dimmer switch (sold separately). Connect the dimming wires from the fixture to a compatible 0-10V dimmer according to the dimmer's instructions and local electrical codes. The light can also be controlled via an app or remote control, depending on the specific dimmer system integrated.

6. Vedligeholdelse

The Commercial Electric Integrated LED High Bay Light is designed for minimal maintenance.

• Rensning: Ensure power is disconnected before cleaning. Use a soft, dry, or slightly damp cloth to wipe the exterior of the fixture. Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components.
• Ingen pæreudskiftning: This fixture features integrated LED technology, meaning there are no bulbs to replace. The LED components are designed for long-term operation.
• Inspektion: Periodically inspect the fixture and its mounting hardware for any signs of wear, damage, or loose connections. Address any issues promptly.

7. Fejlfinding

If you experience issues with your high bay light, refer to the following common problems and solutions:

• Lyset tænder ikke:
  • Kontroller afbryderen for at sikre, at der er strøm til armaturet.
  • Kontroller, at alle elektriske forbindelser er sikre og korrekt tilsluttede.
  • Sørg for, at vægkontakten er i 'ON'-positionen.
• Lyset flimrer eller dæmpes uventet:
  • Confirm that the dimmer switch (if installed) is compatible with 0-10V LED fixtures.
  • Check for loose wiring connections at the fixture or dimmer switch.
  • Sørg for, at forsyningen voltage is stable and within the specified range (120-277V).
• Utilstrækkelig lysudbytte:
  • Verify the fixture is not connected to an incompatible dimmer or control system.
  • Sørg for, at linsen er ren og fri for blokeringer.

Hvis fejlfindingstrinene ikke løser problemet, skal du kontakte kundesupport for yderligere assistance.

8. Specifikationer

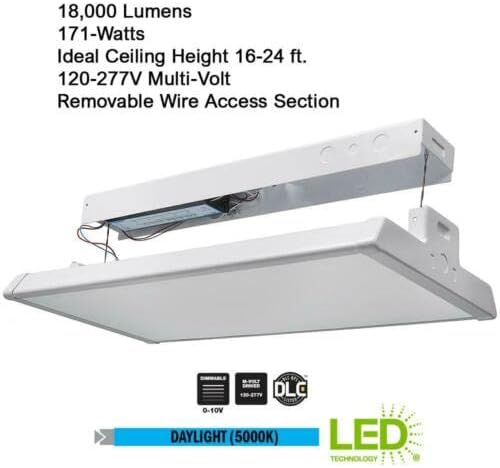

Image 8.1: Key specifications of the high bay light.

9. Garanti og support

This Commercial Electric high bay light comes with a 5 års begrænset garanti, der dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.

For technical assistance, troubleshooting, or warranty inquiries, please contact Commercial Electric customer support. Refer to the product packaging or the official Commercial Electric webhjemmeside for de seneste kontaktoplysninger.

Kundesupport:
Webwebsted: www.commercialelectric.com (EksampLinket)
Phone: 1-800-XXX-XXXX (Examp(nummer)
