Albrecht AE 6199 VOX CB-radio brugermanual

Indledning

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Albrecht AE 6199 VOX CB Radio. The AE 6199 VOX is a 12V CB radio featuring a VOX hands-free function, CTCSS DCS tones, and an S-meter display. Its comfortable ASQ automatic squelch function eliminates the need for manual noise barrier adjustment. The wide-angle LC display ensures excellent readability regardless of installation position.

Hvad er der i æsken

Kontroller venligst indholdet af din pakke for at sikre, at alle varer er til stede:

• AE 6199 VOX CB Radio Unit
• 6-pin Microphone
• DC strømkabel
• Monteringsbeslag
• Mikrofonholder
• Instruktionsmanual

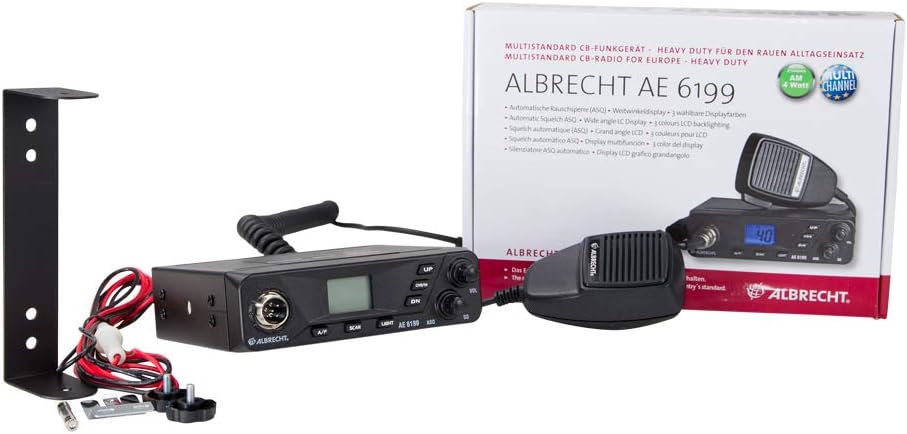

Image: The AE 6199 VOX CB radio, its microphone, power cable, mounting bracket, and microphone holder, displayed alongside its retail packaging.

Opsætning og installation

1. Montering af radioen

The AE 6199 VOX can be installed in various locations within your vehicle, such as under the dashboard or in a console. Use the provided mounting bracket to secure the radio. Ensure the chosen location allows for proper ventilation and easy access to controls.

• Attach the mounting bracket to the desired surface using appropriate screws (not included).
• Slide the CB radio into the bracket and secure it with the provided knobs or screws.
• Mount the microphone holder in a convenient location for easy access during operation.

2. Strømtilslutning

The radio operates on a 12V DC power supply. Connect the supplied DC power cable to the radio's power input and to your vehicle's 12V power source. Ensure correct polarity (red to positive, black to negative) to prevent damage.

3. Antennetilslutning

Connect a suitable CB antenna (not included) to the antenna connector on the rear of the radio. For optimal performance, ensure your antenna is properly tuned.

4. Mikrofontilslutning

Plug the 6-pin microphone into the microphone jack on the front of the radio.

5. Ekstern højttaler (valgfrit)

An external speaker can be connected to the dedicated jack on the rear of the unit for enhanced audio output.

Billede: Side view of the AE 6199 VOX CB radio, highlighting the power cable connection and the antenna port, along with a manufacturer's warranty seal.

Betjeningsvejledning

Familiarize yourself with the controls and functions of your AE 6199 VOX CB Radio.

Billede: Forside view of the AE 6199 VOX CB radio, featuring its digital display showing "40 AM", and various control buttons such as A/F, CTS, SCAN, VOX, SET, ASQ, SQ, UP, CH9/19, DN, LIGHT, and VOL.

Grundlæggende kontroller:

• VOL (lydstyrke): Drej for at justere lydudgangsniveauet.
• SQ (Squelch): Adjusts the squelch level to suppress background noise.
• ASQ (Automatisk squelch): Activates the automatic squelch function, which intelligently suppresses noise without manual adjustment.
• UP/DN Buttons: Used to change channels or navigate menu options.
• CH9/19 Button: Direct access to emergency channel 9 and information channel 19.
• LIGHT -knap: Changes the display backlight color (3 selectable colors).

Avancerede funktioner:

• VOX håndfri funktion:

  The VOX function allows for hands-free communication. When activated, the radio transmits automatically when it detects your voice, eliminating the need to press the PTT (Push-To-Talk) button on the microphone.



  Image: The AE 6199 VOX CB radio with a graphic overlay emphasizing its VOX hands-free communication feature.

• CTCSS (Continuous Tone-Coded Squelch System) / DCS (Digitally Coded Squelch) Tones:

  These tone systems allow you to filter out unwanted conversations and only hear transmissions from users who are using the same CTCSS or DCS tone. The AE 6199 VOX supports 38 CTCSS and 99 DCS tones.
• SCAN-funktion:

  Activates channel scanning, allowing the radio to automatically search for active channels.

• S-Meter Display:

  The LC display includes an S-meter, which indicates the strength of the received signal.

• Datalagring:

  The radio retains its settings and last used channel even after power is disconnected.

Frekvensområder:

The AE 6199 VOX supports various frequency ranges depending on regional settings:

• DE, CZ, SK: 80 FM / 40 AM (4W)
• E (Europe except MT, UK, AT): 40 FM / 40 AM (4W)
• EC (Europe except AT): 40 FM (4W)
• Po (Poland only): 40 FM / 40 AM (4W, -5 kHz offset)
• UK (United Kingdom): 40 UK FM / 40 UK AM (4W only FM - AM FM switching)

Opretholdelse

To ensure the longevity and optimal performance of your AE 6199 VOX CB Radio, follow these simple maintenance guidelines:

• Rensning: Use a soft, dry cloth to clean the exterior of the radio. Avoid using abrasive cleaners or solvents, which can damage the finish or display.
• Miljø: Keep the radio away from extreme temperatures, direct sunlight, and excessive moisture. Ensure proper ventilation around the unit during operation.
• Forbindelser: Periodically check all cable connections (power, antenna, microphone, external speaker) to ensure they are secure and free from corrosion.
• Opbevaring: If storing the radio for an extended period, disconnect it from power and store it in a cool, dry place.

Fejlfinding

If you encounter issues with your AE 6199 VOX CB Radio, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Albrecht customer support or consult a qualified technician.

Tekniske specifikationer

Garanti og support

For detailed warranty information, please refer to the warranty card included with your product or visit the official Albrecht website. For technical support, service, or inquiries about spare parts, please contact Albrecht customer service through their official channels.
