ALPOWL BM800 Kondensatormikrofon Podcastudstyrsmanual

1. Vigtige sikkerhedsoplysninger

• Ensure all connections are secure before operation to prevent damage to equipment or devices.
• Do not expose the sound card or microphone to moisture or extreme temperatures.
• Handle the microphone and stand components with care to avoid physical damage.
• Keep the equipment away from strong electromagnetic fields to prevent interference.
• Use only the provided power cable or a compatible alternative to charge the sound card.

2. Pakkens indhold

The ALPOWL BM800 Condenser Microphone Podcast Equipment Bundle includes the following items:

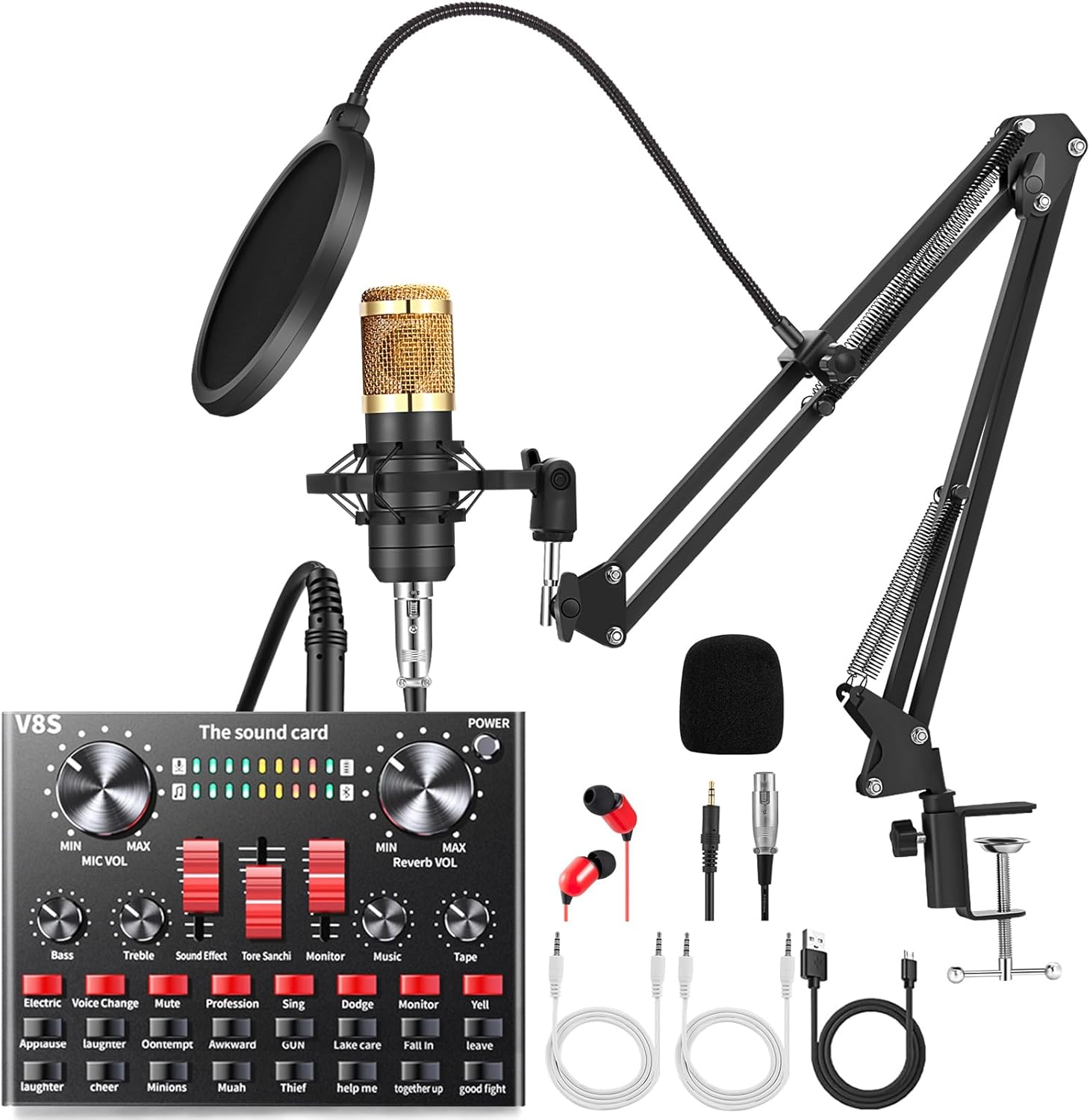

Billede: Overview of the ALPOWL BM800 Condenser Microphone Podcast Equipment Bundle components.

• ALPOWL BM-800 Condenser Microphone
• Shock Mount
• Popfilter
• Justerbar saksarmstativ med ophæng
• Anti-wind skumhætte
• Strømkabel
• ALPOWL Live Sound Card (V8S)
• Høretelefoner
• Audio kabler

3. Opsætningsvejledning

3.1 Assembling the Microphone Stand and Accessories

1. Fastgør skrivebordet Clamp: Fastgør skrivebordet clamp to a sturdy surface, such as a desk or table edge. Tighten the screw until the clamp er solidt på plads.
2. Insert the Scissor Arm Stand: Insert the base of the adjustable suspension scissor arm stand into the hole on the desk clampSørg for, at den sidder sikkert fast.
3. Mount the Shock Mount: Screw the metal shock mount onto the threaded end of the scissor arm stand.
4. Install the Microphone: Gently place the ALPOWL BM-800 condenser microphone into the shock mount. Ensure it is held firmly but without excessive force.
5. Fastgør popfilteret: Clamp the pop filter to the microphone stand or desk, positioning it approximately 2-3 inches in front of the microphone. Adjust the flexible gooseneck to cover the microphone's front.
6. Place the Foam Cap: Slide the anti-wind foam cap over the microphone for additional plosive reduction.

Image: Proper microphone placement with pop filter and foam cap for optimal sound capture.

3.2 Tilslutning af udstyret

Refer to the connection diagram below for proper wiring:

Image: Detailed connection diagram showing how to connect the microphone, sound card, and various devices.

1. Microphone to Sound Card: Connect the microphone cable (XLR to 3.5mm or similar, depending on microphone model) to the 'Capacitor MIC' input on the sound card.
2. Sound Card to Device (Smartphone/Tablet): Use the provided audio cable to connect one of the 'LIVE' ports on the sound card to the 3.5mm headphone jack of your smartphone or tablet. For devices without a 3.5mm jack, an adapter may be required (not included).
3. Sound Card to Computer: Connect the sound card to your computer using the USB charging/data cable. The computer port is typically labeled 'Computer' or 'USB'. This connection provides power and allows the computer to recognize the sound card as an audio device.
4. Headphones/Earphones: Plug your headphones or earphones into the 'Earphone' or 'Headset' jack on the sound card for real-time monitoring.
5. Opladning: Connect the sound card to a power source using the 'Charging' port and the provided USB cable when the battery is low.

4. Betjeningsvejledning

4.1 Sound Card Controls

The V8S sound card features various controls and sound effects to enhance your audio experience:

Image: The ALPOWL V8S sound card interface, highlighting the various sound effects and control knobs.

• MIC Volume Knob: Justerer mikrofonens inputniveau.
• ECHO knap: Controls the echo effect intensity.
• Bass/Treble Sliders: Adjust the low and high frequencies of your voice.
• Sound Effect Sliders: Control the volume of various sound effects.
• Skærmknap: Adjusts the volume of your headphones/earphones.
• Musikknap: Controls the volume of background music input.
• Sound Effects Buttons: Trigger pre-set sound effects such as Applause, Laughter, Cheer, Kiss, etc.
• Voice Change Buttons: Activate various voice modulation effects (e.g., Electric, Voice Change).

4.2 Device Compatibility and Usage

The ALPOWL podcast equipment is compatible with a wide range of devices and applications:

Image: Demonstrates the versatility of the equipment for recording, meetings, video calls, and gaming.

• Mobiltelefoner: Connect via the 'LIVE' port for live streaming, calls, or recording on platforms like TikTok, YouTube, WeChat.
• Computers (Windows, Mac OS): Connect via USB for studio recording, podcasting, video calls, or gaming. The sound card will be recognized as an audio input/output device.
• Gaming Consoles (PS4, Xbox, Switch): Connect for enhanced in-game communication and streaming.
• Ansøgninger: Suitable for various applications requiring high-quality audio input, including recording software, communication apps, and live broadcasting platforms.

5. Vedligeholdelse

• Rensning: Use a soft, dry cloth to clean the microphone and sound card. Avoid liquid cleaners or abrasive materials.
• Opbevaring: When not in use, store the equipment in a dry, dust-free environment. Disassemble the stand and microphone if storing for extended periods.
• Kabelpleje: Undgå at bøje eller klemme kabler for meget for at forhindre indvendig skade.
• Battery Care (Sound Card): For optimal battery life, avoid fully discharging the sound card frequently. Charge it regularly.

6. Fejlfinding

• Ingen lydudgang/-indgang:
  • Check all cable connections to ensure they are secure and plugged into the correct ports.
  • Verify that the microphone and monitor volumes on the sound card are turned up.
  • Ensure the sound card is powered on and charged.
  • On your computer or mobile device, check audio input/output settings to confirm the sound card is selected as the default device.
• Static or Thumping Noise:
  • Sørg for, at alle kabler er helt isat og ikke løse.
  • Try using different audio cables to rule out faulty wiring.
  • Move the equipment away from other electronic devices that might cause interference.
  • Reduce the microphone gain if the noise is a hiss, indicating too high sensitivity.
• Sound Card Not Recognized by Computer:
  • Ensure the USB cable is connected to the 'Computer' port on the sound card and a functional USB port on your computer.
  • Prøv en anden USB-port eller et andet kabel.
  • Genstart din computer.
  • Check your computer's Device Manager (Windows) or System Information (Mac) to see if the sound card is listed.
• Echo or Delay in Audio:
  • Adjust the 'ECHO' knob on the sound card to reduce or eliminate the effect.
  • If experiencing a delay, ensure your monitoring setup does not create a feedback loop.

7. Specifikationer

8. Garanti og support

ALPOWL offers a 45-day replacement or refund policy for faulty products. For any queries or issues, please contact ALPOWL customer support. Refer to the product packaging or the official ALPOWL webwebstedet for de seneste garantioplysninger og kontaktoplysninger.
