HiQuick C9026/C9027

HiQuick C9026/C9027 Batterioplader Brugermanual

Model: C9026, C9027

Mærke: HiQuick

Indledning

Welcome to the user manual for your HiQuick C9026/C9027 Battery Charger. This intelligent charger is designed to efficiently and safely charge your AA and AAA NiMH/NiCd rechargeable batteries. Please read this manual thoroughly before use to ensure optimal performance and safety.

Produktegenskaber

  • Fast Battery Charger: HiQuick 8 Bay Battery Charger is more quick in Charging rate compared with other brands battery charger. It only takes 1.2h to charge 2pcs 1100mAh AAA rechargeable batteries and 1.6h to charge 2pcs 2800mAh AA rechargeable batteries.
  • Independent Slot Design: HiQuick smart AA AAA battery charger offers 8 channels allowing you to charge any combination of AA/AAA NIMH/NICD rechargeable cells, not necessarily must even in pairs.
  • Smart LCD-skærm: Each independent charging slot has its own indicator that you'll know when the batteries are 100% charged. They will blink during charging and stop when finished.
  • Intelligent USB Charging: Freely charge anytime, anywhere, suitable for all kinds of USB interface input voltage, convenient and fast. The 2 Input port ports should not be used at the same time.
  • Unique Charging Mode: This charger adopts -DV control technology, constant voltage and constant current, effectively improve battery life and prevent accidental damage. Let you and your family use it safely.

Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

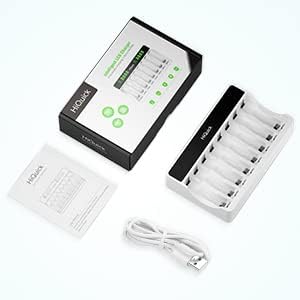

HiQuick battery charger, USB cable, and user manual laid out next to the product box.

Image: Contents of the HiQuick Battery Charger package.

  • 1 x HiQuick 8-Bay Battery Charger
  • 1 x USB ladekabel
  • 1 x brugermanual

Opsætning

Strømtilslutning

Connect the provided USB cable to either the Type-C or Micro USB input port on the charger. Connect the other end to a 5V/2A USB power adapter (not included) or a compatible USB port.

Close-up of the HiQuick charger showing both Type-C and Micro USB input ports with cables connected.

Image: The HiQuick charger highlighting its dual USB input options (Type-C and Micro USB).

Note: The two input ports should not be used simultaneously.

Betjeningsvejledning

Isætning af batterier

Insert AA or AAA NiMH/NiCd rechargeable batteries into the charging slots. Ensure correct polarity (+ and -) as indicated on the charger. The charger supports charging any combination of 1 to 8 batteries, including mixed AA and AAA sizes.

HiQuick charger with various AA and AAA batteries inserted and laid out, demonstrating individual charging capability.

Image: The HiQuick charger demonstrating its ability to charge individual AA and AAA batteries simultaneously.

Opladningsproces

Once batteries are inserted correctly and power is connected, the LCD display for each slot will show the charging status.

HiQuick charger with batteries charging, showing quick charge times for different battery capacities.

Image: The HiQuick charger illustrating its high current mode and quick charging technology.

The charger employs high current mode and quick charging technology for efficient charging. For example, 2pcs 1100mAh AAA batteries can be charged in approximately 1.2 hours, and 2pcs 2800mAh AA batteries in about 1.6 hours.

Intelligent LCD-skærm

The charger features a smart LCD display for each independent charging slot, providing real-time status updates.

Close-up of the HiQuick charger's LCD screen showing different status indicators: CHG, FULL, ERR.

Image: The HiQuick charger's intelligent LCD screen displaying charging status.

IndikatorStatus
CHGCharging (segments blinking)
FULDFully Charged (segments solid)
ERRError / Incompatible Battery (blinking "ERR")

Flere beskyttelsesfunktioner

Your HiQuick charger is equipped with multiple safety protections to ensure safe and reliable operation.

Icons representing various protection features: Over Charge, Over Current, Over Voltage, Over Heat, Short Circuit.

Image: Visual representation of the multiple protection features of the HiQuick charger.

Opretholdelse

Fejlfinding

"ERR" displayed on LCD

This indicates an incompatible battery or a faulty battery.

Batterier oplades ikke

Specifikationer

FeatureDetalje
MærkeHiQuick
ModelC9026/C9027
Input bindtage5 volt
Udgang Voltage5 volt
Nuværende vurdering2 Amps
BattericellesammensætningNiMH, NiCd
Produktdimensioner14 x 9 x 3.5 cm
Varens vægt101 g
OpladningstidVaries by battery capacity (e.g., 1.2h for 2x1100mAh AAA, 1.6h for 2x2800mAh AA)

Garanti og support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official HiQuick webwebsted.
