Produkt overview
Bring affordable family fun and relaxation to any backyard with the Active Frame Above-Ground Swimming Pool. This quick assembly pool is constructed from heavy-gauge PVC that is reinforced with an inner layer of polyester fabric and supported by a sturdy, metal frame for superior durability. The EZ Clean 200 filtration system comes with CottonTail filter media already in the tank, but also accommodates a type C filter cartridge if preferred.
Figure 1: Blue Wave NB19790 15-ft Round 48-in Deep Active Frame Above Ground Swimming Pool.
Inkluderede komponenter
The Active Frame Pool comes with everything needed for you and your family to start swimming immediately. The package includes:
- Poolafdækning
- Ladder (A-frame ladder)
- Filter Pump (EZ Clean 200 filtration system)
- Skimmer
- Vacuum Head and Hose
- Instruktionsmanual
- CottonTail filter media
Figure 2: Family enjoying the Blue Wave NB19790 pool, demonstrating its recreational use.
Opsætningsinstruktioner
Setting up your Blue Wave Active Frame Pool is designed to be straightforward. Follow these steps for a quick and easy assembly:
- Forbered jorden: Ensure the chosen area for the pool is completely level and free of debris. This is crucial for the stability and longevity of the pool.
- Spread the Liner: Carefully spread out the heavy-gauge PVC liner on the prepared level ground.
- Saml metalrammen: Follow the detailed instructions provided in the included instruction manual to assemble the sturdy metal frame. The steel pipes provide robust support.
- Fyld med vand: Once the frame and liner are securely in place, begin filling the pool with water.
- Installer filtreringssystem: Connect the EZ Clean 200 filtration system as per the manual's instructions. This system helps maintain water clarity.
For first-time setup, assembly typically takes approximately two hours. The design ensures a sturdy structure once assembled and filled.
Operating the Filtration System
The EZ Clean 200 filtration system is integral to keeping your pool water clean. It comes pre-loaded with CottonTail filter media, but is also compatible with a Type C filter cartridge if preferred.
- Filteradgang: To access the filter, slide back the cover of the filtration unit.
- Operation: Ensure the pump is connected to a power source and operating during recommended hours to circulate and filter the pool water.
- Vandflow: The system is designed to efficiently draw water from the pool, filter it, and return clean water, maintaining optimal water quality.

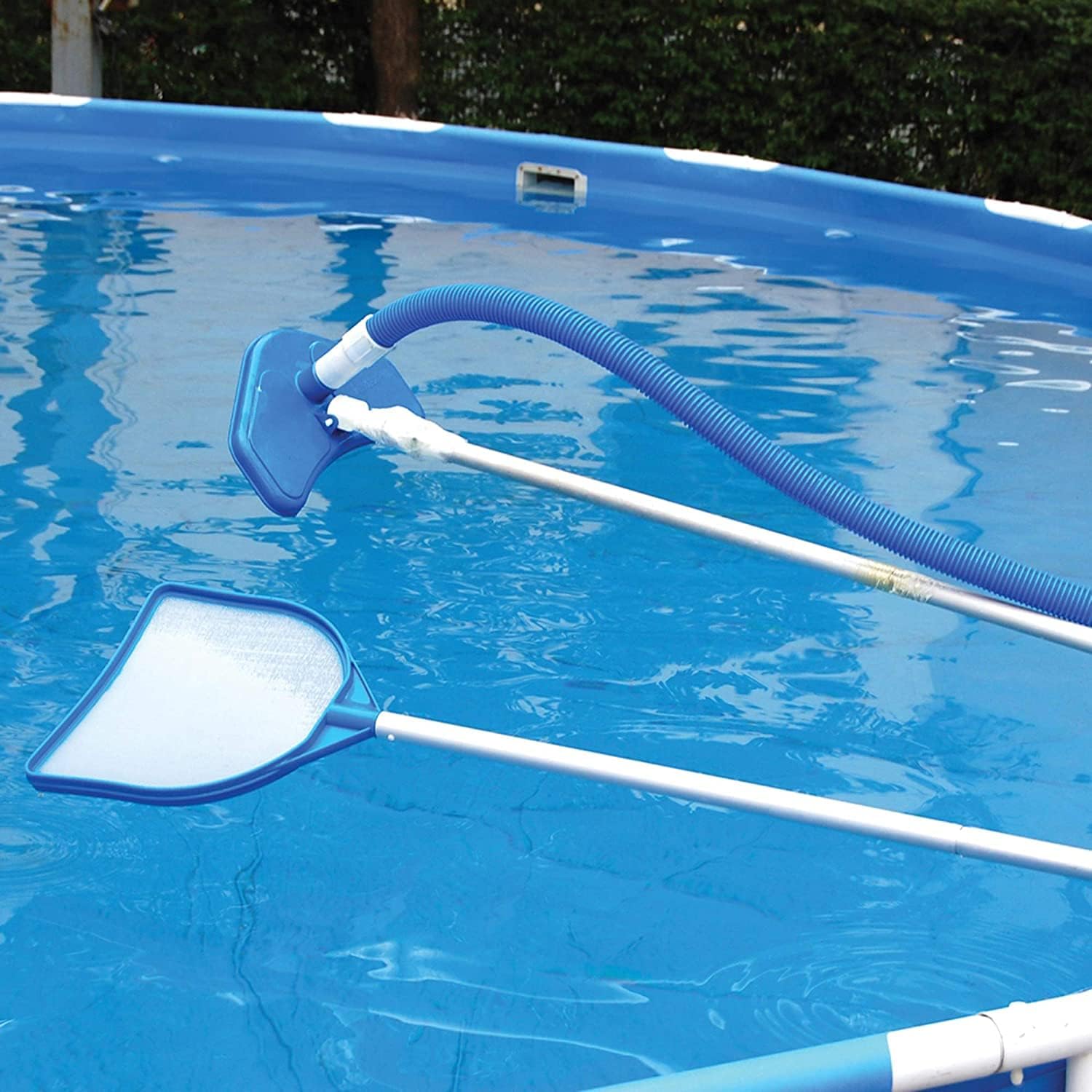

Figure 3: Essential cleaning tools, including a skimmer and vacuum head, for maintaining pool cleanliness.
Opretholdelse
Regular maintenance is key to prolonging the life of your pool and ensuring clean, safe swimming conditions. The included maintenance kit provides essential tools.
- Rengøring/udskiftning af filter: Regularly check and clean the CottonTail filter media or replace the Type C filter cartridge as needed. This prevents debris buildup and ensures efficient filtration.
- Vandkemi: Test pool water regularly and adjust chemical levels (pH, chlorine, alkalinity) according to standard pool maintenance guidelines.
- Fjernelse af affald: Use the included skimmer and vacuum head to remove leaves, insects, and other debris from the water surface and bottom.
- Pooloverdækning: Utilize the matching pool cover (Figure 4) when the pool is not in use to prevent debris accumulation and reduce water evaporation.
- Inspektion af foring: Periodically inspect the heavy-gauge PVC liner for any signs of wear, punctures, or leaks. Address any issues promptly to prevent further damage.
- Rammeinspektion: Check the metal frame for stability and ensure all connections are secure.
Figure 4: The Blue Wave NB19790 pool with its protective grey cover installed, ideal for keeping debris out.
Fejlfinding
This section addresses common issues you might encounter with your Blue Wave Active Frame Pool.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Vandlækage | Punctures in liner, loose connections, seam issues. | Inspect liner for holes and use a patch kit. Ensure all hose connections to the filter pump are tight. Check seams for integrity. |
| Overskyet vand | Utilstrækkelig filtrering, ukorrekt kemisk balance, høj mængde snavs. | Clean or replace filter media. Test and adjust water chemistry (chlorine, pH). Skim and vacuum pool regularly. Run filter longer. |
| Pumpe fungerer ikke | Power supply issue, clogged impeller, faulty unit. | Check power connection and circuit breaker. Clear any debris from the pump impeller. If issues persist, contact customer support. |
| Stelustabilitet | Ujævnt terræn, løse rammeforbindelser. | Ensure pool is on completely level ground before filling. Re-check all frame connections and ensure they are securely fastened. |
Produktspecifikationer
| Feature | Detalje |
|---|---|
| Mærke | Blå Bølge |
| Modelnummer | NB19790 |
| Pool størrelse | 15-ft Round, 48-in Deep |
| Produktdimensioner | 180 cm L x 180 cm B x 48 cm H |
| Form | Rund |
| Farve | Blå |
| Materiale | Polyvinyl Chloride (PVC), Resin, Metal |
| Varens vægt | 146.7 pund |
| Montering påkrævet | Ja |
| Indendørs/Udendørs brug | Udendørs |
Garantioplysninger
Your Blue Wave NB19790 Active Frame Above Ground Swimming Pool is backed by a 90 dages begrænset garanti. This warranty ensures that the product will arrive damage-free with all necessary parts and accessories. Please retain your proof of purchase for any warranty claims.
Support og kontakt
For further assistance, technical support, or warranty claims, please contact Blue Wave Products customer service. You can also refer to the official User Manual PDF for more detailed information.
- Officiel brugermanual (PDF): Download her
- Blue Wave Store: Visit Blue Wave Store on Amazon
