Beghelli Dom-e Wi-Fi Full HD Pan/Tip-overvågningskamera Brugsanvisning

1. Introduktion

This instruction manual provides detailed guidance for the installation, operation, and maintenance of your Beghelli Dom-e Wi-Fi Full HD Pan/Tilt Surveillance Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety. Keep this manual for future reference.

Figure 1: Beghelli Dom-e Wi-Fi Full HD Pan/Tilt Surveillance Camera.

2. Produktet er slutview

The Beghelli Dom-e Wi-Fi Camera is a versatile surveillance device designed for indoor use, offering Full HD 1080p resolution and comprehensive monitoring capabilities. It integrates seamlessly into your smart home system via the Dom-e Beghelli application.

Nøglefunktioner:

• Full HD 1080p opløsning: Giver klar og detaljeret videofootage.
• Panorerings- og vippefunktion: Motorized rotation of 355° horizontally and 85° vertically, controllable via the app.
• Nattesyn: Equipped with IR LEDs for clear visibility up to 10 meters in low-light conditions.
• Bevægelsesdetektion: Sends real-time push notifications to your smartphone upon detecting movement, including specific person detection.
• Automatisk sporing: The "Tracking" function enables the camera to automatically follow moving subjects.
• Tovejs lyd: Built-in microphone and speaker allow for hands-free communication.
• Flexible Recording Options: Record directly to your smartphone, to a MicroSD card (up to 128GB, not included), or via optional cloud storage.
• Wi-Fi-forbindelse: Connects to your home Wi-Fi network (2.4 GHz).
• Datakryptering: Ensures the security of your video data.

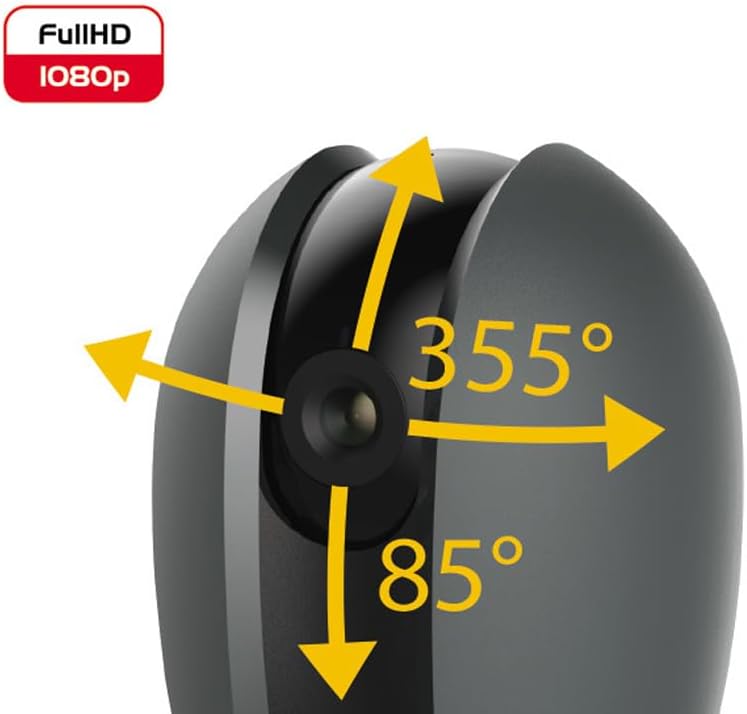

Figure 2: Camera's pan and tilt capabilities.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Beghelli Dom-e Wi-Fi Full HD Pan/Tilt Surveillance Camera
• USB Power Adapter (230V – DC 5V/1A)
• Mounting accessories (if included, not explicitly listed but implied by "wall or ceiling installation")
• Instruktionsmanual (dette dokument)

Figure 3: Product packaging for the Beghelli Dom-e Camera.

4. Opsætning

4.1 Tænd/sluk kameraet

1. Connect the provided USB power adapter to the camera's power input.
2. Plug the adapter into a standard 230V power outlet. The camera will power on and initiate its startup sequence.

4.2 Mobile Application Installation

The Beghelli Dom-e camera is controlled via the dedicated "Dom-e Beghelli" mobile application.

1. Download the "Dom-e Beghelli" app from the Apple App Store (for iOS 8.0 or later) or Google Play Store (for Android 4.2 or later).
2. Installer applikationen på din smartphone eller tablet.
3. Opret en ny konto, eller log ind, hvis du allerede har en.

4.3 Connecting to Wi-Fi and Pairing

Ensure your Wi-Fi network is 2.4 GHz (IEEE802.11 b/g/n). The camera does not support 5 GHz networks.

1. Open the Dom-e Beghelli app and follow the on-screen instructions to add a new device.
2. Select the Beghelli Dom-e camera from the list of available devices.
3. Enter your Wi-Fi network name (SSID) and password when prompted.
4. The app will guide you through the pairing process, which typically involves scanning a QR code displayed on your phone with the camera, or listening for an audio prompt.
5. Once successfully paired, the camera's status indicator will change, and you will see the live feed in the app.

Figure 4: Simplified setup steps via the Dom-e Beghelli app.

4.4 Montering af kameraet

The camera can be installed on a wall or ceiling. Choose a location that provides the desired viewing angle and is within range of your Wi-Fi network and a power outlet.

1. Mark the drilling points on the desired surface using the mounting template (if provided).
2. Bor huller og isæt vægdyvler om nødvendigt.
3. Secure the mounting bracket (if provided) to the surface.
4. Fastgør kameraet til monteringsbeslaget.
5. Adjust the camera's angle manually or via the app after installation.

5. Betjeningsvejledning

5.1 Live View og panorering/tilt-kontrol

• Open the Dom-e Beghelli app and select your camera to view det levende feed.
• Use the directional controls within the app to pan the camera horizontally (355°) and tilt it vertically (85°) to adjust the viewing område.

5.2 Bevægelsesdetektion og notifikationer

• Navigate to the camera settings in the app to enable motion detection.
• Configure sensitivity levels and detection zones as needed.
• Enable push notifications to receive alerts on your smartphone when motion is detected.
• The camera also features person detection for more accurate alerts.

5.3 Tovejslyd

• Mens viewing the live feed, tap the microphone icon in the app to speak through the camera's speaker.
• The camera's built-in microphone will capture audio from the monitored area, allowing you to listen in.

5.4 Optagelse og opbevaring

• MicroSD Card Recording: Insert a MicroSD card (up to 128GB, not included) into the camera's slot for continuous recording or event-triggered recording.
• Smartphone Recording: You can manually record video clips directly to your smartphone while viewlive-feedet.
• Cloud Storage: An optional cloud storage service is available via subscription for off-site video backup. Refer to the app for details.
• Planlagt optagelse: Set up specific times for the camera to record automatically through the app settings.

5.5 Nattesyn

The camera automatically switches to night vision mode in low-light conditions, utilizing its IR LEDs to provide clear black-and-white footagop til 10 meter.

6. Mobile Application (Dom-e Beghelli App)

The Dom-e Beghelli app is the central control interface for your camera and other compatible smart home devices. It allows for:

• Remote control of camera pan and tilt.
• Access to live video feed and recorded footage.
• Configuration of motion detection, notifications, and recording schedules.
• To-vejs lydkommunikation.
• Integration with other Dom-e smart home devices (e.g., alarms, smart plugs, lighting).
• Voice control compatibility with Google Assistant and Amazon Alexa (if associated with a compatible smartphone).

Figure 5: The Dom-e Beghelli app interface for camera control.

7. Specifikationer

Note: Some dimensions may vary slightly between product description and specifications list.

8. Vedligeholdelse

8.1 Rengøring

• Sørg for, at kameraet er slukket og taget ud af stikket, inden rengøring.
• Brug en blød, tør klud til at tørre kamerahuset af.
• Brug en specialklud til rengøring af linser for at undgå ridser.
• Do not use liquid cleaners, aerosols, or abrasive solvents.

8.2 Softwareopdateringer

Periodically check the Dom-e Beghelli app for firmware updates. Keeping your camera's firmware updated ensures optimal performance, security, and access to new features.

9. Fejlfinding

10. Garanti og support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Beghelli customer service directly. You can typically find contact details on the Beghelli official website or within the Dom-e Beghelli application.

Manufacturer: Beghelli

Model: 60021
