1. Introduktion
Thank you for choosing the GEARSTONE CS-07 2-in-1 Foldable Treadmill. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and retain it for future reference.
The GEARSTONE CS-07 is designed for home use, offering both walking and running modes with a powerful 2 HP motor and a speed range of 1-15 km/h. Its foldable design allows for convenient storage, making it ideal for various living spaces.
2. Vigtige sikkerhedsinstruktioner
To reduce the risk of serious injury, read all instructions before using the GEARSTONE CS-07 treadmill. Keep these instructions in a safe place for future reference.
- Always place the treadmill on a level surface.
- Ensure adequate clear space around the treadmill (at least 2 meters behind and 0.6 meters on each side).
- Hold børn og kæledyr væk fra løbebåndet under drift.
- Always attach the safety key clip to your clothing before starting the treadmill. The treadmill will stop if the safety key is disengaged.
- Brug ikke løbebåndet, hvis ledningen eller stikket er beskadiget, eller hvis det ikke fungerer korrekt.
- Brug passende sportsfodtøj og -sko.
- Maximum user weight capacity is 120 kg.
- Kontakt en læge, før du starter et træningsprogram.
3. Opsætning og montering
The GEARSTONE CS-07 treadmill comes largely pre-assembled. Follow these steps for final setup:
- Udpakning: Tag forsigtigt løbebåndet ud af emballagen. Gem emballagematerialet til eventuel fremtidig transport eller opbevaring.
- Placering: Place the treadmill on a flat, stable surface. Ensure there is sufficient space around the unit for safe operation.

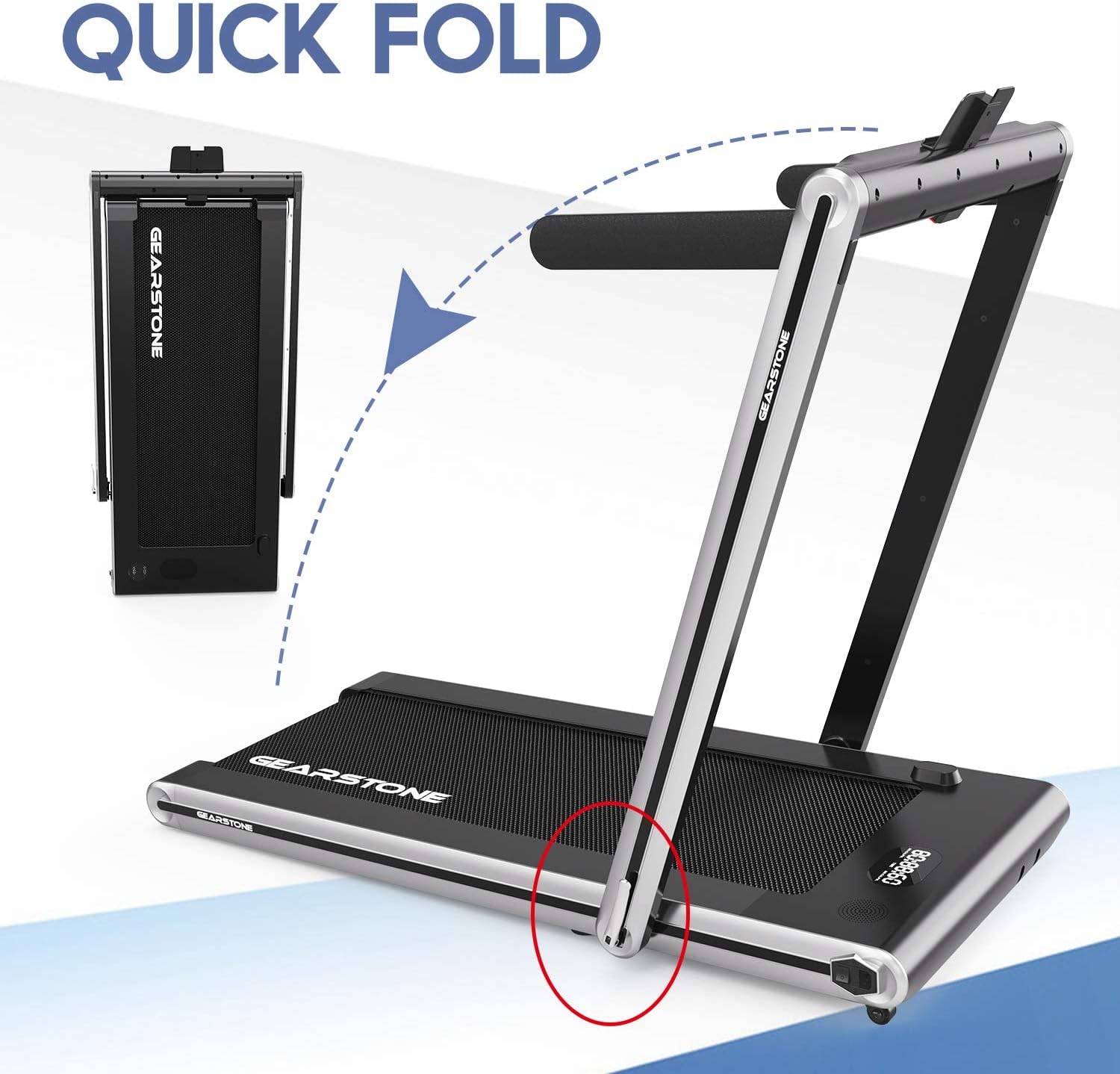

- Unfolding (if applicable): If the treadmill is in its folded state, gently lower the running deck until it locks into position. Raise the handlebar assembly if it is folded down.
- Styrsamling: Secure the handlebar supports and tighten any pre-installed screws as indicated in the diagram.
- Strømtilslutning: Sæt netledningen i en jordet stikkontakt.
4. Betjeningsvejledning

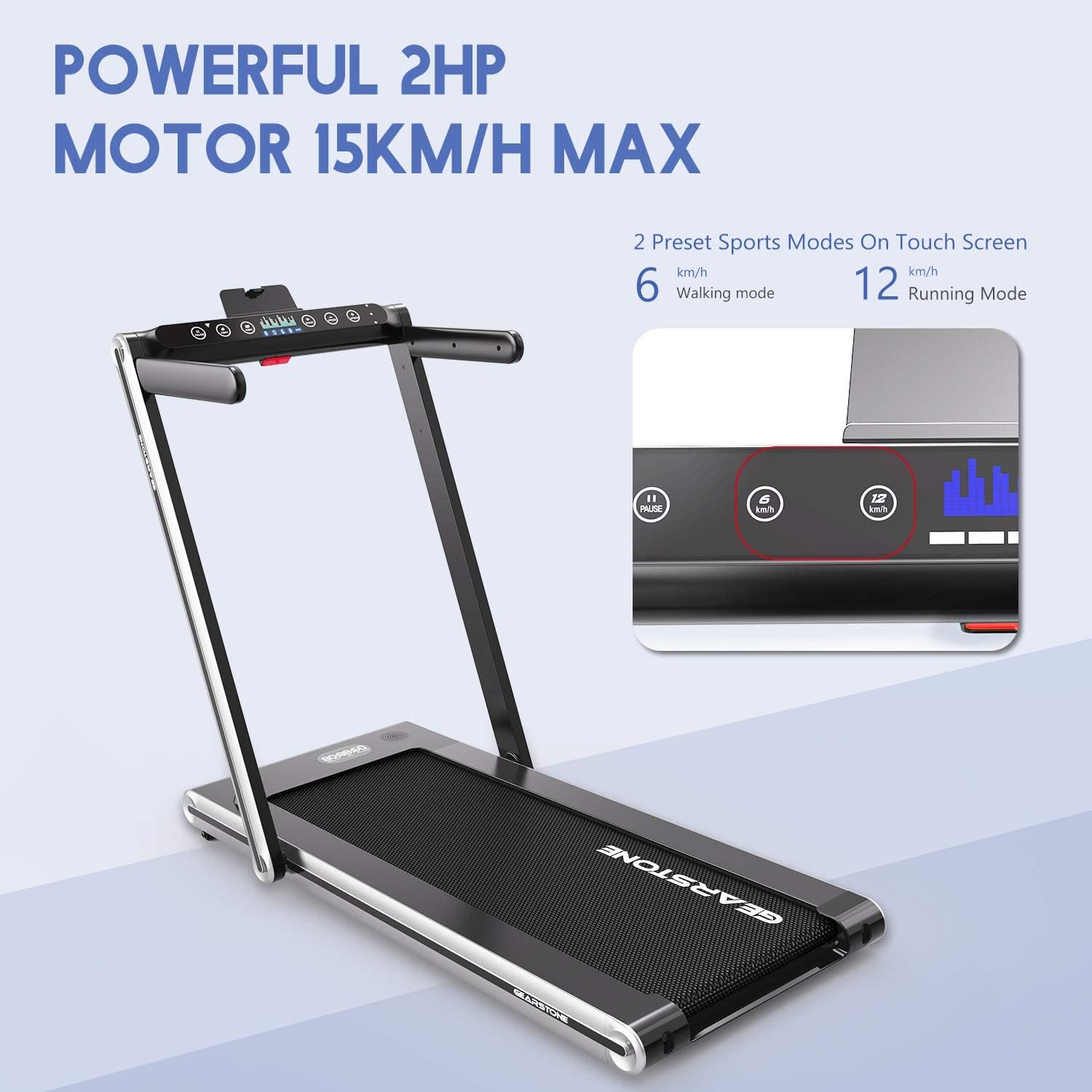

4.1 Kontrolpanel overview
The control panel features a double screen display and touch controls for easy operation.
4.2 Starting an Exercise Session
- Sikkerhedsnøgle: Ensure the safety key is properly inserted into the console and the clip is attached to your clothing. The treadmill will not start without the safety key.
- Tænd: Tryk på tænd/sluk-knappen på kontrolpanelet. Displayet lyser op.
- Vælg tilstand:
- Gåtilstand: With the handlebars folded down, the treadmill operates in walking mode (1-4 km/h).
- Løbstilstand: With the handlebars raised, the treadmill operates in running mode (1-15 km/h).
- Juster hastighed: Use the speed adjustment buttons (usually '+' and '-') to increase or decrease the belt speed. You can also use the preset speed buttons (e.g., 6 km/h for walking, 12 km/h for running) for quick adjustments.
- Begin Exercise: Step onto the running belt and begin your workout.
4.3 Stopping the Treadmill
- Press the 'STOP' button on the control panel.
- Alternatively, pull the safety key from the console to initiate an emergency stop.
4.4 Bluetooth-forbindelse
The treadmill features integrated Bluetooth for connecting to compatible devices, allowing for music playback or app integration (if supported by the manufacturer).
- Aktiver Bluetooth på din smartphone eller tablet.
- Søg efter available devices and select "GEARSTONE CS-07" (or similar name).
- Once paired, you can stream audio through the treadmill's speakers (if equipped) or connect to fitness apps.
5. Vedligeholdelse
Regular maintenance ensures the longevity and safe operation of your treadmill.
5.1 Rengøring
- Tag altid stikket ud af løbebåndet før rengøring.
- Tør konsollen og de udvendige overflader af med enamp klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
- Støvsug regelmæssigt under løbebåndet for at forhindre ophobning af støv og snavs.
5.2 Smøring af rem
The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the specific instructions provided with your lubricant or contact customer support for guidance. Typically, lubrication is recommended every 3-6 months depending on usage.
5.3 Bæltejustering
If the running belt becomes off-center or slips, it may require adjustment. Use the provided Allen wrench to turn the rear roller bolts in small increments (quarter turns) until the belt is centered and tensioned correctly. Refer to the detailed diagrams in the full manual for precise adjustment points.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Løbebåndet starter ikke. | Netledningen er ikke sat i; Sikkerhedsnøgle er ikke isat; Strømafbryder er slukket. | Check power connection; Ensure safety key is fully inserted; Turn on the power switch. |
| Løbebånd glider. | Belt tension too loose; Belt requires lubrication. | Adjust belt tension (refer to Section 5.3); Lubricate the running belt (refer to Section 5.2). |
| Usædvanlig støj under drift. | Loose components; Belt friction; Motor issue. | Check and tighten all visible bolts and screws; Lubricate the belt; If noise persists, contact customer support. |
| Error Code E-07. | Safety key not connected. | Ensure the red magnetic safety key is properly connected to the console. |
| Error Code E-05. | Overload or motor protection activated. | Reduce user weight if exceeding 120kg; Allow treadmill to cool down; If persistent, contact customer support. |
7. Produktspecifikationer
- Model: GEARSTONE CS-07
- Motoreffekt: 2 HP (Horsepower)
- Hastighedsområde: 1-15 km/t
- Forudindstillede tilstande: 2 (Walking, Running)
- Skærmtype: LCD, Double Screen
- Kontrollere: Tryk på kontrol
- Forbindelse: Integreret Bluetooth
- Rammemateriale: Legeret stål
- Maksimal vægtkapacitet: 120 kg
- Funktioner: Foldable, Shock Absorption, Wear-Resistant, Non-Slip, Quiet Glide Technology
- Strømkilde: El-kabel
- Inkluderede komponenter: Løbebånd
- Dimensioner (pakke): 120 x 80 x 20 cm
- Vægt (pakke): 21 kg
8. Garanti og support
GEARSTONE products are manufactured to high-quality standards. For warranty information, technical support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official GEARSTONE website. Please have your model number (CS-07) and purchase date available when contacting support.
Kontaktoplysninger: Se venligst din købsdokumentation eller producentens website for the most current contact details for customer service.
