Peg Perego Selfie Stroller Instruction Manual

1. Introduktion

The Peg Perego Selfie stroller is designed for convenience and ease of use, offering a self-folding, lightweight, and compact solution for parents. Suitable from birth, this stroller provides freedom with its quick and easy self-closing feature. It can be steered, folded, and opened with one hand, simplifying travel with children. The stroller is also compatible with Primo Viaggio 4-35 infant car seats (sold separately) to create a complete travel system. Its design incorporates ball-bearing shock absorbers, swivel wheels, and front and rear suspension systems for a smooth ride.

Nøglefunktioner:

• Lightweight and compact self-closing design.
• Suitable for children from birth up to 48 lbs with a 150-degree reclining backrest.
• Travel system compatible with Primo Viaggio 4-35 Nido or Primo Viaggio 4-35 Lounge infant car seats (adapter sold separately).
• Equipped with ball-bearing wheels and suspension for smooth maneuverability.
• Sleek eco-leather handlebar for comfortable one-hand guiding.
• Spacious storage basket.
• Expandable hood with UPF 50+ protection and a peek-a-boo window.
• Bumper bar doubles as a carrying handle when the stroller is folded.

2. Sikkerhedsoplysninger

Always prioritize your child's safety. Read and understand all instructions before using the stroller. Failure to follow these instructions could result in serious injury or death.

• ADVARSEL: Efterlad aldrig dit barn uden opsyn i klapvognen.
• Always use the 5-point harness system to secure your child. Ensure straps are adjusted snugly.
• Aktiver bremserne, når barnevognen holder stille.
• Do not overload the storage basket or hang bags on the handlebar, as this can cause the stroller to tip.
• Sørg for, at klapvognen er helt åben og låst, før du placerer et barn i den.
• The maximum weight capacity for this stroller is 48 pounds. Do not exceed this limit.
• Hold børn væk fra bevægelige dele, når du klapper barnevognen sammen eller ud.
• Do not use accessories or replacement parts other than those approved by Peg Perego.

3. Opsætning og montering

The Peg Perego Selfie stroller comes largely pre-assembled. Follow these steps for initial setup:

1. Udfoldning af barnevognen: Hold the handlebar firmly. Release the automatic lock (if engaged) and allow the stroller to unfold until it clicks into place. Ensure all locking mechanisms are securely engaged before use.
2. Montering af hjul: The wheels are typically pre-attached. If not, refer to the specific wheel attachment instructions provided in the separate quick-start guide.
3. Justering af baldakinen: Extend the canopy to the desired position. The canopy features UPF 50+ protection and can be adjusted for optimal shade.
4. Checking the Harness: Ensure the 5-point harness is correctly threaded and adjusted for your child's size.

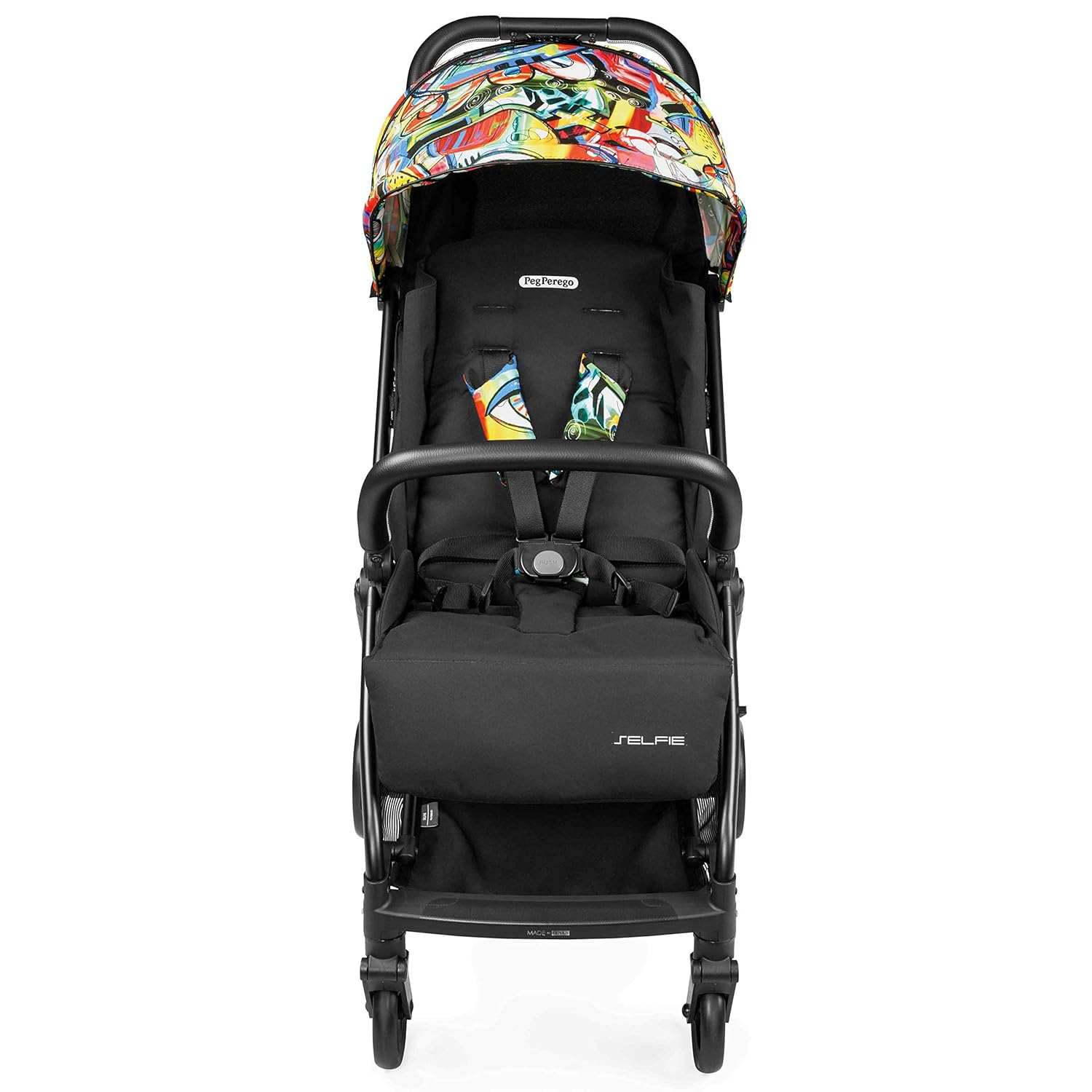

Figur 3.1: Forside view of the Peg Perego Selfie Stroller, showing the seat, canopy, and handlebar.

Figur 3.2: Bagside view of the Peg Perego Selfie Stroller, highlighting the spacious storage basket and rear wheels.

4. Betjeningsvejledning

4.1. Sammenfoldning af klapvognen

The Selfie stroller features a convenient one-hand self-folding system:

1. Ensure the child is removed from the stroller and any items are cleared from the seat and basket.
2. Find foldemekanismen på styret.
3. With one hand, activate the mechanism (usually a button or lever) and gently push the handlebar forward or down. The stroller will automatically begin to fold into a compact, standing position.
4. Confirm the stroller is fully folded and the automatic lock is engaged. The bumper bar can then be used as a carry handle.

Figure 4.1: The Peg Perego Selfie Stroller shown in its compact, folded position, ready for transport or storage.

4.2. Udfoldning af klapvognen

To unfold the stroller:

1. Release the automatic lock on the side of the stroller frame.
2. Hold the handlebar and lift upwards, allowing the stroller to extend until it fully locks into the open position.
3. Verify that all locking mechanisms are securely engaged before placing your child in the stroller.

4.3. Adjusting the Seat and Canopy

The stroller seat offers multiple recline positions, including a 150-degree recline suitable from birth. Adjust the seat by locating the recline mechanism on the back of the seat and selecting the desired angle. The canopy is expandable and features a peek-a-boo window for ventilation and visibility, along with UPF 50+ sun protection. Adjust by pulling or pushing the canopy forward or backward.

Figur 4.2: Side view of the stroller demonstrating the extended canopy and seat position.

4.4. Brug af selesystemet

The 5-point harness system ensures your child's safety. Place your child in the seat, bring the shoulder straps over their shoulders, and the waist straps around their hips. Connect the buckles and insert them into the central buckle until they click. Adjust the straps for a snug fit, ensuring two fingers can fit between the strap and your child's body. To release, press the button on the central buckle.

4.5. Bremsesystem

The stroller is equipped with a single-pedal brake system located near the rear wheels. To engage the brakes, press down firmly on the pedal. To release, lift the pedal upwards. Always ensure the brakes are fully engaged when the stroller is stationary.

4.6. Car Seat Compatibility (Travel System)

The Peg Perego Selfie stroller can be converted into a travel system by attaching a compatible Primo Viaggio 4-35 Nido or Primo Viaggio 4-35 Lounge infant car seat. An adapter (sold separately) is required for this conversion. Follow the instructions provided with the adapter and car seat for proper and secure installation.

Figure 4.3: The Peg Perego Selfie Stroller configured as a travel system with an infant car seat.

5. Vedligeholdelse og pleje

Regelmæssig vedligeholdelse sikrer din barnevogns levetid og sikker drift.

• Rengøring af stofdele: The fabric parts are made of polyester. Clean with a damp klud og mild sæbe. Brug ikke skrappe rengøringsmidler eller blegemiddel. Lad det lufttørre helt.
• Rengøring af ramme og plastikdele: Wipe the aluminum frame and plastic components with a damp klæde. Tør grundigt.
• Vedligeholdelse af hjul: Periodically check the rubber tires for wear and tear. Clean any dirt or debris from the wheels and axles to ensure smooth movement. Lubricate moving parts with a silicone-based lubricant if necessary.
• Opbevaring: Store the stroller in a dry, well-ventilated area away from direct sunlight and extreme temperatures to prevent fading and material degradation.

6. Fejlfinding

If you encounter issues with your Peg Perego Selfie stroller, refer to the following common solutions:

• Barnevognen folder sig ikke gnidningsløst ud/ud: Check for any obstructions in the folding mechanism. Ensure the seat is in the upright position and the canopy is retracted. Apply a small amount of silicone lubricant to moving joints if stiffness persists.
• Wheels not swiveling/moving freely: Clean any dirt, hair, or debris from around the wheel axles. Ensure the wheel locks are not engaged.
• Sele vanskelig at spænde/afspænde: Check for any debris in the buckle mechanism. Ensure straps are not twisted.
• Bremserne aktiveres/deaktiveres ikke: Verify that no debris is obstructing the brake pedal or wheel mechanisms.

If the problem persists after attempting these solutions, please contact Peg Perego customer support for assistance.

7. Tekniske specifikationer

Mærke:

Peg Perego

Modelnummer:

IP2200NA00AT99RO01

Farve:

Street Art

Rammemateriale:

Aluminium eller aluminiumslegering

Stoftype:

Polyester

Dækmateriale:

Gummi

Aldersinterval (beskrivelse):

Baby (fra fødslen)

Maksimal vægtanbefaling:

48 pund

Varens vægt:

14 pund

Emnemål (L x B x H):

35 cm L x 20 cm B x 42 cm H

Foldet størrelse:

11"L x 8"W x 4"H (approximate, based on compact nature)

Seletype:

5 punkt

Antal hjul:

4

Kompatibel med bilsæde:

Ja (med adapter, sælges separat)

Sikkerhedsstandard:

JPMA certificeret

Figure 7.1: Visual representation of the Peg Perego Selfie Stroller's dimensions.

8. Garanti og support

8.1. Producentens garanti

The Peg Perego Selfie Stroller comes with a 2 års producentgarantiDenne garanti dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.

8.2. Kundesupport

For technical assistance, warranty claims, or to purchase replacement parts, please visit the official Peg Perego webwebstedet eller kontakt deres kundeserviceafdeling. Kontaktoplysninger kan typisk findes på producentens webwebstedet eller på produktemballagen.
