1. Introduktion
Thank you for choosing the Kalamera 24-inch Dual Zone Wine and Beverage Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions thoroughly before use and retain them for future reference.
Figur 1: Forside view of the Kalamera 24-inch Dual Zone Wine and Beverage Refrigerator.
2. Vigtige sikkerhedsoplysninger
Følg disse grundlæggende forholdsregler for at reducere risikoen for brand, elektrisk stød eller skade, når du bruger dit apparat:
- Læs alle instruktioner før brug af apparatet.
- Do not touch cold surfaces immediately after the appliance has been plugged in.
- Ensure proper ventilation around the unit. Maintain adequate clearance from walls and other appliances.
- Opbevar ikke eksplosive stoffer såsom spraydåser med et brændbart drivmiddel i dette apparat.
- Tag stikket ud af apparatet, før du rengør eller udfører vedligeholdelse.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
- Hold børn væk fra apparatet.
3. Produktfunktioner
The Kalamera Wine and Beverage Refrigerator is designed with advanced features to ensure optimal storage conditions for your beverages:
- Dobbelt zone temperaturkontrol: Independent temperature control for two distinct zones, allowing for optimal storage of both wine and beverages. The wine zone offers a temperature range of 40-66°F, while the beverage zone ranges from 38-50°F.
- Eco-Friendly Wooden Frame Shelves: Features sturdy, 100% FSC-certified wooden shelves in the wine zone, designed to reduce vibration and friction for wine bottles.
- Stille drift: Equipped with an energy-saving compressor that ensures quiet performance, minimizing disturbance.
- Forbedret beskyttelse: Includes a UV-resistant double-layer glass door to protect contents from harmful light and maintain stable internal temperatures. A temperature memory function restores previous settings after a power interruption.
- Seamless Steel Door Design: A sleek, modern aesthetic with a seamless stainless steel door, suitable for both built-in and freestanding installations.
- Justerbare hylder: Removable shelves allow for flexible customization of storage space to accommodate various bottle and can sizes.
Figure 2: Dual zone capacity for wine and beverages.
4. Opsætning og installation
4.1 Udpakning
Carefully remove all packaging materials. Inspect the appliance for any damage. It is recommended to keep the original packaging for future transport or service needs.
4.2 Placering
This unit is designed for both built-in and freestanding installation. Ensure the chosen location has adequate ventilation. For built-in installation, refer to the dimensions in the specifications section to ensure proper fit within cabinetry. Maintain a minimum clearance of 1 inch (2.5 cm) at the back and sides for proper air circulation.
Figure 3: Installation options: Built-in or Freestanding.
4.3 Nivellering af apparatet
The appliance must be level for proper operation. Adjust the leveling legs at the bottom of the unit by turning them clockwise to raise or counter-clockwise to lower. Ensure the unit is stable and the doors close properly.
4.4 Strømtilslutning
Plug the appliance into a dedicated, grounded 110V AC outlet. Allow the unit to stand upright for at least 24 hours before plugging it in to allow refrigerants to settle.
5. Betjeningsvejledning
5.1 Kontrolpanel overview
The refrigerator features independent touch control panels for each zone, located at the top interior of the unit. Each panel includes:
- Power knap: Tænder/slukker enheden.
- Lys knap: Controls the interior blue LED lighting.
- Temperatur op/ned-knapper: Adjusts the desired temperature for the respective zone.
- °C/°F knap: Toggles between Celsius and Fahrenheit display.
Figure 4: Dual Zones Smart Digital Control Panel.
5.2 Indstilling af temperaturen
To set the desired temperature for each zone:
- Press the 'Temperature Up' or 'Temperature Down' button on the respective zone's control panel.
- The display will flash, indicating it's in setting mode.
- Adjust to your desired temperature. The wine zone can be set between 40-66°F, and the beverage zone between 38-50°F.
- The display will stop flashing after a few seconds, confirming the new temperature setting.
5.3 Indvendig belysning
Press the 'Light' button on either control panel to turn the interior blue LED lighting on or off. This lighting enhances visibility and presentation of your collection.

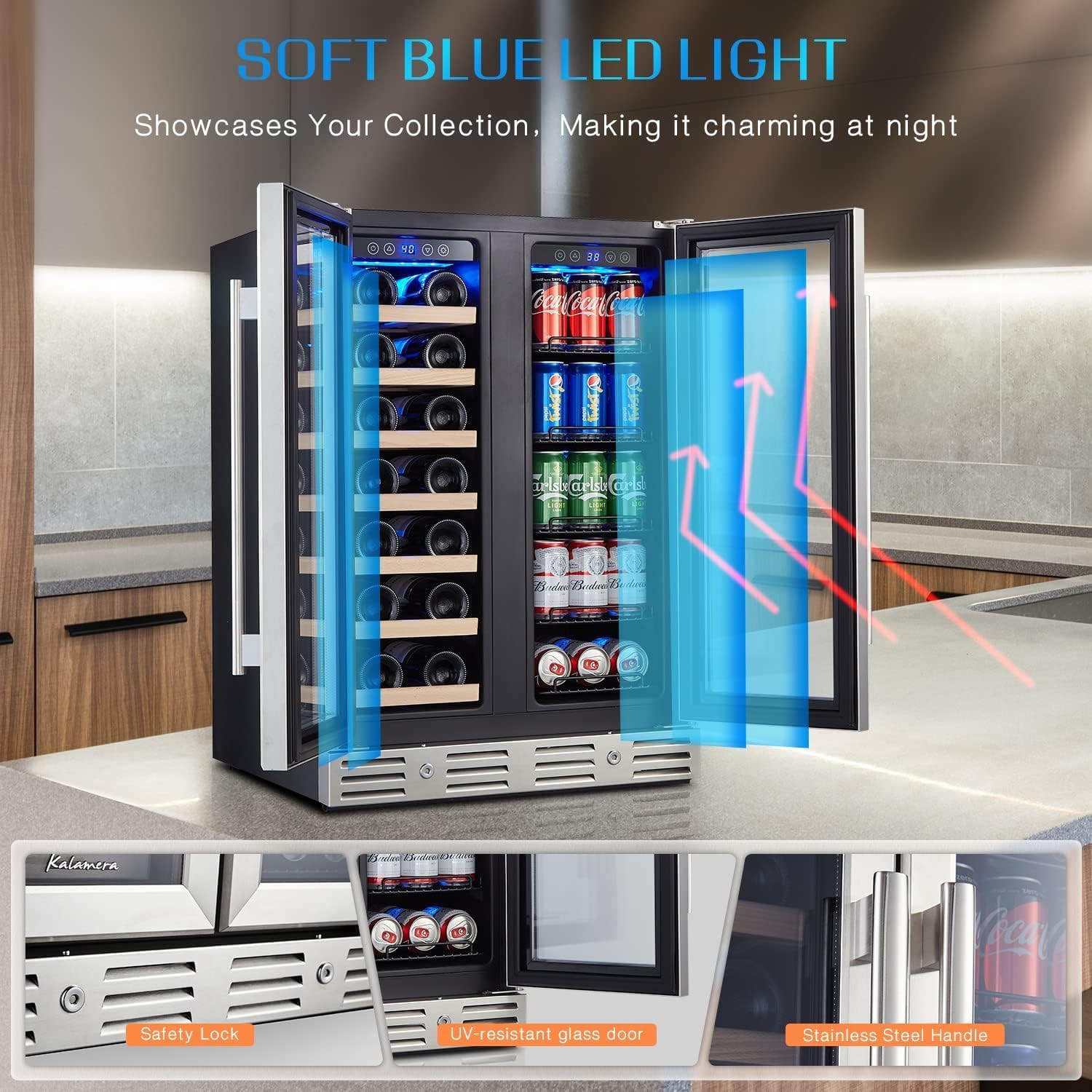

Figure 5: Soft blue LED interior lighting.
6. Lastning og kapacitet
The Kalamera refrigerator offers a generous capacity of up to 20 standard wine bottles and 78 standard beverage cans. The wooden shelves in the wine zone and wire racks in the beverage zone are designed for efficient storage.
6.1 Removable Shelves
The shelves are removable to allow for customization based on the size and quantity of your bottles and cans. Gently pull the shelves forward to remove them. Ensure bottles and cans are placed securely to prevent rolling.
Figure 6: Movable shelves for flexible storage.
6.2 Video: Removable Shelves
Video 1: This short video demonstrates the removable shelves feature, showing how they can be adjusted or taken out to accommodate different bottle and can sizes within the wine and beverage zones.
7. Vedligeholdelse og rengøring
7.1 Rengøring af indersiden
Unplug the appliance before cleaning. Use a soft cloth and a mild, non-abrasive cleaning solution to wipe down the interior surfaces. Avoid harsh chemicals or abrasive cleaners that could damage the finish. Remove shelves and clean them separately.
7.2 Rengøring af ydersiden
Wipe the exterior with a soft cloth and a mild detergent. For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain. Regularly clean the door gasket to ensure a tight seal.
7.3 Optøning
This appliance features a frost-free defrost system, eliminating the need for manual defrosting. Any accumulated frost will melt automatically and evaporate.
8. Fejlfindingsvejledning
Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Apparatet fungerer ikke. | Ikke tilsluttet; afbryder udløst; strømafbrydelsetage. | Sørg for, at stikket er sikkert fastgjort; nulstil afbryderen; kontroller husholdningens strøm. |
| Temperaturen er ikke kold nok. | Door not closed properly; excessive door openings; warm items added; poor ventilation; direct sunlight. | Check door seal; reduce door openings; allow new items to cool; ensure proper clearance; relocate unit if exposed to direct sunlight. |
| Appliance is making excessive noise. | Unit not leveled; loose parts; items vibrating inside. | Adjust leveling legs; check for loose components; ensure bottles/cans are stable. |
| Condensation inside the unit. | High humidity; door left open; faulty door gasket. | Ensure door is closed tightly; inspect and clean door gasket. |
9. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Kalamera |
| Modelnummer | KRC-150CB-BSS |
| Kapacitet | 20 Wine Bottles & 78 Cans (5.3 Cubic Feet) |
| Mål (D x B x H) | 22.4 cm x 23.4 cm x 33.9 cm |
| Varens vægt | 106.9 pund |
| Installationstype | Indbygget / Fritstående |
| Wine Zone Temperature Range | 40-66°F |
| Beverage Zone Temperature Range | 38-50°F |
| Optøningssystem | Frostfri |
| Dørmaterialetype | Rustfrit stål |
| Type hylde | Wood (Wine Zone), Wire (Beverage Zone) |
| Voltage | 110 volt (AC) |
| Wattage | 90 watt |
| Certificering | ETL |
10. Garanti og kundesupport
10.1 Begrænset garanti
This Kalamera appliance comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
10.2 Kundesupport
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Kalamera Customer Support. Refer to the product packaging or the official Kalamera webhjemmeside for de seneste kontaktoplysninger.
