Deerma 124-660-205 Håndholdt Støvmide Støvsuger Brugermanual

1. Introduktion

Thank you for choosing the Deerma 124-660-205 Handheld Dust Mite Vacuum Cleaner. This device is designed for efficient removal of dust mites, allergens, and fine dust from various surfaces such as mattresses, sofas, and carpets. Featuring powerful suction, UV-C sterilization, and HEPA filtration, it helps create a healthier living environment. Please read this manual thoroughly before use to ensure safe and optimal operation.

2. Sikkerhedsinstruktioner

• Sørg altid for strømforsyningens volumtage stemmer overens med den klassificering, der er angivet på apparatet.
• Apparatet, netledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
• Keep the appliance away from heat sources, direct sunlight, and sharp edges.
• Brug ikke apparatet på våde overflader eller til at opsuge væsker.
• Ensure the dust cup and filter are correctly installed before operation.
• UV-C lamp emits ultraviolet light. Avoid direct exposure to eyes and skin. The infrared sensing protection will automatically turn off the UV light when lifted from a surface.
• Dette apparat er kun til husholdningsbrug. Brug det ikke til kommercielle eller industrielle formål.
• Opbevares utilgængeligt for børn.

3. Produktfunktioner

Kompakt design: The Deerma 124-660-205 features a sleek, ergonomic design for comfortable handling and effective cleaning.

Kraftig sugning: Equipped with a high-efficiency DC motor, this vacuum delivers strong suction to deeply remove dust mites and allergens from fabric surfaces.

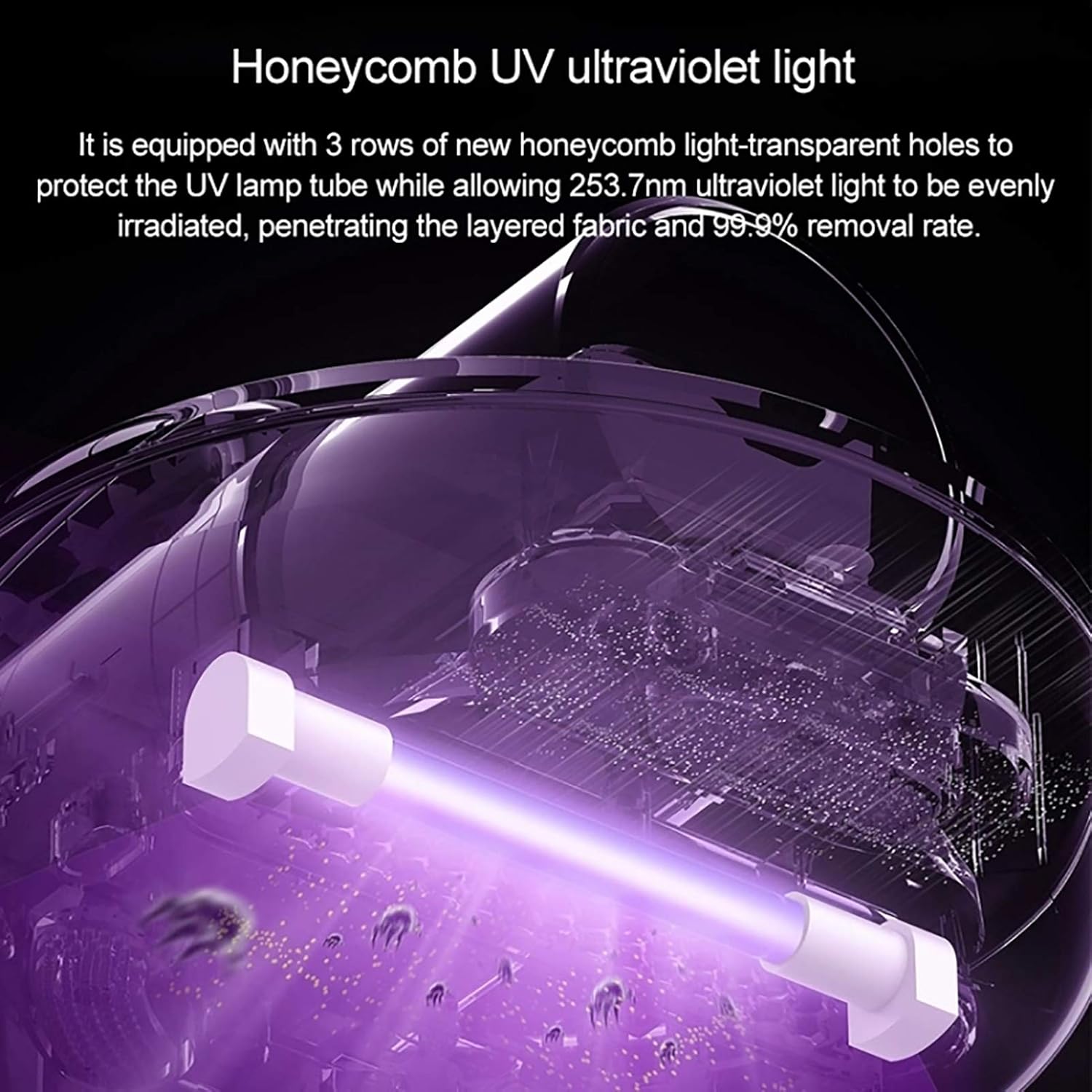

UV-C bakteriedræbende Lamp: Utilizes a honeycomb UV ultraviolet light with a wavelength of 253.7nm for effective sterilization and mite removal, achieving up to 99.9% removal rate. Features an anti-leak design and automatic shut-off when lifted.

HEPA-filtreringssystem: The 0.3mm HEPA filter captures most dust mites, allergens, hair, and dander, ensuring clean air exhaust. The filter net is washable for easy maintenance.

• Højfrekvent tapping: Features a vibration mechanism that taps surfaces to dislodge deeply embedded dust mites and dirt, facilitating their removal by suction.
• Hot Air Dehumidification: Synchronous hot air exhaust system helps to dry the cleaned surface, reducing humidity in mattresses and inhibiting the reproduction of dust mites.

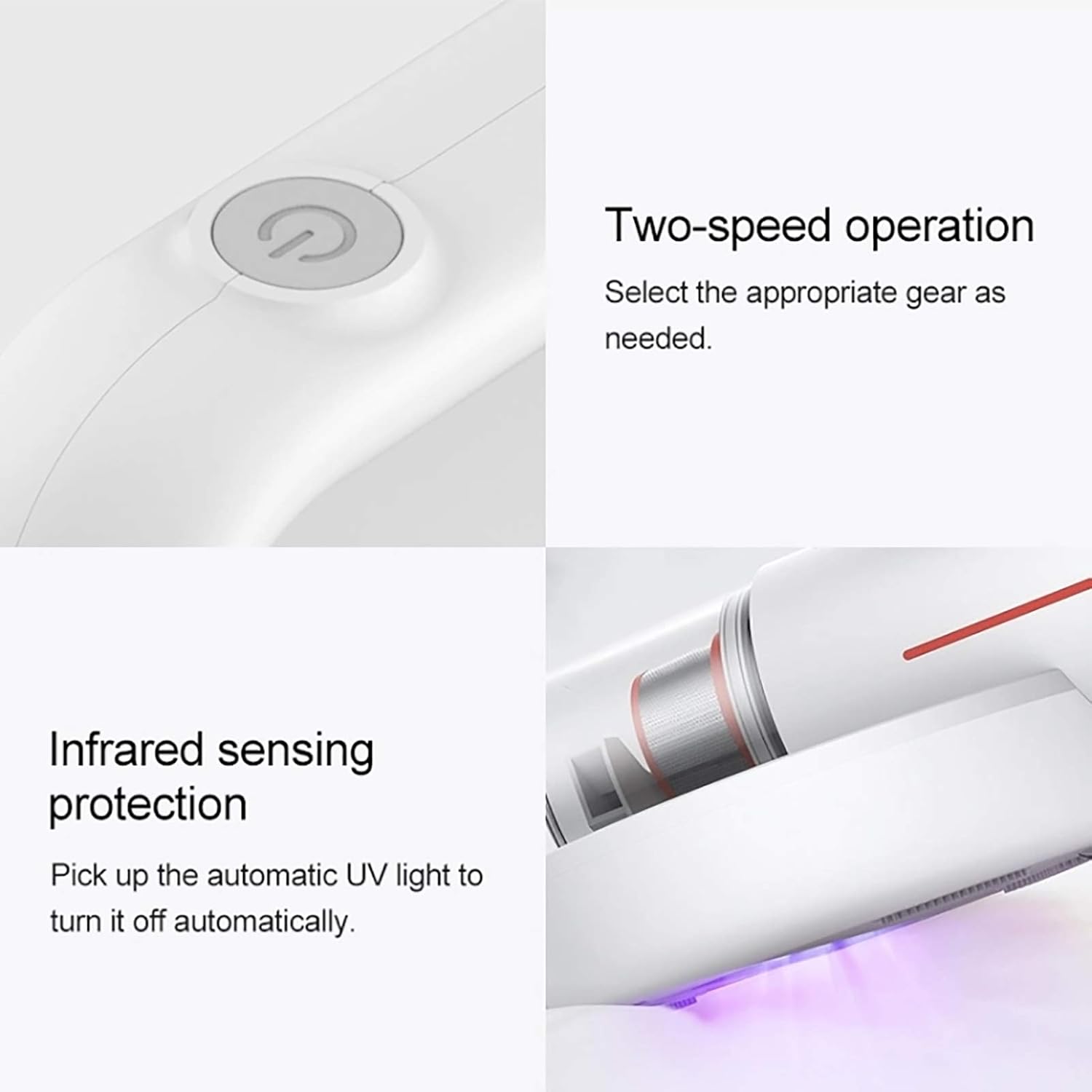

• To-hastighedsdrift: Allows selection of appropriate suction power based on cleaning needs.
• Infrared Sensing Protection: Automatically deactivates the UV-C lamp when the device is lifted from the surface, ensuring user safety.

4. Opsætning

1. Pakker ud: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere opbevaring eller transport.
2. Oplad batteri: Before first use, fully charge the vacuum cleaner. Place the vacuum on its charging base. The charging indicator light will show the charging status. A full charge provides approximately 30 minutes of operation.
3. Assemble Dust Cup: Ensure the dust cup and HEPA filter are securely attached to the main unit. Refer to the markings on the device for correct alignment.

The vacuum cleaner on its charging base, indicating its cordless operation after charging.

5. Betjeningsvejledning

1. Tænd/sluk: Tryk på tænd/sluk-knappen på håndtaget for at tænde eller slukke støvsugeren.
2. Vælg hastighed: Use the speed selection button (if available, typically near the power button) to switch between different suction modes (e.g., standard and strong).
3. Activate UV-C Lamp: UV-C lamp will automatically activate when the vacuum is placed on a flat surface and the power is on. The infrared sensor ensures the lamp turns off if lifted, preventing direct exposure.
4. Rengøring af overflader: Gently glide the vacuum cleaner over the surface to be cleaned (e.g., mattress, sofa, carpet). Ensure the base of the vacuum makes full contact with the surface for effective UV-C sterilization and tapping action.
5. Målrettet rengøring: For heavily soiled areas or deep cleaning, move the vacuum slowly and methodically.

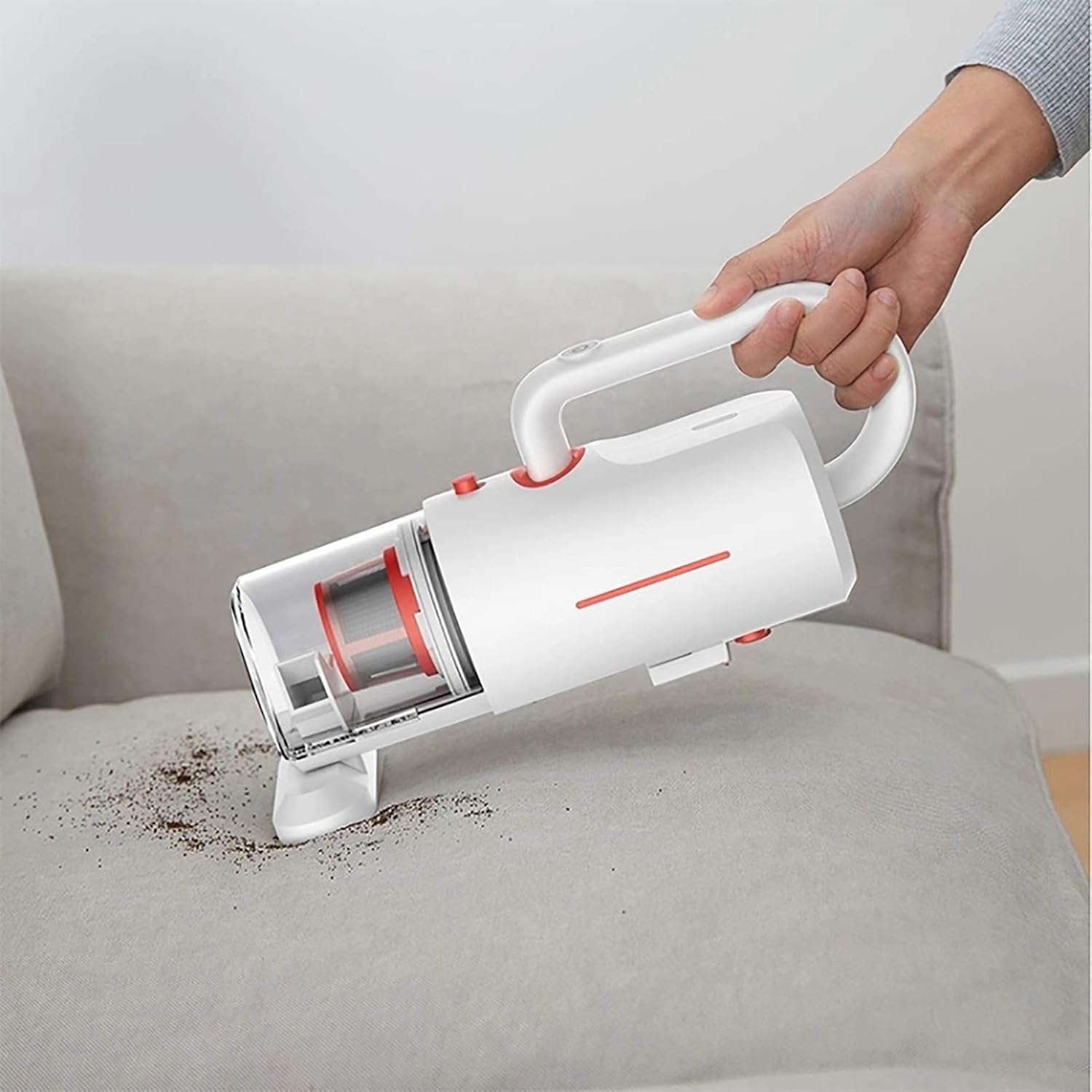

Using the vacuum to clean a sofa, demonstrating its versatility for upholstered furniture.

The vacuum being used to clean a car seat, highlighting its portable and versatile application.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

6.1. Tømning af støvbeholderen

1. Sørg for, at støvsugeren er slukket.
2. Detach the dust cup from the main unit according to the product's design (usually a release button or twist mechanism).
3. Tøm det opsamlede støv og snavs i en skraldespand.
4. Reattach the dust cup securely.

6.2. Rengøring af HEPA-filteret

1. After emptying the dust cup, remove the HEPA filter.
2. Bank forsigtigt på filteret for at fjerne løst støv.
3. Rinse the HEPA filter under running water until clean. Do not use detergents.
4. Allow the filter to air dry completely for at least 24 hours before reinserting it into the vacuum cleaner. Do not use the vacuum with a wet filter.

6.3. Cleaning the UV-C Lamp og sensorer

• Wipe the UV-C lamp and infrared sensors with a soft, dry cloth to remove any dust or debris.
• Brug ikke slibende rengøringsmidler eller opløsningsmidler.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Deerma webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
