Yaheetech multifunktionelt tegnebord og skammel brugermanual

Indledning

Thank you for choosing the Yaheetech Multi-Functional Drafting Table. This product is designed to provide a versatile and comfortable workspace for various activities, including drawing, crafting, reading, and general office tasks. Its adjustable tabletop and sturdy construction make it an ideal addition to any home or office environment. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

En overview of the Yaheetech drafting table, showcasing its adjustable tabletop feature with artwork.

Sikkerhedsoplysninger

• Læs alle instruktioner omhyggeligt før montering og brug.
• Opbevar alt emballagemateriale væk fra børn.
• Sørg for, at alle dele er til stede og ubeskadigede, før monteringen påbegyndes. Må ikke anvendes, hvis der mangler eller er ødelagte dele.
• Saml produktet på en blød, ren overflade for at forhindre ridser.
• Tighten all screws and bolts securely, but do not overtighten. Periodically check and retighten fasteners.
• Do not stand or sit on the table surface, except for the designated stool.
• Keep hands and fingers clear of moving parts, especially when adjusting the tabletop angle.
• Place the table on a level surface to ensure stability.
• Maximum weight capacity for the tabletop is approximately 50 lbs (22.7 kg). Do not exceed this limit.

Pakkens indhold

Kontroller venligst, at alle nedenstående komponenter er inkluderet i din pakke:

• Drafting Table Frame Components
• Tabletop Panels (Fixed and Adjustable)
• Stool Components (Seat, Legs, Crossbars)
• Hardwarepakke (skruer, bolte, skiver, unbrakonøgle)
• Movable Pencil Ledge
• Assembly Instructions Manual (This document)

Opsætning og montering

Assembly is required for this product. It is recommended to have two people for easier and safer assembly. Please refer to the detailed assembly instructions provided in the included PDF manual for step-by-step guidance. A general overview of the process is provided below.

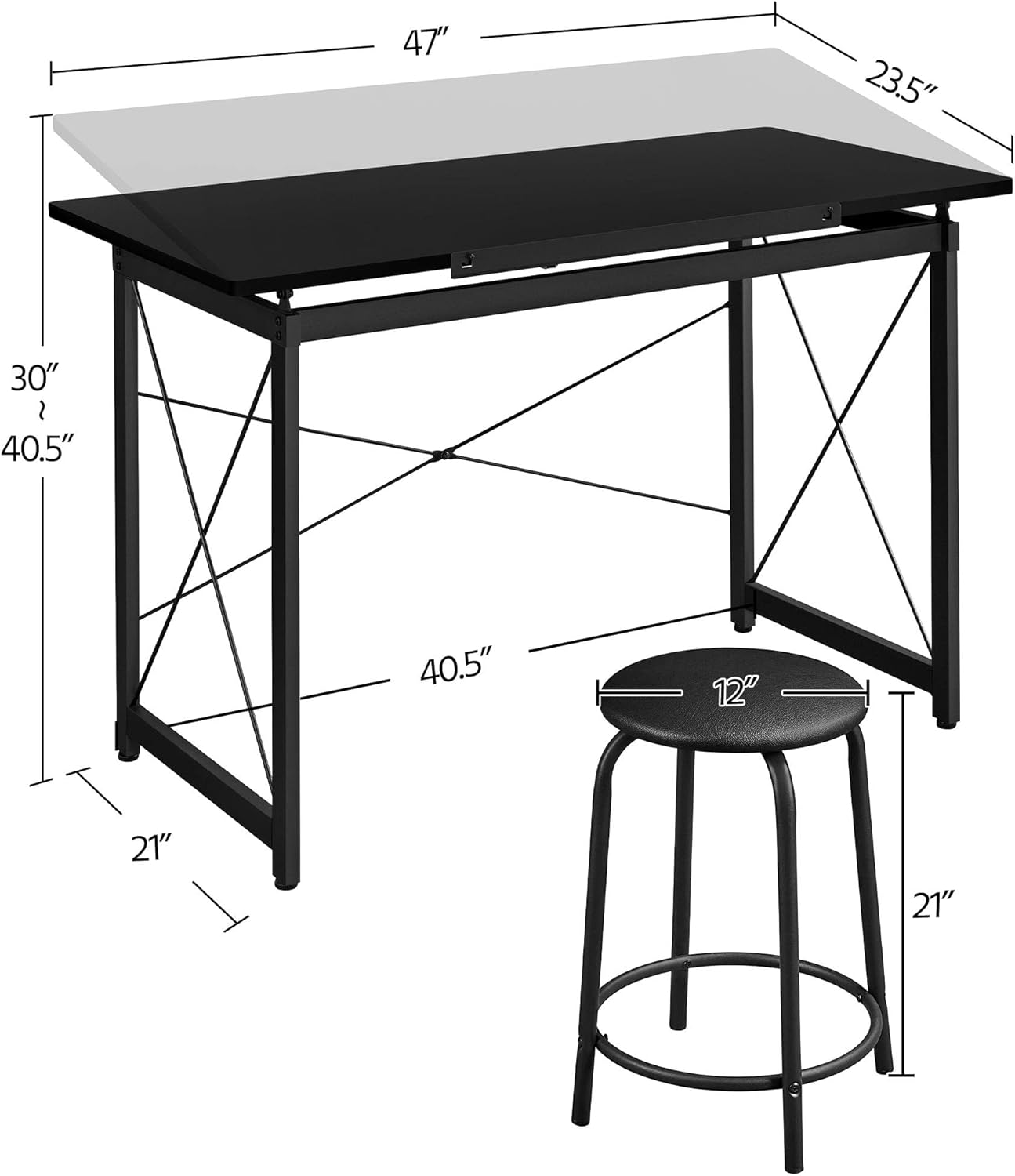

A diagram illustrating the key measurements of the drafting table and stool, including length, width, height, and adjustable range.

Trin for generalforsamling:

1. Udpak og identificer dele: Carefully remove all components from the packaging and lay them out. Compare them with the parts list in the detailed manual to ensure everything is present.
2. Saml bordrammen: Attach the crossbars and support beams to the main leg frames using the provided hardware. Ensure all connections are secure.
3. Fastgør bordpladepaneler: Secure the fixed and adjustable tabletop panels to the assembled frame. Pay attention to the hinge mechanism for the adjustable section.
4. Saml skamlen: Connect the stool legs to the seat and secure the crossbars for stability.
5. Installer tilbehør: Attach the movable pencil ledge to the front edge of the adjustable tabletop.
6. Endelig kontrol: Once assembled, gently shake the table and stool to ensure stability. Tighten any loose fasteners.

For detaljerede visuelle instruktioner henvises til den officielle Installationsmanual (PDF).

Betjeningsvejledning

Adjusting the Tabletop Angle:

The Yaheetech Drafting Table features an adjustable tabletop, allowing you to tilt the surface to your preferred angle for various tasks. To adjust:

1. Lift the Tabletop: Gently lift the front edge of the adjustable tabletop.
2. Vælg vinkel: As you lift, you will notice a support mechanism with multiple notches. Select the desired angle by resting the tabletop support bar into one of these notches.
3. Sikker position: Ensure the support bar is firmly seated in the notch before applying pressure to the tabletop.

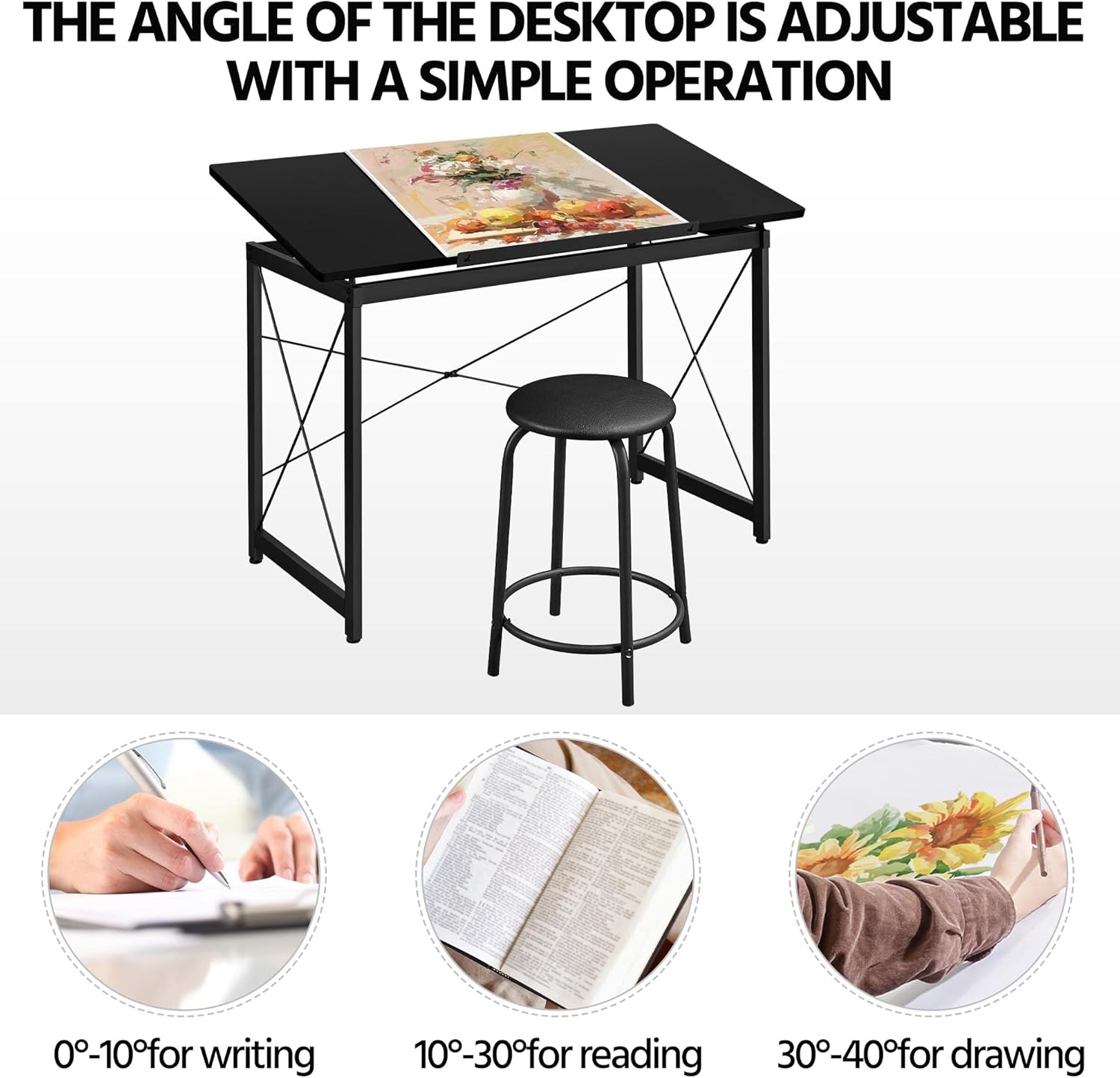

This image highlights the adjustable tabletop feature, indicating optimal angles for different activities: 0-10 degrees for writing, 10-30 degrees for reading, and 30-40 degrees for drawing.

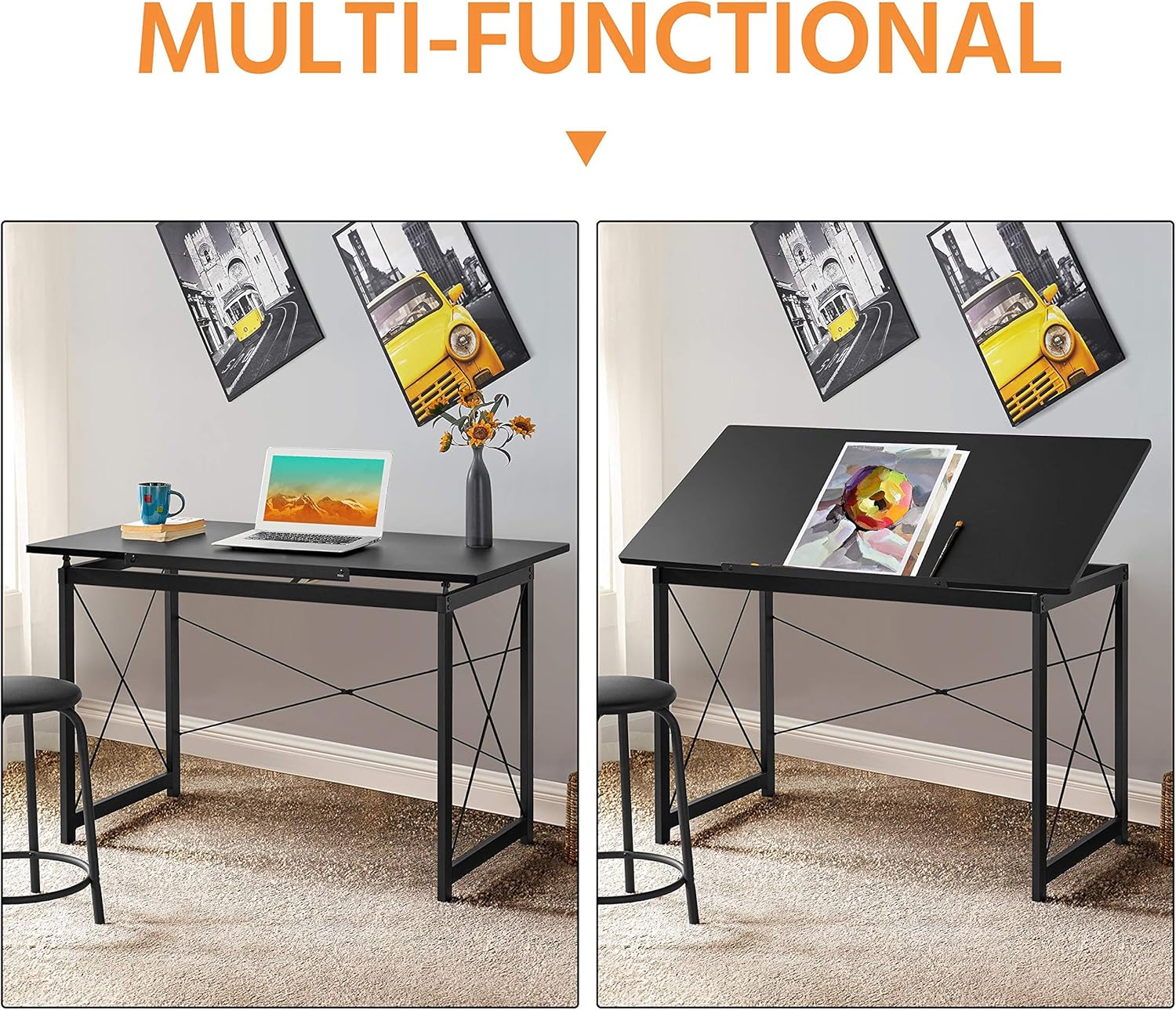

To views of the table side-by-side, illustrating its transformation from a flat desk suitable for laptop use to a tilted drafting table for creative work.

Using the Movable Pencil Ledge:

The movable pencil ledge can be attached to the front edge of the adjustable tabletop to prevent items like pencils, pens, or papers from sliding off when the table is tilted. Simply slide it into the designated slots on the front edge of the tabletop.

Detaljeret views of the table's construction and features, including the smooth rounded edges for safety, a movable pencil ledge to prevent items from sliding, the robust steel frame for stability, and adjustable screw-in protective pads for floor protection and leveling.

Generel brug:

The table can be used flat for general desk work, such as using a laptop, or tilted for drawing, drafting, or reading. The included stool provides comfortable seating for extended periods of use.

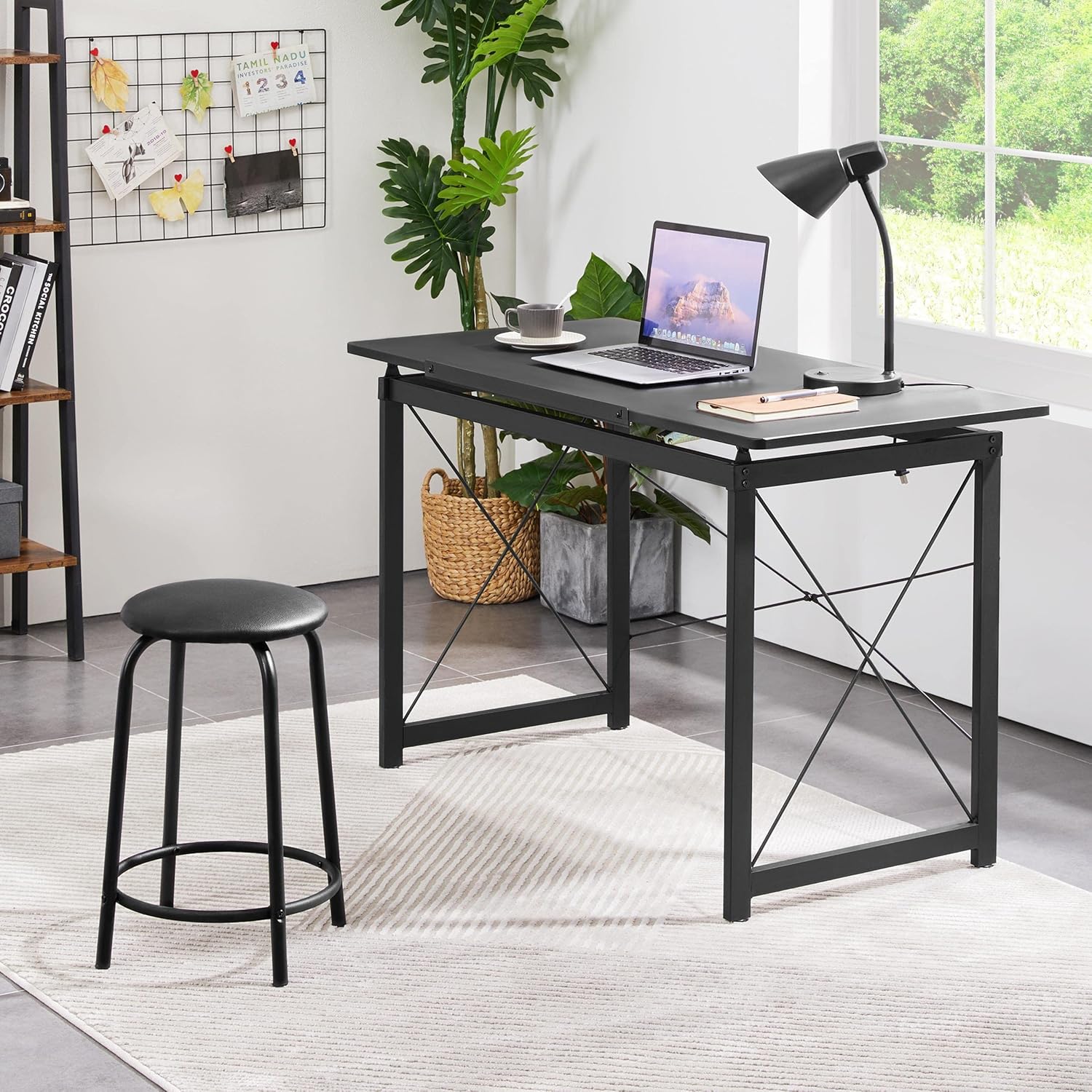

The drafting table configured as a standard desk, demonstrating its versatility for general office or home use, alongside the stool.

A person actively using the drafting table with the tabletop tilted, engaged in drawing, showcasing the ergonomic benefits of the adjustable design.

Opretholdelse

• Rensning: Wipe the tabletop and frame with a soft, damp klud. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler, da de kan beskadige overfladen.
• Regelmæssig kontrol: Periodically inspect all screws and bolts to ensure they remain tight. Retighten as necessary to maintain stability and safety.
• Undgå overdreven fugt: Do not expose the table to excessive moisture or direct sunlight for prolonged periods, as this may cause warping or discoloration.
• Smøring: If the tabletop adjustment mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the moving parts.

Fejlfinding

Specifikationer

Kundesupport

For any questions, concerns, or assistance with your Yaheetech Multi-Functional Drafting Table, please contact our customer support team. Refer to your purchase documentation or the Yaheetech official webwebsted for kontaktoplysninger.

Please have your product model number (B08NFY86ZG) and purchase date ready when contacting support.
