Indledning
Thank you for choosing the Style Selections 48000-BTU Stainless Steel Patio Heater. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new patio heater. Please read this manual thoroughly before assembly or operation and retain it for future reference.

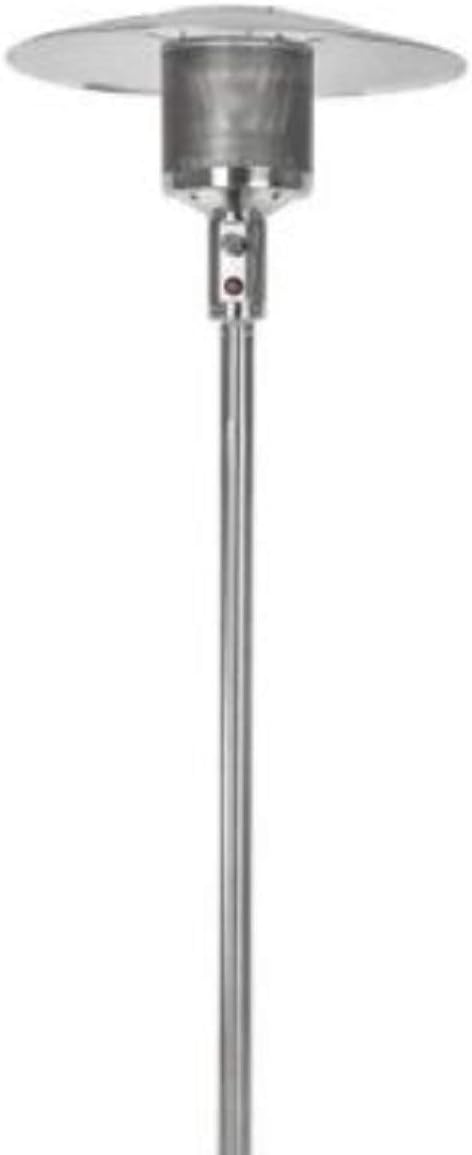

En fuld view of the Style Selections 48000-BTU Stainless Steel Patio Heater, showcasing its tall, cylindrical stainless steel body and large circular heat reflector at the top.
Vigtige sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger dette apparat, for at reducere risikoen for brand, elektrisk stød eller personskade.
- Kun udendørs brug: This patio heater is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
- Ventilation: Sørg for tilstrækkelig ventilation, når varmeapparatet er i brug.
- Klarering: Hold tilstrækkelig afstand til brandbare materialer. Se produktetiketterne for specifikke afstande.
- Stabil overflade: Placer altid varmelegemet på en fast, plan overflade.
- Kun propangas: Use only propane gas. Do not use natural gas or other fuels.
- Lækagetjek: Perform a leak check on all gas connections before initial use and after each tank change.
- Børn og kæledyr: Keep children and pets away from the heater when in operation.
- Flytning af varmelegeme: Allow the heater to cool completely before attempting to move it. Use the integrated wheels for transport.
Opsætning
Forsamling
The patio heater requires assembly. It is recommended to follow the detailed instructions provided in the separate assembly guide that came with your product. Ensure all protective plastic films are removed from metal surfaces before assembly to prevent scratching during shipping and handling.
Installation af propantank
This heater is designed to accommodate standard 20-pound propane tanks, and can also fit 30-pound tanks for extended use. To install the propane tank:
- Open the access door located at the base of the heater.
- Place the propane tank securely inside the compartment.
- Connect the heater's hose to the propane tank valve. Ensure the connection is tight and secure.
- Close and latch the access door.
Placering
Position the patio heater on a flat, stable, non-combustible surface in an open outdoor area. For added stability and wind protection, utilize the provided anchors at the base of the unit to secure it to the ground, especially in windy conditions.
Betjeningsvejledning
Optænding af varmelegeme
To light your patio heater:
- Sørg for, at propantankens ventil er helt åben.
- Locate the control knob on the heater's main column.
- Press and hold the control knob inward, then rotate it to the "High" setting.
- While holding the knob, press the red igniter button repeatedly until the burner ignites. You may hear clicking sounds.
- Once ignited, continue to hold the control knob for 10-15 seconds to allow the thermocouple to heat up and engage the safety valve.
- Release the control knob. The heater should remain lit.
Justering af varmeafgivelse
After the heater is lit, you can adjust the heat output by rotating the control knob to your desired setting (Low, Medium, High). To turn off the heater, rotate the control knob to the "Off" position and close the propane tank valve.
Opretholdelse
Regular maintenance ensures the longevity and safe operation of your patio heater.
- Rensning: Rengør de udvendige overflader med en blød,amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Burner and Reflector: Periodically inspect the burner and heat reflector for debris or obstructions. Ensure they are clear for optimal performance.
- Gasforbindelser: Regularly check all gas connections for leaks using a soapy water solution. Bubbles indicate a leak.
- Opbevaring: When not in use for extended periods, disconnect the propane tank and store the heater in a cool, dry place, preferably covered to protect it from the elements.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Varmelegemet vil ikke antænde. | No gas flow; clogged burner; faulty igniter. | Check propane tank level and valve; clear burner ports; inspect igniter electrode. |
| Flame goes out after lighting. | Thermocouple not heating sufficiently; low gas pressure. | Hold control knob longer after ignition; check propane tank level. |
| Lav varmeydelse. | Low gas pressure; partially clogged burner. | Check propane tank level; clean burner. |
Hvis problemerne fortsætter, skal du kontakte en kvalificeret servicetekniker.
Specifikationer
- Mærke: Stilvalg
- Model: B08NFHJP1B
- Speciel funktion: Portable, Fast Heating
- Farve: Sølv
- Formfaktor: Fad
- Indendørs/udendørs brug: Udendørs
- Anbefalet anvendelse af produktet: Garage, Patio
- Monteringstype: Gulvmontering
- Værelsestype: Living Room, Patio
- Varmedækning: 200 kvadratmeter
- Brænder type: Strålende
- Varmeeffekt: 48000 britiske termiske enheder (BTU)
- Brændstoftype: Propan
- UPC: 798304482300
- Dato først tilgængelig: 13. november 2020
Garanti og support
Specific warranty details for this product are typically provided with your purchase documentation. Please refer to the warranty card or contact the retailer for information regarding warranty coverage and claims.
For technical support or inquiries not covered in this manual, please contact Style Selections customer service through their official webwebstedet eller de kontaktoplysninger, der følger med din produktemballage.
Note: No official seller videos were available for embedding in this manual based on the provided data.
