GLOBE Electric Celestia væglampe med 2 lys, brugsanvisning

Indledning

Tak for købetasing the GLOBE Electric Celestia 2-Light Wall Sconce. This modern glam fixture, featuring a matte brass finish and frosted glass globe shades, is designed to provide a warm and inviting glow to your living space. This manual provides detailed instructions for safe installation, operation, and maintenance to ensure optimal performance and longevity of your product.

Vigtige sikkerhedsoplysninger

ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen ved sikringen eller afbryderen før installation eller service.

• Læs alle instruktioner omhyggeligt, før installationen påbegyndes.
• Ensure the electrical supply is disconnected at the main circuit breaker or fuse box before installation.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). If you are unfamiliar with proper electrical wiring connections, obtain the services of a qualified electrician.
• Brug kun pærer med den angivne watttage and type (2x E26/Medium Base 60W Max Bulbs).
• Overskrid ikke det maksimale wattage.
• Handle glass shades with care.
• Hold emballagemateriale væk fra børn.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Wall Sconce fixture (1)
• Frosted Glass Shade (2)
• Monteringssæt (skruer, trådmøtrikker, monteringsplade)
• Instruktionsark (denne manual)

Produktspecifikationer

Opsætning og installation

Follow these steps carefully to install your Celestia Wall Sconce. It is recommended to have a second person assist during installation.

Nødvendige værktøjer (ikke inkluderet):

• Skruetrækker (Phillips og Flathead)
• Trådstrippere
• Elektrisk tape
• Sikkerhedsbriller
• Stige (hvis nødvendigt)

Installationstrin:

1. 1. Prepare for Installation:

   Before starting, ensure the power to the circuit you are working on is turned off at the circuit breaker or fuse box. Clear the work area and gather all necessary tools and components.

2. 2. Attach Mounting Plate:

   Secure the mounting plate to the electrical junction box in the wall using the provided screws. Ensure the plate is firmly attached and level.



   Billede: Nærbillede view of the sconce's mounting bracket, showing the central rod and connection points, indicating where it attaches to the wall.

3. 3. Make Electrical Connections:

   Carefully connect the electrical wires. Connect the black wire from the fixture to the black (hot) wire from the junction box using a wire nut. Connect the white wire from the fixture to the white (neutral) wire from the junction box using a wire nut. Connect the ground wire from the fixture to the ground wire from the junction box (or to the green ground screw on the mounting plate). Ensure all connections are secure and covered with wire nuts and electrical tape if necessary.

4. 4. Mount the Fixture:

   Carefully align the fixture with the mounting plate and secure it using the provided screws. Ensure the fixture is flush against the wall and stable.



   Image: The Celestia 2-Light Wall Sconce, showcasing its matte brass finish and two frosted glass globe shades, ready for installation.

5. 5. Install Glass Shades and Bulbs:

   Gently attach the frosted glass shades to the fixture. Insert two E26/Medium Base 60W Max bulbs (sold separately) into the sockets. Compatible with LED, Incandescent, and Halogen bulbs. Dimmable LED or Incandescent bulbs are recommended for dimming functionality.



   Billede: Detaljeret view of one of the frosted glass shades and the bulb socket, illustrating how bulbs are inserted.

6. 6. Restore Power:

   Once installation is complete and all connections are secure, restore power at the circuit breaker or fuse box. Test the light fixture to ensure proper operation.

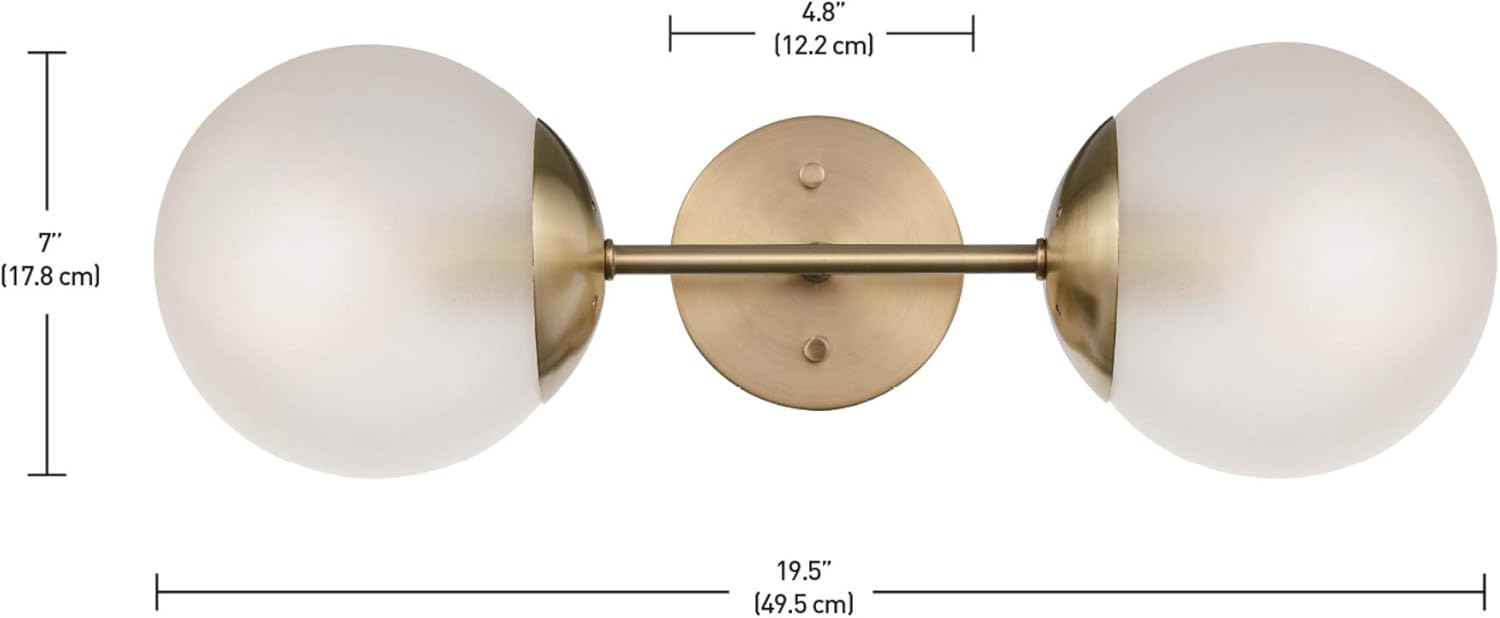

Image: Dimensional drawing of the Celestia Wall Sconce, indicating its length (19.5 inches), height (7 inches), and depth (6.25 inches).

Betjeningsvejledning

The GLOBE Electric Celestia Wall Sconce is designed for simple operation once installed.

• Tænd/sluk: Control the light fixture using your standard wall switch connected to the circuit.
• Dæmpningsfunktion: If you have installed dimmable LED or Incandescent bulbs and connected the fixture to a compatible dimmer switch (sold separately), you can adjust the light intensity by operating the dimmer switch.
• Alsidig placering: This fixture can be mounted horizontally or vertically to suit your aesthetic and lighting needs.

Pleje og vedligeholdelse

Regular maintenance will help preserve the appearance and functionality of your wall sconce.

• Rensning: To clean the fixture, ensure power is off. Wipe the metal parts with a soft, dry cloth. For the glass shades, use a soft cloth dampened with a mild glass cleaner. Avoid abrasive cleaners or solvents that may damage the finish.
• Udskiftning af pære: Always turn off power at the circuit breaker before replacing bulbs. Allow bulbs to cool completely before handling. Replace bulbs with the same type and wattage (E26/Medium Base, 60W Max).
• Inspektion: Kontrollér regelmæssigt alle forbindelser og monteringsudstyr for at sikre, at de forbliver fastgjorte.

Fejlfinding

Hvis du støder på problemer med din væglampe, kan du se følgende almindelige problemer og løsninger:

If problems persist, consult a qualified electrician or contact GLOBE Electric customer support.

Garanti og support

As per the product information, there is no specific warranty description provided for this product. For any product inquiries, technical assistance, or support, please contact GLOBE Electric customer service directly through their official webwebstedet eller forhandleren, hvor produktet blev købt.

For more information about GLOBE Electric products, visit: www.globe-electric.com
