Tera Pro Series Mini CMOS Ring Barcode Scanner User Manual

Indledning

The Tera Pro Series Mini CMOS Ring Barcode Scanner (Model HW0010) is a versatile and portable device designed for efficient 1D, 2D, and QR code scanning. Its unique ring design allows for comfortable wear on the finger, enhancing mobility and ease of use in various work environments. This scanner supports multiple connection modes, including Bluetooth, 2.4G wireless, and USB 2.0 wired, offering flexible integration with a wide range of devices.

Nøglefunktioner

• Portable Ring Design: Mini barcode scanner with a special ring design that rotates freely on the finger for enhanced convenience and ease of use.
• Høj opløsning kamera: Equipped with a 1MP camera for fast and accurate scanning of high-density, blurry, damaged, or incomplete 1D, 2D, and QR barcodes, including those on screens or DPM codes.
• 3-in-1 Connection Modes: Supports 2.4 GHz wireless, Bluetooth, and USB 2.0 cable connections for versatile compatibility.
• Vibrationsalarm: Features a vibration function to indicate successful barcode detection, ideal for quiet work environments.
• To uploadtilstande: Instant upload mode and memory mode (16MB built-in memory, stores up to 50,000 barcodes).
• Forlænget batterilevetid: 400 mAh battery provides longer standby and continuous working time compared to similar ring scanners.
• Understøttede stregkoder:
  • 1D: UPC, EAN, Code128, Code39, Code 39 Full ASCII, Coda bar, Industrial 2/5, Interleaved 2/5, Code 93, MSI, Code11, ISBN, ISSN, GS1, Databar, Code32, etc.
  • 2D: QR, Data Matrix, PDF417, Micro PDF417, MaxiCode, Aztec, etc.

Pakkens indhold

Please check the package contents upon receipt. The standard package for the Tera Pro Series Mini CMOS Ring Barcode Scanner (HW0010) typically includes:

• 1 x Tera HW0010 Ring Barcode Scanner
• 1 x 2.4G USB-dongle
• 1 x USB ladekabel
• 1 x Brugermanual (dette dokument)

Opsætning

Opladning af scanneren

Before first use, fully charge the scanner. Connect the provided USB charging cable to the scanner and a compatible USB power adapter (not included). The recommended charging voltage/current is 5V/1A. The maximum charging voltage/strøm er 5V/1.2A. Do not use USB PD (Power Delivery) power adapters and cables to charge the device.

Image: Recommended charging specifications and a warning against using USB PD adapters.

Tilslutningstilstande

Tera HW0010-scanneren tilbyder tre primære tilslutningsmetoder:

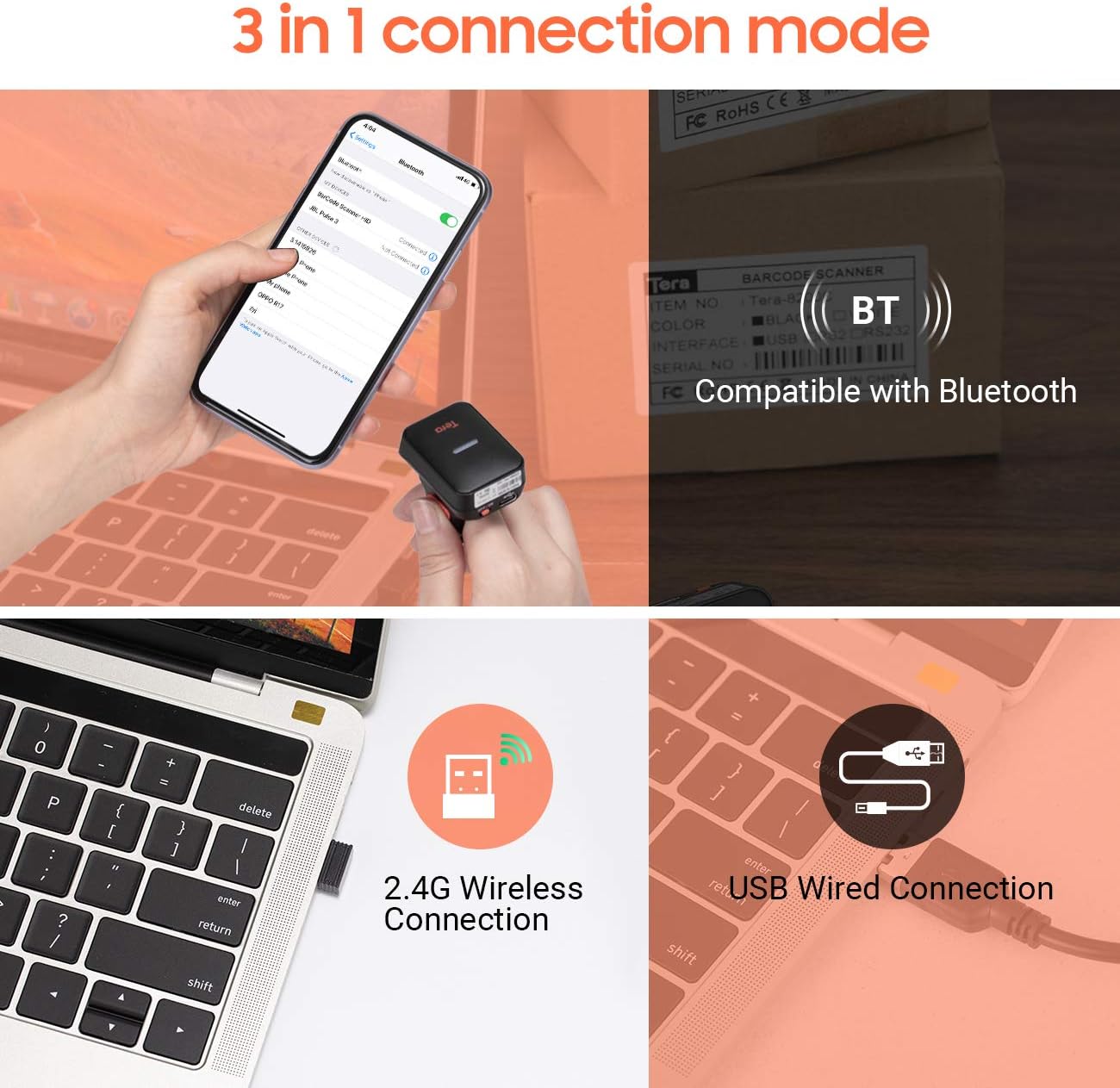

Billede: Overview of the 3-in-1 connection modes.

1. Bluetooth-forbindelse:

   To connect via Bluetooth, ensure the scanner is powered on. Scan the Bluetooth pairing barcode (usually found in the full manual or a quick start guide). On your host device (smartphone, tablet, computer), search for Bluetooth devices and select "Tera Barcode Scanner" or similar. The scanner will pair automatically.

2. 2.4G trådløs forbindelse:

   Insert the 2.4G USB dongle into an available USB port on your computer or laptop. Power on the scanner. The scanner should automatically connect to the dongle. If not, scan the "Pair 2.4G Dongle" barcode (refer to the full manual for specific barcodes).

3. USB kablet forbindelse:

   Connect the scanner directly to your computer using the provided USB cable. The scanner will function as a wired scanner and also charge simultaneously. No special drivers are usually required for basic scanning functionality.

Compatible Devices and Systems

The scanner is compatible with a wide range of devices and operating systems, ensuring broad usability.

Image: Compatible devices (PC, laptop, iPad, iPhone) and systems (Windows, iOS, Linux, Android, Mac OS).

• Enheder: Laptop, Desktop PC, Smartphone (iPhone, Android), Tablet (iPad).
• Operativsystemer: Windows, iOS, Android, Linux, Mac OS.

Betjeningsvejledning

Wearing the Scanner

The scanner is designed to be worn comfortably on your finger, allowing for hands-free operation. Adjust the strap to ensure a snug fit without being too tight.

Image: The Tera ring scanner worn on a finger, demonstrating its ergonomic design.

Scanning af stregkoder

To scan a barcode, point the scanner's lens at the barcode and press the scan button. The scanner will emit a light beam to read the code. A successful scan is typically indicated by a vibration (if enabled) and/or an audible beep.

Image: The scanner's capability to read 1D, 2D, and QR codes from various sources.

The scanner can read a wide variety of barcode types, including:

• 1D stregkoder: UPC, EAN, Code128, Code39, Code 39 Full ASCII, Coda bar, Industrial 2/5, Interleaved 2/5, Code 93, MSI, Code11, ISBN, ISSN, GS1, Databar, Code32.
• 2D stregkoder: QR Code, Data Matrix, PDF417, Micro PDF417, MaxiCode, Aztec.

Upload tilstande

• Øjeblikkelig upload-tilstand: In this mode, scanned barcodes are immediately transmitted to the connected device. This is the default mode and is suitable for real-time data entry.
• Hukommelsestilstand: If the scanner is out of range or not connected to a host device, it can store scanned barcodes in its internal 16MB memory. This memory can hold up to 50,000 barcodes. To upload stored data, reconnect the scanner to your device and scan the "Upload Data" barcode (refer to the full manual for specific barcodes).

Vibrationsfunktion

The scanner features a vibration function to provide tactile feedback upon a successful scan. This is particularly useful in noisy environments where audio cues might be missed, or in quiet environments where an audible beep is undesirable. You can typically enable or disable this function by scanning specific configuration barcodes (refer to the full manual).

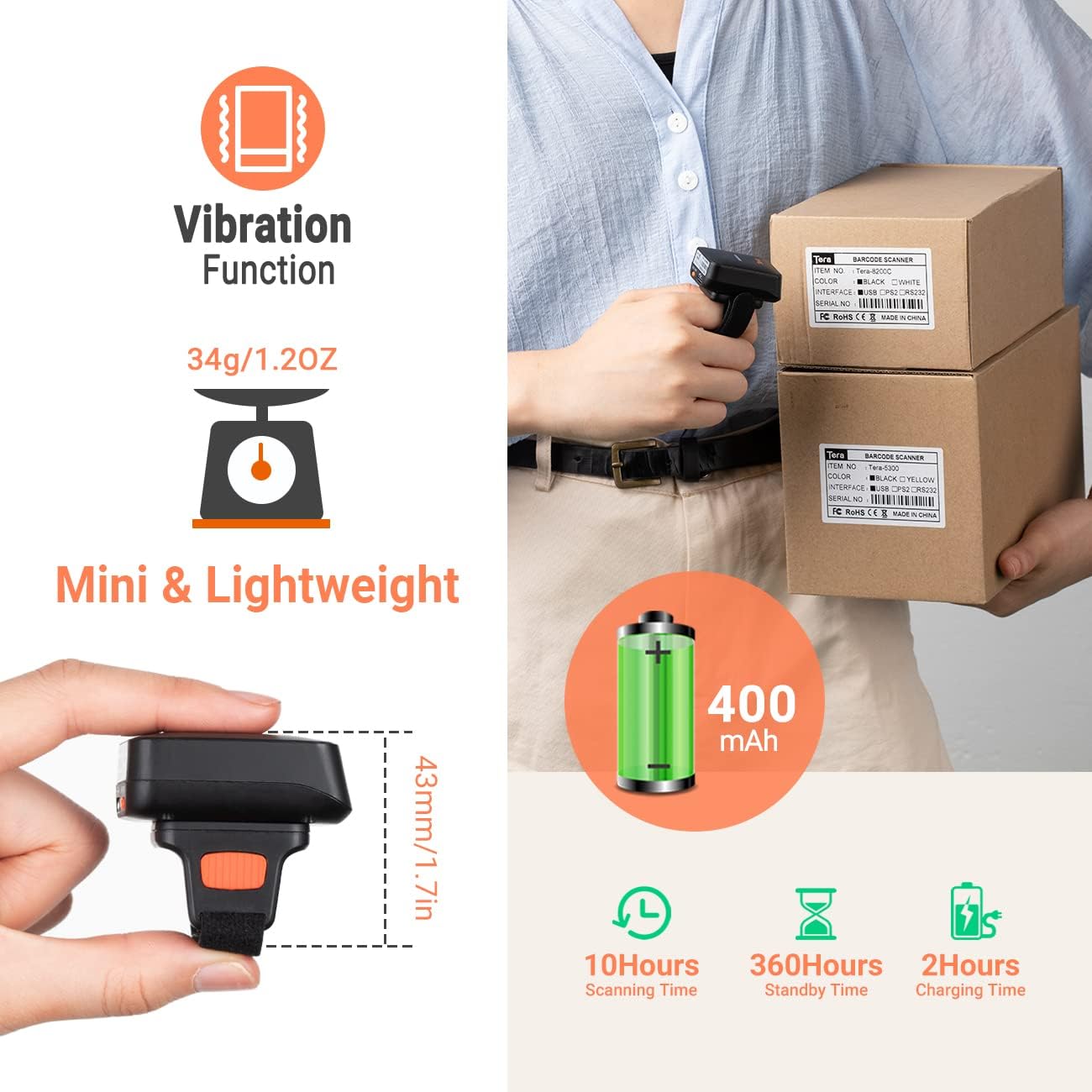

Image: Features including vibration, compact size, and battery life.

Opretholdelse

Rensning

Wipe the scanner's exterior with a soft, dry, lint-free cloth. For stubborn dirt, slightly dampen the cloth with water. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the device.

Opbevaring

Store the scanner in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, ensure the battery is partially charged (around 50%) to prolong its lifespan.

Batteripleje

The scanner is equipped with a 400mAh rechargeable battery. To maximize battery life:

• Undgå at aflade batteriet helt ofte.
• Avoid leaving the scanner connected to power for prolonged periods after it's fully charged.
• Charge the scanner using only the provided USB cable and a compatible 5V/1A (max 5V/1.2A) power source.

Fejlfinding

Specifikationer

Garanti og support

Tera products are designed and manufactured to high-quality standards. For warranty information and technical support, please refer to the official Tera webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Image: Tera Customer Support.

For yderligere hjælp, besøg venligst Tera Brand Store on Amazon or consult the comprehensive user manual available on the manufacturer's webwebsted.
