VEIKK Sketchpad Pro grafisk tablet brugermanual

1. Introduktion

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your VEIKK Sketchpad Pro Graphic Tablet. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

Figure 1: VEIKK Sketchpad Pro Graphic Tablet and Stylus.

2. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• VEIKK Sketchpad Pro Graphic Tablet
• Stylus
• USB Cable (for connection)
• Hurtigstartguide (kan være inkluderet)

Bemærk: Yderligere tilbehør kan sælges separat.

3. Opsætningsvejledning

3.1 Systemkrav

• Operativsystem: Windows 7 eller nyere, macOS 10.12 eller nyere, Android 6.0 eller nyere.
• Forbindelse: USB-port.

3.2 Driver Installation (for Windows/macOS)

1. Disconnect the Tablet: Ensure the VEIKK Sketchpad Pro is not connected to your computer.
2. Download drivere: Visit the official VEIKK webwebsted (f.eks. www.veikk.com) and download the latest drivers for your specific operating system and model.
3. Installer drivere: Run the downloaded installer and follow the on-screen instructions. It is recommended to close all other applications during installation.
4. Genstart computeren: Genstart computeren efter installationen, hvis du bliver bedt om det.
5. Tilslut tablet: Connect the VEIKK Sketchpad Pro to your computer using the provided USB cable. The system should automatically recognize the device.

Figure 2: The VEIKK Sketchpad Pro features a battery-free passive pen with 8192 levels of pressure sensitivity, 5080 LPI resolution, and a 250 PPS data report rate. The pen allows switching between pen and eraser functions and includes a right-click button.

3.3 Forbindelse til Android-enhed

For Android devices (Android 6.0 or later), the tablet can be connected using an OTG connector (not included). Ensure your Android device supports OTG functionality.

1. Connect the VEIKK Sketchpad Pro to the OTG connector.
2. Connect the OTG connector to your Android device.
3. Tabletten burde blive genkendt automatisk.

Figure 3: The VEIKK Sketchpad Pro supports connection to both Android devices (via OTG connector) and desktop/laptop computers (Windows 7+ and macOS 10.12+).

4. Betjeningsvejledning

4.1 Brug af pennen

• The stylus is battery-free and does not require charging.
• It features 8192 levels of pressure sensitivity for precise control.
• The buttons on the stylus can be customized via the driver software to switch between pen/eraser or perform other functions (e.g., right-click).
• Hover the stylus over the tablet surface without touching to move the cursor.
• Tap the stylus on the tablet surface to click or draw.

4.2 Tilpasning af indstillinger

After driver installation, you can access the VEIKK driver panel from your computer's system tray or applications folder. Here you can:

• Adjust pressure sensitivity.
• Customize stylus button functions.
• Map the tablet's active area to your screen.
• Configure for left-handed or right-handed use.

Figure 4: The VEIKK Sketchpad Pro can be configured to accommodate both left-handed and right-handed users, allowing for comfortable drawing habits.

5. Vedligeholdelse

• Rensning: Use a soft, dry cloth to clean the tablet surface and stylus. Avoid using harsh chemicals or abrasive materials.
• Opbevaring: Opbevar tabletten et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Stylusspidser: Regularly check the stylus nib for wear. Replace worn nibs with new ones provided with the tablet or purchased separately to maintain optimal drawing performance.
• Kabelpleje: Undgå at bøje eller vride USB-kablet for meget for at forhindre skader.

6. Fejlfinding

6.1 No Cursor Movement

• Sørg for, at USB-kablet er korrekt tilsluttet til både tabletten og computeren.
• Kontroller, at driverne er korrekt installeret. Geninstaller om nødvendigt.
• Try connecting the tablet to a different USB port.
• Genstart din computer.

6.2 Pressure Sensitivity Not Working

• Confirm that the drivers are installed and running.
• Check the pressure settings in the VEIKK driver panel.
• Ensure the application you are using supports pressure sensitivity.
• Test with a different drawing application.

6.3 Stylus Buttons Not Responding

• Check the button assignments in the VEIKK driver panel.
• Ensure the stylus is within the active area of the tablet.

7. Specifikationer

Figure 5: Physical dimensions of the VEIKK Sketchpad Pro, highlighting its compact size and thin profile.

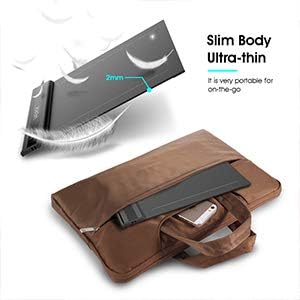

Figure 6: The ultra-thin and slim design of the VEIKK Sketchpad Pro makes it highly portable for on-the-go use.

8. Garanti og support

8.1 Garantioplysninger

For specific warranty details, please refer to the warranty card included with your product or visit the official VEIKK webGarantibetingelserne dækker typisk fabrikationsfejl i en bestemt periode fra købsdatoen.

8.2 Kundesupport

If you encounter any issues not covered in this manual or require further assistance, please contact VEIKK customer support through their official webwebsted:

• Webwebsted: www.veikk.com/support (eksamplinket, det faktiske link kan variere)
• Se produktemballagen eller den officielle webhjemmeside for de seneste kontaktoplysninger.
