Grifema G4008B 360° Swivel Single-Lever Kitchen Faucet

1. Introduktion

Thank you for choosing the Grifema G4008B 360° Swivel Single-Lever Kitchen Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read these instructions carefully before installation and retain them for future reference.

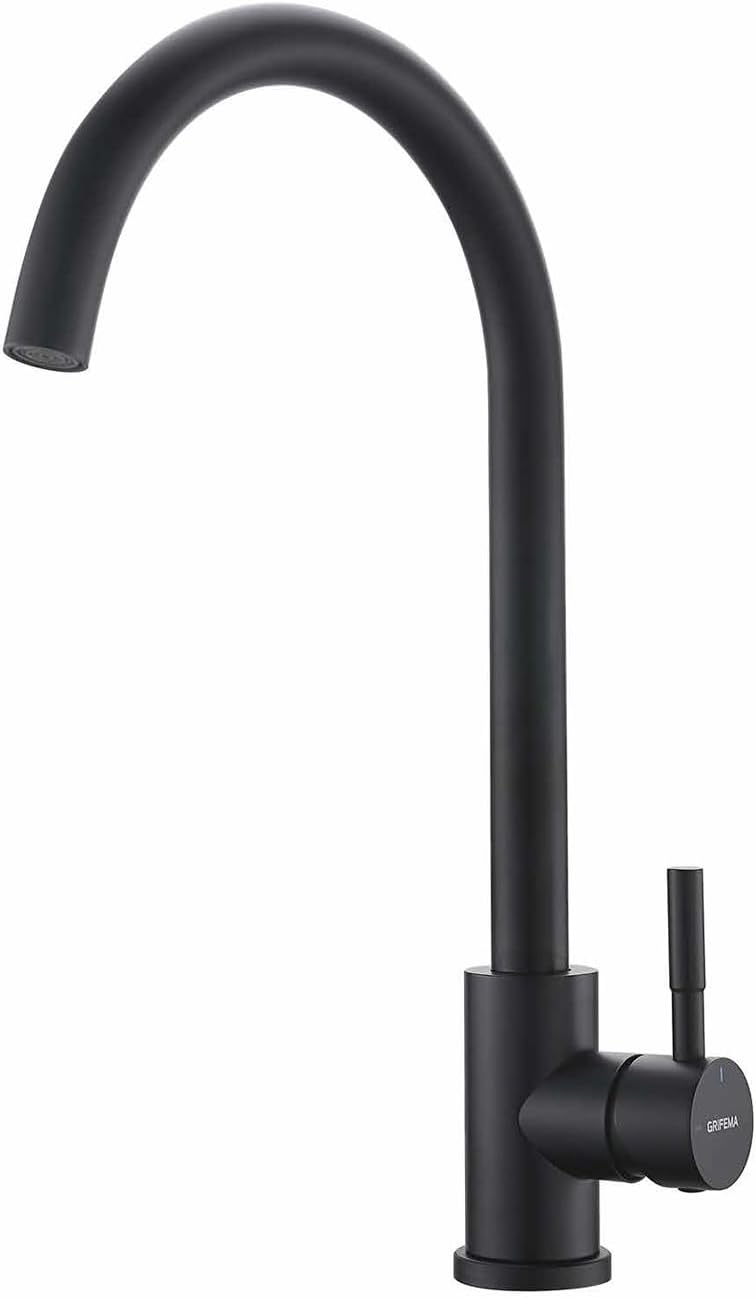

Front view of the Grifema G4008B kitchen faucet in matte black finish.

2. Produktfunktioner

The Grifema G4008B kitchen faucet is designed for durability, efficiency, and ease of use. Key features include:

• Holdbar konstruktion: Equipped with a high-quality ceramic valve tested for 500,000 open/close cycles, ensuring professional, drip-free performance and reliable stability.
• Water-Saving Design: Provides a gentle water flow with no splashing or noise, contributing to up to 30% water savings.
• 360° drejelig tud: Offers extensive flexibility, allowing water to be directed precisely where needed in the sink.
• Mat sort finish: A superior matte black finish that is elegant, resistant to rust, corrosion, and oxidation, and easy to clean and maintain.
• Koldstartssystem: Designed to start with cold water when the lever is in the central position, reducing unnecessary hot water consumption and saving energy.
• Removable Aerator: The aerator head can be easily removed for cleaning, ensuring consistent water flow and hygiene.
• SUS304 rustfrit stål: Constructed from SUS304 stainless steel, a healthy material for safe drinking water.

Grifema G4008B single-lever kitchen mixer in use, demonstrating its features.

Cutaway diagram showing the SUS304 Stainless Steel construction of the faucet.

3. Pakkens indhold

Please check that all components are present and undamaged before beginning installation:

• 1 x Grifema G4008B Kitchen Faucet
• 2 x Flexible Hoses (Hot & Cold)
• Installation Hardware (gaskets, mounting nut, etc.)
• Instruktionsmanual

Contents of the Grifema G4008B faucet package.

4. Specifikationer

Technical drawing showing the dimensions and mounting hole information.

The faucet body on a digital scale, indicating its weight.

5. Installationsvejledning

The Grifema G4008B faucet is designed for easy installation. Follow these steps carefully:

1. Forberedelse: Ensure your sink has a single mounting hole (Ø 33-38mm) and the maximum countertop thickness is 53mm. Turn off the main water supply before starting.
2. Montering af vandhanen: Insert the faucet body into the mounting hole. From underneath the sink, secure the faucet using the provided rubber gasket, metal washer, and mounting nut. Tighten the nut firmly to prevent movement.
3. Connecting Water Hoses: Connect the flexible hot and cold water hoses to the corresponding outlets on the faucet body. The hoses are typically color-coded (red for hot, blue for cold).
4. Tilslutning til vandforsyning: Attach the other ends of the flexible hoses to your hot and cold water supply lines. The faucet includes 1/2" and 3/8" adapters for compatibility. Ensure all connections are tight to prevent leaks.
5. Test: Slowly turn on the main water supply. Check all connections for leaks. Operate the faucet handle to ensure proper hot and cold water flow and temperature control.

For visual guidance, refer to the installation illustrations provided with your product packaging.

6. Betjening

Operating your Grifema G4008B faucet is straightforward:

• Vandstrømskontrol: Lift the single lever handle to increase water flow. Push it down to decrease or stop the flow.
• Temperaturkontrol: Move the lever to the right for cold water and to the left for hot water. The cold-start system ensures that when the lever is in the central position, only cold water flows, saving energy.
• Tudrotation: The faucet spout can be rotated 360 degrees to direct water to different areas of your sink or to move it out of the way when not in use.

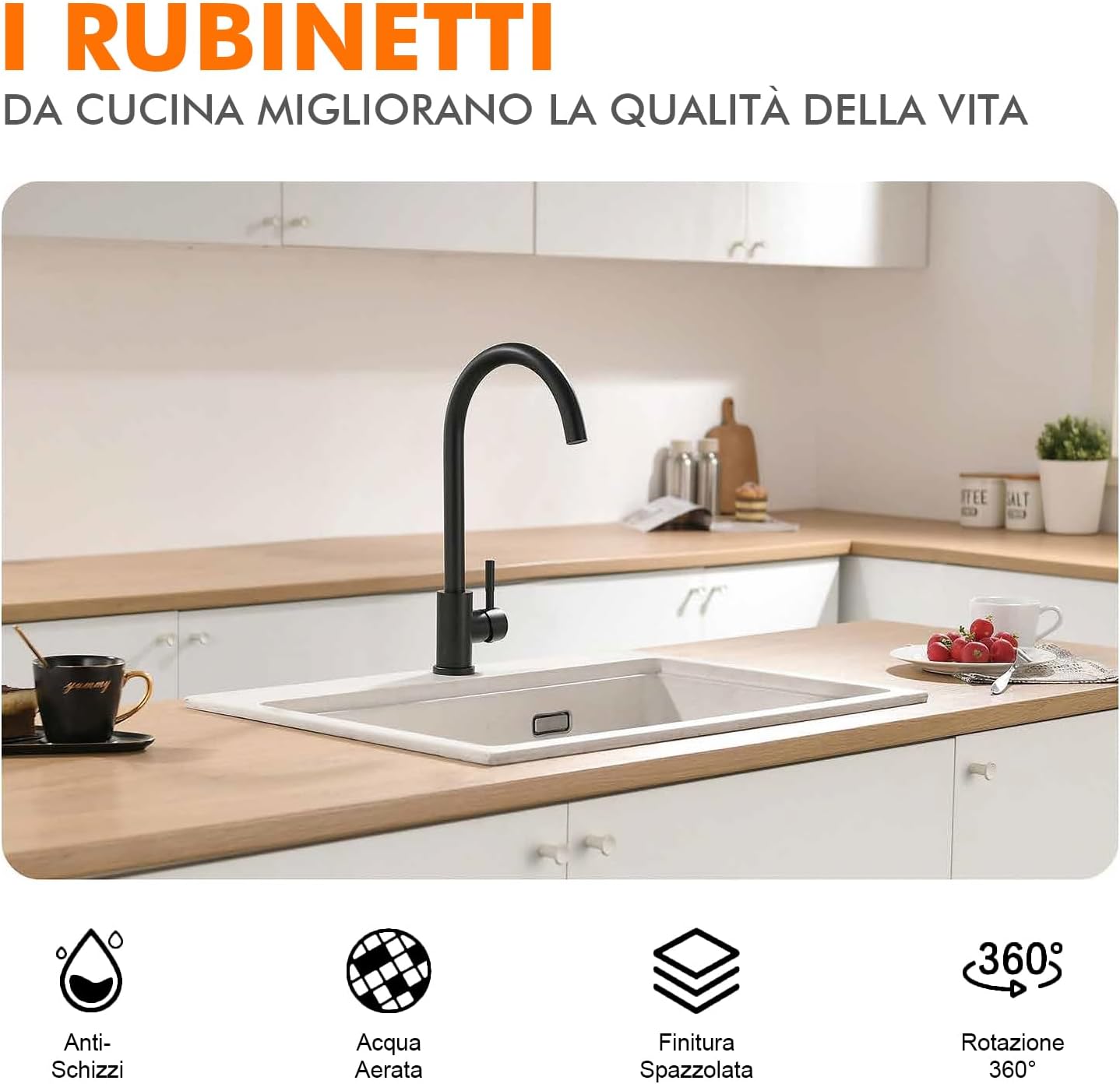

Grifema G4008B faucet in a kitchen setting, demonstrating its functionality.

Diagram illustrating the cold-start system for energy and water saving.

Visual representation of the 360-degree rotation capability.

7. Vedligeholdelse

Regular maintenance will ensure the longevity and optimal performance of your Grifema G4008B faucet:

• Rengøring af finishen: Rengør den matsorte finish med en blød,amp klud og mild sæbe. Undgå slibende rengøringsmidler, skuresvampe eller barske kemikalier, da disse kan beskadige overfladen.
• Rengøring af belufteren: If water flow becomes restricted or uneven, the aerator may need cleaning. The aerator head is removable for easy access. Unscrew or gently pull off the aerator, rinse any debris, and reattach.
• Lækagekontrol: Periodically check under the sink for any signs of leaks around the connections. Tighten connections if necessary.

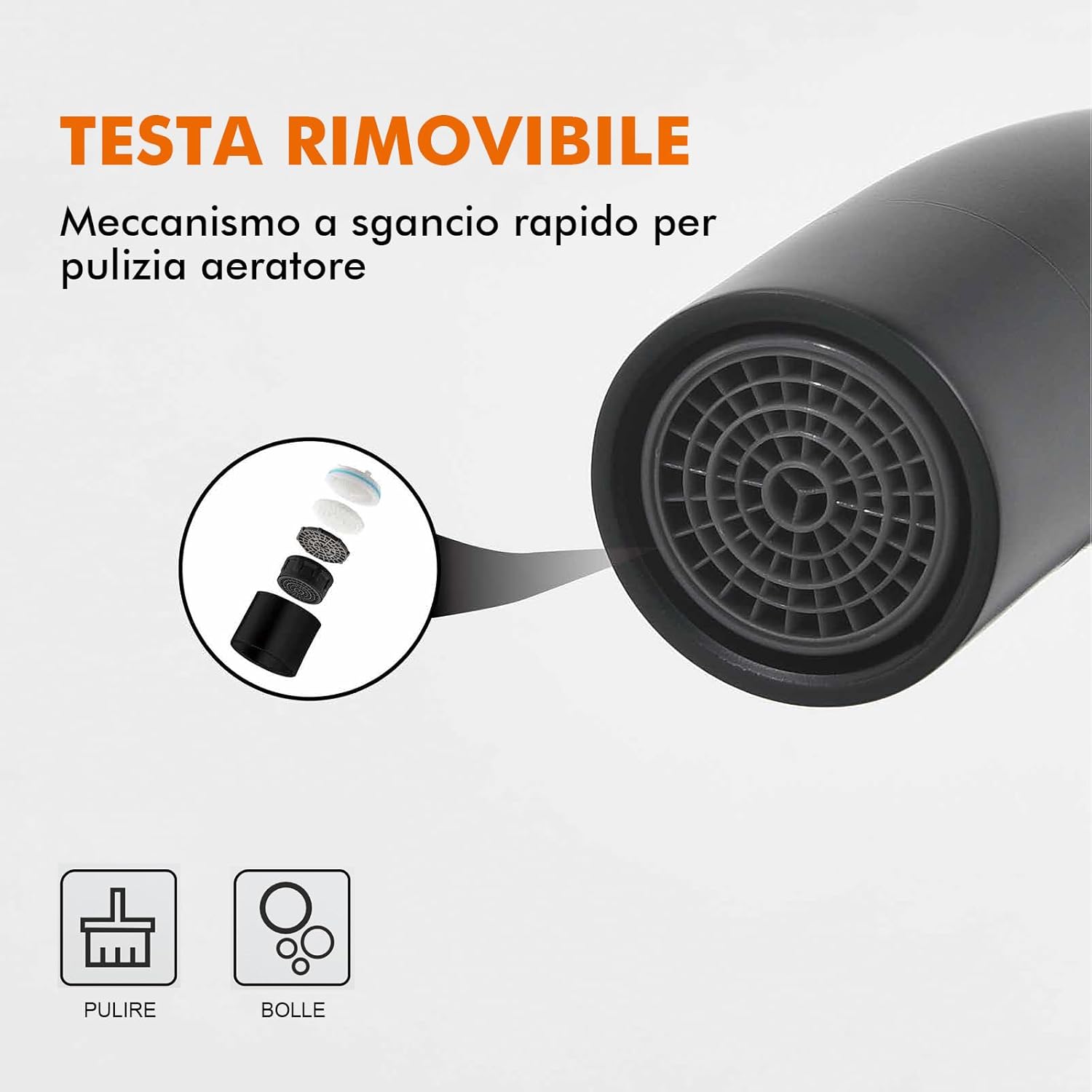

Nærbillede view of the removable aerator head for easy cleaning.

8. Fejlfinding

Hvis du støder på problemer med din vandhane, kan du se følgende almindelige problemer og løsninger:

• Lav vandgennemstrømning:
  • Kontroller om hovedvandforsyningen er helt åben.
  • Clean the aerator for any mineral buildup or debris.
  • Inspect the flexible hoses for kinks or blockages.
• Lækager fra vandhanebunden:
  • Ensure the mounting nut under the sink is securely tightened.
  • Check the rubber gasket for proper seating and damage.
• Leaks from Hose Connections:
  • Tighten the connections of the flexible hoses to the faucet and water supply lines.
  • Ensure rubber washers are correctly seated within the hose connections.
• Dryppende vandhane:
  • A dripping faucet usually indicates an issue with the ceramic cartridge. While the cartridge is designed for long-term, drip-free performance, if dripping occurs, contact customer support for assistance.

If these steps do not resolve the issue, please contact Grifema customer support.

9. Garanti og support

Grifema products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Grifema webwebsted. Gem din købsbevis i tilfælde af garantikrav.

For further assistance, you may contact Grifema customer service through their official channels.
