Tasmor JYX-5050x18N

TASMOR 10M USB RGB LED-stribelys brugermanual

Model: JYX-5050x18N

Mærke: Tasmor

Indledning

Thank you for choosing the TASMOR 10M USB RGB LED Strip Light. This product is designed to provide versatile and vibrant lighting for various indoor settings, including bedrooms, living rooms, kitchens, and for special occasions like parties and holidays. This manual provides essential information for safe installation, operation, and maintenance of your LED strip light.

Sikkerhedsoplysninger

Produkt overview

The TASMOR 10M USB RGB LED Strip Light system includes the following components:

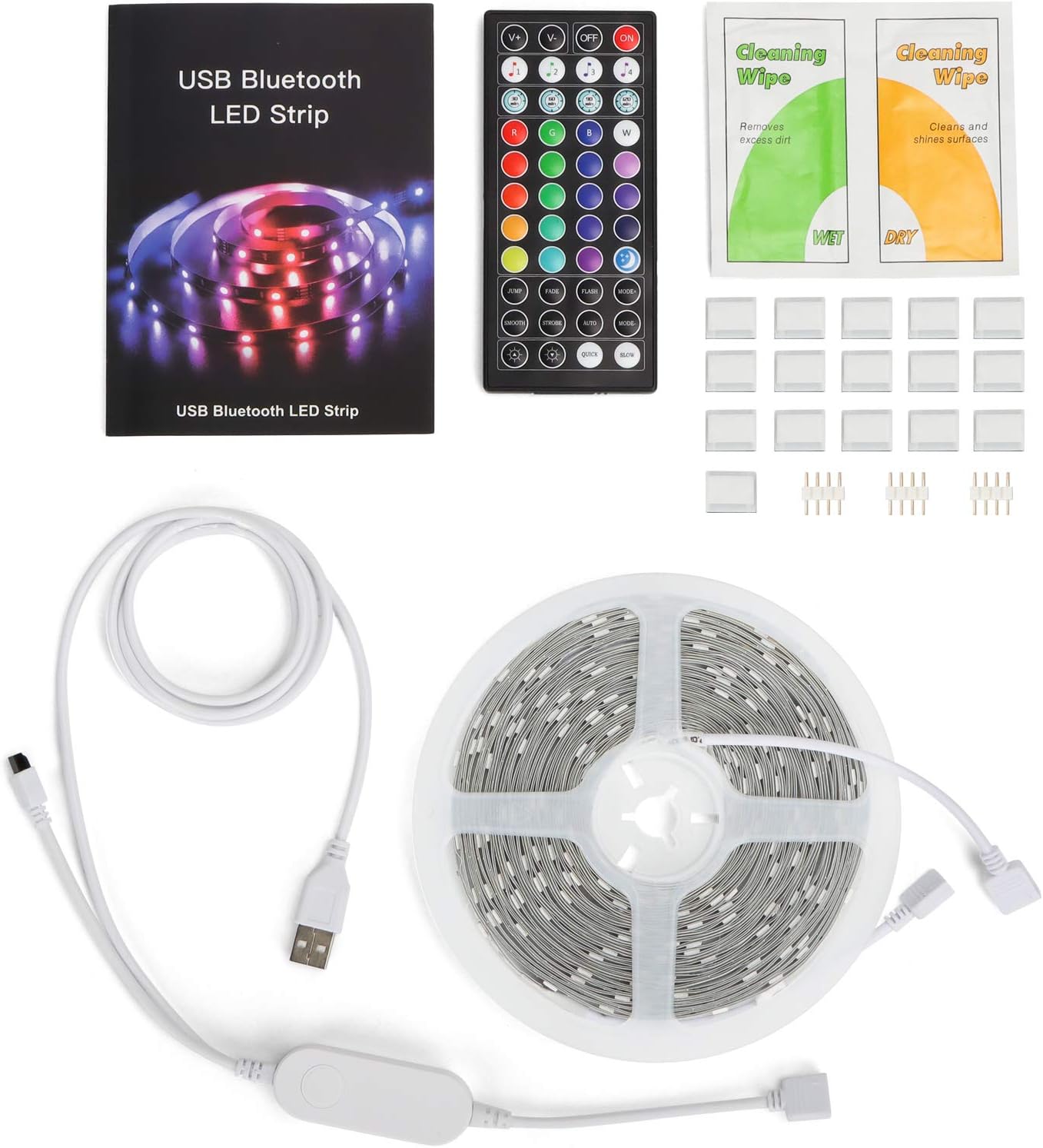

Contents of the TASMOR LED Strip Light package, including the coiled LED strip, remote control, USB cable with in-line controller, user manual, and cleaning wipes.
Figure 1: Package Contents. This image displays all items typically found within the product box, including the LED strip, remote, USB controller, and documentation.

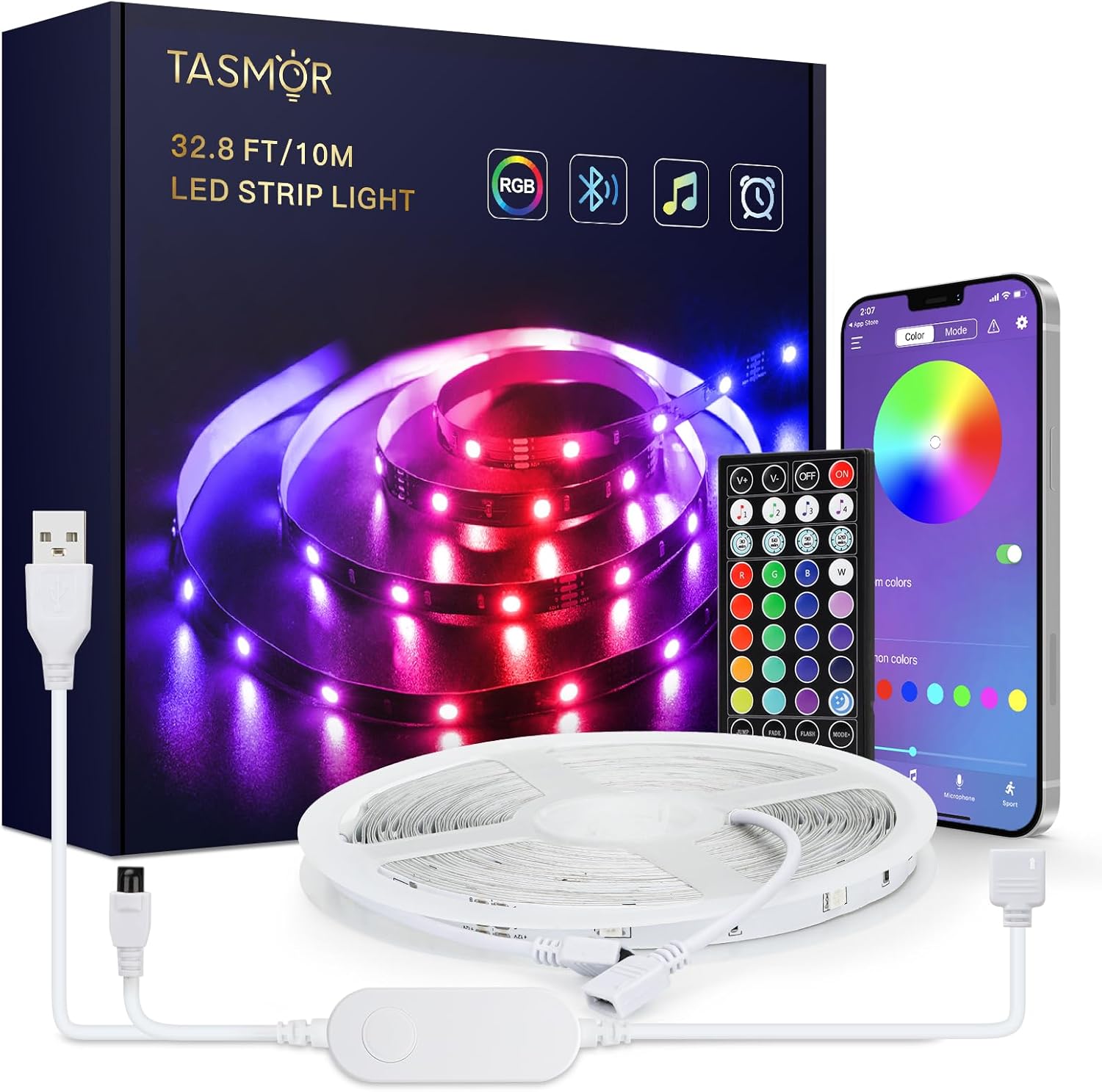

TASMOR 10M USB RGB LED Strip Light kit showing the product box, coiled LED strip, 44-key remote, USB power cable, and a smartphone displaying the control app interface.
Figure 2: Product Components. A comprehensive view of the LED strip light system, highlighting the main components and control options.

Opsætning og installation

  1. Forbered overfladen: Choose a clean, dry, and smooth surface for installation. Wipe the surface with the provided cleaning wipes (if applicable) and allow it to dry completely.
  2. Unroll the LED Strip: Fully unroll the LED strip before connecting it to power to prevent overheating.
  3. Forbind komponenter:
    • Connect the LED strip to the in-line control box. Ensure the arrows on the connectors align.
    • Connect the USB plug from the in-line control box to a 5V USB power source (e.g., USB wall adapter, power bank, computer USB port).
    Diagram showing how to connect the LED strip to the in-line controller and then to a USB power source, with arrows indicating correct alignment.
    Figure 3: Connection Diagram. This diagram illustrates the correct way to connect the LED strip to its controller and power source.
  4. Fastgør strimlen: Peel off the self-adhesive backing from the LED strip gradually as you press it firmly onto the prepared surface.
    Three panels showing features: top panel shows peeling off the 3M adhesive backing, middle panel shows scissors cutting the LED strip at a designated mark, bottom panel shows the strip bending at a 90-degree angle.
    Figure 4: Installation Features. This image demonstrates the strong 3M adhesive, the ability to cut the strip at marked intervals, and its flexibility for bending around corners.
  5. Cutting the Strip (Optional): If the strip is too long, you can cut it at the designated cutting marks (indicated by copper pads and a scissor icon) every 4 poles. Ensure power is disconnected before cutting.

Betjeningsvejledning

Your TASMOR LED Strip Light offers three convenient control methods:

Image showing three control methods for the LED strip: an IR remote control, a smartphone with the MagicStrip APP open, and the physical in-line control box.
Figure 5: Three-Way Control. The LED strip can be controlled via the IR remote, the MagicStrip APP, or the in-line control box.

1. In-line Control Box

The small button on the in-line control box allows for basic control:

2. 44-Key IR Remote Control

The remote control provides comprehensive access to various functions:

3. MagicStrip APP (Bluetooth Control)

For advanced features and customization, download the "MagicStrip" app from the App Store or Google Play. Ensure Bluetooth is enabled on your smartphone.

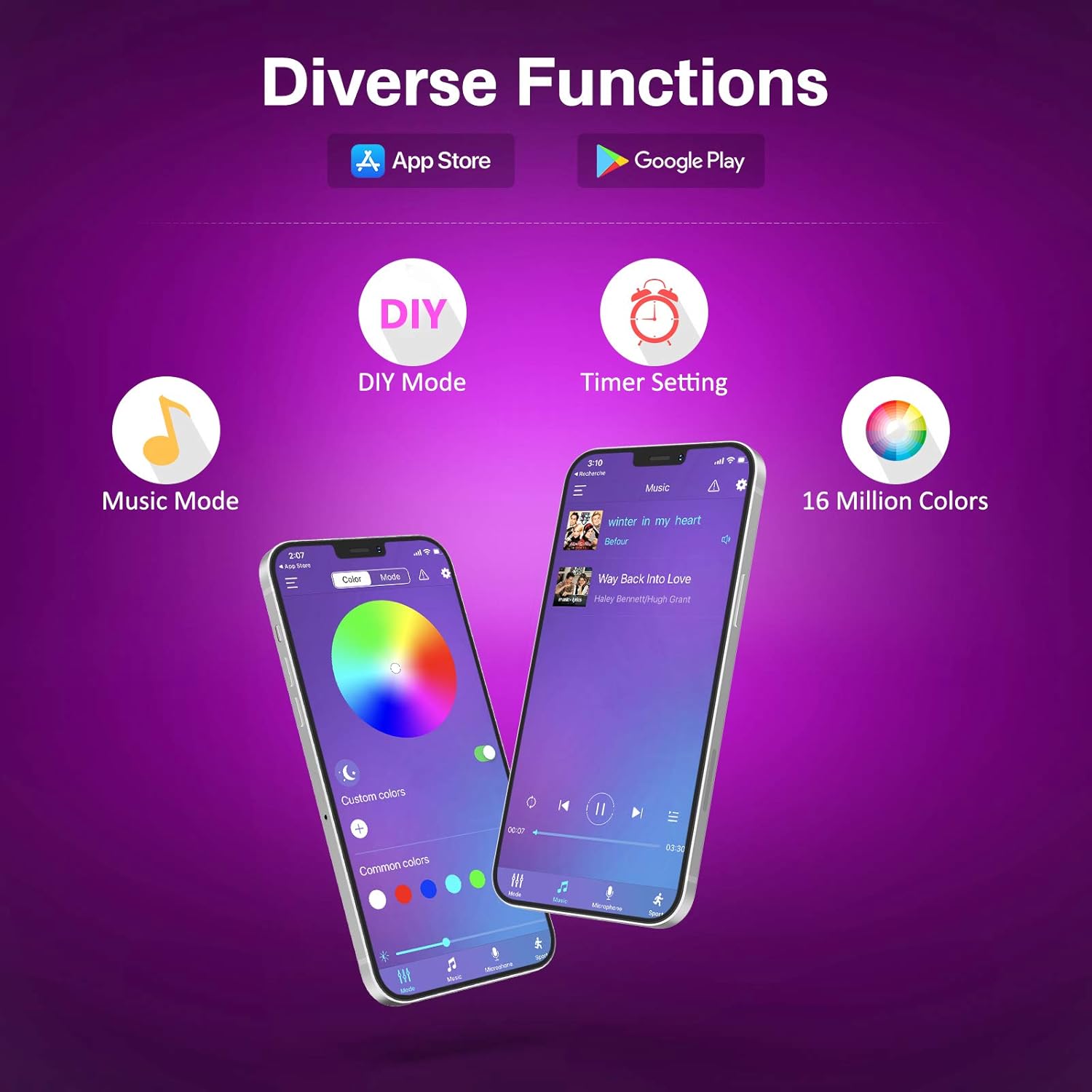

Image showing two smartphones displaying the MagicStrip app interface, highlighting features like Music Mode, DIY Mode, Timer Setting, and 16 Million Colors.
Figure 6: Diverse Functions via APP. The MagicStrip app unlocks advanced features including music synchronization, DIY color creation, timer settings, and access to 16 million colors.
People dancing in a room illuminated by colorful LED strip lights, demonstrating the music synchronization feature.
Figure 7: Music Synchronization in Action. The LED strip lights dynamically respond to music, creating an immersive atmosphere for parties and events.
Top panel shows a gaming setup with monitors illuminated by blue LED strip lights. Bottom panel shows the same setup with green LED strip lights, illustrating multiple color options.
Figure 8: Multiple Color Options. The LED strip lights offer a wide array of colors to suit different moods and environments, such as a gaming setup.

Opretholdelse

Fejlfinding

ProblemMulig årsagLøsning
Lysene tænder ikke.Ingen strøm, løs forbindelse, fjernbetjeningens batteri er dødt.Check USB power source. Ensure all connections are secure. Replace remote battery (2 x A batteries required for remote, not included).
Fjernbetjening virker ikke.Remote battery dead, IR sensor blocked, remote too far.Replace remote battery. Ensure no obstructions between remote and IR receiver on the control box. Operate within 5-8 meters of the receiver.
APP cannot connect to the strip.Bluetooth ikke aktiveret, app ikke parret, interferens.Ensure Bluetooth is enabled on your phone. Restart the app and the LED strip (unplug/replug USB). Try pairing again.
Lysene er svage eller flimrende.Utilstrækkelig strøm, beskadiget strimmel.Ensure USB power source provides sufficient current (e.g., 5V/2A). If a section is damaged, it may need replacement.
Farverne er forkerte.Incorrect connection, app/remote setting.Check that the arrows on the connectors are aligned. Reset the strip by unplugging and replugging. Try different color settings on the remote or app.

Specifikationer

MærkeTasmor
FabrikantTasmor
ModelnummerJYX-5050x18N
Produktmål (L x B x H)1000 x 10 x 0.1 cm (10 meters)
Varens vægt240 gram
FarveUSB-10m (RGB)
MaterialePlast
Antal pærer180
Inkluderede komponenter10m RGB LED Strip Light, 44-key Remote Control, 1-button Control Box and App for control
Voltage5 volt
Specifikke anvendelserKun indendørs brug
Særlige funktionerNon-waterproof, No adapter included (USB powered)
StiktypeElectrical Cable (USB)
Batteri(er) inkluderetIngen
Nødvendigt batteri(er)Yes (2 x A for remote control)
Pære typeLED
Lysstrøm150 lm
Magt60 watt
IP-vurderingIP20

Garanti og support

For warranty information and technical support, please refer to the seller's policy on the purchase platform or contact the manufacturer directly. Please retain your proof of purchase for any warranty claims.

Manufacturer: Tasmor
