1. Introduktion og overview
The Mayer 6L Multi Pressure Cooker MMPC6062A is an advanced kitchen appliance designed to simplify and accelerate your cooking process. This multi-cooker combines the benefits of pressure cooking with various other cooking functions, allowing for healthier and faster meal preparation. It is engineered to retain food quality by cooking ingredients quickly and efficiently.
Key features of this appliance include:
- LED screen display for clear operation.
- 14 versatile cooking functions to cater to diverse culinary needs.
- Non-stick inner pot for easy cleaning and cooking.
- Preset timer up to 24 hours for delayed cooking.
- Working pressure at 70kPa for efficient cooking.
- Push-key button for safe pressure release.
- Automatic lock during pressure release for enhanced safety.
This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your Mayer Multi Pressure Cooker.
2. Vigtige sikkerhedsoplysninger
Please read all instructions carefully before using the appliance to prevent injury or damage. Always follow basic safety precautions.
- Elektrisk sikkerhed: Sørg for, at voltage matches your power supply. Do not immerse the main unit, cord, or plug in water or other liquids. Unplug from outlet when not in use and before cleaning.
- Tryksikkerhed: Never force the lid open. Ensure the pressure has been fully released before opening. Do not touch hot surfaces; use handles or oven mitts. Be cautious of steam escaping from the pressure release valve during and after cooking.
- Låg og forsegling: Always ensure the lid is properly sealed and locked before starting a pressure cooking cycle. The automatic lock feature prevents opening during pressure.
- Placering: Place the cooker on a stable, level, heat-resistant surface, away from walls and cabinets to allow for proper ventilation and steam release.
- Fødevarekapacitet: Do not overfill the inner pot. Refer to the maximum fill line to prevent blockages of the steam release valve.
- Børn og kæledyr: Opbevar apparatet utilgængeligt for børn og kæledyr. Nøje opsyn er nødvendigt, når apparatet bruges i nærheden af børn.
- Opretholdelse: Forsøg ikke at reparere apparatet selv. Kontakt kvalificeret servicepersonale for eventuelle reparationer.
3. Produktkomponenter og funktioner
Familiarize yourself with the parts of your Mayer Multi Pressure Cooker:
- Hovedenhed: Det ydre hus, der indeholder varmeelementet og kontrolpanelet.
- Indre gryde: Removable non-stick cooking pot.
- Låg: Features a sealing ring, pressure release valve, and safety lock mechanism.
- Kontrolpanel: LED display with various function buttons and a menu dial.
- Kondensopsamler: Small cup at the back to collect excess moisture.
Figur 3.1: Forside view of the Mayer 6L Multi Pressure Cooker, highlighting the LED display and control buttons.

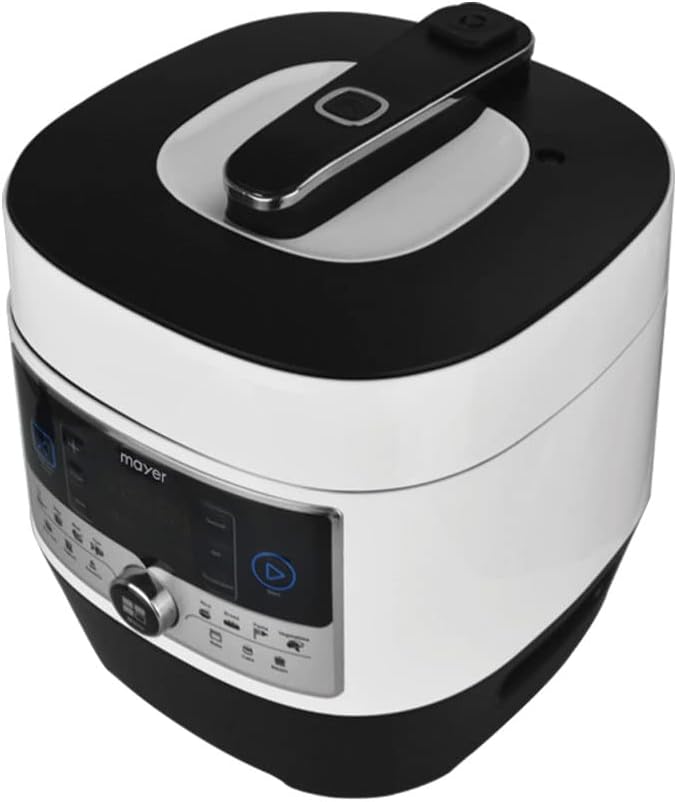

Figur 3.2: Vinklet view of the pressure cooker, showing its compact design with the lid securely closed.
Figur 3.3: Øverst view of the pressure cooker with the lid open, illustrating access to the non-stick inner pot.
4. Opsætning og første brug
- Udpakning: Carefully remove all packaging materials from the box. Retain packaging for future storage or transport if needed.
- Indledende rengøring: Before first use, wash the inner pot, sealing ring, and lid components (except the main unit) with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp klæde.
- Placering: Place the pressure cooker on a stable, level, and heat-resistant countertop. Ensure there is adequate space around the unit (at least 15 cm) for proper ventilation and steam release, especially above the steam release valve. Do not place near flammable materials.
- Indsæt den indre gryde: Placer den rengjorte inderste beholder i hovedenheden. Sørg for, at den sidder korrekt og ikke er vippet.
- Tilslut strøm: Sæt strømkablet i en jordforbundet stikkontakt. LED-displayet lyser.
5. Betjeningsvejledning
5.1 Kontrolpanel overview
The control panel features an intuitive LED display and various buttons for selecting cooking functions, adjusting settings, and controlling the cooking process.
- LED display: Shows cooking time, pressure level, temperature, and selected function.
- Preset/Cancel Button (X): Used to cancel a program or return to standby mode.
- +/- knapper: Adjust cooking time, temperature, or preset delay.
- Menuopkald: Rotate to scroll through the 14 cooking functions. Press to confirm selection.
- Start Button (Play symbol): Starter det valgte tilberedningsprogram.
- Texture Button: Adjusts the texture (e.g., Strong, Standard, Light) for certain programs.
- Gør-det-selv-knap: Allows manual setting of cooking time and temperature.
- Temperatur knap: Adjusts cooking temperature in DIY mode.
5.2 Grundlæggende betjeningstrin
- Forbered ingredienser: Place desired ingredients and liquid into the non-stick inner pot. Ensure the liquid level is above the minimum requirement for pressure cooking and below the maximum fill line.
- Luk låget: Place the lid on the main unit, aligning the arrow on the lid with the arrow on the main unit. Rotate the lid clockwise until it locks into place. Ensure the steam release valve is in the "Sealing" position (if adjustable). The automatic lock will engage.
- Vælg funktion: Use the Menu dial to scroll through the 14 available cooking functions (Fry, Stew, Meat, Fish, Rice, Bread, Pasta, Vegetables, Slow Cook, Yoghurt, Desserts, Bake, Cake, Steam). Press the dial to select.
- Juster indstillinger (valgfrit):
- Use the +/- buttons to adjust the cooking time if needed.
- For certain functions, use the "Texture" button to select desired texture (Strong, Standard, Light).
- To use the preset timer (up to 24 hours), select your function, then press the "Preset" button and use +/- to set the delay time.
- For DIY mode, select DIY, then use +/- for time and the "Temperature" button for temperature adjustment.
- Begynd at lave mad: Press the "Start" button (play symbol) to begin the cooking cycle. The cooker will preheat, build pressure (if applicable), and then begin the countdown.
- Trykudløsning: Once cooking is complete, the cooker will beep and may switch to a "Keep Warm" function. To release pressure, press the "Push-key button for pressure release" located on the lid. Always keep hands and face away from the steam release valve. Wait until the float valve drops completely before attempting to open the lid. The automatic lock will disengage once pressure is fully released.
- Åbent låg: Once pressure is released, rotate the lid counter-clockwise and lift it carefully away from you to avoid residual steam.
6. Rengøring og vedligeholdelse
Regular cleaning ensures the longevity and optimal performance of your pressure cooker.
- Tag altid stikket ud: Før rengøring skal du sørge for, at apparatet er taget ud af stikkontakten og er kølet helt af.
- Indre gryde: The non-stick inner pot can be washed with warm, soapy water and a soft sponge. Avoid abrasive cleaners or scouring pads that could damage the non-stick coating. It is generally dishwasher safe, but hand washing is recommended to preserve the coating.
- Låg: Remove the sealing ring and wash it with warm, soapy water. Clean the lid, including the steam release valve and float valve, ensuring no food particles are blocking them. Reinstall the sealing ring correctly after cleaning.
- Hovedenhedens ydre: Tør ydersiden af hovedenheden af med enamp klud. Nedsænk aldrig hovedenheden i vand eller andre væsker.
- Kondensopsamler: Tøm og rengør kondensvandsopsamleren efter hver brug.
- Opbevaring: Store the cleaned and dried pressure cooker in a dry place. You may place the lid upside down on the inner pot to prevent odors and allow air circulation.
7. Fejlfinding
If you encounter issues with your Mayer Multi Pressure Cooker, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Komfuret opbygger ikke tryk. | Lid not properly sealed; sealing ring not installed correctly or damaged; steam release valve in "Venting" position; insufficient liquid. | Ensure lid is fully locked. Check sealing ring for proper placement and damage. Turn steam release valve to "Sealing" position. Add more liquid as per recipe. |
| Steam leaking from lid during cooking. | Sealing ring dirty, damaged, or improperly installed; food debris on rim; lid not closed properly. | Clean or replace sealing ring. Clean the rim of the inner pot and lid. Ensure lid is securely locked. |
| Låget kan ikke åbnes efter tilberedning. | Der er stadig tryk inde i komfuret. | Ensure all pressure has been released via the push-key button. Wait for the float valve to drop completely. Do not force the lid. |
| Maden er underkogt. | Utilstrækkelig tilberedningstid; ikke nok væske; strømafbrydelse. | Increase cooking time. Ensure adequate liquid. Check power connection. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
8. Specifikationer
Technical specifications for the Mayer 6L Multi Pressure Cooker MMPC6062A:
| Feature | Detalje |
|---|---|
| Modelnummer | MMPC6062A |
| Mærke | Mayer |
| Kapacitet | 6 liter |
| Wattage | 1000 watt |
| Voltage | 240 volt |
| Materiale | Stainless steel (exterior), Non-stick (inner pot) |
| Produktmål (L x B x H) | 35.1 x 35.1 x 36 cm (ca.) |
| Varens vægt | 6.7 kg (ca.) |
| Arbejdstryk | 70 kPa |
| Særlige funktioner | Locking Lid, LED Screen Display, 14 Cooking Functions, Preset Timer |

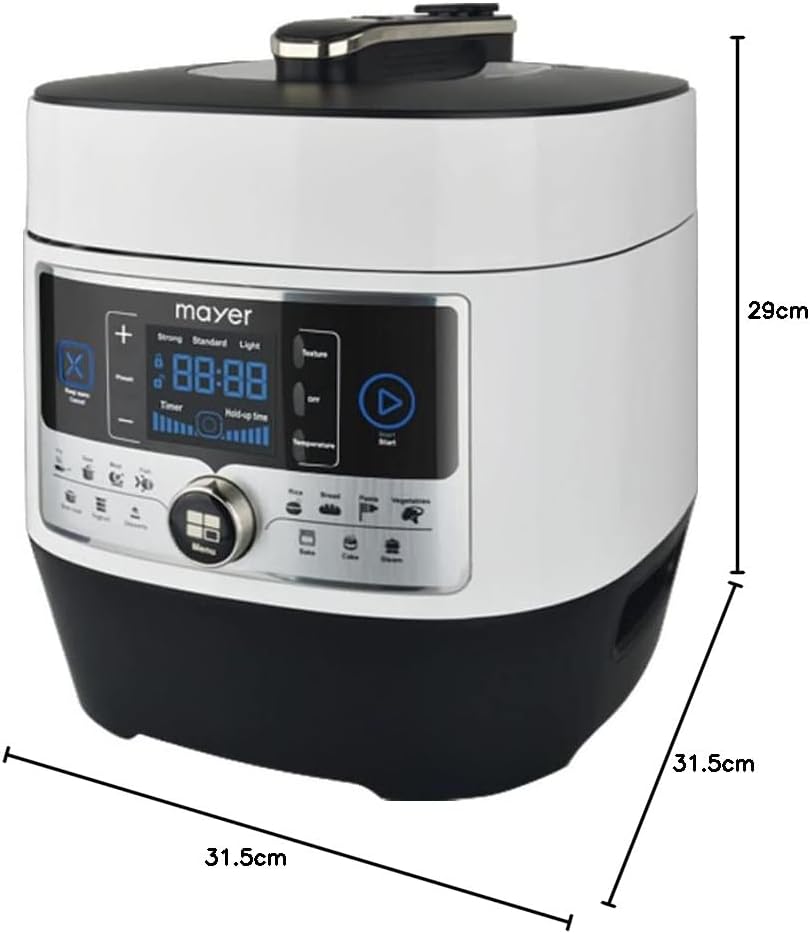

Figure 8.1: Product dimensions of the Mayer 6L Multi Pressure Cooker.
9. Garanti og support
For garantioplysninger henvises til det garantikort, der fulgte med dit køb, eller de vilkår og betingelser, som din forhandler har oplyst. Gem din købsbevis til eventuelle garantikrav.
For technical support, spare parts, or service inquiries, please contact Mayer customer service through their official website or the contact details provided in your product packaging. When contacting support, please have your model number (MMPC6062A) and purchase details ready.
You can find more information on the official Mayer webwebsted: www.mayer.sg
