Waring Commercial WCM50P Café Deco Pour Over Coffee Brewer Instruction Manual

1. Introduktion

This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your Waring Commercial WCM50P Café Deco Pour Over Coffee Brewer. Designed for commercial use, this brewer offers both pour-over and automatic refill capabilities to meet high demand for fresh-brewed coffee. Please read all instructions thoroughly before initial use to ensure proper function and longevity of the appliance.

2. Vigtige sikkerhedsforanstaltninger

Ved brug af elektriske apparater skal grundlæggende sikkerhedsforanstaltninger altid følges, herunder følgende:

• Læs alle instruktioner, inden du betjener apparatet.
• Rør ikke ved varme overflader. Brug håndtag eller knopper.
• For at beskytte mod elektriske farer må ledningen, stikket eller apparatet ikke nedsænkes i vand eller andre væsker.
• Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af, og før du rengør apparatet.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde. Returner apparatet til det nærmeste autoriserede serviceværksted for undersøgelse, reparation eller justering.
• Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan forårsage skader.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​bordet eller bordpladen eller røre ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Sæt altid stikket i apparatet først, og sæt derefter ledningen i stikkontakten. For at afbryde forbindelsen skal du dreje enhver kontrol til "fra", og derefter tage stikket ud af stikkontakten.
• Brug ikke apparatet til andet end tilsigtet brug.
• Der kan opstå skoldning, hvis låget fjernes under bryggecyklussen.

3. Produktet er slutview og komponenter

The Waring Commercial WCM50P is a robust coffee brewer designed for commercial environments, offering both manual pour-over and automatic water refill options. It features two individually controlled warmers to maintain optimal coffee temperature.

Figur 1: Front view of the Waring Commercial WCM50P Café Deco Pour Over Coffee Brewer. This image displays the main unit with its stainless steel finish, control panel, brew basket, and lower warmer plate. The hot water faucet is visible on the right side.

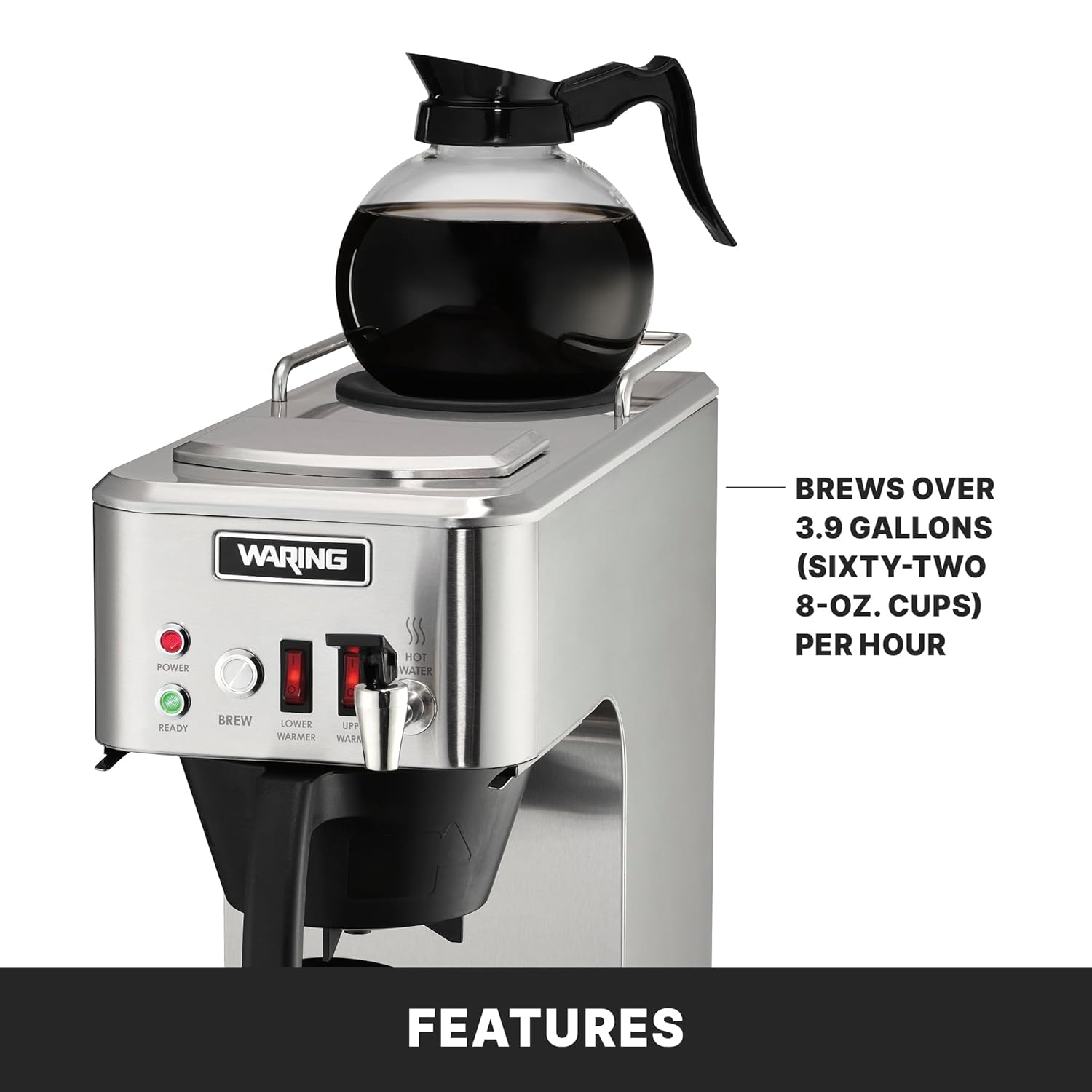

Figur 2: Key features of the WCM50P brewer. This image highlights the front-mounted hot water faucet, push-button brew start, upper warmer with guardrails, and the inclusion of a 25-piece coffee filter starter pack. It also shows a glass decanter filled with coffee on the upper warmer.

Nøglekomponenter:

• Vandreservoir: Located at the top, for adding water for brewing.
• Bryggekurv: Indeholder kaffefilteret og den formalede kaffe.
• Decanter Warmers: Two independently controlled warmers (upper and lower) to keep coffee at serving temperature.
• Hot Water Faucet: Dispenses hot water on demand.
• Kontrolpanel: Includes Power switch, Brew switch, and Ready indicator light.

4. Opsætning og første brug

Udpakning:

1. Carefully remove the coffee brewer from its packaging.
2. Fjern alle emballagematerialer og beskyttelsesfilm.
3. Inspect the brewer for any signs of damage. If damaged, do not operate and contact your supplier.

Indledende rengøring:

Before first use, it is recommended to clean the brewer to remove any manufacturing residues.

1. Wash the brew basket and glass decanters with warm, soapy water. Rinse thoroughly and dry.
2. Tør bryggerens yderside af med enamp klæde.
3. Run at least two cycles of plain water through the brewer without coffee to flush the internal components.

Placering og strømtilslutning:

1. Place the brewer on a stable, level surface.
2. Ensure adequate clearance around the unit for ventilation.
3. Plug the brewer into a grounded 120V, 5-15 phase electrical outlet.

Figur 3: The WCM50P brewer in a commercial kitchen setting, demonstrating its suitability for both front-of-house and back-of-house use. Two glass decanters are shown, one on the upper warmer and one on the lower warmer.

5. Betjeningsvejledning

Pour-Over Coffee Brewing:

1. Ensure the brewer is plugged in and the Power switch is ON. The Ready light will illuminate when the water is heated to the optimal brewing temperature.
2. Placer et rent papirfilter i bryggekurven.
3. Add the desired amount of ground coffee to the filter.
4. Place an empty glass decanter on the lower warmer plate.
5. Open the lid of the water reservoir at the top of the brewer.
6. Carefully pour cold, fresh water into the reservoir. The brewer is designed for 64 oz. decanters. Do not overfill.
7. Luk reservoirlåget.
8. Press the BREW switch to initiate the brewing cycle.
9. Once brewing is complete, the coffee will drip into the decanter. The lower warmer will keep the coffee hot.
10. To keep a second decanter warm, place it on the upper warmer and activate the UPPER WARMER switch.

Figur 4: Demonstrates the pour-over method, where water is manually added to the top reservoir. This image also highlights the brewer's two-year parts and one-year labor warranty.

Automatic Refill Feature:

The WCM50P is equipped with an automatic refill feature, allowing for continuous operation when plumbed. If your unit is plumbed, it will automatically draw water as needed for brewing cycles, eliminating the need for manual water addition.

Udlevering af varmt vand:

The front-mounted faucet provides hot water on demand.

1. Ensure the brewer is powered ON and the Ready light is illuminated.
2. Place a cup or container under the hot water faucet.
3. Push the faucet lever to dispense hot water. Release the lever to stop.

6. Vedligeholdelse og rengøring

Regular cleaning and maintenance will ensure optimal performance and extend the life of your coffee brewer.

Daglig rengøring:

1. Turn off the brewer and unplug it from the power outlet. Allow it to cool completely.
2. Remove the brew basket and discard the used coffee filter and grounds. Wash the brew basket with warm, soapy water and rinse thoroughly.
3. Wash the glass decanters with warm, soapy water. For stubborn coffee stains, use a coffee pot cleaner. Rinse thoroughly.
4. Wipe down the exterior of the brewer, including the warmer plates, with a damp cloth. For stainless steel surfaces, use a non-abrasive cleaner designed for stainless steel.
5. Sørg for, at alle dele er tørre, før de samles eller opbevares igen.

Afkalkning (Månedligt eller efter behov):

Mineral deposits from water can build up over time, affecting brewing performance. Descale your brewer regularly.

1. Forbered en afkalkningsopløsning i henhold til producentens anvisninger (f.eks. hvid eddike og vand eller et kommercielt afkalkningsmiddel).
2. Hæld afkalkningsopløsningen i vandbeholderen.
3. Place an empty decanter on the lower warmer.
4. Run a brew cycle with the descaling solution.
5. Kassér opløsningen efter cyklussen.
6. Run several cycles of plain, fresh water through the brewer to rinse thoroughly and remove any residual descaling solution.

7. Fejlfinding

Se følgende tabel for almindelige problemer og deres løsninger.

If the problem persists after attempting these solutions, please contact Waring Commercial customer support.

8. Specifikationer

Figur 5: Dimensionel overview of the WCM50P brewer, showing a width of 8 inches, height of 19 inches, and depth of 17.5 inches.

• Model: WCM50P
• Produktdimensioner: 8 cm B x 17.5 cm D x 19 cm H
• Vægt: Cirka 26.8 pund
• Bryggekapacitet: Over 3.9 gallons (sixty-two 8 oz. cups) per hour
• Decanter Size: Fits large, 64 oz. glass decanters
• Voltage: 120V
• Stiktype: 5-15 Phase Plug
• Speciel funktion: Manual (Pour Over) and Automatic Refill capable
• Certificeringer: NSF, TUV Rheinland

9. Garanti og support

The Waring Commercial WCM50P Café Deco Pour Over Coffee Brewer comes with a Two-Year Parts, One-Year Labor WarrantyDenne garanti dækker materiale- og fabrikationsfejl under normal brug og service.

For warranty claims, technical support, or service inquiries, please contact Waring Commercial customer service. Ensure you have your model number (WCM50P) and proof of purchase available when contacting support.
