1. Produktet er slutview
The Accurex RXT-150S industrial platform scale is designed for professional use, built to withstand hard and intensive treatment. Its robust structure is made of lacquered steel and stainless steel, ensuring high durability. The scale features an electronic RX indicator for reliable and accurate measurements.
The RX indicator connects to the platform via a 175cm cable, allowing flexible placement. It provides an extremely fast response, displaying stable weight accurately in less than 2 seconds.
The scale operates on 220V mains power and includes an internal battery that recharges simultaneously when connected to the mains. Key functions include zero setting and tare, allowing users to easily reset the scale or discount container weights.
Nøglefunktioner:
- Industrial scale with a highly resistant stainless steel plate.
- Weight capacity: 150 kg with a platform size of 400 x 300 mm.
- Operating life with internal battery up to 50 hours.
- Weighing indicator with clear 20mm LED digits and high brightness.
- Features an aluminum charging sensor and durable electronics for intensive industrial use.
- Designed in Europe and manufactured by Gram Group.

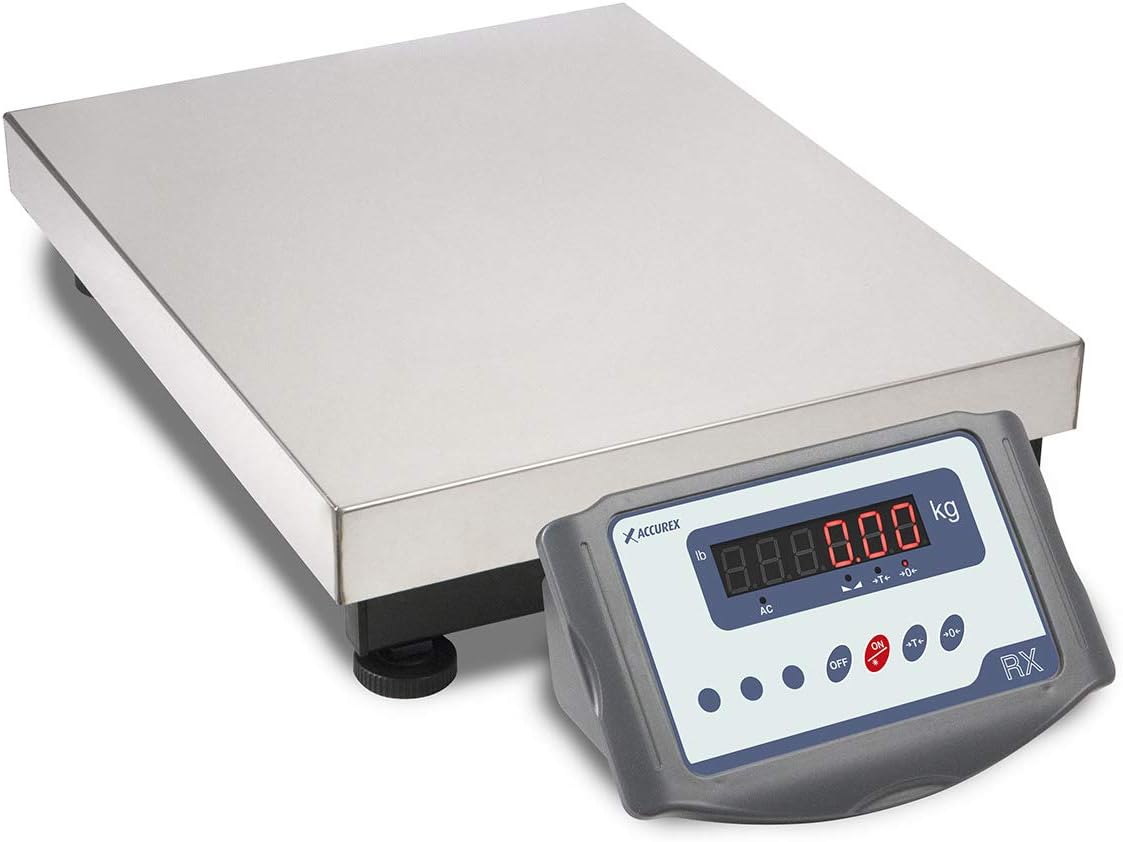

Figure 1: Accurex RXT-150S Industrial Platform Scale with indicator mounted on top.
2. Opsætningsvejledning
2.1. Udpakning og komponentkontrol
Pak forsigtigt alle komponenter ud af emballagen. Sørg for, at følgende dele er til stede:
- Weighing Platform (400 x 300 mm)
- RX Electronic Indicator
- Connection Cable (approx. 175 cm)
- Power Adapter (for 220V mains)
Figure 2: The Accurex RXT-150S scale components, showing the platform and the detached RX indicator.
2.2. Montering
- Place the weighing platform on a stable, level surface. Ensure all four adjustable feet are firmly in contact with the surface and the platform is level to ensure accurate readings.
- Connect the 175cm cable from the weighing platform to the corresponding port on the back of the RX electronic indicator. Ensure the connection is secure.
- Position the RX indicator in a convenient location, either on top of the platform (as shown in Figure 1) or adjacent to it, thanks to the long cable.
- Connect the power adapter to the indicator's power input port.
- Plug the power adapter into a standard 220V mains outlet. The internal battery will begin charging automatically.
Figur 3: Bagside view of the RX indicator, showing the load cell cable input and power input ports.
Figur 4: Underside view of the Accurex RXT-150S platform, showing the robust steel frame and adjustable feet.
3. Betjeningsvejledning
3.1. Tænd/sluk
Tryk på for at tænde for vægten ON button located on the RX indicator. The LED display will illuminate and perform a self-test before showing "0.00 kg". To power off, press the SLUKKET knap.
3.2. Grundlæggende vejning
Once the scale is powered on and displays "0.00 kg", gently place the item to be weighed onto the center of the platform. The stable weight will be displayed on the LED screen within approximately 2 seconds.
3.3. Zero Setting Function
If the display does not show "0.00 kg" when the platform is empty, or if you wish to reset the reading to zero, press the →0← (Zero) button. The display will reset to zero, allowing for accurate subsequent measurements.
3.4. Tarafunktion
The tare function allows you to discount the weight of a container or packaging. Place the empty container on the platform, then press the →T← (Tare) button. The display will reset to "0.00 kg", and you can then add the contents to the container to weigh only the net weight of the contents.

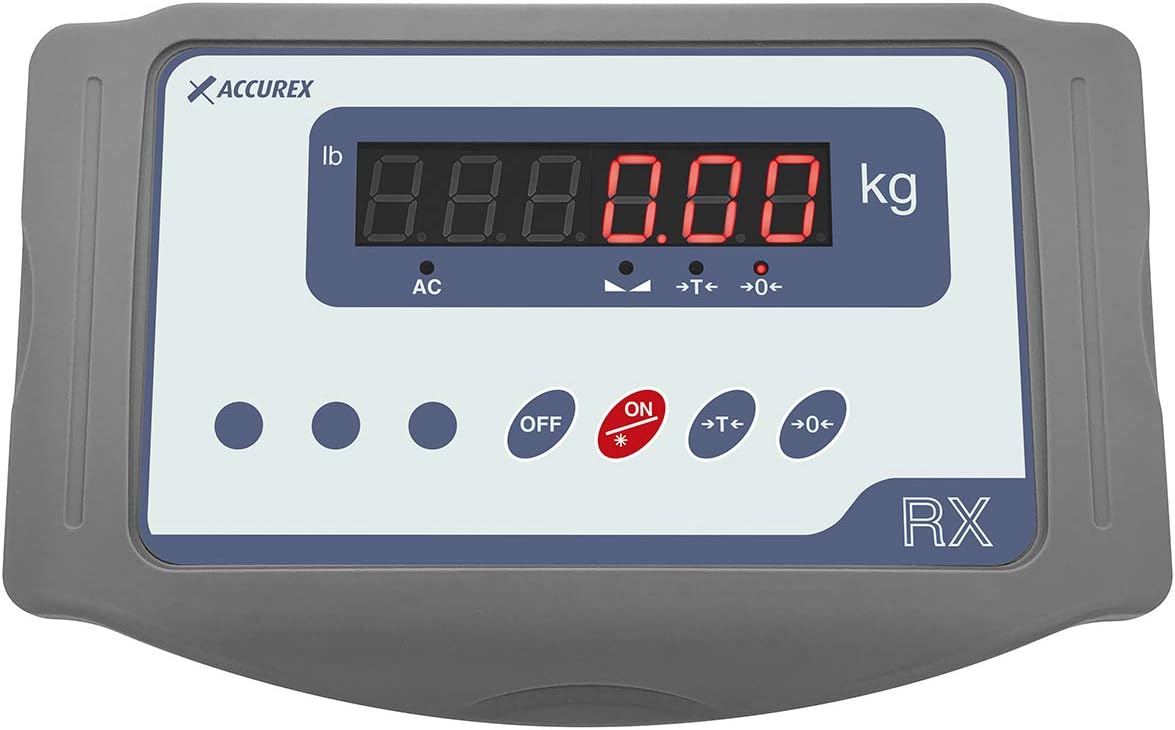

Figur 5: Nærbillede view of the RX indicator's LED display and control buttons, including ON, OFF, Tare (→T←), and Zero (→0←).
4. Vedligeholdelse
4.1. Rensning
To maintain the accuracy and longevity of your scale, regular cleaning is recommended. Use a soft, damp cloth with a mild, non-abrasive cleaner to wipe down the stainless steel platform and the lacquered steel/ABS indicator. Avoid using harsh chemicals or abrasive materials that could damage the surfaces.
Ensure no liquids enter the indicator or the internal components of the platform. Always disconnect the scale from the mains power before cleaning.
4.2. Batteripleje
The internal battery recharges automatically when the scale is connected to the 220V mains power. To maximize battery life, it is advisable to fully charge the battery periodically, especially if the scale is used primarily on battery power. Avoid completely draining the battery frequently.
5. Fejlfinding
This section provides solutions to common issues you might encounter with your Accurex RXT-150S scale. If the problem persists, please contact customer support.
- Skærm lyser ikke op:
- Check if the power adapter is securely connected to both the indicator and the mains outlet.
- Ensure the mains outlet is functional.
- Verify that the ON button has been pressed.
- If operating on battery, ensure the battery is charged. Connect to mains power for a period to charge.
- Unøjagtige eller ustabile aflæsninger:
- Ensure the scale is placed on a firm, level, and stable surface. Uneven surfaces can affect accuracy.
- Check that the adjustable feet are properly adjusted and making full contact with the surface.
- Ensure no objects are touching the platform or interfering with its movement.
- Avoid strong air currents or vibrations near the scale during operation.
- Perform a Zero setting by pressing the →0← knap.
- Tara-funktion virker ikke:
- Ensure the scale is stable and displaying a weight before attempting to tare.
- Tryk på →T← knappen fast.
6. Tekniske specifikationer
| Feature | Specifikation |
|---|---|
| Model | RXT-150S |
| Vægt kapacitet | 150 kg |
| Skærmopløsning | 20 g |
| Platform Dimensions (L x W) | 400 x 300 mm |
| Indicator Dimensions (L x W x H) | 265 x 165 x 103 mm (Note: Original data had 1103mm, adjusted to 103mm for plausibility) |
| Udstyr Materiale | Stainless Steel, Lacquered Steel, ABS |
| Display Type | LED (20mm digits) |
| Strømkilde | 220V strømforsyning, internt genopladeligt batteri |
| Batteriets levetid | Op til 50 timer |
| Cable Length (Indicator to Platform) | 175 cm |
| Net Weight (Item) | 5.3 kg |
| Særlige funktioner | Portable, Lightweight, Smart |
| Fabrikant | Gram-præcision |

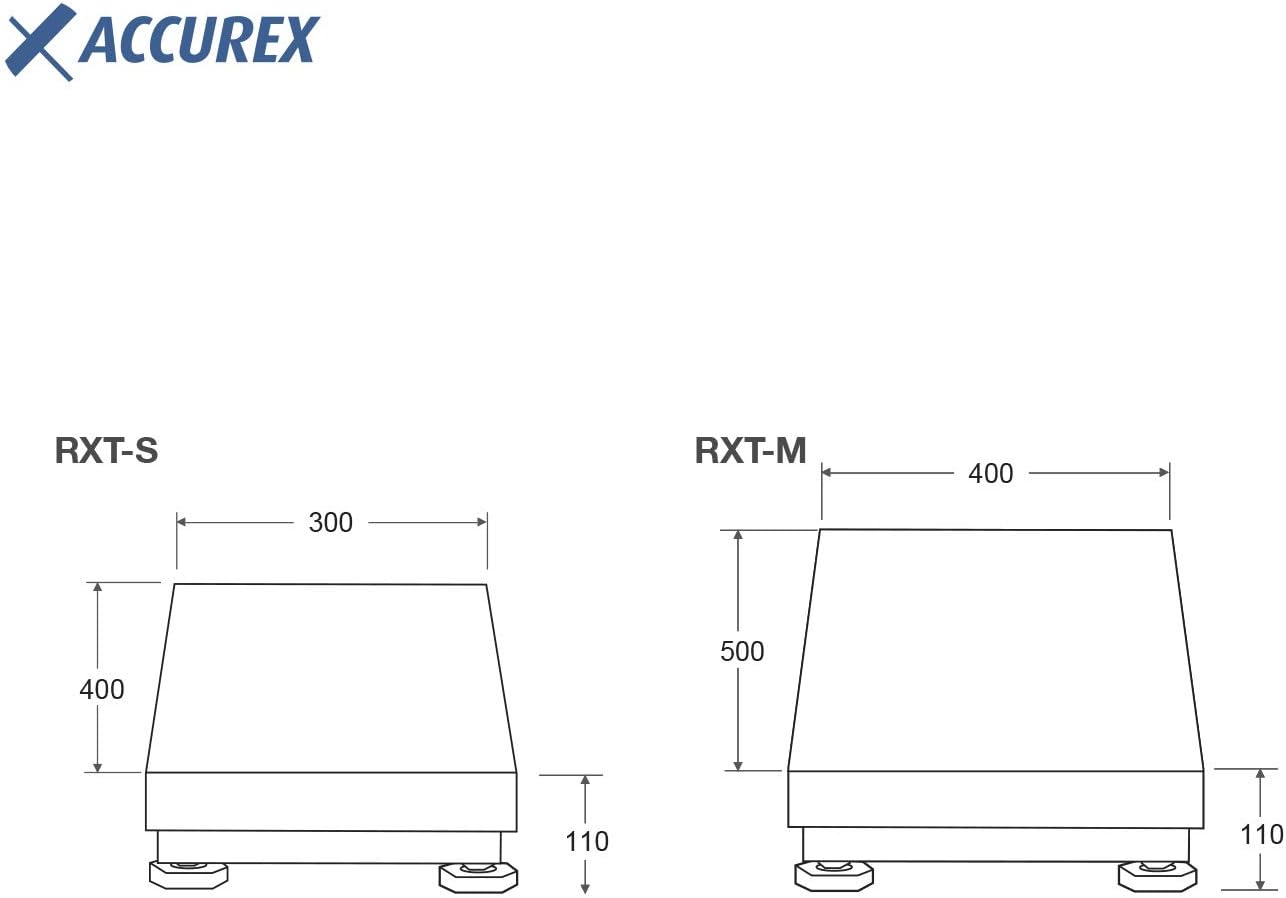

Figure 6: Technical drawing illustrating the dimensions of the RXT-S (left) and RXT-M (right) scale models. The RXT-150S corresponds to the RXT-S dimensions.
7. Garanti og support
The Accurex RXT-150S Industrial Platform Scale is designed in Europe and manufactured by Gram Group, a reputable company known for its quality weighing solutions. The equipment is supplied properly calibrated and adjusted by their calibration laboratory, which is annually audited by a European NMI notified body.
For specific warranty terms, conditions, and duration, please refer to the documentation provided with your purchase or contact your retailer or the manufacturer directly. For technical support, troubleshooting assistance beyond this manual, or warranty claims, please reach out to the customer service department of your point of purchase or Gram Group.
