1. Introduktion
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your TECLAST M40 10.1-inch Android Tablet. Please read it thoroughly to ensure optimal performance and longevity of your device.
2. Hvad er der i æsken
Upon unboxing your TECLAST M40 tablet, you should find the following items:
- TECLAST M40 10.1-inch Android Tablet
- USB-C til USB-A opladerkabel
- USB-A Charging Adapter
- SIM/MicroSD Card Tray Ejector Tool
- Brugervejledning (dette dokument)
- Garantikort
For a visual guide on unboxing and included accessories, please refer to the official unboxing video below:
Officiel produktvideopræsentationasing the TECLAST M40 Android Tablet, highlighting its design, performance, and key features like 10-inch display, 128GB storage, and 5G WiFi capabilities.
3. Produktet er slutview
The TECLAST M40 is a 10.1-inch Android tablet designed for versatile use, featuring a powerful Octa-Core processor and a high-resolution display.
This image displays the TECLAST M40 tablet from both the front, showing its 10.1-inch display, and the back, highlighting the rear camera and port layout.
Nøglekomponenter:
- Vise: 10.1-inch Full HD (1920x1200) IPS screen.
- Processor: 2.0GHz Octa-Core (UNISOC T618) with Mali G52 3EE GPU.
- Hukommelse og opbevaring: 6GB RAM, 128GB internal storage, expandable via TF card.
- Kameraer: 5MP Front Camera, 8MP Rear Camera.
- Forbindelse: Dual-band 2.4G+5G WiFi, Bluetooth 5.0, BDS+GPS, 4G LTE support (via dual SIM slot).
- Batteri: 6000mAh, offering approximately 8 hours of usage.
- Operativsystem: Android 10.
- Porte: USB-C for charging and data transfer, 3.5mm headphone jack.
This image details the tablet's connectivity options including BDS+GPS, Dual WiFi, Bluetooth 5.0, and its 6000mAh battery with Type-C charging, suggesting long usage and versatile navigation.
4. Opsætning
4.1 Indledende tænding
- Press and hold the Power button (located on the side) until the TECLAST logo appears on the screen.
- Følg vejledningen på skærmen for at vælge dit sprog, oprette forbindelse til et Wi-Fi-netværk og konfigurere din Google-konto.
4.2 Inserting SIM/MicroSD Card
The TECLAST M40 supports dual SIM cards for 4G LTE connectivity and a MicroSD card for expandable storage.
- Find SIM-/MicroSD-kortbakken på siden af tabletten.
- Insert the provided ejector tool into the small hole next to the tray and press gently until the tray pops out.
- Place your Nano-SIM card(s) and/or MicroSD card into the designated slots on the tray. Ensure they are correctly oriented.
- Skub forsigtigt bakken tilbage i tabletten, indtil den klikker på plads.
5. Betjening af din tablet
5.1 Grundlæggende navigation
The tablet runs on Android 10, offering intuitive navigation. You can choose between gesture navigation or the traditional 3-button navigation in the system settings.
5.2 Forbindelse
- Wi-Fi: Connect to 2.4G or 5G Wi-Fi networks for internet access. Go to Settings > Network & internet > Wi-Fi.
- Bluetooth: Pair with Bluetooth 5.0 devices like headphones or speakers. Go to Settings > Connected devices > Bluetooth.
- Mobildata: If a SIM card is inserted, enable mobile data for internet access on the go. Go to Settings > Network & internet > Mobile network.
- GPS: The tablet supports BDS+GPS for location services and navigation.
5.3 Skærm og lyd
Enjoy a vibrant visual experience on the 10.1-inch 1920x1200 Full HD IPS display. The tablet also features dual speakers for audio output.

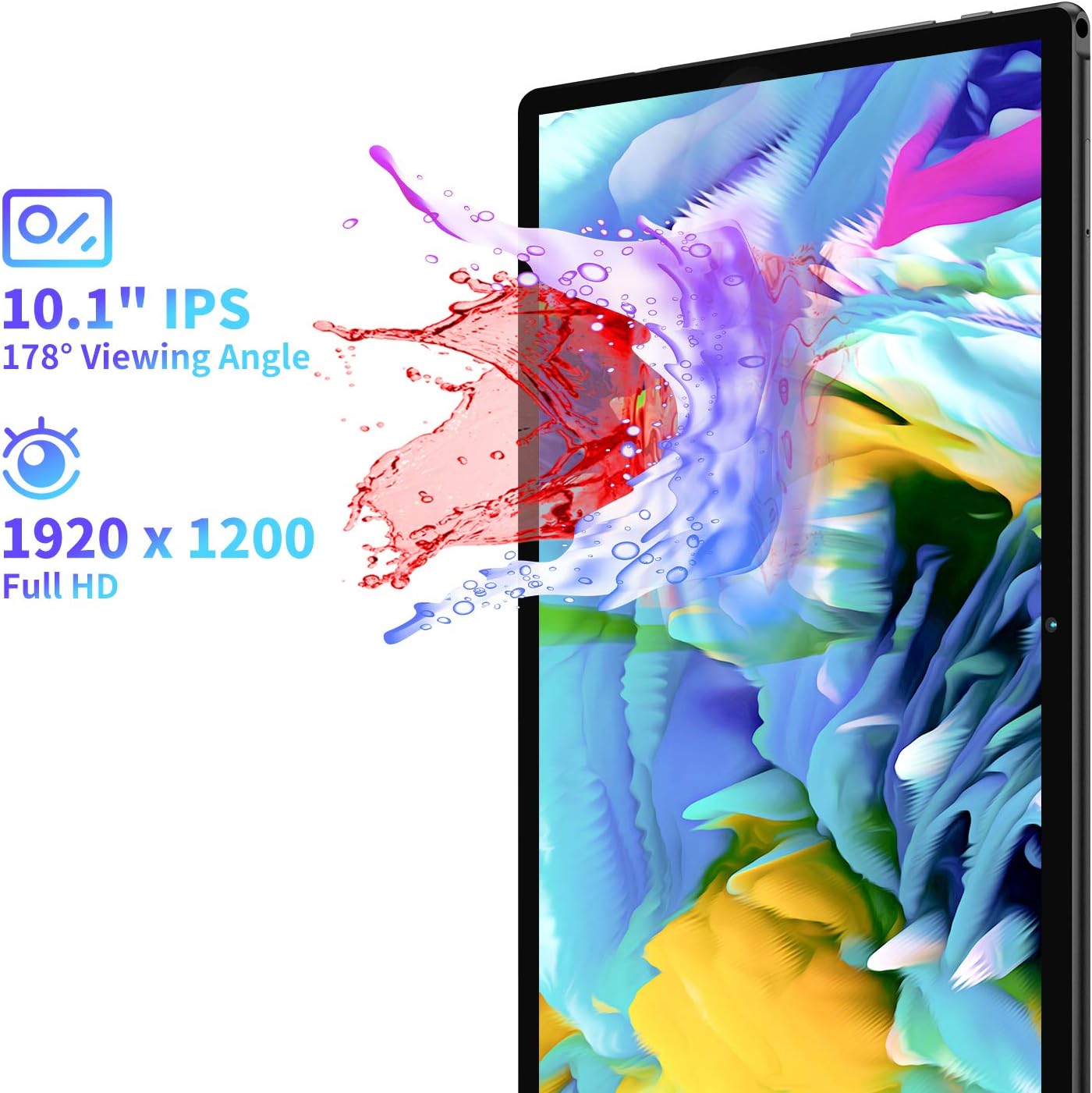

This image illustrates the tablet's 10.1-inch Full HD IPS display with a 1920x1200 resolution and a 178-degree viewing angle, emphasizing vibrant visuals.
5.4 Kamerabrug
The tablet is equipped with a 5MP front camera and an 8MP rear camera for photos and video calls.
- Åbn Kamera-appen fra startskærmen eller appskuffen.
- Tap the shutter button to take a photo or switch to video mode.
- Brug knappen til at skifte mellem kameraerne på for-/bagkameraet.
For a detailed look at the tablet's cameras and their performance, you can watch the video below:
En detaljeret vedrview and unboxing video by FishBee Productions, demonstrating the TECLAST M40 Gaming Android Tablet's features, performance, and user experience, including a look at its components and software.
6. Vedligeholdelse
6.1 Opladning af batteriet
The TECLAST M40 is equipped with a 6000mAh battery. Use the provided USB-C cable and charging adapter to charge the device. Connect the USB-C end to the tablet's port and the USB-A end to the adapter, then plug the adapter into a power outlet.
Note: Some USB Power Delivery (PD) chargers may not be compatible and could cause the tablet to attempt charging the charger instead of being charged itself. Use the provided charger or a standard 5V 2.4A charger for best results.
6.2 Softwareopdateringer
Ensure your tablet's software is up-to-date for optimal performance and security. Go to Settings > System > Advanced > System update to check for and install any available updates.
6.3 Lagerstyring
The tablet comes with 128GB of internal storage, expandable via a TF (MicroSD) card. Regularly manage your storage to prevent performance issues:
- Slet unødvendigt files og apps.
- Flyt stort files (photos, videos) to a MicroSD card.
- Clear cache data for apps in Settings > Apps & notifications > See all apps > [App Name] > Storage & cache.
7. Fejlfinding
If you encounter any issues with your TECLAST M40 tablet, try the following solutions:
- Tablet is unresponsive/frozen: Tryk og hold tænd/sluk-knappen nede i cirka 10-15 sekunder for at fremtvinge en genstart.
- Langsom ydeevne: Close unused apps, clear app caches, free up storage space, or restart the tablet.
- Opladningsproblemer: Ensure you are using the provided charger and cable. Check if the charging port is clean and free of debris. Avoid using incompatible USB PD chargers.
- Screen responsiveness: If the touchscreen is inconsistent, a restart may resolve the issue. If problems persist, a factory reset might be necessary (back up your data first).
- Wi-Fi/Bluetooth connectivity problems: Toggle Wi-Fi/Bluetooth off and on. Restart the tablet and your router/Bluetooth device.
- Apps der går ned: Ensure apps are updated to their latest versions. Clear app cache or reinstall the app.
If these steps do not resolve the issue, please contact TECLAST customer support.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnavn | M40 |
| Skærmstørrelse | 10.1 tommer |
| Max skærmopløsning | 1920x1200 (FHD IPS) |
| Processor | 2 GHz Octa-Core (UNISOC T618) |
| VÆDDER | 6 GB |
| Harddisk / Lagerplads | 128 GB |
| Udvidelig opbevaring | TF Expansion (MicroSD) |
| Operativsystem | Android 10 |
| Bag Webcam opløsning | 8 MP |
| Front Webcam opløsning | 5 MP |
| Forbindelse | 2.4G+5G WiFi, Bluetooth 5.0, BDS+GPS, 4G LTE (Dual SIM) |
| Batterilevetid (gennemsnitlig) | 8 timer (6000 mAh) |
| Varens vægt | 2.05 pund |
| Produktdimensioner | 9.56 x 6.4 x 0.37 tommer |
9. Garanti og support
For warranty information and customer support, please refer to the warranty card included in your product packaging. You can also visit the official TECLAST website for further assistance and contact options.
Note: Some users have reported difficulties in receiving responses from TECLAST support. It is recommended to keep all purchase records and contact information readily available.
