1. Introduktion
Thank you for choosing the Olafus 200W LED Flood Light. This manual provides essential information for the safe installation, operation, and maintenance of your new flood light. Please read these instructions thoroughly before use and retain them for future reference.
Image 1.1: Olafus 200W LED Flood Lights
This image displays two Olafus 200W LED Flood Lights, showcasing their rectangular design, integrated LED arrays, and attached power cords with plugs. The lights are presented with their adjustable mounting brackets.
2. Sikkerhedsinstruktioner
For at sikre sikker drift og forhindre skader, bedes du overholde følgende sikkerhedsretningslinjer:
- Afbryd altid strømmen før installation, vedligeholdelse eller rengøring.
- Sørg for, at strømforsyningen voltage opfylder produktets krav (120 volt).
- Do not look directly into the light source when it is illuminated, as this may cause eye strain or damage.
- This product is designed for outdoor use with an IP66 waterproof rating. However, avoid submerging it in water.
- Sørg for korrekt jording for at forhindre elektrisk stød.
- Installationen bør udføres af en kvalificeret elektriker, hvis du er usikker på den elektriske ledningsføring.
- Hold brandfarlige materialer væk fra lysarmaturet.
3. Pakkens indhold
Bekræft at alle komponenter er til stede i pakken:
- 2 x Olafus 200W LED Flood Light Outdoor
- Instruktionsmanual
4. Produktfunktioner
The Olafus 200W LED Flood Light offers advanced features for reliable outdoor illumination:
- Høj lysstyrke og energieffektivitet: Equipped with 196 ultra-bright LED beads, producing 18000 lumens of 6500K daylight white light. This 200W unit can replace traditional high-wattage halogen lights, offering significant energy savings.
- Wide Area Illumination: Features a high-quality reflective reflector and a 120° wide beam angle, providing uniform light distribution over approximately 5364 sq ft. The professional matte lens reduces glare for comfortable viewing.
- Plug and Play installation: Includes a 1.5m (59-inch) power cord with a standard US-style ground plug for direct connection to an outlet.
- Justerbar montering: A 180° adjustable SPCC bracket allows for flexible installation on walls, ceilings, or floors.
- Effektiv varmeafledning: Constructed from heavy-duty die-cast aluminum with a fin-type radiator design to quickly dissipate heat, extending the LED lifespan to approximately 30,000 hours.
- IP66 vandtæt rating: Designed to withstand rain, snow, and various outdoor conditions, ensuring stable operation in diverse environments.
Image 4.1: Product Construction Details
This image highlights key construction features of the flood light, including its anti-drop and anti-glare design, and the robust die-cast aluminum housing for durability and heat dissipation.
Image 4.2: Efficient Heat Dissipation Icon
An icon illustrating the concept of efficient heat dissipation, a key feature for extending the lifespan of the LED flood light.
Image 4.3: IP66 Waterproof Rating
This image shows the flood light installed on the exterior of a building, with rain falling, demonstrating its IP66 waterproof capability for outdoor use.
5. Specifikationer
| Attribut | Værdi |
|---|---|
| Mærke | Olafus |
| Modelnummer | LAA200G |
| Wattage | 200 watt |
| Lysstyrke | 18000 lumen |
| Farvetemperatur | 6500 Kelvin (Daylight White) |
| Voltage | 120 volt |
| Materiale | Aluminium, PC |
| Vandmodstandsniveau | IP66 vandtæt |
| Strålevinkel | 120° |
| Strømkilde | AC |
| Kontrolmetode | Prop |
| Produktdimensioner | 16.65 cm L x 10.24 cm B x 1.73 cm H |
| Varens vægt | 8.78 pund |
| Kabellængde | 1.5 meter (59 tommer) |
| Anbefalede anvendelser | Outdoor, Garage, Yard, Barn, Entryway, Patio, Stadium, Basketball Court |
6. Opsætning og installation
Follow these steps for proper installation of your flood light:
6.1 Valg af placering
Select a suitable outdoor location that requires broad illumination. Consider the 120° beam angle and the 1.5m power cord length when planning placement. The light can be mounted on walls, ceilings, or floors.
6.2 Montering af lyset
- Forbered monteringsoverfladen: Ensure the surface is sturdy enough to support the weight of the flood light.
- Marker borehuller: Use the adjustable bracket as a template to mark the positions for drilling holes.
- Bore huller: Drill holes of appropriate size for your mounting hardware (screws, anchors, not included).
- Fastgør beslaget: Attach the bracket firmly to the mounting surface using suitable screws.
- Juster lysvinkel: Once mounted, you can adjust the light's angle up to 180° to direct illumination as needed. Tighten the side screws to secure the desired angle.

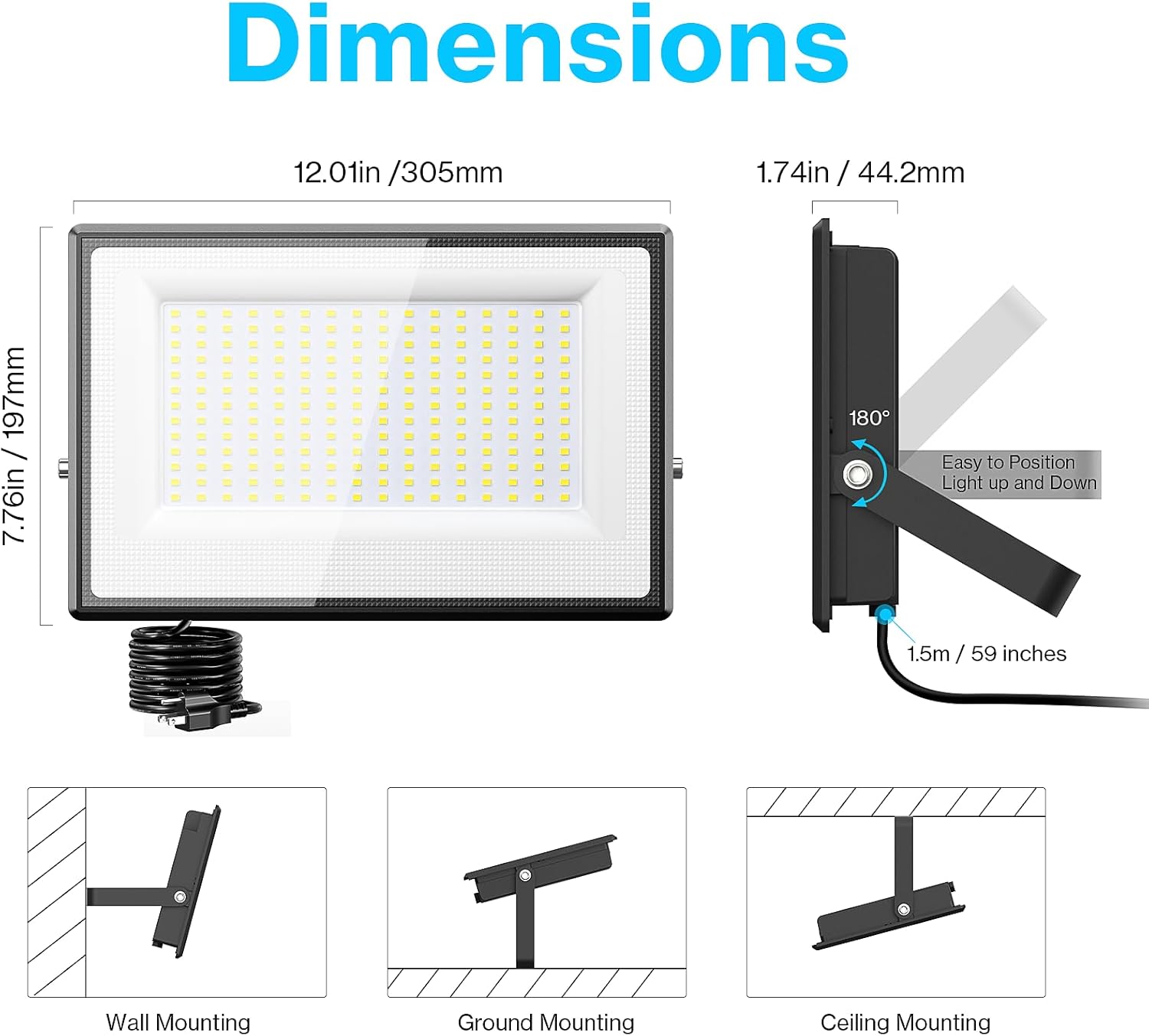

Image 6.1: Dimensions and Mounting Options
This diagram provides the physical dimensions of the flood light and illustrates three common installation methods: wall mounting, ground mounting, and ceiling mounting, along with the 180-degree adjustable bracket.
6.3 Elektrisk tilslutning
The flood light comes with a pre-attached 1.5m power cord and a US-style ground plug. Simply plug it into a compatible 120V outdoor power outlet. Ensure the outlet is protected from direct water exposure and is properly grounded.
7. Betjeningsvejledning
Operating the Olafus 200W LED Flood Light is straightforward:
- Tænd: Once the light is securely mounted and plugged into a power source, it will illuminate.
- Sluk: To turn off the light, unplug it from the power source or use an external switch if wired to one.
For automated operation, consider connecting the flood light to an external timer or motion sensor (not included).
8. Vedligeholdelse
Regular maintenance helps ensure optimal performance and longevity of your flood light:
- Rensning: Periodically clean the light's surface and lens with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the power is disconnected before cleaning.
- Inspektion: Regularly check the power cord for any signs of damage (fraying, cuts). Inspect the mounting bracket for tightness and corrosion.
- Ingen dele, der kan serviceres af brugeren: The LED light source is integrated and not user-replaceable. Do not attempt to open the fixture.
9. Fejlfinding
Hvis du støder på problemer med din projektør, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke | Ingen strømforsyning Defekt stikkontakt Beskadiget netledning | Check if the plug is fully inserted. Test stikkontakten med en anden enhed. Inspect the power cord for damage. If damaged, discontinue use and contact support. |
| Lyse flimrer | Ustabil strømforsyning Løs forbindelse | Ensure stable power. Check connections. If flickering persists, contact support. |
| Lysudgangen er svag | Dirt or debris on lens Voltage drop | Rengør linsen med en blød klud. Ensure the power supply is adequate. |
If the problem persists after attempting these solutions, please contact Olafus customer support.
10. Garanti og support
Olafus products are designed for quality and durability. For specific warranty information and terms, please refer to the warranty card included with your product or visit the official Olafus webwebsted.
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Olafus customer support through their official channels. When contacting support, please have your product model number (LAA200G) and purchase information ready.
Online support: Visit the Olafus Store on Amazon
