Indledning
The EV Rider Transport AF+ Folding Scooter is designed for ease of travel and maneuverability. Weighing just 44 lbs, it is suitable for transport on planes, trains, and cruise ships. Its compact design and ultra-tight turning radius make it ideal for navigating narrow spaces. Key features include a height-adjustable tiller, LED headlight, and dual-hand two-way throttle control. This innovative scooter can be stored virtually anywhere and easily fits into the trunk of most automobiles.
Key Upgrades:
- New dual front wheel design for enhanced stability.
- Upgraded 11.5 Ah Lithium battery for an increased travel range of up to 10 miles.

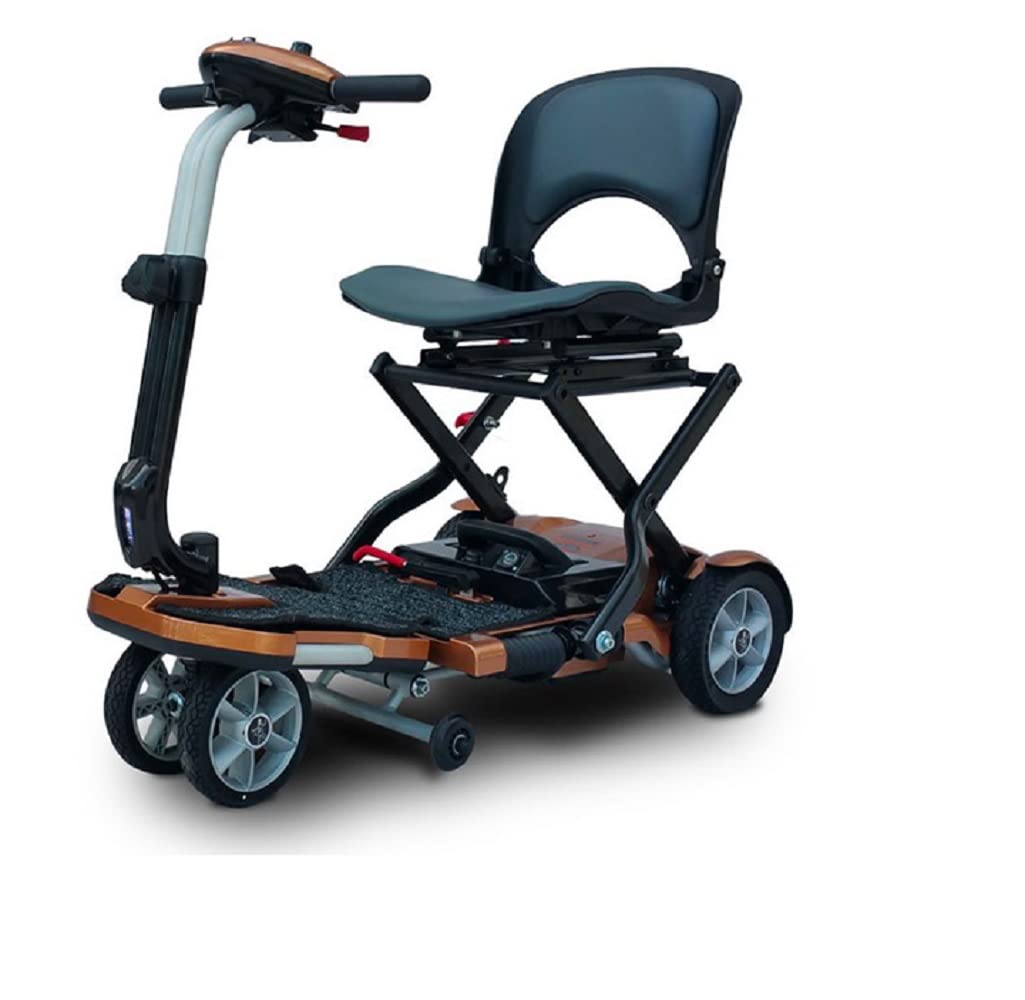

Image: The EV Rider Transport AF Plus Automatic Folding Scooter, shown in its fully unfolded state, highlighting its compact design and copper finish.
Sikkerhedsoplysninger
Vigtige sikkerhedsbemærkninger:
- Kun til brug for voksne.
- Not intended for children or individuals with stability issues.
- Always ensure the actuator lock is engaged to prevent accidental folding while in use.
Opsætning
The EV Rider Transport AF Plus features an automatic folding and unfolding mechanism for convenience.
Udfoldning af scooteren:
- Ensure the scooter is placed on a flat, stable surface.
- Press the designated button on the key fob to initiate the automatic unfolding sequence.
- Allow the scooter to fully extend and lock into its operational position.
- Adjust the tiller height for comfortable use by loosening the adjustment knob, setting the desired height, and tightening the knob securely.
Video: Demonstrates the automatic unfolding and folding process of the EV Rider Transport Scooter using the key fob, and also shows the scooter being operated in various environments, highlighting its maneuverability and ease of use.
Betjeningsvejledning
Familiarize yourself with the controls before operating the scooter.
- Tænd: Insert the key into the ignition and turn it to the 'On' position.
- Gashåndtag: Use the dual-hand two-way throttle control to move forward or backward. Push the lever on one side to go forward, and the other side to reverse.
- Styretøj: Use the tiller to steer the scooter. The ultra-tight turning radius allows for excellent maneuverability in confined spaces.
- LED forlygte: Activate the LED headlight for improved visibility in low-light conditions.
- Siddepladser: Ensure you are seated comfortably and securely before operating. Remember to exit the scooter by moving your feet, avoiding leaning to the side.
Refer to the video in the Setup section for a visual demonstration of the scooter in operation.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your EV Rider Transport AF Plus scooter.
- Batteriopladning: Ensure the scooter is fully charged before each use. Connect the charger to the charging port and a standard wall outlet. The battery has been upgraded to 11.5 Ah Lithium for extended range.
- Rensning: Tør scooteren af med reklameamp klæde. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler.
- Opbevaring: When not in use, fold the scooter using the key fob and store it in a secure, dry location away from extreme temperatures.
- Dæk inspektion: Periodically check the solid tires for any signs of wear or damage.
Fejlfinding
Dette afsnit indeholder løsninger på almindelige problemer, du kan støde på.
- Scooteren tænder ikke: Check if the battery is charged and properly connected. Ensure the key is fully inserted and turned to the 'On' position.
- Scooter not folding/unfolding: Verify the key fob battery is working. Ensure no obstructions are preventing the mechanism from operating. If the issue persists, contact customer support.
- Reduceret rækkevidde eller hastighed: This may indicate a low battery charge or a battery nearing the end of its lifespan. Ensure the battery is fully charged before each use.
- Rough ride: While the scooter features dual front wheels for stability, rough terrain can still impact ride comfort. Ensure you are operating on suitable surfaces.
For issues not listed here or if troubleshooting steps do not resolve the problem, please refer to the support section.
Specifikationer
| Feature | Detalje |
|---|---|
| Samlet længde (udfoldet) | 33.5 tommer |
| Samlet bredde | 16.5 tommer |
| Overall Height (Maximum Tiller) | 33.5 tommer |
| Overall Height (Minimum Tiller) | 30 tommer |
| Legroom (Floorboard L x W) | 17 tommer |
| Deck Height (Floorboard to Floor) | 4.8 tommer |
| Frihøjde | 1.4 tommer |
| Venderadius | 31 tommer |
| Sammenfoldet længde | 30 tommer |
| Foldet bredde | 16.5 tommer |
| Sammenfoldet Højde | 17.7 tommer |
| Weight (with 11.5Ah Li-Ion Battery) | 44 lbs |
| Vægt kapacitet | 250 lbs |
| Sædetype | Folding Mobility Seat |
| Sædemål (B x D x H) | 5 cm B x 12 cm D x 9 cm H |
| Seat Cushion Thickness | 1 tommer |
| Seat Height (Cushion to Deck) | 15 tommer |
| Sædehøjde (hynde til gulv) | 19.7 tommer |
| Dæk type | Massive dæk |
| Rear Tire Diameter | 8 tommer |
| Rear Tire Width | 2 tommer |
| Front Tire Diameter | 6 tommer |
| Batteri | 11.5 Ah litium-ion |
| Farve | Kobber |
| Materiale | Kobber |
Garanti og support
For specific warranty details, please refer to the documentation provided with your purchase or contact EV Rider directly. Return policies may vary by seller.
For customer support, inquiries, or technical assistance, please contact the seller or manufacturer. You can often find contact information on the product packaging or the seller's webwebsted.
Online ressourcer:
- Besøg EV RIDER Brand Store on Amazon for mere information og produktdetaljer.
