Telwin Maxima 200 Multiprocess Inverter Welder

1. Introduktion

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Telwin Maxima 200 Multiprocess Inverter Welder. The Maxima 200 is a versatile, microprocessor-controlled welding machine capable of MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-LIFT welding processes. Its synergistic parameter adjustment simplifies operation, making it suitable for both experienced and less experienced users. Designed for portability, it is ideal for various applications from maintenance to installation across different materials like steel, stainless steel, and aluminum.

2. Sikkerhedsoplysninger

Always prioritize safety when operating welding equipment. Failure to follow safety guidelines can result in serious injury or damage to the equipment. Read and understand all instructions before use.

• Elektrisk stød: Svejsestrøm kan forårsage dødelig elektrisk stød. Sørg for korrekt jordforbindelse og isolering. Rør aldrig ved strømførende dele.
• Røg og gasser: Welding produces fumes and gases that can be hazardous to health. Work in a well-ventilated area or use local exhaust ventilation.
• Bue stråler: Arc rays can burn eyes and skin. Wear appropriate welding helmet with proper shade filter, protective clothing, and gloves.
• Brand og eksplosion: Welding sparks and hot metal can cause fire or explosion. Keep flammable materials away from the welding area. Have a fire extinguisher readily available.
• Forbrændinger: Hot metal and equipment can cause severe burns. Use heat-resistant gloves and protective clothing.
• Elektromagnetiske felter (EMF): Welding current creates EMF. Consult a physician if you have a pacemaker or other medical device.
• Opretholdelse: Afbryd strømmen, før du udfører vedligeholdelse eller service.

3. Produktet er slutview

The Telwin Maxima 200 is a 4-in-1 inverter welding machine designed for versatility and ease of use. It supports various welding processes and materials, making it suitable for a wide range of applications.

Nøglefunktioner:

• Multiprocess capability: Flux, MIG-MAG/Brazing, MMA Electrode, TIG DC-LIFT.
• Microprocessor-controlled for precise operation.
• Synergic adjustment of welding parameters for simplified use and consistent results.
• Compatible with 230V - 16A power supply, ideal for domestic 3kW meters.
• Supports welding on steel, stainless steel, and aluminum.
• Prepared for 100mm and 200mm diameter wire spools.
• Equipped with thermostatic, overvoltage, undervoltage, and overcurrent protections.
• Compatible with motor generators (230V +/- 15%).
• MMA welding features Arc-Force adjustment, Hot-Start, and Anti-Stick devices.
• Welds rutile and basic electrodes up to 3.2mm diameter.

Komponenter inkluderet:

• Welding machine (Telwin Maxima 200)
• Jordklamp (Toledo)
• Elektrodeholder clamp (Dallas 300)
• MIG torch (MT15)
• Connection kit for rechargeable gas cylinder

Figure 3.1: The Telwin Maxima 200 welding machine shown with its primary accessories, including the MIG torch, ground clamp, and gas regulator kit.

Figure 3.2: A different perspective of the Telwin Maxima 200 welding machine, highlighting its compact design and the included accessories.

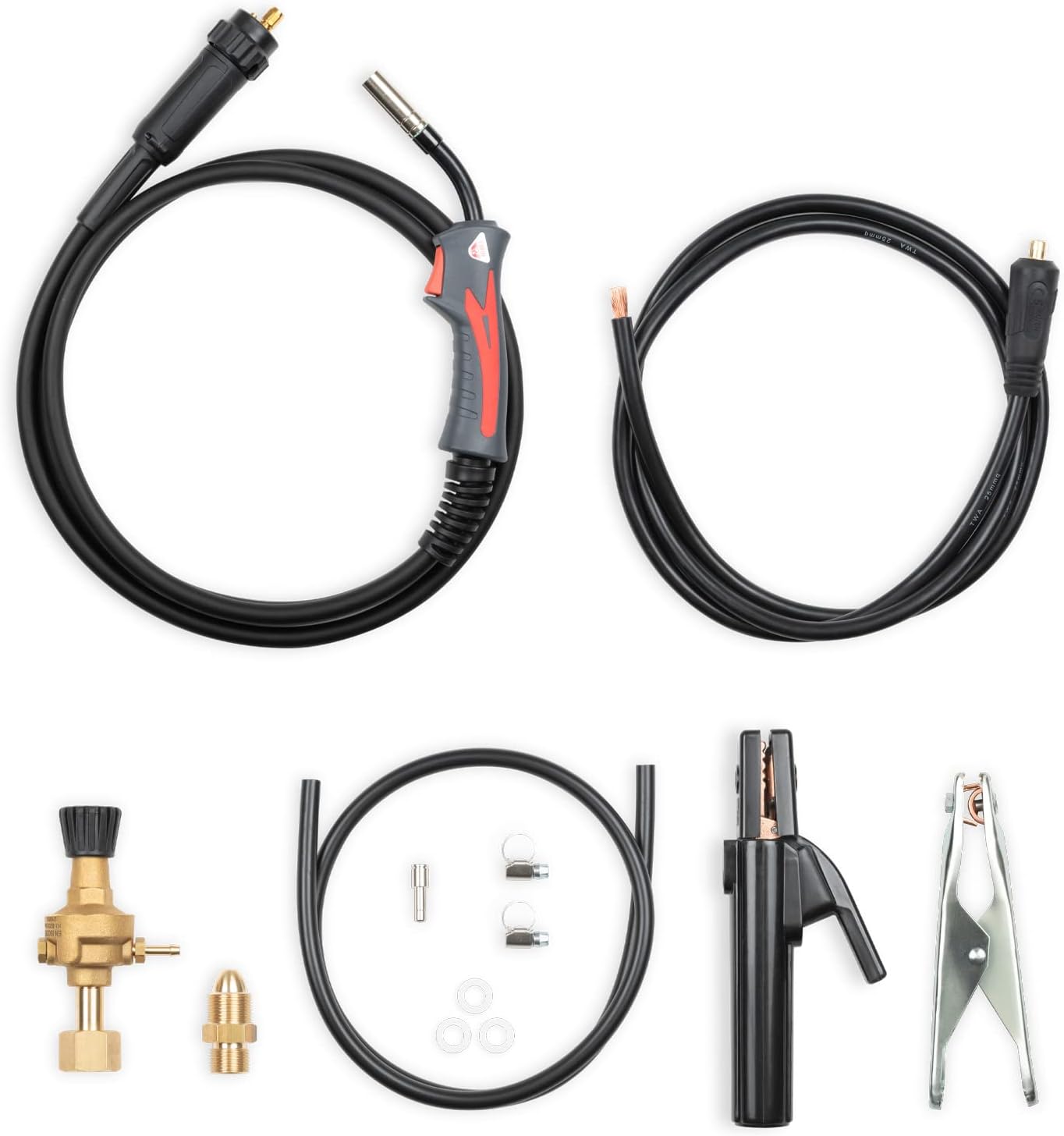

Figur 3.3: En overhead view of all standard accessories provided with the Telwin Maxima 200, including cables, clamps, torch, and gas connection components.

4. Opsætning

4.1 Strømtilslutning

Connect the welding machine to a stable 230V - 16A power supply. Ensure the power outlet is properly grounded and capable of handling the required current. The machine is designed to operate efficiently even with domestic 3kW meters.

4.2 Wire Spool Installation (MIG/FLUX)

The Telwin Maxima 200 is prepared for use with wire spools of 100mm and 200mm diameter. Follow the instructions in the machine's internal compartment for correct wire feeding and tension adjustment. Ensure the wire type matches your welding process and material.

4.3 Brænder og jordforbindelseamp Forbindelse

1. Connect the MIG torch (MT15) to the centralized torch attachment point on the front panel of the welder.
2. Fastgør jorden clamp (Toledo) to the appropriate terminal on the welder. Ensure a clean, secure connection to the workpiece to be welded.
3. For MMA welding, connect the electrode holder clamp (Dallas 300) to the positive terminal and the ground clamp to the negative terminal (or vice-versa depending on electrode polarity).

4.4 Gas Connection (for MIG-MAG/Brazing)

If performing MIG-MAG or Brazing welding, connect the gas cylinder using the provided connection kit. Ensure all connections are tight and leak-free. Use the correct shielding gas for your specific welding application (e.g., Argon for aluminum, CO2 or Argon/CO2 mix for steel).

5. Betjeningsvejledning

5.1 Selecting Welding Process

Turn on the welder. Use the intuitive control panel to select your desired welding process: Flux, MIG-MAG, Brazing, MMA, or TIG DC-LIFT. The machine's polarity can be changed for MIG-MAG/Brazing welding without gas.

5.2 Synergic Parameter Adjustment

The Maxima 200 features synergistic parameter adjustment, simplifying the setup process. The intuitive panel offers three main adjustments to begin welding:

• Behandle: Select the welding process (e.g., MIG, MMA).
• Bead Shape: Adjust for desired weld bead characteristics.
• Tykkelse: Set the material thickness you are welding.

The electronic control (inverter) ensures arc stability, providing excellent results even for less experienced operators.

5.3 MMA Welding (Electrode)

For MMA welding, the machine offers advanced features:

• Arc-Force: Automatically adjusts the welding current to prevent the electrode from sticking.
• Hot-Start: Provides an initial boost of current to ensure easy arc ignition.
• Anti-Stick: Reduces the current if the electrode sticks, allowing for easy removal without damaging the electrode or workpiece.

The Maxima 200 can weld both rutile and basic electrodes up to 3.2mm in diameter.

Figure 5.1: The Telwin Maxima 200 in operation, demonstrating its capability to produce a stable welding arc.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your Telwin Maxima 200 welder. Always disconnect the power supply before performing any maintenance.

• Rensning: Periodically clean the exterior of the machine with a dry cloth. Ensure ventilation openings are free from dust and debris.
• Kabelinspektion: Regularly inspect all cables, including power, ground, and torch cables, for any signs of damage, cuts, or fraying. Replace damaged cables immediately.
• Vedligeholdelse af brænder: Clean the MIG torch nozzle and contact tip regularly. Replace worn contact tips to ensure consistent wire feeding and arc stability.
• Wire Feed System: Check the wire feed rollers for wear and ensure they are clean and properly aligned. Adjust tension as needed.
• Opbevaring: Store the welder in a clean, dry environment, protected from dust and moisture.

7. Fejlfinding

This section provides solutions to common issues you might encounter. For problems not listed here, contact Telwin customer support.

The Telwin Maxima 200 is equipped with several protection features:

• Termostatisk beskyttelse: Activates if the machine overheats, preventing damage.
• Overvoltage/Undervoltage Beskyttelse: Safeguards the machine from unstable power supply.
• Overstrømsbeskyttelse: Forhindrer skader fra for højt strømforbrug.
• Motor Generator Compatibility: Designed to work with motor generators (230V +/- 15%), with built-in protection against fluctuations.

8. Tekniske specifikationer

9. Garantioplysninger

Specific warranty terms for the Telwin Maxima 200 Multiprocess Inverter Welder are typically provided by the manufacturer, Telwin, at the time of purchase or within the product packaging. Please refer to the documentation included with your product for detailed warranty coverage, duration, and claim procedures. For general return policies, please consult the retailer from whom the product was purchased.

10. Kundesupport

For technical assistance, spare parts, or further inquiries regarding your Telwin Maxima 200 welder, please contact Telwin customer support directly. You can find contact information on the official Telwin webwebsted eller i produktemballagen.

Note: Always provide your product model number (816127) and serial number when contacting support for faster service.
