ESOTERIC Bigboi Blower Mini+ Air Dryer Instruction Manual

Produkt overview

The ESOTERIC Bigboi Blower Mini+ is a compact, powerful air dryer designed for efficiently drying cars, boats, and motorcycles. It features twin motors and delivers warm, filtered air to quickly remove water from various surfaces, helping to prevent water spots and towel-induced marring. This unit is ideal for DIY enthusiasts seeking a safe and effective drying solution.

Image: The Bigboi Blower Mini+ unit with its bright green hose and black nozzle.

Officiel produktvideo

Video: En overview of the Bigboi Mini+ Car Blower Dryer, highlighting its features and benefits for automotive drying.

Nøglefunktioner

• Kompakt og kraftfuld: Designed for do-it-yourself car detailers, offering significant drying power in a small package.
• Høj lufthastighed: Boasts a flow velocity of 58,600 feet per minute, with air speeds up to 136 MPH for rapid drying.
• Warm, Filtered Air: Features a heating element to aid in water evaporation and a replaceable filter to ensure clean air is blown onto surfaces.
• Justerbar lufthastighed: Offers two speed settings: full power, and an infinitely adjustable speed knob from zero to full power.
• Collapsible, Flexible Hose: Includes a 16-foot hose that extends when in use and collapses for compact storage. An optional 29-foot hose is also available.
• Dobbelt motorsystem: Equipped with two 1,400-watt motors for a total of 2,800 watts of power.
• Stille drift: Engineered for reduced noise compared to similar products on the market.

Opsætning

Udpakning af enheden

Fjern forsigtigt alle komponenter fra emballagen. Kassen skal indeholde:

• Bigboi BlowR MINI+ main unit
• 16 fods slange
• 1 round nozzle
• 1 flad dyse
• Air filter (pre-installed or separate)

Hose and Nozzle Attachment

Attach the provided 16-foot flexible hose to the air outlet of the main unit. Ensure it is securely fastened. Select either the round or flat nozzle based on your drying needs and attach it to the end of the hose. The hose is designed to expand to its full length when the machine is in operation.

Image: The Bigboi Blower Mini+ unit with its 16-foot flexible hose extended.

Strømtilslutning

Connect the 16-foot power cord to a standard grounded 120V outlet. The unit draws 15 Amps, so ensure the circuit can handle this load to prevent tripping breakers, especially when both motors and the heating element are active. Avoid using power strips if possible, and connect directly to a dedicated wall outlet for best performance.

Betjeningsvejledning

Kontrol overview

The Bigboi Blower Mini+ features intuitive controls for motor selection and air speed adjustment:

• Motorkontakt: A toggle switch allows you to select between one motor (setting '1') or both motors (setting '2') for varying power needs.
• Wind Control Knob: This rotary knob allows for precise adjustment of the wind intensity from minimum to maximum when the air speed is set to 'Adjustable'.
• Air Speed Switch: A toggle switch to choose between 'Adjustable' air speed (controlled by the wind control knob) or 'Full' air speed for maximum power.

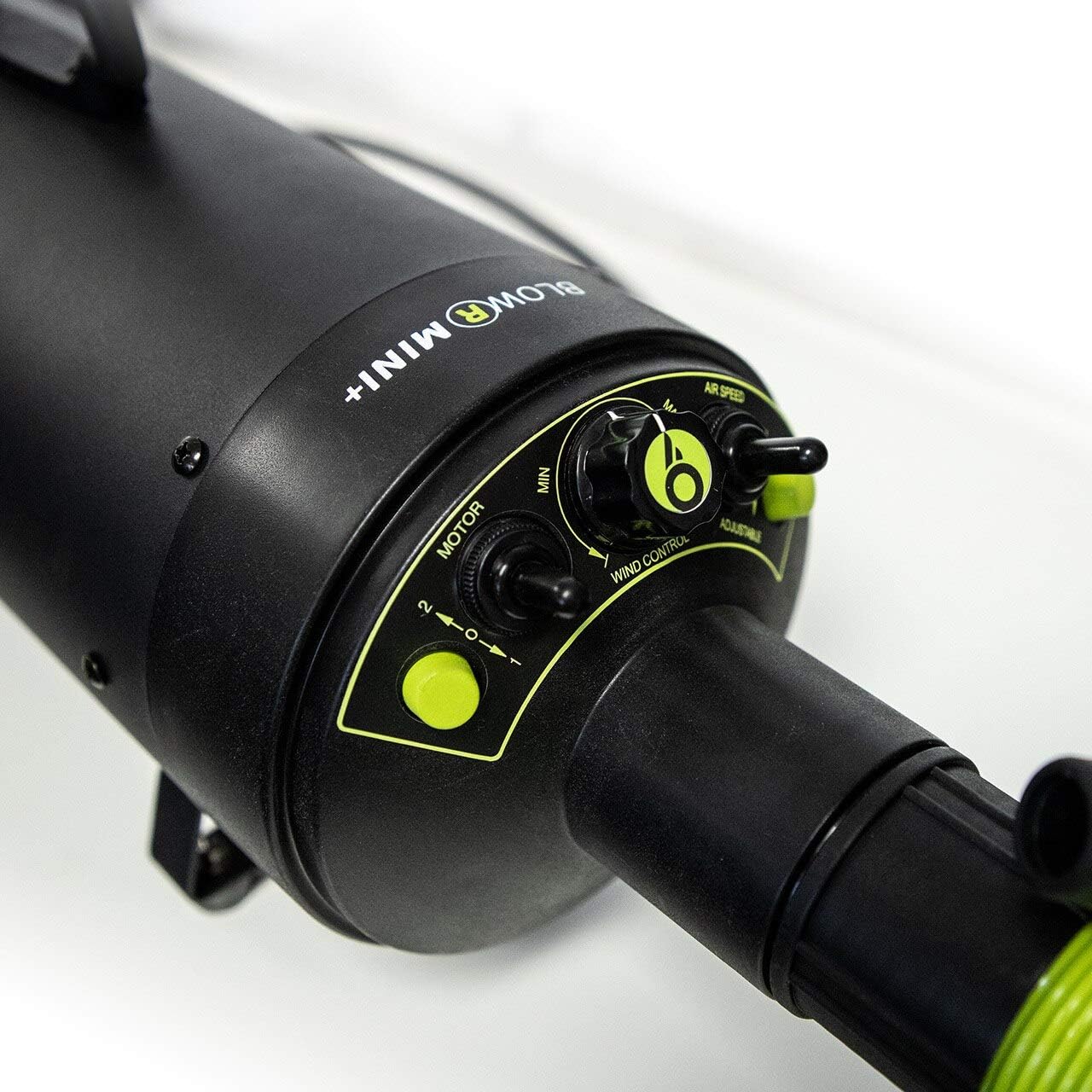

Billede: En detaljeret view of the control panel, showing the motor switch, wind control knob, and air speed switch.

Tørringsproces

To begin drying, ensure the unit is plugged into an appropriate power source. Select your desired motor and air speed settings. Direct the nozzle towards the wet surfaces of your vehicle. The powerful, heated airflow will quickly displace water, leaving a streak-free finish. Focus on tight areas such as mirrors, door handles, window trim, and emblems, as the heated air helps to evaporate trapped water, preventing drips and streaks after driving. Using an air dryer is a safer alternative to towel drying, as it minimizes physical contact with the paint, reducing the risk of introducing swirl marks and marring over time.

Opretholdelse

Vedligeholdelse af luftfilter

The Bigboi Blower Mini+ is equipped with an easily accessible air filter. Regularly inspect and clean or replace the air filter to ensure optimal performance and to prevent dust and debris from being blown onto your vehicle's finish. Refer to the filter compartment for specific instructions on removal and reinstallation.

Fejlfinding

Fælles problemer

• Enheden tænder ikke: Ensure the power cord is securely plugged into a live 120V grounded outlet. Check the circuit breaker to ensure it has not tripped.
• Circuit Breaker Tripping: The unit draws 15 Amps. If the breaker trips, ensure no other high-power appliances are on the same circuit. Consider using a dedicated 15A or 20A circuit. Avoid using extension cords or power strips that are not rated for the unit's power draw.
• Reduceret luftstrøm: Check the air filter for excessive dust or blockage. Clean or replace the filter as necessary. Ensure the hose is not kinked or obstructed.
• Usædvanlig støj: If the unit produces unusual noises, immediately turn it off and inspect the air intake and hose for any foreign objects. If the issue persists, contact customer support.

Specifikationer

Garantioplysninger

Garanti detaljer

The Bigboi Blower Mini+ comes with a 3-year consumer warranty og en 1 års kommerciel garanti. Denne garanti dækker fejl i materialer og udførelse ved normal brug.

Return Policy Disclaimer

Any returns of this product may be subject to a restocking fee if the machine is not in brand new, unused condition. Additional restocking fees may be applied if there are any signs of wear or damage to the machine or the original packaging.

Kundesupport

For further assistance, technical support, or to inquire about replacement parts and accessories, please visit the official ESOTERIC store or contact their customer service department. You can find more information and contact details by visiting the ESOTERIC Store on Amazon.
