Indledning

Thank you for choosing the Paulmann 94453 Capea LED Outdoor Wall Lamp. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

Image: The Paulmann Capea LED Outdoor Wall Lamp, showing the product itself and its retail packaging. The lamp is black, with a conical shade and an integrated motion sensor at the base.

Vigtige sikkerhedsinstruktioner

• Elektrisk sikkerhed: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Always switch off the main power supply before installation, maintenance, or repair.
• Udendørs brug: This product is designed for outdoor use (IP44 rated). Ensure all connections are properly sealed to prevent water ingress.
• Montering: Mount the fixture securely on a stable surface. Do not install on flammable surfaces.
• Lyskilde: The LED light source is integrated and not replaceable by the user. Do not attempt to open or modify the light source compartment.
• Temperatur: Dæk ikke lamp with insulating material. Ensure adequate air circulation around the fixture.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• 1x Paulmann Capea LED Outdoor Wall Lamp (model 94453)
• Monteringsvejledning
• Monteringsudstyr (skruer, vægdyvler) - (Assumed, as typical for wall lamps)

Tekniske specifikationer

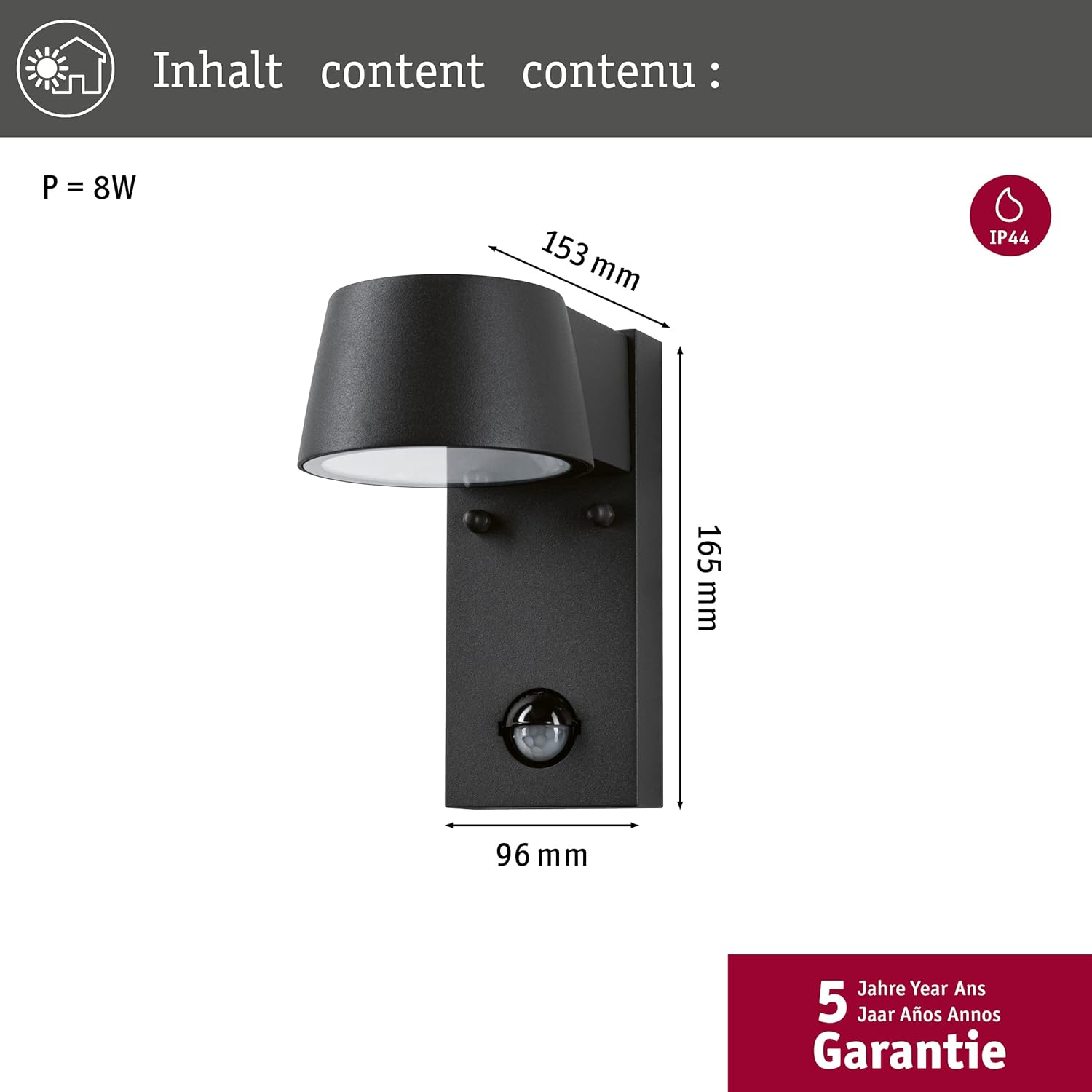

Image: Technical drawing showing the dimensions of the Paulmann Capea LED Outdoor Wall Lamp: 153mm width, 165mm height, and 96mm depth.

Installationsvejledning

Før du begynder: Ensure the main power supply to the installation area is switched off at the circuit breaker. Use appropriate tools and safety equipment.

1. Forbered monteringssted: Choose a suitable wall location for the lamp, ensuring it is a stable surface and allows for proper wiring. Mark the drilling points for the mounting bracket.
2. Bore huller: Drill holes at the marked points and insert appropriate wall plugs (if necessary).
3. Monteringsbeslag: Fastgør monteringsbeslaget til væggen med de medfølgende skruer.
4. Ledningsføring: Connect the electrical wires from your mains supply to the terminal block inside the lamp fixture. Ensure correct polarity (Live, Neutral, Earth) and secure all connections tightly. Refer to local electrical codes.
5. Vedhæft Lamp: Fastgør forsigtigt l'enamp fixture to the mounting bracket, ensuring no wires are pinched. Secure the lamp på plads.
6. Gendan strøm: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved hovedafbryderen.

Image: The Paulmann Capea LED Outdoor Wall Lamp shown with its packaging, which illustrates basic installation steps and features like the motion sensor and IP44 rating.

Betjeningsvejledning

The Paulmann Capea LED Outdoor Wall Lamp features an integrated motion sensor for automatic operation.

Indstillinger for bevægelsessensor

The motion sensor can be adjusted to suit your specific needs. Typically, there are controls for:

• Detektionsvinkel: Approximately 90 degrees.
• Registreringsområde: 2-8 meter.
• Lysfølsomhed (LUX): Determines the ambient light level at which the sensor activates the lamp.
  • ON < 20 Lux: Lamp will turn on when motion is detected and the ambient light is below 20 Lux (dark conditions).
  • OFF > 20 Lux: Lamp will remain off when the ambient light is above 20 Lux (daylight conditions).
• Tid TIL: Sets the duration the light remains on after motion is detected. Adjustable from approximately 5 seconds to 5 minutes.

Adjust these settings using the small dials or switches located on the motion sensor unit, usually found at the bottom of the lamp. Use a small screwdriver if necessary.

Image: A diagram illustrating the motion sensor's detection angle (90 degrees), range (2-8 meters), and light sensitivity settings (On < 20 Lux / Off > 20 Lux), along with the adjustable time duration (5 seconds - 5 minutes).

Billede: Et nærbillede view of the integrated motion sensor located at the base of the Paulmann Capea LED Outdoor Wall Lamp, showing its spherical lens.

Opretholdelse

• Rensning: Afbryd strømmen før rengøring. Tør l'en afamp med en blød, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen eller de elektriske komponenter.
• Lyskilde: The LED light source is integrated and designed for long-term use (30,000 hours). It is not user-replaceable. If the LED fails, the entire fixture typically needs replacement.
• Inspektion: Efterse lamp for tegn på skader, løse forbindelser eller slid. Ret eventuelle problemer omgående.

Fejlfinding

Garanti og kundesupport

Paulmann products are manufactured to high quality standards. This product comes with a 5-year guarantee, as indicated on the packaging. For warranty claims, technical assistance, or further inquiries, please contact your retailer or Paulmann customer support directly. Keep your proof of purchase for warranty purposes.

For more information, visit the official Paulmann webwebsted: www.paulmann.com

Oplysninger om bortskaffelse

This product contains electronic components and an integrated LED light source. Do not dispose of it with general household waste. Please take it to a designated collection point for electrical and electronic equipment recycling in accordance with local regulations. Proper disposal helps prevent potential negative consequences for the environment and human health.
