1. Introduktion
The Sonel MPI-540 is a multifunction electrical installation meter designed for comprehensive testing of home and industrial electrical installations. This device ensures the safety and proper functioning of electrical systems by performing a wide range of measurements. It features automated measurement sequences, including auto-tests for residual current circuit breakers (RCDs), and supports automatic insulation resistance measurements for 3-, 4-, and 5-wire conductors with the optional AUTO ISO-1000C adapter. This manual provides essential information for the safe and effective operation of your MPI-540 meter.

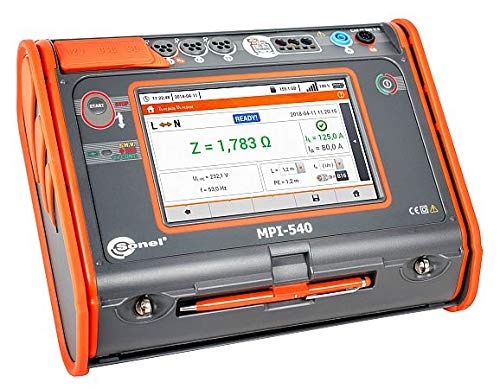

Figure 1: Sonel MPI-540 Multifunction Electrical Installation Meter. This image shows the front view of the meter with its color TFT LCD touchscreen displaying measurement results. The device has an orange and grey casing with various input ports and control buttons.
2. Nøglefunktioner
- Omfattende målefunktioner: Performs tests for short circuit loop impedance, RCD parameters, insulation resistance, earth resistance, continuity, and more.
- Automatiseret test: Features Auto mode and pre-programmed sequences for RCD testing and other measurements.
- Advanced Insulation Resistance: Supports automatic measurement of 3-, 4-, and 5-wire conductors with the AUTO ISO-1000C adapter.
- F-3A Clamps Inkluderet: Comes with F-3A current clamps for enhanced measurement functionality.
- Brugervenlig grænseflade: Equipped with a color TFT LCD touchscreen for clear display of results and intuitive navigation.
- Data Logging and Communication: Built-in memory and communication options (USB, Bluetooth) for data transfer and report generation.
3. Sikkerhedsoplysninger
Always adhere to local and national safety regulations when operating the Sonel MPI-540 meter. Failure to do so may result in injury, damage to the device, or damage to the installation being tested.
- Ensure the device is in good working condition before use.
- Do not use the meter in wet conditions or in the presence of explosive gases or dust.
- Always use the provided test leads and accessories.
- Verify that the measurement range is appropriate for the circuit being tested.
- Disconnect power to the circuit before connecting or disconnecting test leads for certain measurements, such as insulation resistance.
- Refer to the specific measurement instructions for detailed safety precautions.
4. Pakkens indhold
Upon unpacking, verify that all items listed below are present and undamaged. If any items are missing or damaged, contact your supplier immediately.

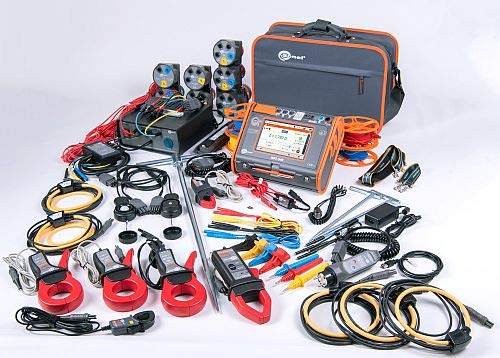

Figure 2: Sonel MPI-540 complete kit. This image displays the Sonel MPI-540 meter along with its comprehensive set of accessories, including various test leads, clamps, adapters, and a carrying bag, laid out on a white surface.
- Sonel MPI-540 Multifunction Electrical Installation Meter
- F-3A Current Clamps (3x)
- Test Leads (various types and lengths)
- Krokodille klips
- Test prober
- Strømadapter/oplader
- Li-Ion batteri
- USB interface kabel
- Bæretaske
- Brugervejledning (dette dokument)
- Software-cd (hvis relevant)
- MicroSD-kort
5. Opsætning og første idriftsættelse
5.1. Opladning af batteriet
Before first use, fully charge the Li-Ion battery. Connect the power adapter to the meter's charging port and then to a suitable power outlet. The charging indicator on the meter will show the charging status.
5.2. Tænd/sluk
For at tænde enheden skal du trykke på og holde MAGT button until the display illuminates. To power off, press and hold the MAGT button again until the display shuts down.
5.3. Grundlæggende navigation
The MPI-540 features a color TFT LCD touchscreen. Navigate through menus and settings by touching the relevant icons or options on the screen. Physical buttons are also available for quick access to common functions.
6. Betjeningsvejledning
The MPI-540 offers a variety of measurement functions. Select the desired measurement mode from the main menu. Detailed instructions for each measurement type are provided below.
6.1. Short Circuit Loop Impedance Measurement
- Ensure the circuit is live and safe to test.
- Select "ZL-PE" or "ZLN" from the measurement menu.
- Connect the test leads according to the on-screen diagram.
- Tryk på STARTE knappen for at starte målingen.
- Resultatet vil blive vist på skærmen.
6.2. RCD Parameter Measurement (Auto Mode)
The Auto mode simplifies RCD testing by performing a sequence of measurements automatically.
- Select "RCD Auto" from the measurement menu.
- Connect the test leads to the RCD protected circuit.
- Configure RCD type and nominal current if necessary.
- Tryk på STARTE button. The meter will perform the sequence of tests.
- Observe the results and ensure the RCD trips within specified parameters.
6.3. Måling af isolationsmodstand
Advarsel: Ensure the circuit is de-energized before performing insulation resistance tests.
- Select "RISO" from the measurement menu.
- Connect the test leads to the conductors to be tested. For 3-, 4-, or 5-wire automatic testing, use the AUTO ISO-1000C adapter.
- Vælg den ønskede testvoltage.
- Tryk på STARTE button. Hold until the measurement is stable.
- The insulation resistance value will be displayed.
Figure 3: Sonel MPI-540 in operation. This image shows the meter connected to an electrical outlet, actively displaying measurement data on its screen, indicating a live test in progress.
7. Vedligeholdelse
7.1. Rensning
Rengør målerens casing med en blød, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at der ikke kommer fugt ind i enheden.
7.2. Batteripleje
To prolong battery life, avoid fully discharging the battery frequently. If storing the device for an extended period, charge the battery to approximately 50% and store in a cool, dry place.
7.3. Kalibrering
Regular calibration is recommended to ensure the accuracy of your Sonel MPI-540 meter. Refer to Sonel's official website or contact authorized service centers for calibration services.
7.4. Firmwareopdateringer
Periodically check the Sonel website for available firmware updates. Updates can improve functionality and address potential issues. Follow the instructions provided with the firmware update package carefully.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Måleren tænder ikke. | Battery discharged or faulty. | Charge the battery. If problem persists, contact service. |
| Upræcise aflæsninger. | Incorrect connection, uncalibrated device, or damaged test leads. | Check connections. Perform calibration. Inspect and replace test leads if damaged. |
| RCD does not trip during test. | RCD faulty, incorrect test parameters, or incorrect connection. | Verify RCD parameters. Check connections. If RCD is faulty, it needs replacement. |
| Display is unresponsive. | Softwarefejl eller hardwareproblem. | Restart the meter. If problem persists, contact technical support. |
9. Tekniske specifikationer
Below are general technical specifications for the Sonel MPI-540. For detailed measurement ranges and accuracies, refer to the full technical data sheet available on the Sonel webwebsted.
- Strømkilde: Battery Powered (Li-Ion battery)
- Vise: Color TFT LCD Touchscreen
- Målefunktioner: Short Circuit Loop Impedance, RCD Parameters, Insulation Resistance, Earth Resistance, Continuity, Phase Sequence, Voltage, Current (with clamps), Frequency, Power (Active, Reactive, Apparent), Harmonics.
- Meddelelse: USB, Bluetooth
- Hukommelse: Internal memory, MicroSD card support
- Miljøbeskyttelse: IP54 (or similar, based on product details)
- Sikkerhedsstandarder: Conforms to IEC 61010, IEC 61557
Figure 4: Sonel MPI-540 technical data. This image shows a page from the product documentation detailing various technical specifications and measurement capabilities of the MPI-540 meter.
10. Garanti og support
10.1. Garantioplysninger
The Sonel MPI-540 meter is covered by a manufacturer's warranty against defects in materials and workmanship. The specific warranty period and terms may vary by region. Please refer to the warranty card included with your product or visit the official Sonel webwebstedet for detaljerede garantioplysninger.
Note: The warranty does not cover damage caused by misuse, unauthorized modifications, or failure to follow the instructions in this manual.
10.2. Teknisk support
For technical assistance, troubleshooting, or service inquiries, please contact Sonel customer support or your authorized Sonel distributor. Before contacting support, please have your product model number (MPI-540) and serial number ready.
- Sonel Official Webwebsted: www.sonel.pl
- Kontaktoplysninger: Refer to the Sonel webhjemmeside for regionale kontaktoplysninger.
