Brugermanual til OUKITEL WP5 Pro robust smartphone

1. Introduktion

This manual provides essential information for the safe and efficient use of your OUKITEL WP5 Pro rugged smartphone. Please read this manual thoroughly before operating the device to ensure proper functionality and to prevent damage.

Billede 1.1: Forside og bagside view of the OUKITEL WP5 Pro Rugged Smartphone.

2. Opsætning

2.1. Pakkens indhold

Sørg for, at alle varer er til stede i din pakke:

• OUKITEL WP5 Pro-smartphone
• USB kabel
• Strømadapter
• Brugervejledning (dette dokument)

2.2. Installation af SIM-kort og Micro SD-kort

The OUKITEL WP5 Pro supports dual Nano SIM cards or one Nano SIM card and one Micro SD card for expanded storage up to 256GB.

1. Locate the protective case on the side of the phone.
2. Use the provided pin to gently open the small hole on the protective case.
3. Træk forsigtigt SIM-kortbakken ud.
4. Place your Nano SIM card(s) and/or Micro SD card into the designated slots on the tray. Ensure correct orientation.
5. Gently push the tray back into the phone until it is fully seated and the protective case is closed.

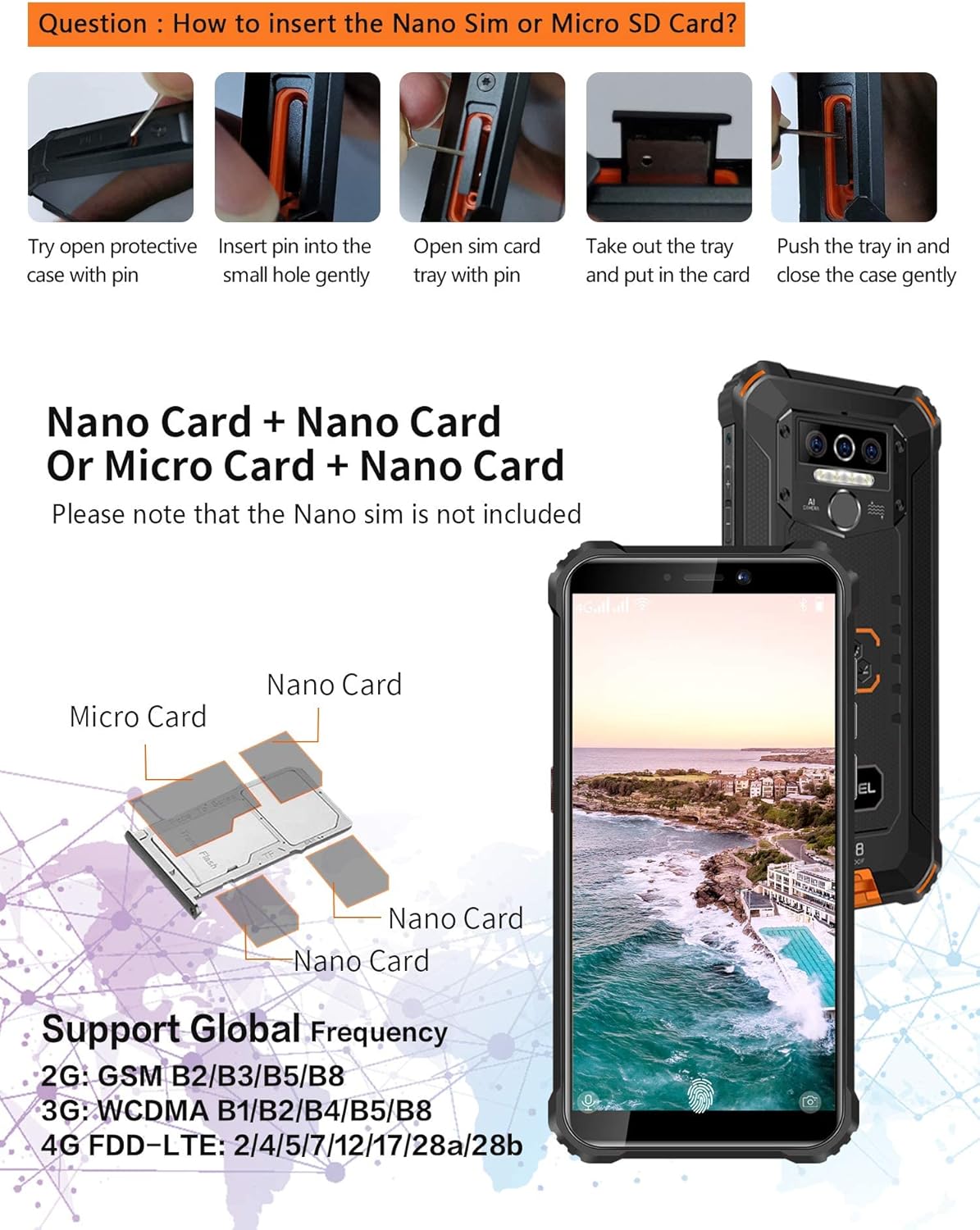

Image 2.1: Instructions for inserting Nano SIM and Micro SD cards.

2.3. Første opstart og netværkskompatibilitet

Press and hold the power button until the OUKITEL logo appears. Follow the on-screen instructions to complete the initial setup.

The OUKITEL WP5 Pro is an unlocked 4G LTE GSM smartphone. Please note its specific carrier compatibility:

• Understøttede udbydere: T-Mobile, MetroPCS, Mint Mobile.
• Unsupported Carriers: New AT&T, CRICKET, Verizon, Sprint, Boost Mobile, Straight Talk, U.S. Cellular.

Understøttede frekvensbånd:

• 2G: GSM B2/B3/B5/B8
• 3G (WCDM): 1/2/4/5/8
• 4G (FDD): 2/4/5/7/12/17/28a/28b

Always confirm with your carrier before purchasing for at sikre kompatibilitet.

Image 2.2: Network carrier compatibility overview.

3. Betjening af enheden

3.1. Android 10-operativsystem

The OUKITEL WP5 Pro runs on a pure Android 10.0 system, offering a streamlined and user-friendly experience. It features a MediaTek MT6762D Octa-core 2.0 GHz processor, 4GB RAM, and 64GB ROM (expandable up to 256GB via Micro SD card).

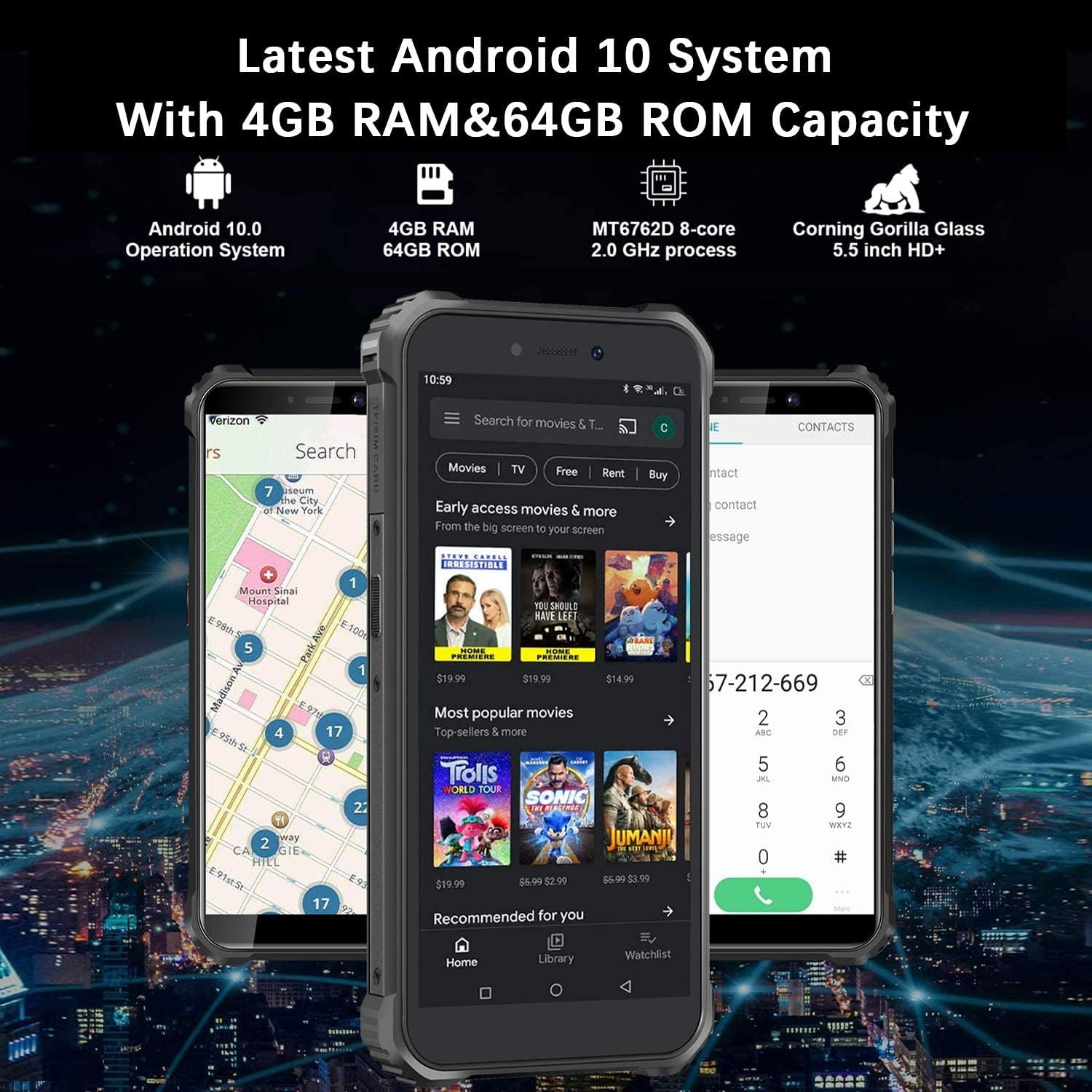

Image 3.1: Android 10 system and memory capacity.

3.2. Batteri og opladning

The device is equipped with an 8000mAh battery, designed for extended usage. It can also function as a power bank to charge other devices using an OTG cable (not included).

• Taletid: Op til 42 timer
• Standby tid: Op til 615 timer

Use the provided USB cable and power adapter for optimal charging. Avoid using damaged cables or chargers.

Image 3.2: Battery capacity and estimated usage times.

3.3. Kamerafunktioner

The OUKITEL WP5 Pro features a triple-lens rear camera for capturing photos and videos.

3.4. Rugged Features and Outdoor Tools

The WP5 Pro is designed for durability and outdoor use, meeting IP68 and IP69K standards. It is waterproof up to 1.5 meters for 30 minutes and resistant to 99% of dust. The phone is constructed with Corning Gorilla Glass and FPC+TPU+GF material for enhanced drop and shock resistance. It operates normally in temperatures ranging from -55°C to 70°C (-67°F to 158°F).

The device includes several outdoor tools and features 4 LED flashes for illumination.

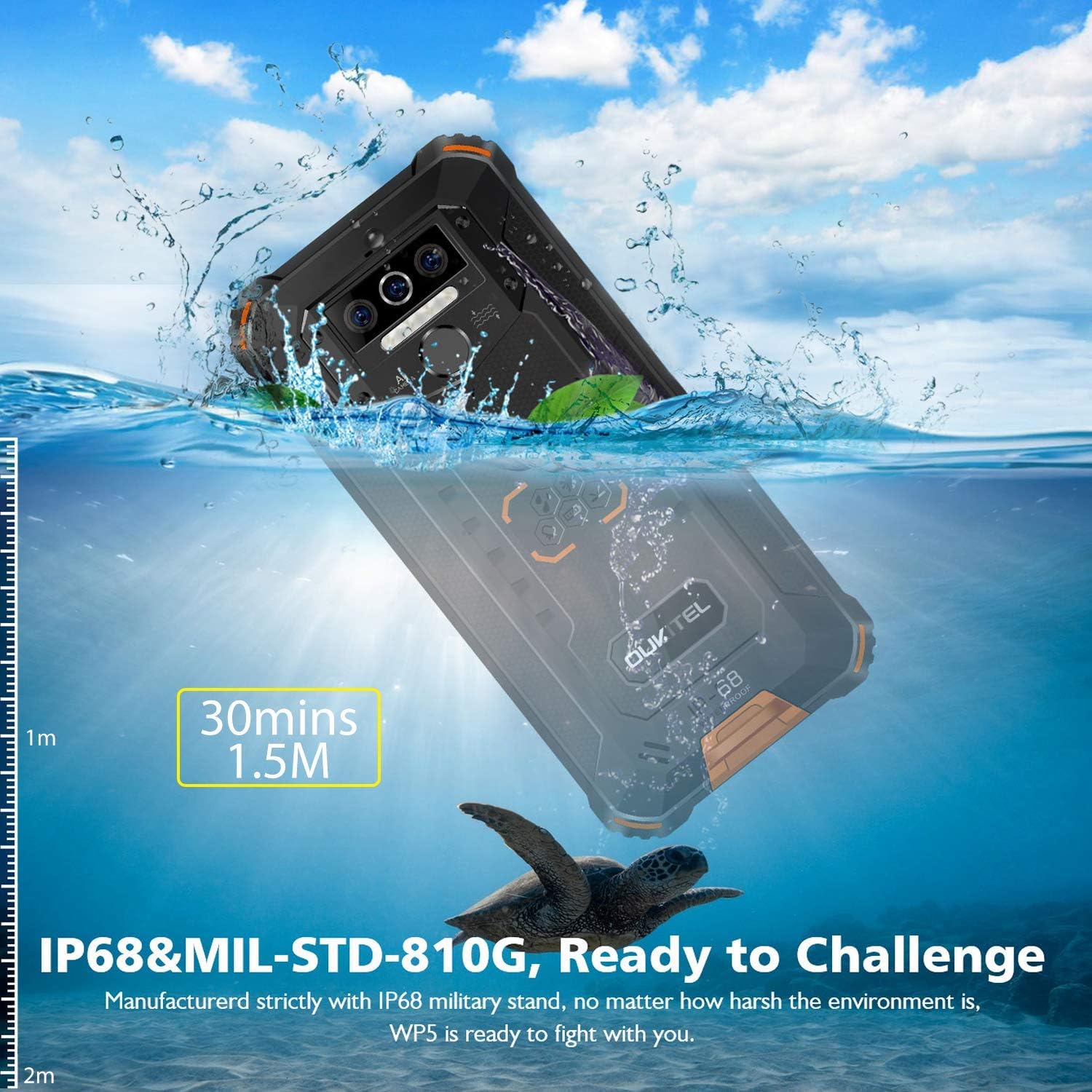

Image 3.3: OUKITEL WP5 Pro demonstrating its IP68 waterproof capabilities.

Image 3.4: Rugged features and integrated outdoor tools.

3.5. Custom Buttons

The WP5 Pro features custom buttons that can be configured for quick access to functions such as the flashlight, camera, or SOS emergency calls.

3.6. Face ID and Fingerprint Unlock

The device supports both Face ID and fingerprint recognition for secure unlocking.

3.7. Produktet er slutview Video

4. Vedligeholdelse

4.1. Rensning

To clean your OUKITEL WP5 Pro, use a soft, damp cloth. Avoid using harsh chemicals or abrasive materials, as these can damage the device's rugged coating and screen. Ensure all ports are closed before cleaning with moisture.

4.2. Batteripleje

For at forlænge batterilevetiden:

• Undgå ekstreme temperaturer.
• Undgå at aflade batteriet helt ofte.
• Use only the original charger or certified compatible accessories.

4.3. Softwareopdateringer

Regularly check for and install software updates to ensure optimal performance, security, and access to new features. Updates can typically be found in the device's settings menu under "System" or "About phone."

5. Fejlfinding

5.1. Enheden tændes ikke

• Sørg for, at batteriet er opladet. Tilslut enheden til opladeren i mindst 30 minutter.
• Tryk og hold tænd/sluk-knappen nede i 10-15 sekunder for at udføre en tvungen genstart.

5.2. Problemer med netværksforbindelse

• Verify that your SIM card is correctly inserted and activated.
• Tjek dine netværksindstillinger (Indstillinger > Netværk og internet > Mobilnetværk).
• Ensure your carrier is compatible with the OUKITEL WP5 Pro (refer to Section 2.3).
• Genstart enheden.

5.3. Screen Unresponsive or Frozen

• Perform a forced restart by holding the power button.
• Hvis problemet fortsætter, bør du overveje en fabriksnulstilling (bemærk: dette vil slette alle data).

5.4. Fabriksindstilling

A factory reset will restore your phone to its original settings and erase all data. Back up important data before proceeding.

1. Gå til Indstillinger > System > Nulstil indstillinger.
2. Vælg "Slet alle data (fabriksindstilling)".
3. Bekræft dit valg, og indtast din pinkode/adgangskode, hvis du bliver bedt om det.

6. Specifikationer

7. Garantioplysninger

Your OUKITEL WP5 Pro smartphone is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.

8. Kundesupport

For technical assistance, troubleshooting, or further inquiries regarding your OUKITEL WP5 Pro, please visit the official OUKITEL webwebstedet eller kontakt deres kundeserviceafdeling. Kontaktoplysninger kan typisk findes på producentens webwebstedet eller i din produktemballage.
