Alpina Lucerne elektrisk pejs brugermanual

1. Introduktion

Thank you for choosing the Alpina Lucerne Electric Fireplace. This appliance is designed to provide supplemental heating and a realistic flame effect, enhancing the comfort and ambiance of your living space. Please read this manual thoroughly before operating the fireplace to ensure safe and efficient use. Keep this manual for future reference.

2. Sikkerhedsoplysninger

Din sikkerhed er altafgørende. Overhold venligst følgende forholdsregler:

• Læs alle instruktioner, før du bruger dette apparat.
• Dette apparat er kun til indendørs brug. Må ikke bruges udendørs.
• Sørg for, at voltagDen strømstyrke, der er angivet på typeskiltet, svarer til din elnetstrøm.tage.
• Do not cover the air inlets or outlets of the fireplace. This can lead to overheating.
• Keep flammable materials such as furniture, curtains, and bedding at least 1 meter (3 feet) away from the front and sides of the fireplace.
• Do not operate the fireplace with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Always unplug the fireplace when not in use or before cleaning.
• Indsæt eller lad ikke fremmedlegemer trænge ind i ventilations- eller udsugningsåbninger, da dette kan forårsage elektrisk stød eller brand eller beskadige varmeren.
• This fireplace is equipped with an overophedningsbeskyttelse system. If the heater overheats, the system will automatically shut off the appliance. Unplug the unit, allow it to cool for 15-20 minutes, and then plug it back in.
• Do not use this fireplace in bathrooms, laundry areas, or similar indoor locations where it may come into contact with water.
• Supervise children and pets when the appliance is in operation.

3. Produktet er slutview

The Alpina Lucerne Electric Fireplace features a compact design with realistic LED flames and adjustable heating capabilities.

Figur 1: Front view of the Alpina Lucerne Electric Fireplace, showcasing the realistic flame effect.

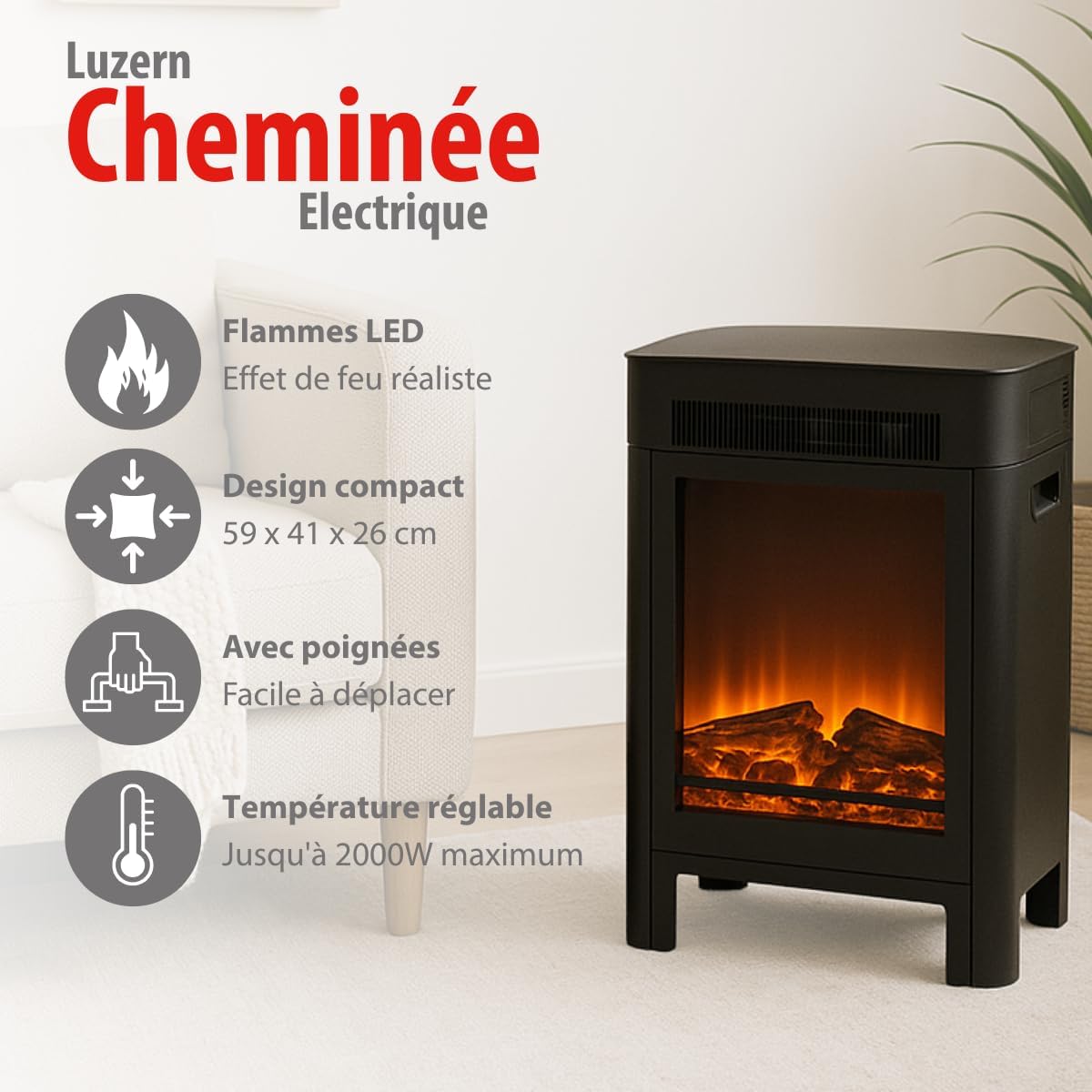

Figur 2: Key features of the Alpina Lucerne Electric Fireplace, including LED flames, compact design, integrated handles, and adjustable temperature.

Komponenter:

• Flame Effect Window: Displays the realistic LED flame effect.
• Kontrolpanel: Located on the side, includes thermostat knob and power switches.
• Luftudtag: Located at the top, for heat emission.
• Integrerede håndtag: Two handles on the sides for easy portability.
• Strømledning: Til tilslutning til en stikkontakt.

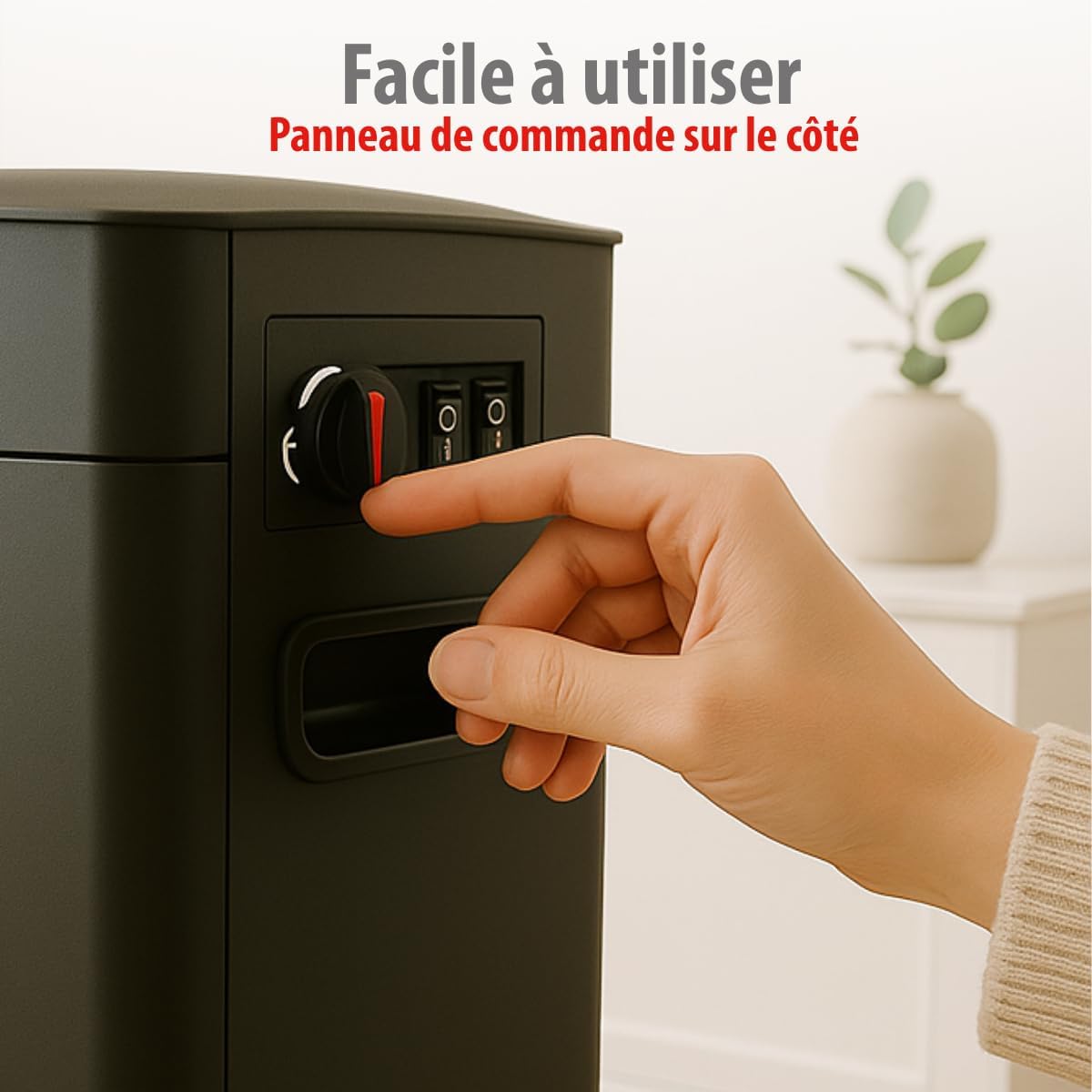

Figur 3: Nærbillede view of the control panel with thermostat and power switches.

4. Opsætning

The Alpina Lucerne Electric Fireplace is designed for easy setup and portability.

1. Udpakning: Carefully remove the fireplace from its packaging. Retain packaging for future storage or transport.
2. Placering: Place the fireplace on a firm, level surface. Ensure there is adequate clearance around the unit (at least 1 meter from flammable materials). The compact size (59 x 41 x 26 cm) allows for flexible placement in various rooms.
3. Strømtilslutning: Plug the power cord into a standard 240V ~ 50Hz electrical outlet. Ensure the outlet is easily accessible.

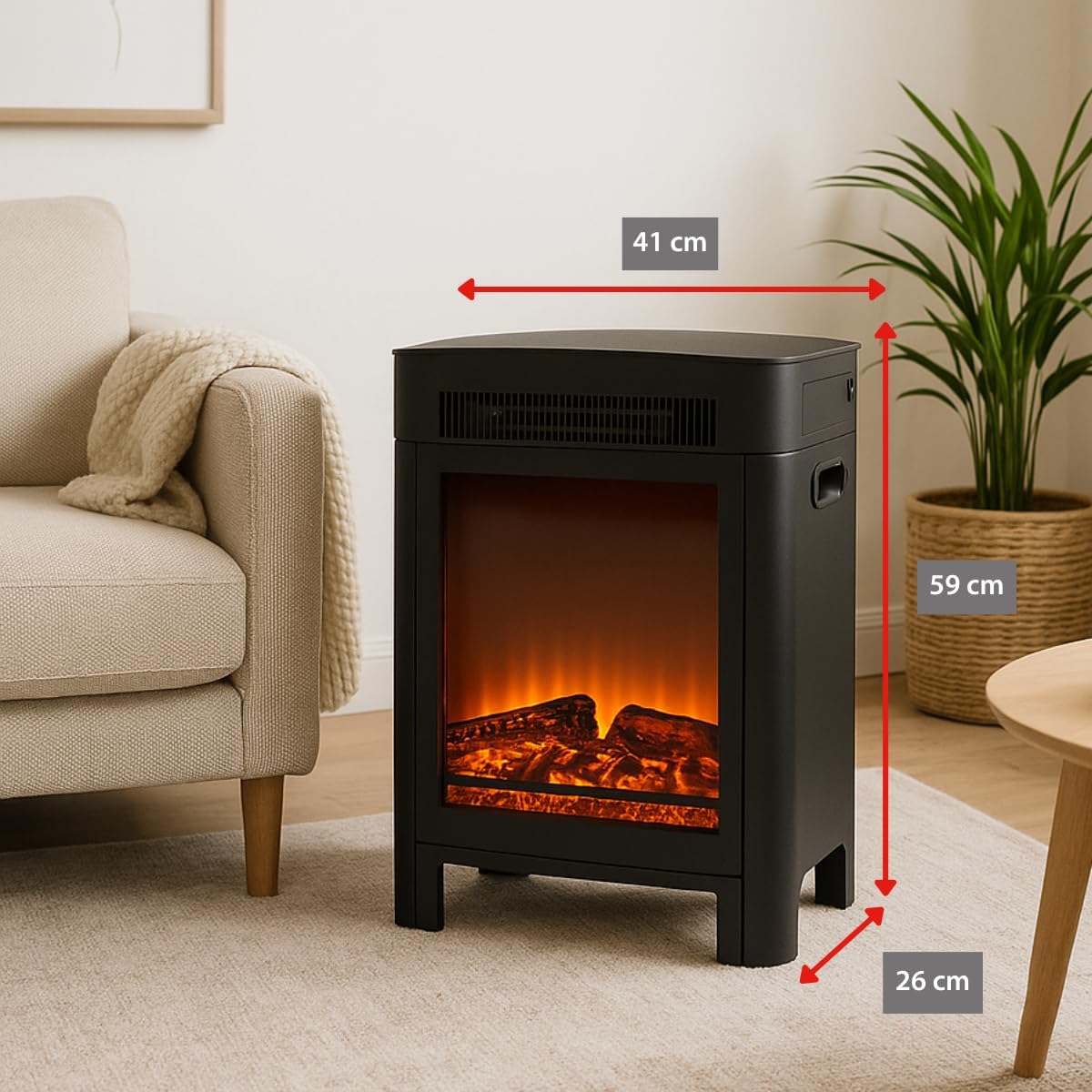

Figur 4: Dimensions of the Alpina Lucerne Electric Fireplace for optimal placement.

Figur 5: Example of fireplace placement in a room.

Figur 6: Integrated handles allow for easy movement of the fireplace.

5. Betjeningsvejledning

The Alpina Lucerne Electric Fireplace offers both heating and a realistic flame effect, which can be used independently.

1. Tænd/sluk: Locate the main power switch on the control panel. Flip it to the 'ON' position to power the unit.
2. Flame Effect Only: To enjoy the realistic LED flame effect without heat, ensure the heat switches are in the 'OFF' position. The flame effect will activate automatically when the main power is on.
3. Varmeindstillinger: The fireplace has two heat settings (1000W and 2000W). Use the heat switches on the control panel to select your desired heat output. You can choose between low heat (1000W) or high heat (2000W).
4. Adjusting Temperature (Thermostat): Turn the thermostat knob on the control panel to set the desired room temperature. The heater will cycle on and off to maintain this temperature.
5. Sluk: To turn off the fireplace, flip the main power switch to the 'OFF' position and unplug the unit from the wall socket.

Figur 7: The realistic LED flame effect provides ambiance.

Figur 8: Enjoying the warmth and ambiance provided by the fireplace.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din elektriske pejs' lange levetid og optimale ydeevne.

• Rensning: Always unplug the appliance and allow it to cool completely before cleaning. Use a soft, damp klud til at tørre de udvendige overflader af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Fjernelse af støv: Periodically clean the air inlets and outlets with a soft brush or vacuum cleaner to prevent dust buildup, which can affect heating efficiency.
• Opbevaring: Hvis pejsen opbevares i længere tid, skal stikket tages ud af stikkontakten og opbevares køligt og tørt, helst i originalemballagen.

7. Fejlfinding

If you encounter any issues with your Alpina Lucerne Electric Fireplace, refer to the following common problems and solutions:

8. Specifikationer

Detailed technical specifications for the Alpina Lucerne Electric Fireplace.

Figur 9: The fireplace is suitable for heating spaces up to 20m².

9. Garanti og support

For garantioplysninger eller teknisk support henvises til den dokumentation, der fulgte med dit køb, eller kontakt din forhandler. Gem dit købsbevis i tilfælde af garantikrav.
