Indledning
The SANWA Multi Device Bluetooth Keyboard with Touchpad (Model GSKBBT066) is designed for versatile use across various operating systems and devices. This compact, rechargeable keyboard features a built-in touchpad, multi-device switching capabilities, and convenient shortcut keys, enhancing productivity and entertainment experiences.
Opsætning
1. Opladning af tastaturet
Before initial use, fully charge the keyboard. Connect the provided USB charging cable to the keyboard's charging port and a USB power source. A full charge typically takes approximately 2 hours and provides up to 30 hours of constant use.
Image: The SANWA Bluetooth keyboard connected via USB cable to a wall adapter for charging.
2. Parring med enheder
The keyboard supports connection to up to three Bluetooth devices simultaneously. Use the dedicated pairing buttons to switch between connected devices.
- Sørg for, at tastaturet er opladet og tændt.
- Tryk på Fn key and one of the device selection keys (1, 2, eller 3) simultaneously to select a channel. The corresponding LED will blink.
- Tryk på Tab key labeled 'Pairing' to enter pairing mode. The selected channel's LED will blink rapidly.
- Aktiver Bluetooth på din enhed (bærbar computer, tablet, smartphone) og søg efter tilgængelige enheder.
- Select 'SANWA GSKBBT066' from the list of found devices.
- Følg eventuelle anvisninger på skærmen for at fuldføre parringsprocessen.
- For at skifte mellem parrede enheder skal du blot trykke på Fn + 1, Fn + 2, eller Fn + 3.
Image: A close-up of the keyboard showing the 'Fn' key, 'Tab' (Pairing) key, and the device selection LEDs (1, 2, 3).
Video: An instructional video demonstrating the features and usage of the SANWA Bluetooth Rechargeable Keyboard with Touchpad.
Betjeningsvejledning
Keyboard Layout and Typing
The keyboard features a standard QWERTY layout with comfortable pantograph scissor-structure keys, designed for sensitive response and reduced typing noise. The layout is optimized for efficient typing.
Billede: Top-down view of the SANWA Bluetooth keyboard, showcasing dens fulde layout.
Image: Close-up of the keyboard keys, illustrating the pantograph scissor-structure for comfortable typing.
Genvejstaster
The keyboard includes 20 practical shortcut keys for quick access to various functions and media controls. These keys are typically activated by pressing the Fn key in combination with the corresponding function key (F1-F12) or dedicated media keys.
- F1: Lysstyrke ned
- F2: Lysstyrke op
- F3: Søgefunktion
- F4: Opgave View
- F5: Switch to Desktop
- F6: Skift applikationer
- F7: Stum
- F8: Volumen -
- F9: Volumen +
- F10: Forrige sang
- F11: Afspil/pause
- F12: Næste sang
- Dedicated keys for Virtual Keyboard, Input Language Switch, and Open Browser.
Image: The keyboard layout with icons indicating the functions of the shortcut keys.
Touchpad Functionality and Gestures (Windows System)
The integrated multi-touch touchpad provides effortless navigation. It supports various finger gestures, primarily optimized for Windows systems. Note that gesture compatibility may vary with certain macOS versions.

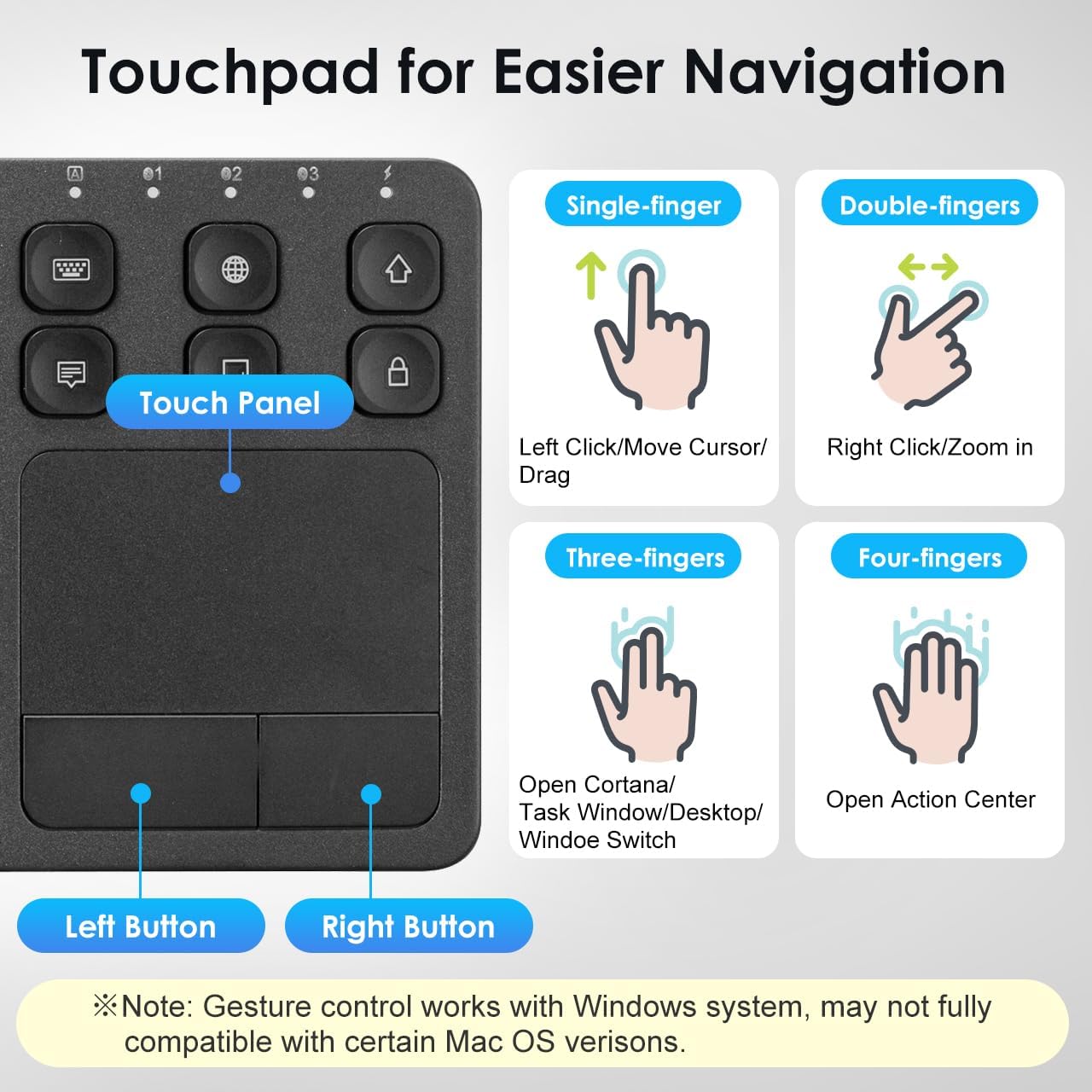

Billede: En detaljeret view of the touchpad and its gesture guide.
| Gestus | Fungere |
|---|---|
| Single-finger tap/drag | Left Click / Move Cursor / Drag |
| Tryk med to fingre | Højreklik |
| Knib med to fingre | Zoom ind / Zoom ud |
| Rulle med to fingre | Side op / Side ned |
| Tryk med tre fingre | Open Cortana / Task Window / Desktop / Window Switch |
| Tap med fire fingre | Open Løsningscenter |
Kompatibilitet
The SANWA Bluetooth Keyboard with Touchpad is broadly compatible with a range of operating systems and devices, making it a versatile tool for various computing needs.
- Operativsystemer: Windows 13/11/10/8.1/8/7/XP/Vista/98/2000/Me, macOS 10.12-10.15, Android 7.0-10, iPad OS13, iOS13 and later versions.
- Kompatible enheder: Desktop computers, laptops, cell phones, tablets, Mac, iPad, iPhone, Android TV BOX, Smart TVs, HTPC.

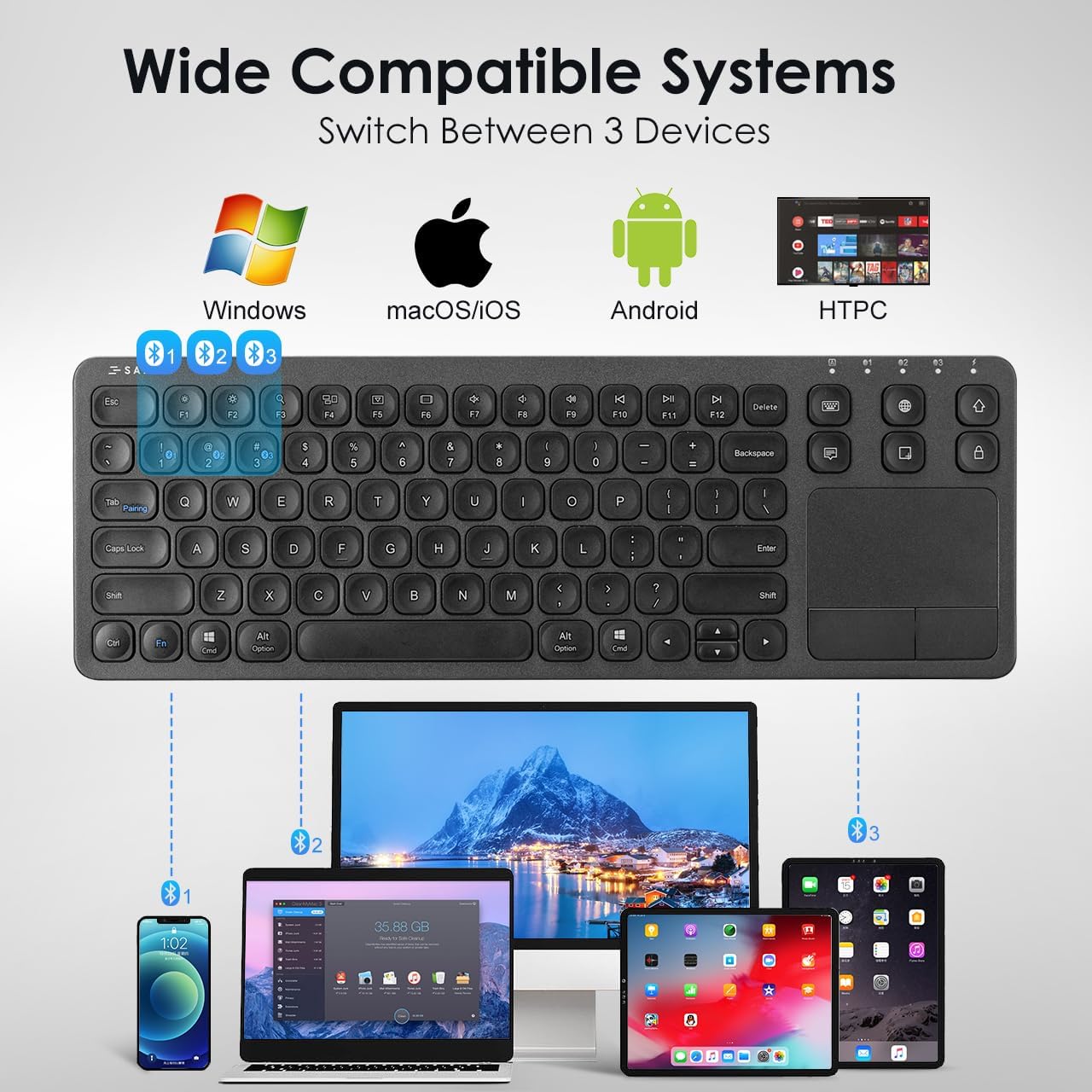

Image: The keyboard shown connected to a smartphone, laptop, and tablet, demonstrating multi-device compatibility.
Opladning og batterioplysninger
The keyboard is equipped with a built-in rechargeable Lithium Polymer battery. To ensure optimal performance and longevity, adhere to the following guidelines:
- Opladningstid: Cirka 2 timer for en fuld opladning.
- Arbejdstid: Up to 30 constant hours on a full charge.
- Strømbesparende: The keyboard features an auto-sleep function after a period of inactivity to conserve battery. Press any key to wake it up.
- Opladningsindikator: Refer to the keyboard's LED indicators for charging status.
Image: The SANWA Bluetooth keyboard connected via USB cable to a wall adapter for charging, with text indicating 30 hours work time and 2 hours full charge.
Pleje og vedligeholdelse
To maintain the performance and appearance of your SANWA keyboard, follow these simple care instructions:
- Rensning: Use a soft, dry, lint-free cloth to clean the keyboard and touchpad. For stubborn dirt, slightly dampRengør kluden med vand eller en mild rengøringsopløsning. Undgå skrappe kemikalier eller slibende materialer.
- Opbevaring: Opbevar tastaturet et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Undgå væsker: Do not expose the keyboard to liquids. In case of accidental spills, power off the keyboard immediately and allow it to dry completely before reuse.
- Håndteres med forsigtighed: Undgå at tabe tastaturet eller udsætte det for hårde stød.
Fejlfinding
If you encounter issues with your SANWA Bluetooth Keyboard, refer to the following common problems and solutions:
| Problem | Løsning |
|---|---|
| Keyboard does not connect or pair. | Ensure the keyboard is charged and powered on. Verify Bluetooth is enabled on your device. Re-enter pairing mode on the keyboard and try pairing again. Ensure no other devices are interfering with the Bluetooth signal. |
| Typing is unresponsive or delayed. | Check battery level and charge if necessary. Ensure the keyboard is within the effective Bluetooth range (up to 32.8ft). Reconnect the Bluetooth connection. |
| Touchpad is not working correctly. | Ensure your device's operating system fully supports touchpad gestures. Some macOS versions may have limited gesture compatibility. Clean the touchpad surface. Restart the keyboard and device. |
| Keyboard frequently disconnects or goes to sleep. | The keyboard has an auto-sleep function to save power. Press any key to wake it up. Ensure the keyboard is not too far from the connected device. Some users report that the sleep function cannot be disabled, which is a design characteristic. |
| Two-finger scrolling is jumpy or unpredictable. | This can be a known characteristic for some users, especially with certain iPadOS versions. Consider using the arrow keys for navigation if scrolling is inconsistent. |
Produktspecifikationer
| Feature | Detalje |
|---|---|
| Mærke | SANWA |
| Modelnummer | GSKBBT066 |
| Forbindelsesteknologi | Bluetooth |
| Tastaturbeskrivelse | Multifunktionel |
| Speciel funktion | Touchpad, shortcuts, ultra-thin |
| Farve | Sort |
| Produktdimensioner | 37.39 x 12.90 x 1.75 cm (L x B x H) |
| Varens vægt | 15.4 ounce (436.54 gram) |
| Batterier | 1 Lithium Polymer batteri (medfølger) |
| Fabrikant | SANWA FORSYNING |
Image: A diagram illustrating the length, width, and thickness of the ultra-slim keyboard.
Garanti og support
For warranty information, technical support, or customer service inquiries, please refer to the official SANWA webwebstedet eller kontakt din forhandler. Gem din købskvittering til garantikrav.
