Vigtige sikkerhedsoplysninger
Please read all instructions carefully before using your CHEFMAN Air Fryer Toaster Oven. Failure to follow these instructions may result in property damage, personal injury, or death. Keep this manual for future reference.
- Placer altid apparatet på en stabil, varmebestandig overflade, væk fra vægge eller andre apparater, for at sikre ordentlig ventilation.
- Nedsænk ikke ledningen, stikket eller apparatet i vand eller andre væsker.
- Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af børn.
- Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
- Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
- Brug ikke tilbehør, der ikke er anbefalet af apparatproducenten, da dette kan forårsage skader.
- Må ikke placeres på eller i nærheden af en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
- Der skal udvises ekstrem forsigtighed ved flytning af et apparat, der indeholder varm olie eller andre varme væsker.
- Brug ikke apparatet til andet end tilsigtet brug.
- Dette produkt indeholder kemikalier, der af staten Californien vides at forårsage kræft og fødselsdefekter eller anden reproduktionsskade.
Produkt overview
The CHEFMAN Air Fryer Toaster Oven XL 20L is a versatile countertop appliance designed for healthy and convenient cooking. It combines the functions of an air fryer, toaster, and convection oven, allowing you to air fry, bake, broil, convection bake, toast, dehydrate, reheat, and more.
Nøglefunktioner:
- Dual Function Cooking: Automatically transitions between cooking presets for precise results.
- 9 Versatile Presets: Includes Air Fry, Bake, Broil, Convection Bake, Convection Broil, Toast, Bagel, Dehydrate, and Reheat.
- XL Family Size: Spacious 20-liter (20-quart) interior fits up to 4 slices of toast, a 10-inch pizza, or a whole chicken.
- Bredt temperaturområde: Justerbar fra 200°F til 450°F.
- 60-minutters timer: With auto shut-off and ready signal bell.
- Phase Cook Function: Program two cooking functions back-to-back for seamless operation.
- Nem rengøring: Non-stick interior and dishwasher-safe accessories.
- Cool-Touch eksteriør: For safer operation (door glass may still get hot).
Komponenter og tilbehør:
- Hovedenhed med digitalt kontrolpanel
- Air Fry kurv
- Flad Wire Rack
- Steg pande
- Aftagelig krummebakke
- Two Dehydrator Racks
The CHEFMAN Air Fryer Toaster Oven XL 20L, showcasing its capacity with a pizza and a basket of fries cooking simultaneously.
The oven with its door open, revealing a small pizza baking inside, demonstrating its compact yet spacious design.
An exploded diagram illustrating all the included accessories: two dehydrator racks, a baking rack, an air fryer basket, a broil pan, and a removable crumb tray.
Opsætning
- Udpakning: Tag forsigtigt apparatet og alt tilbehør ud af emballagen. Fjern eventuelle emballagematerialer, klistermærker eller etiketter.
- Indledende rengøring: Before first use, wash all removable parts (air fry basket, racks, pans, crumb tray) in warm, soapy water or in the dishwasher. Wipe the interior and exterior of the main unit with a damp klud. Sørg for, at alle dele er helt tørre før brug.
- Placering: Place the oven on a flat, stable, heat-resistant surface. Ensure there is at least 6 inches of clear space on all sides and above the oven for proper air circulation. Do not place it directly under cabinets.
- Førstegangsafbrænding: It is recommended to run the oven empty for about 15 minutes at 400°F (200°C) before cooking food. This helps to burn off any manufacturing residues and odors. A slight odor or smoke may be present during this initial use; this is normal. Ensure the area is well-ventilated.
Betjeningsvejledning
Your CHEFMAN Air Fryer Toaster Oven features an intuitive digital control panel for easy operation.
Kontrolpanel overview:

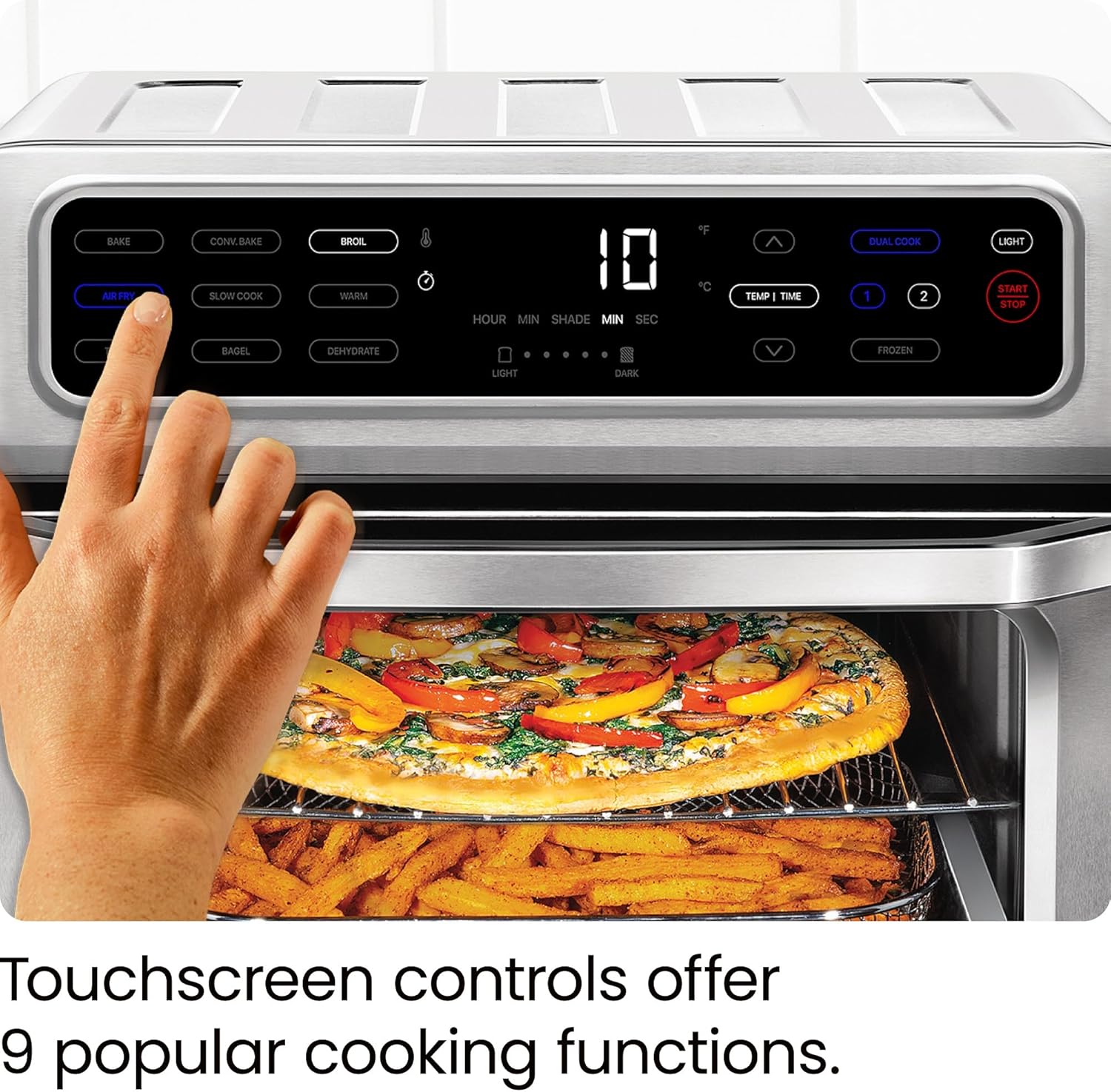

The digital touchscreen control panel, showing various cooking functions and settings.
Madlavningsfunktioner:
Select your desired cooking function from the 9 available presets:
- Air Fry: For sprøde resultater med lidt eller ingen olie.
- Bage: Til traditionel ovntilberedning.
- Stege: Til grillning og bruning.
- Konvektion Bage: For faster and more even baking.
- Konvektion Broil: Combines broiling with convection for enhanced results.
- Ristet brød: For perfectly toasted bread, with a shade selector (Light, Medium, Dark).
- Bagel: Optimeret til ristning af bagels.
- Dehydrere: Til tørring af frugt, grøntsager og kød.
- Genopvarm: Til opvarmning af rester.
Indstilling af temperatur og tid:
After selecting a function, use the temperature and time controls to adjust as needed. The temperature range is 200°F to 450°F. The timer can be set up to 60 minutes for most functions.
Using Phase Cook:
The Phase Cook function allows you to program two different cooking functions to run consecutively. For example, you can air fry first, then automatically switch to bake. Refer to the digital display for programming steps.
A whole roasted chicken inside the oven, demonstrating the powerful convection cooking for even results.
Vedligeholdelse og rengøring
Regular cleaning will ensure the longevity and optimal performance of your appliance.
- Tag altid stikket ud: Sørg for, at ovnen er taget ud af stikkontakten og er helt afkølet, inden den rengøres.
- Aftagelige dele: The air fry basket, flat wire rack, broil pan, and crumb tray are easily removable and dishwasher safe. For stubborn food residue, soak in warm, soapy water before washing.
- Indvendig rengøring: The interior walls are non-stick. Wipe them down with a damp cloth and mild detergent. For baked-on food, use a non-abrasive sponge or brush. Do not use harsh abrasive cleaners or metal scouring pads.
- Udvendig rengøring: The stainless steel exterior can be wiped clean with a damp klæde. Tør grundigt.
- Krummebakke: Empty the removable crumb tray frequently to prevent grease buildup and ensure proper operation.
Included racks and pans are dishwasher safe for convenient cleaning.
Fejlfinding
If you encounter any issues with your CHEFMAN Air Fryer Toaster Oven, please refer to the common problems and solutions below. If the problem persists, contact customer support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Apparatet tændes ikke. | Not plugged in; power outlet malfunction; unit not properly closed. | Ensure the power cord is securely plugged into a working outlet. Check if the oven door is fully closed. |
| Maden tilberedes ikke jævnt. | Overcrowding; incorrect rack position; insufficient preheating. | Do not overcrowd the basket/pan. Use the recommended rack position for the function. Preheat the oven fully before adding food. Rotate food or racks halfway through cooking. |
| Der kommer hvid røg fra apparatet. | Grease/oil residue; food with high fat content. | Clean the oven interior and accessories thoroughly. For high-fat foods, use a small amount of water in the broil pan to catch drippings. |
| Digital display remains lit after cooking. | Normal operation; fan cool-down cycle. | The display and fan will remain on for several minutes after cooking to cool down the unit. This is normal and will turn off automatically. |
Specifikationer
- Modelnavn: Dual-Function Air Fryer +
- Produktdimensioner: 15" D x 15.75" B x 14" H
- Farve: Rustfrit stål
- Kapacitet: 20 liter (20 kvart)
- Materiale: Rustfrit stål
- Varens vægt: 15.2 pund
- Wattage: 1800 watt
- Voltage: 110 volt
- UPC: 816458024570
- Sikkerhedscertificering: UL certificeret
Product dimensions for proper placement in your kitchen.
Garanti og support
This CHEFMAN appliance is backed by a 1-year assurance provided by Chefman. For detailed warranty information, product registration, or customer support, please visit the official Chefman webwebstedet eller se brugervejledningen i PDF-format.
You can find the official User Guide (PDF) her.
