1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of the Yanzeo R782 UHF RFID Reader. The R782 is a high-performance integrated UHF RFID reader designed for various applications requiring efficient and reliable tag identifikation.
The Yanzeo R782 utilizes an efficient digital signal processing algorithm to support fast tag read/write operations with a high identification rate. It is suitable for a wide range of RFID applications, including logistics management, access control systems, anti-counterfeiting measures, and industrial production process control.

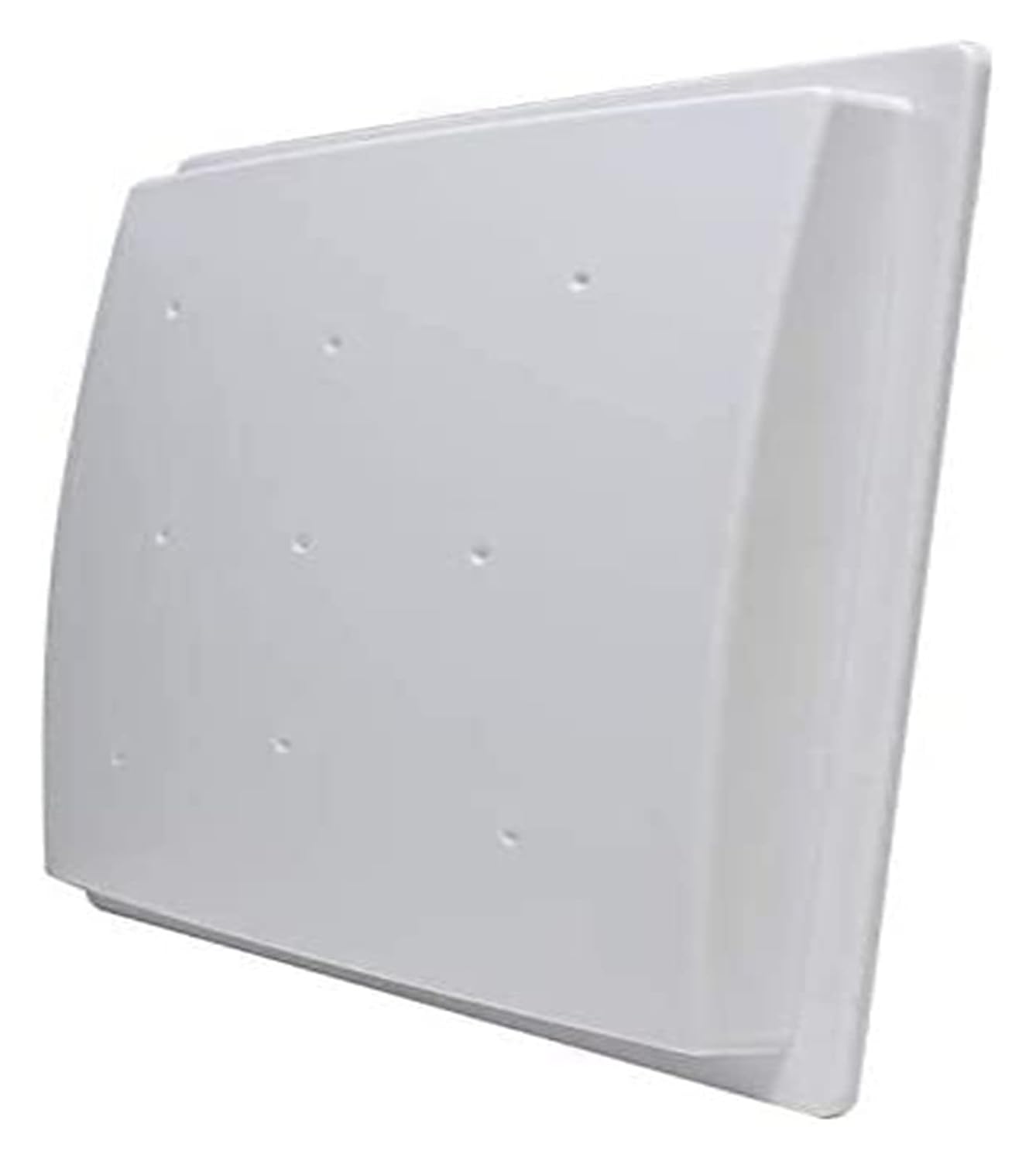

Billede 1: Forside view of the Yanzeo R782 UHF RFID Reader.
2. Produktfunktioner
The Yanzeo R782 UHF RFID Reader offers a robust set of features for demanding environments:
- Høj ydeevne: Integrated UHF reader with an 8dBi linear polarized antenna.
- Efficient Algorithm: Features a proprietary efficient digital signal processing algorithm for rapid and accurate tag identifikation.
- Bred anvendelse: Ideal for logistics, access control, anti-counterfeiting, and industrial automation.
- Protokol support: Compatible with ISO18000-6C / EPC Gen2 and ISO18000-6B protocols.
- Driftsfrekvens: Supports a broad frequency range of 860-960MHz.
- Flere grænseflader: Equipped with RJ45, USB, RS232, RS485, and Wiegand output options for versatile connectivity.
- Udendørs holdbarhed: IP67 rated enclosure for outdoor use, providing protection against dust and water.
- Kvalitetssikring: Manufactured in an ISO-9001 certified facility, with all components extensively tested for quality.
Billede 2: Side view of the Yanzeo R782 UHF RFID Reader, highlighting its compact design.
3. Opsætning og installation
Proper setup is crucial for optimal performance of the Yanzeo R782 RFID Reader. Follow these guidelines for installation and connection.
3.1 Interface Wiring
The reader provides various interface options. Refer to the following table for wiring details:
| Tråd farve | Fungere |
|---|---|
| Rød | +9V (strømindgang) |
| Sort | GND (jord) |
| Grøn | RS232 TXD |
| Hvid | RS232 RXD |
| Brun | GND (Ground for Wiegand/Trigger) |
| Gul | Wiegand DATA0 |
| Grå | Trigger Input (TTL Level) |
| Blå | Wiegand DATA1 |
| Lilla | RS485 R + |
| Orange | RS485 R- |
Ensure all connections are secure and correctly matched to avoid damage to the device or connected equipment.
Image 3: Various interface cables for the Yanzeo R782, including RJ45, RS232, USB, and power connectors.
3.2 Strømforsyning
Connect the reader to a stable power source within the specified voltage range. The typical power input is 9V DC, with a permissible range of 8V to 12V DC.
3.3 Software Development Kit (SDK)
For software integration and development, download the SDK from the official Yanzeo webwebsted:
4. Betjening
The Yanzeo R782 is designed for efficient reading and writing of UHF RFID tags.
4.1 Tag Læsning
The reader can achieve an effective reading distance of up to 6 meters under optimal conditions. The actual reading distance can vary significantly based on several factors:
- Antenne type: The integrated 8dBi antenna provides good range, but external antenna configurations (if supported by other models) can alter performance.
- Tag Karakteristika: The size, type, and material of the RFID tag (e.g., passive vs. active, inlay vs. hard tag) directly impact read range.
- Miljøfaktorer: Obstructions, electromagnetic interference, and the presence of metals or liquids in the environment can reduce reading distance.
It is recommended to test the reader in your specific operating environment to determine the practical effective reading distance.
4.2 Debugging and Testing
For visual guidance on debugging and testing the reader, refer to the following video resource:
Yanzeo R782 Debugging Video (External Link)
This video provides a demonstration of the debugging process for the Yanzeo R782 RFID Reader. Please note this is an external YouTube link.
5. Specifikationer
Detailed technical specifications for the Yanzeo R782 UHF RFID Reader are provided below:
| Parameter | Værdi | Enhed |
|---|---|---|
| Fabrikant | Yanzeo | - |
| Modelnummer | R782 | - |
| Strømforsyning (VCC) | 8-12 (Typical 9) | V |
| Current Consumption (IC) | 350 (Max 650) | mA |
| Frekvens (FREQ) | 860-960 (Typical 865-868, 902-928) | MHz |
| Effective Distance (DIS) | 300-600 (Typical 500) | cm |
| Produktets vægt | 2.14 | Kilogram |
| Pakkedimensioner | 40.5 x 31.4 x 11.8 | cm |
| Hardware-interface | USB, RS232, RS485, Wiegand, RJ45 | - |
| Dataoverførselshastighed (USB) | 480 | Mbps |
| IP-vurdering | IP67 | - |
6. Vedligeholdelse
To ensure the longevity and optimal performance of your Yanzeo R782 RFID Reader, follow these maintenance guidelines:
- Rensning: Regularly clean the exterior of the reader with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- Miljøforhold: While the reader is IP67 rated for outdoor use, avoid exposing it to extreme temperatures, direct prolonged sunlight, or corrosive environments beyond its specified operating conditions.
- Kabelinspektion: Periodically check all connected cables for signs of wear, damage, or loose connections. Replace damaged cables immediately.
- Firmwareopdateringer: Check the official Yanzeo website for any available firmware updates that may improve performance or add new features. Follow update instructions carefully.
7. Fejlfinding
If you encounter issues with your Yanzeo R782 RFID Reader, consider the following troubleshooting steps:
- Ingen strøm: Ensure the power adapter is correctly connected and supplying the correct voltage (8-12V DC). Check the power source.
- Ingen Tag Læsning:
- Bekræft, at tags are within the effective reading range.
- Check for any physical obstructions between the reader and the tags.
- Sørg for tags are compatible with UHF RFID (ISO18000-6C/6B).
- Minimér elektromagnetisk interferens fra andre elektroniske enheder.
- Kommunikationsproblemer:
- Confirm that the correct interface (RS232, RS485, USB, RJ45, Wiegand) is selected and properly wired.
- Check software settings (e.g., COM port, baud rate for serial communication).
- Ensure network connectivity for RJ45 interface.
- Intermittent Reading: This could be due to environmental factors, tag orientation, or power fluctuations. Try to stabilize the environment and ensure consistent tag præsentation.
If problems persist after attempting these steps, please contact Yanzeo technical support for further assistance.
8. Support- og garantioplysninger
8.1 Teknisk support
For additional technical support, software development resources, or specific inquiries, please refer to the official Yanzeo webwebsted eller kontakt deres kundeservice.
8.2 Garanti
Warranty information for the Yanzeo R782 UHF RFID Reader is typically provided at the point of purchase or can be found on the official Yanzeo product page. Please retain your proof of purchase for warranty claims. Specific warranty terms and conditions may vary by region and retailer.
