Fodsports FX4 Pro Motorcykel Bluetooth Intercom brugermanual

1. Produktet er slutview

The Fodsports FX4 Pro is a professional motorcycle helmet communication system designed for enhanced riding communication and entertainment. It features Bluetooth 5.0 technology, supporting group intercom for up to 4 riders, noise cancellation, and Hi-Fi stereo sound.

Image: Two Fodsports FX4 Pro intercom units, highlighting their compact design and blue accents.

2. Pakkens indhold

• FX4 Pro Intercom Unit (2 units for Dual Pack)
• Speaker and Hard Tube Microphone
• Knapmikrofon
• Brugermanual
• Hurtig startvejledning
• Clip monteringsbeslag
• 3M båndbeslag
• USB opladningskabel
• Wrench and Screws
• Velcro puder

3. Nøglefunktioner

• 4-Way Group Intercom: Supports up to 4 riders for simultaneous communication with a maximum distance of 1200 meters (0.75 miles).

  Image: Four motorcyclists riding on a road, illustrating the 1200m range and 4-rider group intercom capability of the FX4 Pro.

• Bluetooth 5.0: Ensures stable and fast connectivity.
• Noise Cancellation & Hi-Fi Stereo Sound: Professional wind noise microphone and intelligent noise reduction chip provide clear audio up to 120km/h, with 40MM high fidelity speakers for clear music and FM radio.

  Image: A motorcyclist riding at speed, with visual representation of noise cancellation technology ensuring clear calls.



  Image: A motorcyclist enjoying immersive Hi-Fi stereo sound effects while riding, with speaker components overlaid.

• Lang batterilevetid: 850mAh battery provides up to 20 hours phone time, 12 hours intercom time, and 350 hours standby time on a 3-hour charge.

  Image: An illustration of the FX4 Pro unit showing its 850mAh battery capacity and corresponding usage times for phone, intercom, standby, and charging.

• Håndfri betjening: Large buttons for easy operation with gloves, supports voice commands (Siri/Google Assistant), auto-answer calls, reject/redial last call.

  Image: A hand wearing a riding glove interacting with the large buttons on the FX4 Pro unit mounted on a helmet, showing various functions like power, music, and call management.
• Vandtæt Design: IP65 rated for protection against sweat and light splashes.

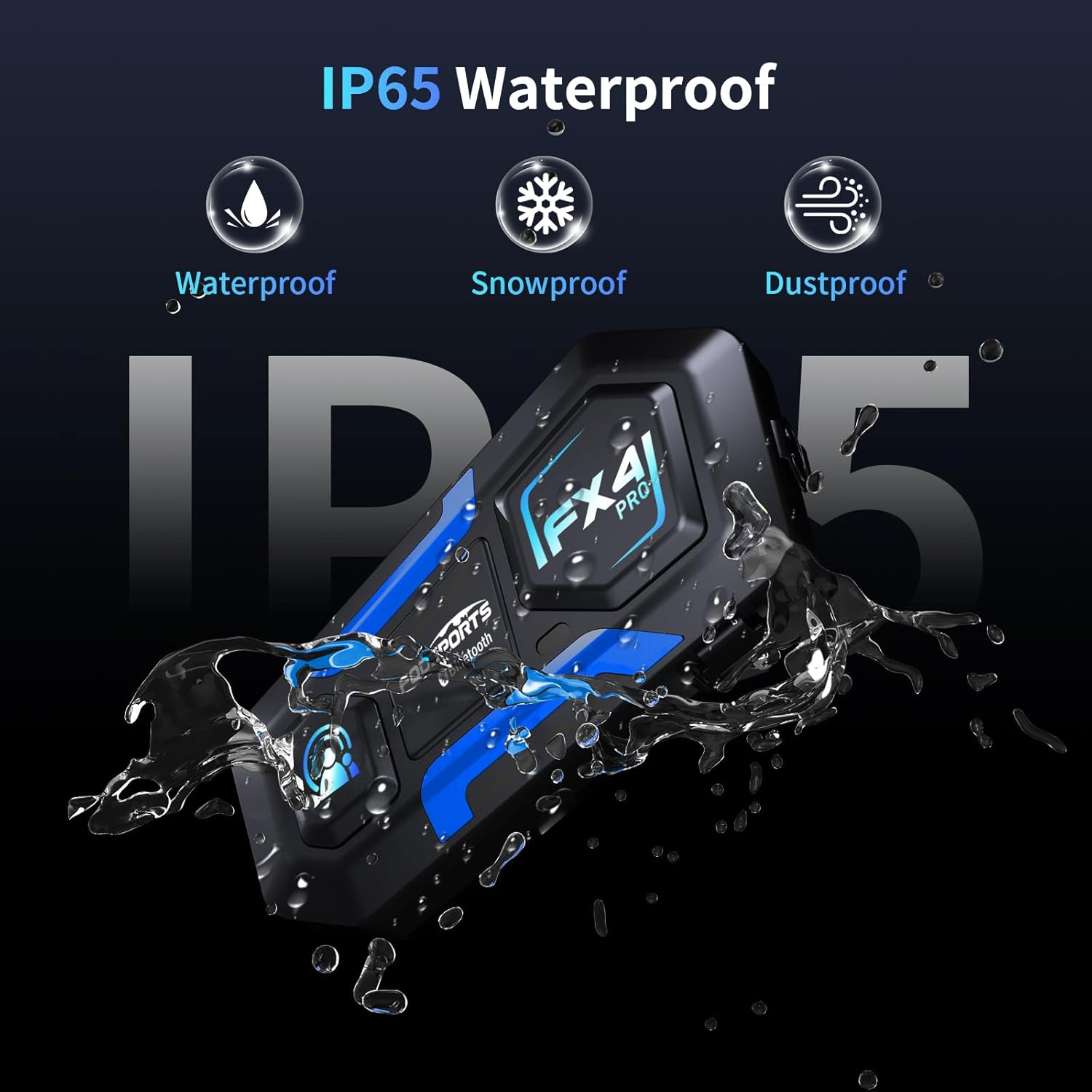

  Image: The FX4 Pro unit on a helmet with water splashing on it, illustrating its IP65 waterproof, snowproof, and dustproof capabilities.

• Universel parring: Compatible with other Fodsports Bluetooth headsets and most brands of motorcycle intercoms.

  Image: The FX4 Pro unit shown with various compatible devices like smartphones, computers, GPS, and other intercoms, highlighting its universal pairing feature.

• Indbygget FM-radio: Enjoy radio on the go.

4. Opsætning og installation

Mounting the Intercom Unit

The FX4 Pro unit can be mounted using either a clip bracket or a 3M adhesive tape bracket.

Clip Mounting Method

1. Insert the clip mounting bracket between the internal padding and the external shell of the helmet.
2. Ensure the bracket is securely positioned.
3. Slide the FX4 Pro main unit onto the bracket until it clicks into place.

3M Tape Mounting Method

1. Clean the desired mounting area on the helmet surface.
2. Peel off the protective backing sheet from the 3M adhesive tape bracket.
3. Firmly press the bracket onto the helmet surface for 15 seconds.
4. Allow the adhesive to cure for several hours before attaching the intercom unit.
5. Slide the FX4 Pro main unit onto the attached bracket.

Installation af højttaler og mikrofon

The FX4 Pro comes with both a hard tube microphone (boom mic) and a button microphone (soft mic) suitable for different helmet types.

1. Attach the Velcro pads to the inside of the helmet where the speakers will be positioned, aligning with your ears.
2. Firmly press the speakers onto the Velcro pads.
3. Route the speaker wires neatly under the helmet padding.
4. Choose the appropriate microphone for your helmet type (hard tube for open-face/modular, button for full-face).
5. Attach the microphone to the inside of the helmet near your mouth using its adhesive or clip.
6. Connect the speaker and microphone cable to the FX4 Pro unit.

Video: Demonstrates the step-by-step installation process of the Fodsports FX4 Pro intercom system onto a helmet, including mounting the unit and installing speakers and microphones.

5. Betjeningsvejledning

Tænd/sluk

To power on, press and hold the main function button (FX4 Pro logo) for approximately 3 seconds until the blue LED light flashes. To power off, press and hold the main function button until the red LED light appears and then turns off.

Bluetooth-parring med telefon

1. Ensure the FX4 Pro unit is powered off.
2. Press and hold the main function button for about 7 seconds until the LED light alternates between red and blue, indicating pairing mode.
3. On your mobile phone, go to Bluetooth settings and search for "FODSPORTS FX4 PRO".
4. Select the device to connect. The LED will turn blue when successfully paired.

Video: Demonstrates connecting the Fodsports FX4 Pro to a smartphone via Bluetooth and using voice commands.

Voice Command (Siri/Google Assistant)

Double-click the "Volume -" button to activate your phone's voice assistant. You can then issue commands like making calls.

Håndtering af telefonopkald

• Besvar opkald: Short press the main function button once.
• Afvis opkald: Double-click the main function button.
• Afslut opkald: Short press the main function button once during an active call.
• Genopkald sidste nummer: Short press the "Volume +" button twice.

FM radio

To turn on the FM function, long press the "Volume +" button for 3 seconds. To turn off, long press the "Volume +" button again.

Ryd parringshukommelse

When the device is on, long press both "Volume +" and "Volume -" buttons simultaneously for 3 seconds.

6. Intercom Pairing and Group Connection

Two-Way Intercom Pairing

1. Ensure both FX4 Pro units (A and B) are powered off.
2. On both units, press and hold the main function button for about 7 seconds until the LED lights alternate between red and blue.
3. Short press the intercom button on either unit A or B once. The units will search and connect.
4. Once connected, the LED lights will turn blue.

Three-Way Intercom Pairing

1. Power on all three FX4 Pro units (A, B, C) by holding the main function button for 3 seconds (blue light flashes).
2. On unit A, long press the "Volume +" button and the intercom button simultaneously for 3 seconds to enter pairing mode (Channel 1). The LED will flash red and blue.
3. On unit B, long press the "Volume -" button and the intercom button simultaneously for 3 seconds to enter pairing mode (Channel 2). The LED will flash red and blue.
4. Short press the intercom button of unit A once. Units A and B will connect.
5. Short press the intercom button of unit B once. Units B and C will connect.
6. To turn on/off the connection between A and B, short press the intercom button once.
7. To turn on/off the connection between B and C, short press the intercom button twice.

Four-Way Intercom Pairing

1. Power on all four FX4 Pro units (A, B, C, D) by holding the main function button for 3 seconds (blue light flashes).
2. On unit A, long press the "Volume +" button and the intercom button simultaneously for 3 seconds to enter pairing mode (Channel 1). The LED will flash red and blue.
3. On unit B, long press the "Volume -" button and the intercom button simultaneously for 3 seconds to enter pairing mode (Channel 1). The LED will flash red and blue.
4. On unit C, long press the "Volume +" button and the intercom button simultaneously for 3 seconds to enter pairing mode (Channel 2). The LED will flash red and blue.
5. On unit D, long press the "Volume -" button and the intercom button simultaneously for 3 seconds to enter pairing mode (Channel 2). The LED will flash red and blue.
6. Short press the intercom button of unit A once. Units A and B will connect.
7. Short press the intercom button of unit B once. Units B and C will connect.
8. Short press the intercom button of unit C once. Units C and D will connect.
9. To turn on/off the intercom between A and B, short press the intercom button once.
10. To turn on/off the intercom between B and C, short press the intercom button twice.
11. To turn on/off the intercom between C and D, short press the intercom button twice.

Video: Illustrates the detailed steps for connecting multiple Fodsports FX4 Pro intercom units for 3-way and 4-way group communication.

7. Tekniske specifikationer

8. Pleje og vedligeholdelse

• Keep the device dry. Do not expose it to extreme temperatures.
• Rengør enheden med en blød, damp cloth. Avoid using harsh chemicals or cleaning solvents.
• Ensure the charging port cover is securely closed to maintain water resistance.
• Opbevar enheden på et køligt, tørt sted, når det ikke er i brug.

9. Fejlfinding

• Ingen strøm: Ensure the battery is fully charged. Connect to a power source and try again.
• Kan ikke parres: Make sure the device is in pairing mode (alternating red and blue LED). Clear previous pairing memory if necessary (long press Volume + and Volume - for 3 seconds).
• Afbrydelser af intercom-forbindelse: Ensure units are within range and there are no significant obstacles. Re-initiate intercom connection if needed.
• Dårlig lydkvalitet: Check speaker and microphone placement. Ensure microphone is not obstructed and speakers are aligned with ears. Verify noise cancellation is active.
• Stemmekommandoer reagerer ikke: Ensure your phone's voice assistant is enabled and the FX4 Pro is properly paired.

10. Garanti og kundesupport

For any issues or support inquiries regarding your Fodsports FX4 Pro intercom, please contact Fodsports Direct customer service. Refer to the official Fodsports webwebstedet eller din købsdokumentation for specifikke garantivilkår og kontaktoplysninger.
