1. Introduktion

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your boreal BRISA 18,000 BTU 1.5 Tons Dual Zone Wall Mount Ductless Mini Split System. Please read this manual thoroughly before installing or operating the unit and retain it for future reference. Proper installation and maintenance are crucial for optimal performance and longevity of the system.

2. Sikkerhedsoplysninger

Vigtig: Installation of this air conditioning system skal be performed by a state-licensed HVAC contractor. Improper installation can lead to electric shock, fire, water leakage, or other serious hazards, and will void the product warranty.

• Afbryd altid strømmen, før du udfører vedligeholdelse eller rengøring.
• Stik ikke fingre eller genstande ind i luftindtaget/-udtaget.
• Sørg for, at enheden er korrekt jordforbundet for at forhindre elektrisk stød.
• Hold brændbare materialer væk fra enheden.
• If abnormal operation (e.g., burning smell) occurs, immediately turn off the unit and disconnect power. Contact a qualified service technician.
• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.

3. Produktet er slutview

The boreal BRISA Dual Zone Mini Split System provides efficient heating and cooling for two separate areas. The system consists of an outdoor condenser unit, two indoor wall-mounted air handlers, and a wireless remote control for each indoor unit.

Systemkomponenter

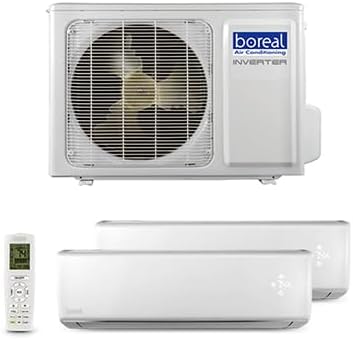

Figur 3.1: Complete boreal BRISA Dual Zone Mini Split System, showing the outdoor condenser, two indoor wall-mounted units, and a remote control.

Figur 3.2: The outdoor condenser unit, responsible for heat exchange with the outside air.

Figur 3.3: An indoor wall-mounted air handler unit, which distributes conditioned air within the room.

Figur 3.4: The wireless remote control for operating the indoor air handler unit.

The system utilizes inverter technology for energy efficiency and precise temperature control. It operates on 230V power.

4. Opsætning og installation

As stated in the safety information, professional installation by a state-licensed HVAC contractor is mandatory for this system. This ensures compliance with local codes, proper refrigerant handling, electrical connections, and warranty validity.

Components Required (Not Included)

• Lineset: Refrigerant lines connecting the indoor and outdoor units.
• Elektriske ledninger: Appropriate gauge wiring for 230V connection.
• Drainage Tubing: For condensate removal from indoor units.
• Monteringshardware: For securing indoor and outdoor units.
• Overspændingsbeskytter: Recommended for electrical protection.
• Condenser Pad/Wall Bracket: For outdoor unit placement.

Figur 4.1: Example of additional components often required for mini-split installation, such as lineset, surge protector, and a condenser pad.

Your HVAC contractor will ensure all necessary components are correctly sized and installed according to manufacturer specifications and local building codes.

5. Betjeningsvejledning

Each indoor unit is controlled by its dedicated wireless remote control. Ensure the remote has fresh batteries and is pointed towards the indoor unit when transmitting commands.

Fjernbetjeningsfunktioner

Figur 5.1: Wireless remote control for the boreal BRISA system. Key buttons include ON/OFF, Mode, Fan, Temp, and various function buttons.

• ON/OFF knap: Tryk for at tænde eller slukke for enheden.
• MODE knap: Skifter gennem driftstilstande:
  • BIL: Unit automatically selects cooling or heating based on room temperature.
  • FEDT NOK: Provides cooling. Adjust temperature with TEMP buttons.
  • VARME: Provides heating. Adjust temperature with TEMP buttons.
  • TØRRE: Affugter rummet.
  • VENTILATOR: Cirkulerer luft uden opvarmning eller afkøling.
• FAN knap: Justerer ventilatorhastigheden (Auto, Lav, Mellem, Høj).
• TEMP-knapper (op/ned-pile): Justerer den ønskede temperaturindstilling.
• TURBO knap: Activates maximum fan speed for rapid cooling or heating.
• JEG FØLER-knap: Activates a sensor in the remote to measure ambient temperature, providing more accurate comfort control.
• T-ON/T-OFF Buttons: Indstiller en timer, så enheden automatisk tændes eller slukkes.
• LIGHT -knap: Tænder eller slukker displaylyset på indendørsenheden.
• WIFI knap: For connecting the unit to a Wi-Fi network (if applicable model). Refer to separate Wi-Fi setup guide.
• SLEEP knap: Justerer temperatur og ventilatorhastighed for en behagelig søvn.

6. Vedligeholdelse

Regular maintenance ensures optimal performance, energy efficiency, and extends the lifespan of your mini-split system. Always disconnect power to the unit before performing any maintenance.

Indoor Unit Maintenance

• Rengøring af luftfilter (hver 2.-4. uge):
  1. Åbn frontpanelet på indendørsenheden.
  2. Fjern luftfiltrene.
  3. Clean filters with a vacuum cleaner or wash with lukewarm water. Allow to dry completely before reinserting.
  4. Luk frontpanelet.
• Rengøring af enhedens overflade: Tør overfladen på indendørsenheden af ​​med en blød, tør klud.amp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.

Vedligeholdelse af udendørsenhed

• Coil Cleaning (Annually): The outdoor coil should be cleaned annually by a qualified technician to remove dirt and debris that can impede heat exchange.
• Ryd forhindringer: Ensure the area around the outdoor unit is free from leaves, dirt, snow, and other obstructions that could block airflow.

For detailed annual inspections and maintenance, it is recommended to schedule service with a licensed HVAC professional.

7. Fejlfinding

Før du kontakter service,view følgende almindelige problemer og løsninger:

If troubleshooting steps do not resolve the issue, contact a licensed HVAC professional for assistance. Do not attempt to repair the unit yourself, as this can be dangerous and may void the warranty.

8. Specifikationer

Key technical specifications for the boreal BRISA 18,000 BTU 1.5 Tons Dual Zone Mini Split System (Model: MBRS18-W200).

Enhedens dimensioner

Figur 8.1: Dimensions (Width x Height x Depth) for various BTU indoor and outdoor units in the Boreal Brisa Multi series. For this 18,000 BTU system, refer to the 9,000 BTU entries for indoor units and the 18,000 BTU entry for the outdoor unit.

Note: The 18,000 BTU dual zone system typically uses two 9,000 BTU indoor units with an 18,000 BTU outdoor unit. Refer to the specific BTU ratings for your indoor units for exact dimensions.

9. Garanti og support

Producentens garanti: The boreal BRISA system comes with a warranty of tre (3) år på alle dele og fem (5) år på kompressoren.

Warranty Eligibility: To be eligible for the manufacturer's warranty, installation skal be performed by a state-licensed HVAC contractor. Proof of professional installation may be required for warranty claims.

For technical support, warranty claims, or to locate a licensed service provider, please refer to the contact information provided with your purchase documentation or visit the official boreal webwebsted.
