AZZA CSAZ-340F CELESTA ATX Mid Tower Gaming Case

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of your AZZA CSAZ-340F CELESTA ATX Mid Tower Gaming Case. Please read this manual thoroughly before beginning installation to ensure proper setup and to maximize the performance and longevity of your system components.

Figur 1: The AZZA CSAZ-340F CELESTA Mid Tower ATX Case, showcasing its design and form factor.

2. Sikkerhedsoplysninger

• Always disconnect the power supply from the wall outlet before installing or removing any components inside the case.
• Handle all components with care to prevent damage from electrostatic discharge (ESD). Consider using an anti-static wrist strap.
• Keep the case and components away from liquids and excessive moisture.
• Sørg for tilstrækkelig ventilation omkring kabinettet for at forhindre overophedning.
• Do not attempt to modify the case structure or components, as this may void your warranty and pose safety risks.
• Keep small parts and packaging materials out of reach of children.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

• AZZA CSAZ-340F CELESTA ATX Mid Tower Gaming Case
• Tilbehørsæske (indeholder skruer, afstandsstykker, kabelbindere osv.)
• Brugervejledning (dette dokument)

4. Specifikationer

The following table details the technical specifications of the AZZA CSAZ-340F CELESTA case:

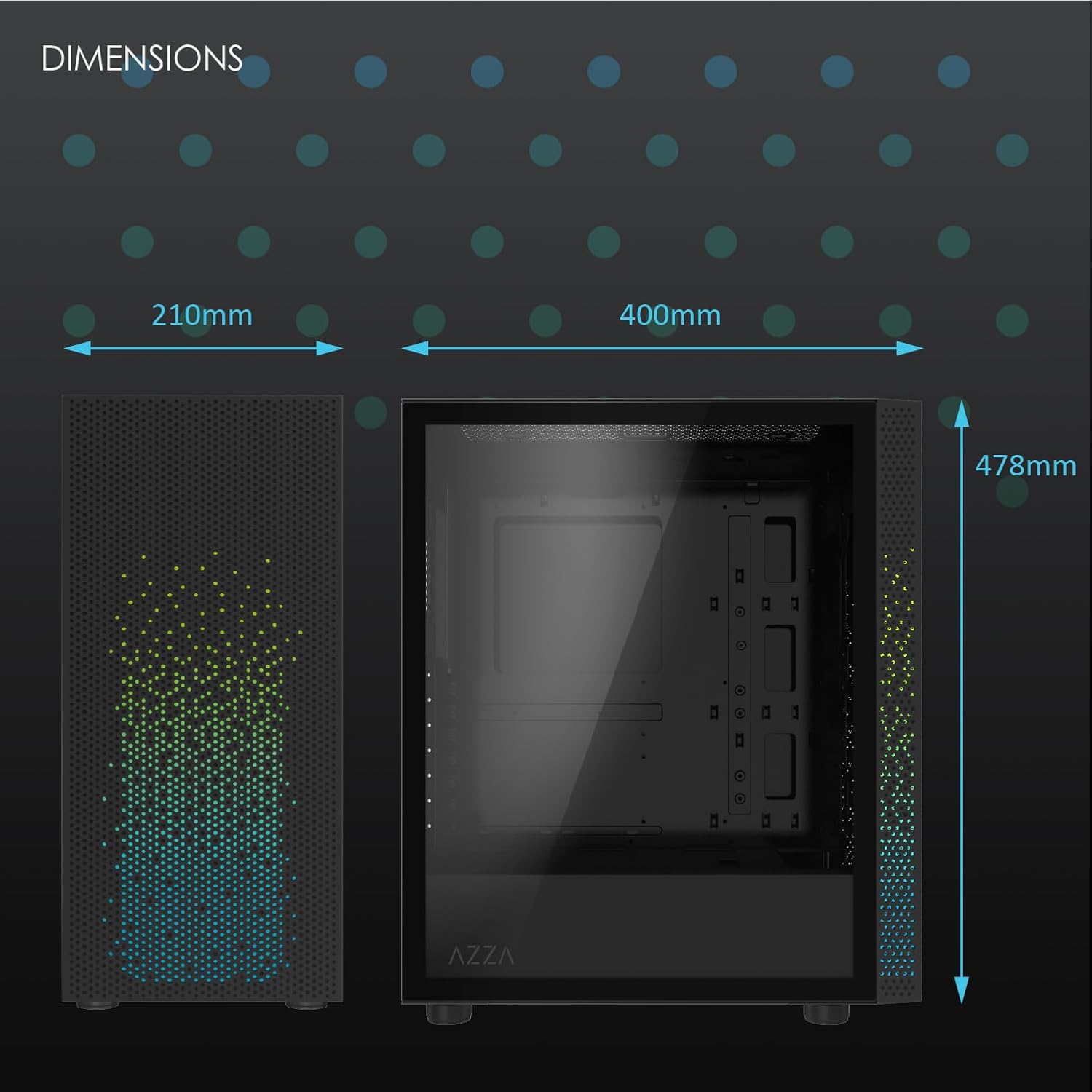

Figur 2: Physical dimensions of the AZZA CSAZ-340F CELESTA case: 210mm (width), 400mm (depth), 478mm (height).

Figur 3: Diagram illustrating fan and radiator mounting options for the AZZA CSAZ-340F CELESTA case, including front, top, and rear configurations.

Figur 4: Internal component support diagram for the AZZA CSAZ-340F CELESTA, showing maximum dimensions for CPU cooler, GPU, and PSU, along with drive bay locations.

5. Opsætning og installation

Follow these steps to install your components into the AZZA CSAZ-340F CELESTA case.

5.1 Forberedelse af sagen

1. Placer etuiet på en flad, stabil overflade.
2. Remove the side panels. Typically, these are secured with thumbscrews at the rear of the case.

5.2 Installation af bundkort

1. Install the I/O shield (if not pre-installed) into the rear opening of the case.
2. Ensure the correct standoffs are installed for your ATX, Micro-ATX, or Mini-ITX motherboard. Adjust or add standoffs as needed using the provided tools.
3. Placer forsigtigt dit bundkort på afstandsstykkerne, og juster skruehullerne.
4. Fastgør bundkortet med de passende skruer fra tilbehørsæsken. Spænd ikke for hårdt.

5.3 Installation af strømforsyningsenhed (PSU).

1. Position the PSU in the bottom rear compartment of the case, ensuring the fan faces downwards (if there's a filtered vent) or upwards.
2. Secure the PSU to the case with the provided screws from the rear.
3. Før de nødvendige strømkabler gennem kabelføringsudskæringerne.

5.4 Installation af lagerdrev (HDD/SSD)

• 3.5" harddiske: Locate the drive cage. Slide the 3.5" HDDs into the drive trays and secure them, often tool-less or with screws.
• 2.5" SSD'er: Mount 2.5" SSDs to the dedicated mounting points on the motherboard tray or drive cage using screws.
• Connect SATA data and power cables to the installed drives.

5.5 Installation af grafikkort (GPU)

1. Fjern de nødvendige PCIe-slotdæksler fra bagsiden af ​​kabinettet.
2. Carefully insert your graphics card into the appropriate PCIe slot on the motherboard until it clicks into place.
3. Fastgør grafikkortet til kabinettet med skruer.
4. Connect any required PCIe power cables from the PSU to the graphics card.

5.6 Installation af CPU-køler

Install your CPU cooler according to its specific manufacturer instructions. Ensure it does not exceed the maximum height of 165mm.

5.7 Installation af ventilator og radiator

Kabinettet understøtter forskellige ventilator- og radiatorkonfigurationer:

• Front: Up to 3 x 120mm or 3 x 140mm fans, or radiators up to 280mm/360mm.
• Top: Up to 2 x 120mm or 2 x 140mm fans, or 2 x 120mm radiators.
• Bag: 1 x 120mm fan (pre-installed) or 1 x 120mm radiator.

Mount fans and radiators using the appropriate screws and ensure proper airflow direction.

5.8 Kabelstyring

Utilize the cable management cutouts and tie-down points behind the motherboard tray to route and secure cables. This improves airflow and aesthetics.

5.9 Slutsamling

1. Double-check all connections and ensure no cables are obstructing fans.
2. Sæt sidepanelerne på igen.
3. Connect external peripherals (monitor, keyboard, mouse, etc.) and the power cable.

6. Betjening af dit system

Once all components are installed and connected, you can power on your system. The front panel features power and reset buttons, along with USB and audio ports for convenient access.

Figur 5: Close-up of the AZZA CSAZ-340F CELESTA's front panel, highlighting the integrated lighting effects.

7. Vedligeholdelse

• Støvfiltre: Regularly clean the dust filters (if present) to maintain optimal airflow and cooling performance.
• Indvendig rengøring: Periodically open the case and use compressed air to remove dust from components and fans. Ensure the system is powered off and unplugged before cleaning.
• Udvendig rengøring: Tør de udvendige overflader af med en blød, damp klæde. Undgå skrappe kemikalier.

8. Fejlfinding

Hvis du støder på problemer, kan du overveje følgende almindelige fejlfindingstrin:

• Systemet tænder ikke:
  • Sørg for, at strømkablet er korrekt tilsluttet til både strømforsyningen og stikkontakten.
  • Check that the PSU switch is in the "ON" position.
  • Verify all internal power connections (24-pin ATX, 8-pin CPU, PCIe power) are seated correctly.
  • Confirm front panel power button cables are correctly connected to the motherboard.
• Ingen skærmoutput:
  • Sørg for, at din skærm er tilsluttet grafikkortet (ikke bundkortets integrerede grafikporte, medmindre du bruger integreret grafik).
  • Sæt grafikkortet tilbage i dets PCIe-slot.
  • Check monitor input selection.
• Overophedning:
  • Verify all case fans are spinning and oriented correctly for airflow.
  • Rengør eventuelle støvfiltre og interne komponenter.
  • Ensure CPU cooler is properly seated and making good contact with the CPU.

9. Garanti og support

For garantioplysninger og teknisk support henvises til den officielle AZZA-side. website or contact AZZA customer service directly. Keep your proof of purchase for warranty claims.

AZZA Officiel Webwebsted: www.azza.com
