FERM Industrial Akku Slagboremaskine FI20V Brugermanual

Indledning

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your FERM Industrial Cordless Hammer Drill FI20V. Please read this manual thoroughly before using the tool and retain it for future reference. Understanding these instructions will help ensure optimal performance and extend the lifespan of your device.

Generelle sikkerhedsinstruktioner

Overhold altid grundlæggende sikkerhedsforanstaltninger, når du bruger elværktøj, for at reducere risikoen for brand, elektrisk stød og personskade.

• Læs hele manualen: Gør dig bekendt med betjeningselementerne og den korrekte brug af værktøjet.
• Brug passende personlige værnemidler (PPE): Always wear safety glasses, hearing protection, and suitable gloves.
• Hold arbejdsområdet rent og godt oplyst: Rodede eller mørke områder inviterer til ulykker.
• Fastgør emnet: Brug clamps or a vise to hold the workpiece stable.
• Undgå farlige miljøer: Brug ikke elværktøj i damp or wet locations, or in the presence of flammable liquids or gases.
• Vær opmærksom: Vær opmærksom på, hvad du laver, og brug din sunde fornuft. Brug ikke værktøjet, når du er træt eller påvirket af stoffer, alkohol eller medicin.
• Gem ledige værktøjer: Når værktøj ikke er i brug, skal det opbevares tørt, højt eller aflåst, utilgængeligt for børn.
• Vedligehold værktøj med omhu: Hold skæreværktøj skarpt og rent for bedre og mere sikker ydeevne. Følg instruktionerne for smøring og udskiftning af tilbehør.
• Kontroller for beskadigede dele: Før yderligere brug af værktøjet, skal en beskyttelsesskærm eller en anden del, der er beskadiget, kontrolleres omhyggeligt for at fastslå, om den vil fungere korrekt og udføre sin tilsigtede funktion.

Produkt overview

The FERM Industrial Cordless Hammer Drill FI20V is a versatile 3-in-1 tool designed for impact drilling, standard drilling, and screwing applications. It features a powerful 4-pole 20V Mabuchi motor and a high-quality 1.5-13mm Jacobs metal chuck for reliable performance.

Komponenter inkluderet

• 1 x FERM Industrial Cordless Hammer Drill (FI20V)
• 2 x 20V 2.0Ah Li-ion-batterier
• 1 x hurtigoplader
• 1 x opbevaringskasse
• 2 x Screw Bits

Visuelle komponenter

Figur 1: The FERM Industrial Cordless Hammer Drill FI20V, shown with one 20V 2.0Ah Li-ion battery attached and another battery beside it. This image displays the overall design of the drill, including the chuck, speed selector, and handle.

Figur 2: Et nærmere view of the FERM Industrial Cordless Hammer Drill FI20V, demonstrating a drill bit securely inserted into the Jacobs metal chuck. This angle highlights the ergonomic grip and the mode selector ring.

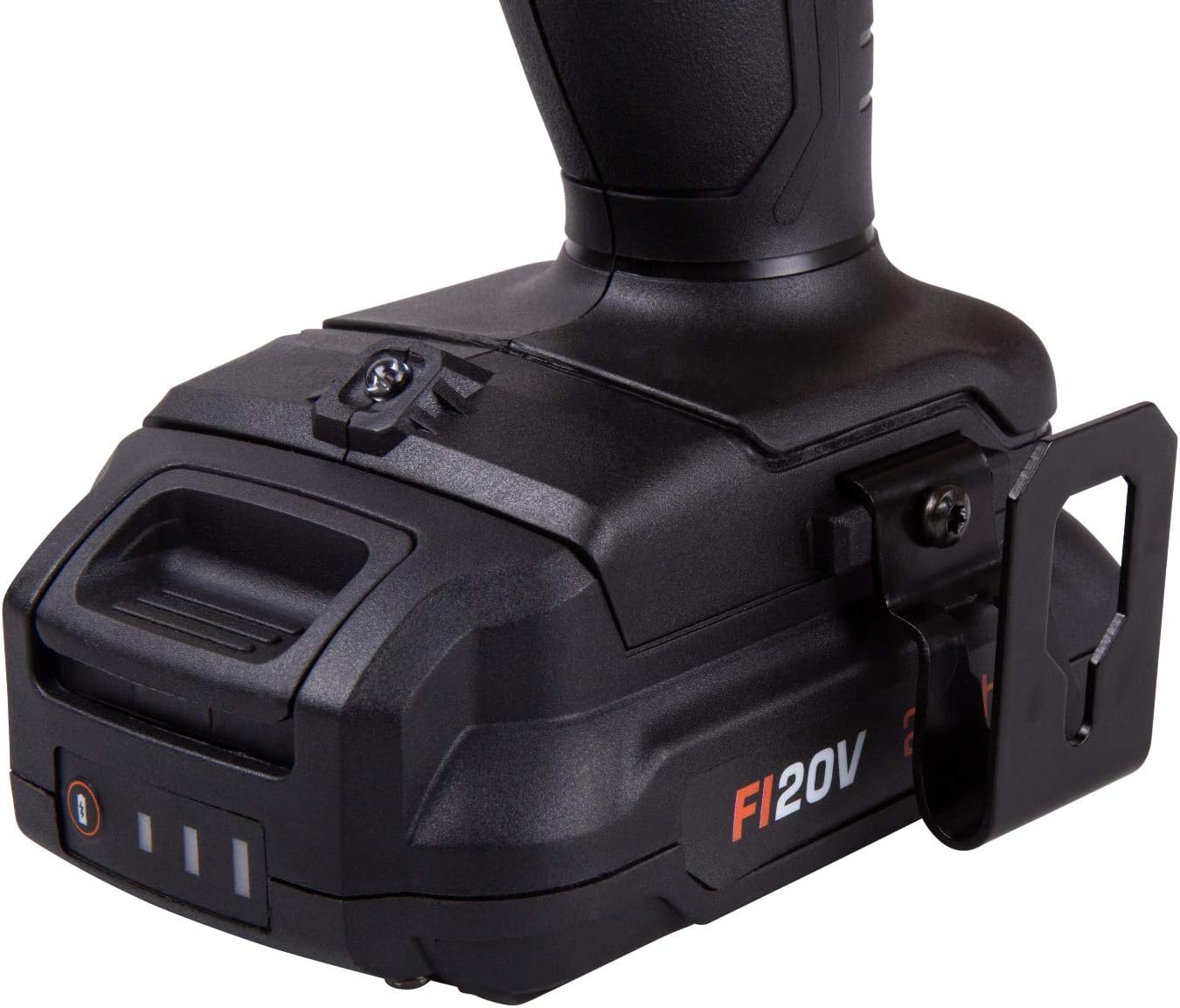

Figur 3: Detaljeret view of the base of the FERM FI20V drill, showing the battery connection point and an attached belt clip for convenient carrying during work.

Figur 4: The fast charger included with the FERM Industrial Cordless Hammer Drill FI20V, designed for efficient recharging of the 20V Li-ion batteries. Indicator lights are visible on the front.

Figur 5: The durable storage case provided for the FERM Industrial Cordless Hammer Drill FI20V, offering protection and organized transport for the tool and its accessories.

Opsætning

1. Opladning af batteriet

1. Tilslut hurtigopladeren til en passende stikkontakt.
2. Slide the 20V Li-ion battery into the charger until it clicks into place.
3. Opladningsindikatorlampen på opladeren lyser, typisk rød for opladning og grøn for fuldt opladet.
4. Lad batteriet oplades helt inden første brug. Opladningstiden kan variere.
5. Once charged, disconnect the charger from the power outlet and remove the battery.

Note: It is recommended to fully charge new batteries before their initial use to ensure optimal performance and battery life.

2. Installation/fjernelse af batteriet

• Sådan installeres: Align the battery with the base of the drill handle and slide it in until it clicks securely into place. Ensure it is firmly seated.
• For at fjerne: Press the battery release button (usually located on the sides of the battery pack) and slide the battery out of the drill handle.

3. Montering/fjernelse af borehoveder eller skruetrækkerhoveder

1. Sørg for, at boremaskinen er slukket, og at frem/tilbage-kontakten er i midterste (låst) position for at forhindre utilsigtet start.
2. Rotate the chuck sleeve counter-clockwise to open the chuck jaws.
3. Insert the drill bit or screwdriver bit into the chuck, ensuring it is centered.
4. Rotate the chuck sleeve clockwise to tighten the chuck jaws firmly around the bit. Hand-tighten securely.
5. For at fjerne: Drej spændepatronhylsteret mod uret for at løsne kæberne og trække boret ud.

Betjeningsvejledning

1. Fremad/bagud rotation

The forward/reverse switch (typically located above the trigger) controls the direction of rotation. Push it to the left for forward rotation (drilling/screwing in) and to the right for reverse rotation (removing screws). When the switch is in the center position, the trigger is locked, preventing accidental operation.

2. Hastighedskontrol

• Trigger med variabel hastighed: The trigger allows for variable speed control. Pressing the trigger lightly results in lower speeds, while pressing it fully increases the speed.
• Gearvælger: A gear selector switch (usually on top of the drill) allows you to choose between two speed ranges:
  • Gear 1 (lav hastighed): For high torque applications like driving large screws or drilling large holes.
  • Gear 2 (Høj hastighed): Til hurtigere boring i blødere materialer eller mindre huller.

3. Momentindstillinger (kobling)

The torque adjustment ring (located behind the chuck) allows you to set the desired torque for screwing applications. Higher numbers indicate higher torque. When the set torque is reached, the clutch will disengage, preventing overtightening or stripping of screws. For drilling, set the ring to the drill symbol for maximum torque.

4. Mode Selection (Drilling, Hammer Drilling, Screwing)

The FERM FI20V offers three operating modes, selected via a ring behind the torque adjustment:

• Screwing Mode (⚙ symbol): Engages the clutch for controlled screw driving. Use with appropriate torque settings.
• Boretilstand (★ symbol): Provides continuous rotation without clutch engagement or hammer action. Ideal for drilling into wood, metal, or plastics.
• Hammerboretilstand (⚒ symbol): Combines rotation with a hammering action. Essential for drilling into masonry, concrete, or brick. Use appropriate masonry drill bits.

5. Generelle driftstips

• Always hold the drill firmly with both hands, especially during hammer drilling.
• Tryk konstant og jævnt. Brug ikke for meget kraft på boremaskinen.
• Ved boring skal du starte med en lav hastighed for at lave et forboringshul, og derefter øge hastigheden efter behov.
• When drilling metal, use cutting oil to prolong bit life and improve cutting efficiency.
• Periodically clear debris from the work area to maintain visibility and prevent overheating.

Opretholdelse

Regular maintenance ensures the longevity and safe operation of your FERM Industrial Cordless Hammer Drill.

1. Rensning

• Frakobl altid batteriet før rengøring.
• Tør værktøjets yderside af med en blød, tør klud.amp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Use compressed air to clear dust and debris from ventilation openings and the chuck area.

2. Batteripleje

• Opbevar batterier på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Opbevar ikke helt afladede batterier i længere perioder. Oplad dem med jævne mellemrum, hvis de ikke er i brug.
• Avoid dropping or physically damaging the battery packs.

3. Opbevaring

Store the drill, batteries, and charger in the provided storage case in a dry, secure location, out of reach of children. Ensure the battery is removed from the drill before storage.

Fejlfinding

Specifikationer

Garanti og support

For warranty information, technical support, or service inquiries regarding your FERM Industrial Cordless Hammer Drill FI20V, please refer to the warranty card included with your product or visit the official FERM website. Ensure you have your model number (FI20V / CDM1147P) and proof of purchase available when contacting support.

Fabrikant: FERM
