Tramex Concrete Moisture Encounter CMEX5 User Manual

1. Introduktion

The Tramex Concrete Moisture Encounter CMEX5 is a versatile digital multi-moisture meter designed for accurate and non-destructive measurement of moisture content and relative humidity in various building materials. It is suitable for professionals in flooring, water damage restoration, inspection, surveying, and indoor air quality industries. The device features Bluetooth connectivity for seamless integration with the Tramex Meters App on iOS and Android devices, enabling advanced data logging, moisture mapping, and reporting capabilities.

Figur 1: Forside view of the Tramex CMEX5, showing the digital display and control buttons.

Figure 2: Visual representation of the key benefits of the Tramex CMEX5, including instant non-destructive tests, accurate results, ASTM F2659 compliance, and app connectivity.

2. Sikkerhedsoplysninger

Please read and understand all safety instructions before operating the Tramex CMEX5. Failure to follow these instructions may result in injury or damage to the device.

• Hold enheden tør. Udsæt den ikke for fugt eller ekstreme temperaturer.
• Forsøg ikke at åbne eller ændre enheden. Overlad al service til kvalificeret personale.
• Use only specified batteries (2 AA batteries). Ensure correct polarity when installing.
• Opbevares utilgængeligt for børn.
• Undgå at tabe enheden eller udsætte den for kraftige stød.
• When using external probes, ensure they are securely connected to prevent inaccurate readings or damage.

3. komponenter

The Tramex CMEX5 includes the following main components:

• Hovedenhed: The handheld meter with a digital display and control buttons.
• Built-in Ambient Sensor: Located at the top of the device, measures ambient relative humidity, temperature, dew point, and humidity ratio.
• Non-Destructive Electrodes: Located on the base of the unit for non-invasive moisture measurements.
• Ekstern probeport: For connecting optional external probes such as the Concrete Moisture Probe or Pin Probe.
• Batterirum: Placeret på bagsiden af ​​enheden.

Figur 3: Side view of the Tramex CMEX5, highlighting its ergonomic design.

Figur 4: Tilbage view of the Tramex CMEX5, showing the battery compartment and non-destructive electrodes.

4. Opsætning

4.1. Batteriinstallation

1. Locate the battery compartment cover on the back of the CMEX5 unit.
2. Skub eller afklips dækslet for at åbne rummet.
3. Isæt 2 AA-batterier, og sørg for at polerne vender korrekt som angivet i batterirummet.
4. Sæt batterirummets dæksel på igen.

4.2. Tænd/sluk

Tryk og hold tænd/sluk-knappen (ⓘ) placeret på frontpanelet for at tænde eller slukke enheden.

4.3. Appinstallation (valgfrit)

For enhanced functionality, download the "Tramex Meters App" from your device's app store (iOS or Android). The app allows for Bluetooth connectivity, data logging, moisture mapping, and report generation.

Video 1: This video demonstrates the features and usage of the Tramex Meters App, including connecting to 5-series moisture meters like the CMEX5, viewing readings, and utilizing advanced features such as thermal condition charts and psychometric charts.

5. Betjeningsvejledning

The Tramex CMEX5 offers multiple measurement modes:

5.1. Non-Destructive Moisture Measurement (Concrete & General Building Materials)

1. Sørg for, at enheden er tændt.
2. Place the base of the CMEX5 firmly onto the surface of the material to be tested. The non-destructive electrodes on the base will make contact.
3. Aflæs fugtighedsindholdet i procenttage directly from the digital display. The device measures to a depth of approximately 3/4 inch (20 mm).
4. For concrete, the display shows Concrete %MC. The meter has Anhydrite & Gypsum scales.

Figure 5: Step-by-step illustration of how to use the Tramex CMEX5 for non-destructive moisture assessment, including placing the device on concrete and syncing with the Tramex Meters App.

Figure 6: A hand holding the Tramex CMEX5, demonstrating the ease of use and visibility of the digital display during operation.

5.2. Ambient Relative Humidity and Temperature Measurement

The built-in hygrometer continuously measures ambient conditions:

• Relativ luftfugtighed (RH%)
• Temperature (T°F/°C)
• Dew Point (DP°F/°C)
• Humidity Ratio (HR G/lb)

These readings are displayed on the main screen alongside moisture content measurements.

5.3. External Probe Measurements (Optional)

The CMEX5 supports optional external probes for specialized measurements:

• Concrete Moisture Probe: Measures in-situ moisture content up to 100 mm (4 inches) deep. Connect the probe to the external port and follow the probe's specific instructions for use.
• Pin Meter Probe: Measures percentage moisture content of wood, drywall, and other building materials. Connect the pin probe to the external port and insert the pins into the material. The CMEX5 can be calibrated for over 500 different wood species via the app.
• Hygro-i2 RH Probe: For in-situ relative humidity testing in concrete slabs (ASTM F2170 compliant). Connect the probe to the external port.

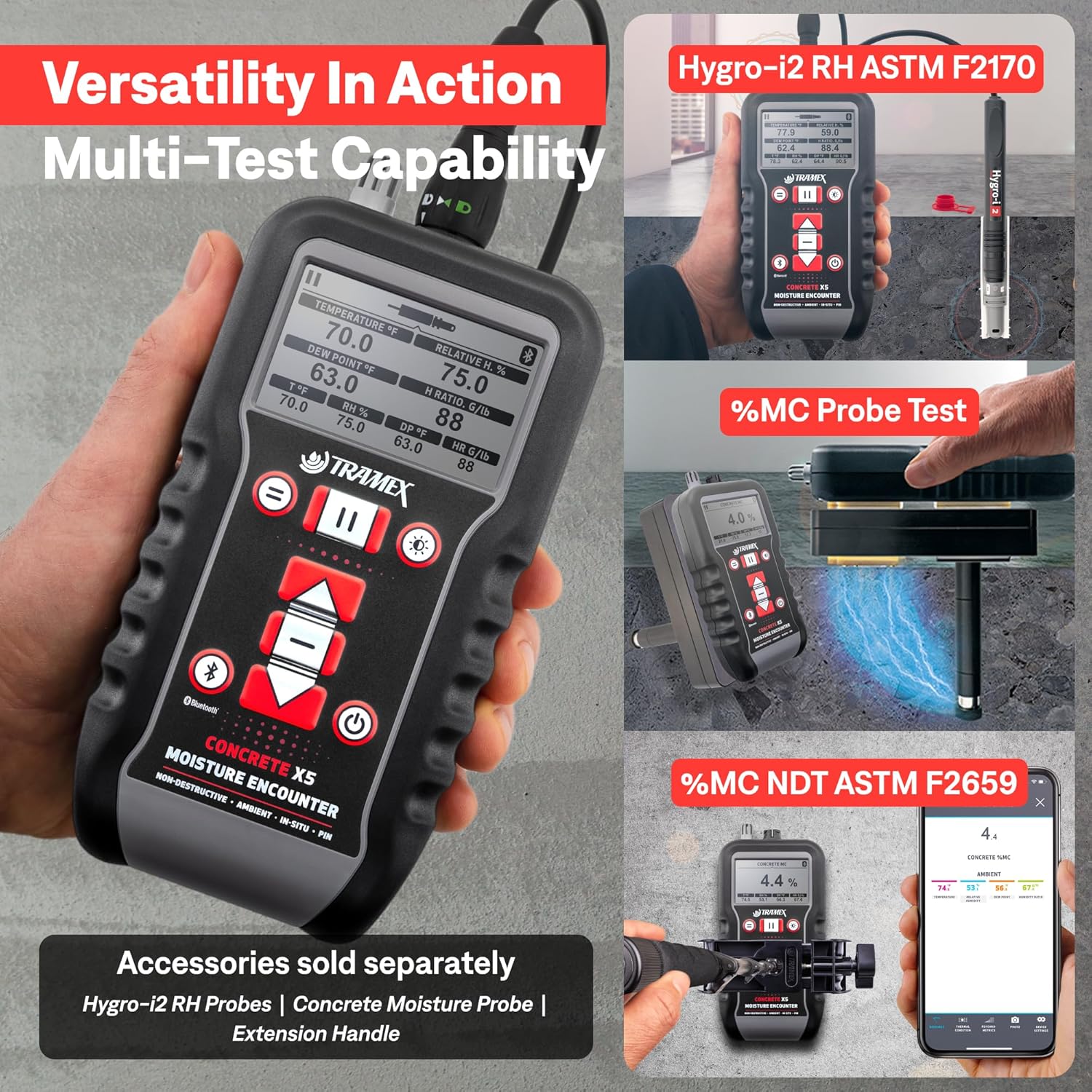

Figure 7: Depiction of the CMEX5's multi-test capability, showing its use with Hygro-i2 RH probes, concrete moisture probes, and an extension handle for various applications.

5.4. App Integration and Data Management

Connect the CMEX5 to the Tramex Meters App via Bluetooth for advanced features:

• Aflæsninger i realtid: View all measurements on your smartphone or tablet.
• Datalogning: Log readings over time for continuous monitoring.
• Fugtkortlægning: Create visual maps of moisture levels.
• Rapportgenerering: Generate geo-tagged og tids-stamped reports with photos.
• Valg af træsort: For pin probe measurements, select from over 500 wood species for accurate readings.

Figure 8: Screenshot illustrating the Tramex Meters App interface, showing psychometric readings and options for thermal condition, psychometrics, photo capture, and logging status.

6. Vedligeholdelse

6.1. Rensning

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the non-destructive electrodes on the base are clean and free of debris for accurate readings.

6.2. Opbevaring

Store the CMEX5 in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries to prevent leakage.

6.3. Udskiftning af batteri

Udskift batterierne, når indikatoren for lavt batteriniveau vises på displayet. Se afsnit 4.1 for instruktioner om batteriinstallation.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For detailed warranty information, product registration, and technical support, please visit the official Tramex webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Official Tramex Webwebsted: www.tramexmeters.com

For additional resources, including the User Guide (PDF), please refer to the product page where you purchased the device.
