Westinghouse WKGL2456 220V elektrisk stegepande i familiestørrelse, brugsanvisning

Indledning

This manual provides essential instructions for the safe and efficient operation and maintenance of your Westinghouse WKGL2456 220V Family Size Electric Griddle. Please read all instructions carefully before first use and retain for future reference.

IMPORTANT: This appliance is designed for use in 220V/240V countries only and is NOT FOR USE IN NORTH AMERICA (USA, CANADA).

Image: The Westinghouse WKGL2456 Electric Griddle, shown with its packaging, highlighting its large cooking surface and 220V compatibility.

Sikkerhedsoplysninger

• Sørg altid for, at stegepladen er placeret på en stabil, varmebestandig overflade.
• Do not immerse the temperature control probe or electrical cord in water or other liquids.
• Opbevares utilgængeligt for børn.
• Tag altid stikket ud af stikkontakten, når det ikke er i brug, og før rengøring.
• Lad stegepladen køle helt af, inden den rengøres eller opbevares.
• Brug ikke apparatet med en beskadiget ledning eller stik.
• Use only with the provided temperature control unit.
• The griddle surface becomes hot during operation. Use oven mitts or heat-resistant gloves when handling.

Opsætning

1. Udpakning: Carefully remove all packaging materials and inspect the griddle for any damage.
2. Indledende rengøring: Før første brug aftørres kogefladen med adamp klud og et mildt rengøringsmiddel. Skyl grundigt og tør helt.
3. Fastgør temperaturkontrol: Insert the detachable temperature control probe firmly into the receptacle on the side of the griddle. Ensure it is fully seated.
4. Placering: Place the griddle on a flat, stable, heat-resistant surface away from walls or cabinets that could be damaged by heat.

Image: Close-up of the Westinghouse Electric Griddle showing the detachable temperature control unit being inserted into the griddle's side receptacle.

Betjeningsvejledning

1. Strømtilslutning: Plug the temperature control unit into a suitable 220V/240V electrical outlet.
2. Temperaturindstilling: Turn the variable temperature control dial to your desired heat setting. The pilot indicator light will illuminate, indicating the griddle is heating.
3. Forvarmning: Allow the griddle to preheat for approximately 5-10 minutes, or until the pilot light turns off, indicating the set temperature has been reached. The pilot light will cycle on and off during cooking to maintain the temperature.
4. Madlavning: Place food directly onto the large non-stick cooking surface (48 x 25 CM). The 2000 Watts ensure fast warm-up and efficient cooking.
5. Cool-Touch håndtag: The griddle features cool-touch handles for safe handling during and after cooking.
6. Fedtindsamling: Excess grease will drain into the slide-out grease tray located beneath the cooking surface.
7. Efter brug: Once cooking is complete, turn the temperature control dial to the 'OFF' position and unplug the unit from the electrical outlet.

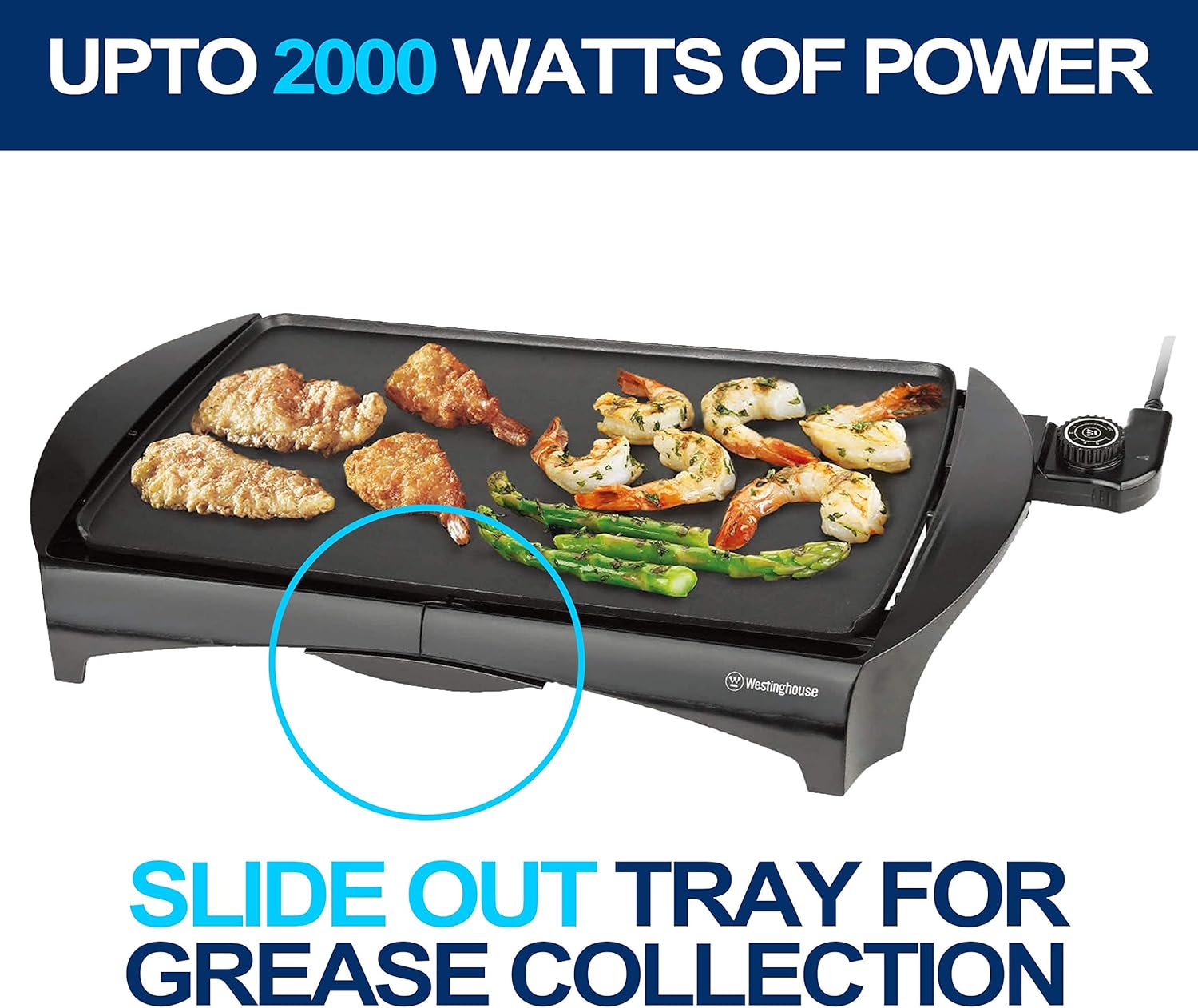

Image: The Westinghouse Electric Griddle in use, demonstrating its large non-stick cooking surface with various foods such as shrimp, asparagus, and fried chicken.

Vedligeholdelse og rengøring

1. Køl ned: Always allow the griddle to cool completely before attempting to clean.
2. Fjern temperaturkontrol: Detach the temperature control unit from the griddle. This unit is ikke dishwasher safe and should only be wiped clean with a damp klæde.
3. Empty Grease Tray: Slide out the grease tray and dispose of collected grease. The grease tray is dishwasher safe.
4. Rengøring af stegeplade: The griddle plate is dishwasher safe. For best results, wash with warm, soapy water using a non-abrasive sponge or cloth. The premium non-stick surface ensures easy cleaning.
5. Tørring: Sørg for, at alle dele er helt tørre, inden de samles eller opbevares igen.

Billede: Et nærbillede view of the Westinghouse Electric Griddle's non-stick cooking surface, emphasizing its easy-to-clean properties.

Image: The Westinghouse Electric Griddle with its slide-out grease tray partially removed, illustrating the ease of grease collection and disposal.

Fejlfinding

• Griddle not heating: Ensure the temperature control probe is fully inserted and the unit is plugged into a working 220V/240V outlet. Check the temperature dial is set above 'OFF'.
• Ujævn opvarmning: Allow sufficient preheating time. Ensure the griddle is placed on a flat, even surface.
• Mad der sætter sig fast: Although the griddle has a non-stick surface, a small amount of cooking oil or butter can be used for certain foods or for enhanced flavor. Ensure the griddle is properly preheated.
• Pilot light not illuminating: Check power connection and temperature dial setting. If issues persist, contact customer support.

Specifikationer

• Model: WKGL2456
• Mærke: Westinghouse
• Voltage: 220V / 240V
• Wattage: 2000 watt
• Madlavningsoverfladedimensioner: 48 x 25 CM (approximately 19 x 10 inches)
• Materiale: Non-stick coated surface
• Særlige funktioner: Cool Touch Handles, Detachable Thermostat Control, Slide Out Grease Tray, Pilot Indicator Light, Dishwasher Safe (griddle plate and drip tray)
• Varens vægt: 0.1 Kilograms (3.52 ounces) - Note: This weight may refer to a component, not the full unit.
• Pakkedimensioner: 25.25 x 13.25 x 4.5 tommer

Garanti og support

This Westinghouse Electric Griddle comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, replacement parts, or warranty claims, please contact Westinghouse customer service through their official webwebstedet eller kontaktoplysningerne i din produktdokumentation.

Always ensure you have your model number (WKGL2456) and proof of purchase available when contacting support.
