1. Introduktion
This manual provides essential information for the safe installation, operation, and maintenance of your Amantii SYM-60-BESPOKE Symmetry Series Bespoke 60-Inch Built-in Electric Fireplace. Please read all instructions carefully before installation and use to ensure proper function and safety.
Figure 1: Amantii SYM-60-BESPOKE Electric Fireplace with vibrant orange and yellow flames over ice media.
2. Sikkerhedsoplysninger
Overhold følgende sikkerhedsforanstaltninger for at mindske risikoen for brand, elektrisk stød eller personskade.
- Læs alle instruktioner, før du bruger denne pejs.
- This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) from the front of the fireplace.
- Ekstrem forsigtighed er nødvendig, når en pejs bruges af eller i nærheden af børn eller handicappede, og når pejsen efterlades i drift og uden opsyn.
- Do not operate any fireplace with a damaged cord or plug or after the fireplace malfunctions, has been dropped, or damaged in any manner.
- Do not use outdoors. This fireplace is intended for indoor and approved outdoor installation.
- Før ikke ledningen under gulvtæpper. Dæk ikke ledningen med tæpper, løbere eller lignende belægninger. Anbring ledningen væk fra trafikområdet, og hvor den ikke vil blive snublet over.
- For at afbryde pejsen skal du slukke for betjeningselementerne og derefter tage stikket ud af stikkontakten.
- Indsæt ikke fremmedlegemer i ventilations- eller udstødningsåbninger, og lad dem ikke komme ind i dem, da dette kan forårsage elektrisk stød, brand eller beskadige pejsen.
- For at forhindre en mulig brand, må du ikke blokere luftindtag eller udstødning på nogen måde. Må ikke bruges på bløde overflader, som f.eks. en seng, hvor åbninger kan blive blokeret.
- Denne pejs har varme og gnistdannende dele indeni. Brug den ikke i områder, hvor benzin, maling eller brandfarlige dampe eller væsker anvendes eller opbevares.
- Brug kun denne pejs som beskrevet i denne vejledning. Enhver anden brug, der ikke anbefales af producenten, kan forårsage brand, elektrisk stød eller personskade.
- Tilslut altid pejse direkte til en stikkontakt. Brug aldrig med en forlængerledning eller en flytbar stikkontakt.
- This fireplace is designed for built-in installation. Ensure proper clearances are maintained as per installation instructions.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter med installationen.
- Amantii SYM-60-BESPOKE Electric Fireplace Unit
- Fjernbetjening
- Ice Media (decorative glass crystals)
- Black Steel Surround
- Instruktionsmanual

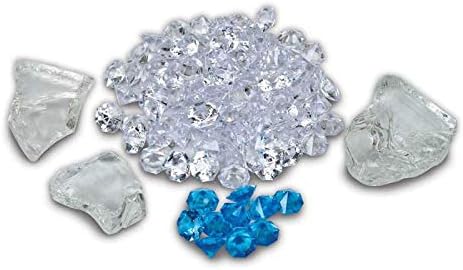

Figure 2: Included Ice Media for the fireplace bed.
4. Installation
The Amantii SYM-60-BESPOKE is designed for built-in installation. Professional installation is recommended to ensure safety and proper function.
4.1 Forberedelse af stedet
- Ensure the installation location is structurally sound and can support the weight of the fireplace (approximately 88.6 pounds).
- Maintain proper clearances from combustible materials. Refer to local building codes.
- Ensure a dedicated 120V, 15 Amp circuit is available for the fireplace. The power cord length is 76 inches.
4.2 Dimensioner og indramning
The overall dimensions of the unit are 60.25 inches (W) x 5.5 inches (D) x 15.625 inches (H). Refer to the technical drawing for precise framing dimensions.
Figure 3: Technical drawing with installation dimensions.
4.3 Built-in Installation Steps (General)
- Construct a framed opening according to the dimensions provided in the technical drawing.
- Carefully slide the fireplace unit into the opening.
- Secure the unit to the framing using appropriate fasteners.
- Install the decorative ice media onto the ember bed.
- Connect the unit to a grounded electrical outlet.
5. Betjeningsvejledning
Your Amantii electric fireplace can be operated using the included remote control or the integrated control panel.
5.1 Fjernbetjening
Figur 4: Fjernbetjening.
The remote control allows you to power the unit on/off, adjust flame settings, control heat output, and activate the timer function.
5.2 Kontrolpanel
Figure 5: Integrated Control Panel.
The control panel provides direct access to the fireplace functions, mirroring the remote control capabilities.
5.3 Flame Effects
The fireplace features lifelike LED flames with adjustable colors and brightness. You can cycle through various flame presentation colors to match your ambiance.
Figure 6: Various Flame Color Options.
Figur 7: Eksample of red and orange flame effect.
5.4 Varmefunktion
The unit includes an impressive heater with a quiet fan, providing up to 5100 BTU of heat output. It can be operated with or without heat for year-round use. The heater has high (1500 watts) and low (750 watts) settings.
5.5 Lydsystem
A premium audio system provides realistic crackling sounds, enhancing the fireplace experience. The audio can be turned on or off as desired.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din elektriske pejs' lange levetid og optimale ydeevne.
- Rensning: Sørg for, at enheden er slukket og at stikket er taget ud, inden rengøring. Brug en blød, tør klud.amp klud til at rengøre de udvendige overflader. Brug ikke slibende rengøringsmidler eller spray.
- Glaspanel: Rengør glaspanelet med en blød klud og glasrens. Rids ikke overfladen.
- Luftventiler: Kontrollér og rengør luftindtag og udstødningsventiler med jævne mellemrum for at sikre, at de er fri for støv og snavs, som kan hæmme luftstrømmen og varmeeffektiviteten.
- Medier: The decorative ice media can be removed and rinsed with water if needed. Ensure it is completely dry before placing it back in the unit.
7. Fejlfinding
If you encounter issues with your fireplace, refer to the following common troubleshooting steps. For persistent problems, contact customer support.
- Ingen strøm: Check if the unit is properly plugged into a grounded outlet. Verify the circuit breaker has not tripped.
- Ingen varme: Ensure the heater function is activated. Check if the air vents are clear of obstructions.
- Fjernbetjeningen virker ikke: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace sensor.
- Usædvanlige lyde: A slight humming sound is normal during operation. If loud or unusual noises occur, turn off the unit and contact support.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | kærlighed |
| Modelnavn | Symmetry Bespoke (SYM-60-BESPOKE) |
| Strømkilde | Elektrisk med ledning |
| Voltage | 120 V |
| Amps | 12.5 A |
| Varmelegeme Wattage (Høj) | 1500 watt |
| Varmelegeme Wattage (Lav) | 750 watt |
| Varmeoutput | 5100 britiske termiske enheder |
| Produktmål (B x D x H) | 60.25" x 5.5" x 15.625" (153 cm x 14 cm x 39.7 cm) |
| Varens vægt | 88.6 pund (40.2 kg) |
| Materiale | Metal |
| Finish Type | Malet |
| Installationstype | Indbygget |
| Speciel funktion | Justerbar flamme |
| Inkluderede komponenter | Fjernbetjening |
| Ledningslængde | 76 tommer |
| Ca. Opvarmning område | 400 sq. ft. / 37 sqm |
| UPC | 696447447227 |
9. Garanti og support
9.1 Garantioplysninger
This Amantii electric fireplace comes with a 5 års fuld garantiGem venligst din købsbevis i tilfælde af garantikrav. Garantien dækker materiale- og fabrikationsfejl ved normal brug.
9.2 Kundesupport
For technical assistance, replacement parts, or warranty inquiries, please contact Amantii customer support. Refer to the contact information provided with your product packaging or visit the official Amantii webwebsted.
