VOUNOT Shopping Trolley 6 Wheels with Waterproof Compartment, Foldable 2-in-1 Oxford Bag, Stair Climbing Cart, Grey

Indledning

This manual provides instructions for the assembly, operation, and maintenance of your VOUNOT 6-wheel shopping trolley. Designed for convenience, this trolley features a waterproof Oxford fabric bag, a foldable frame, and a unique stair-climbing wheel system to assist with transporting items up and down stairs. Please read this manual thoroughly before first use to ensure proper and safe operation.

Produktegenskaber

• Stair Climbing System: Equipped with a 6-wheel system for effortless ascent and descent of stairs.
• Sammenfoldeligt design: Features a collapsible metal frame, removable storage bag, and detachable wheels for compact storage.
• 2-i-1 funktionalitet: Can be used as a shopping trolley with its storage bag, or as a hand truck for transporting boxes, bottles, and other items when the bag is removed.
• Let og holdbar: Weighs approximately 2.1 kg, constructed from resistant metal, supporting up to 30 kg. The 6-wheel system navigates various terrains including bumps and elevated curbs.
• Generøs lagerkapacitet: Includes a large, removable, and waterproof Oxford polyester storage bag suitable for daily shopping.

Figure 1: Key components of the VOUNOT shopping trolley, highlighting the metal frame, comfortable handle, waterproof Oxford fabric, internal pocket, plastic base, and the unique 3-pivot wheel system.

Opsætning og montering

1. Udfoldning af rammen: Carefully unfold the metal frame until it locks into place. Ensure all joints are securely extended.
2. Montering af hjulene: The 6-wheel system typically comes pre-assembled. If not, attach the wheel units to the designated slots on the frame. Ensure they click into place securely.
3. Sikring af tasken: Place the Oxford fabric bag onto the frame. The bag usually has straps or hooks to secure it to the trolley frame. Ensure it is firmly attached to prevent shifting during use.

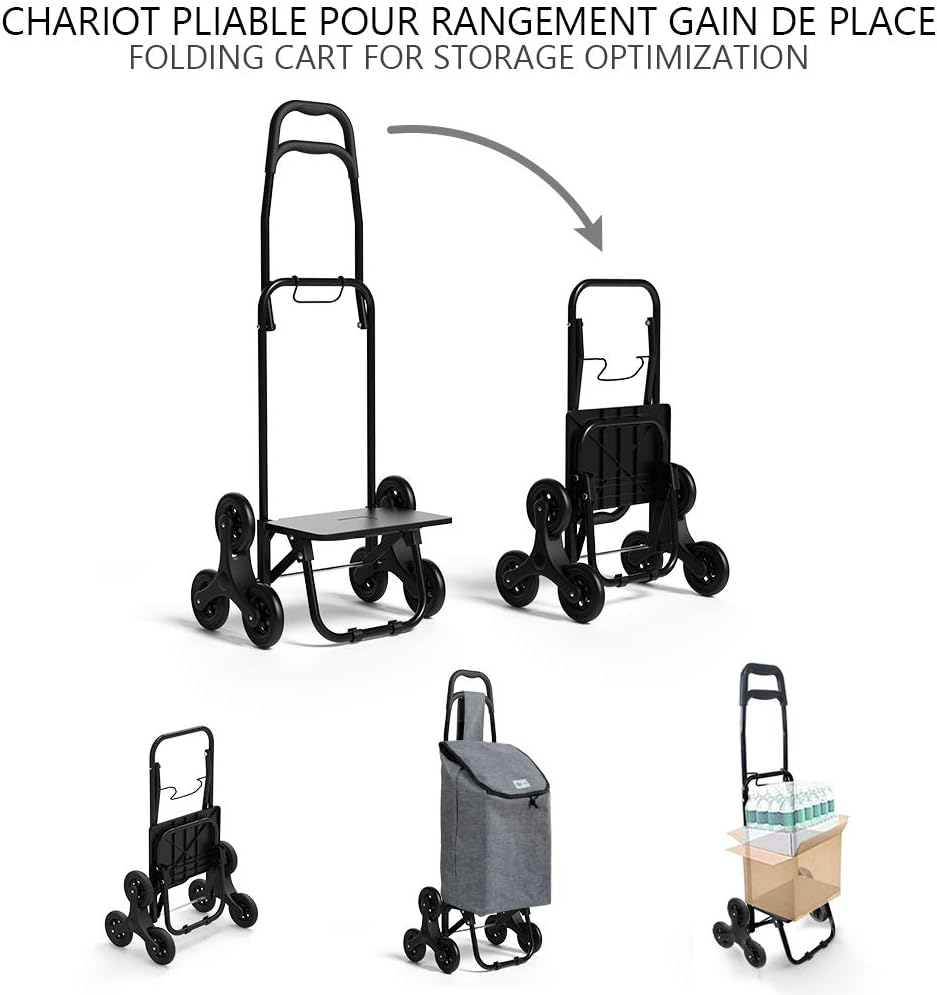

Figure 2: Illustration of the trolley's folding mechanism for optimized storage. The frame collapses, and the bag can be removed.

Betjeningsvejledning

Brug som indkøbsvogn:

• Load items into the waterproof Oxford bag, ensuring the weight does not exceed 30 kg.
• Close the bag securely to prevent items from falling out.
• Grasp the comfortable handle and pull the trolley. The 6-wheel system is designed to glide smoothly on flat surfaces.

Navigating Stairs:

• Approach stairs with the trolley. The unique 3-pivot wheel system on each side is specifically designed for stair climbing.
• To ascend, gently pull the trolley upwards, allowing the rotating wheels to engage with each step. Maintain a steady pace and firm grip on the handle.
• To descend, carefully guide the trolley downwards, letting the wheels roll over the edge of each step. Control the descent with the handle.
• Always ensure the load is balanced to prevent tipping.

Figure 3: Demonstrating the stair-climbing capability of the trolley, showing how the 6-wheel system facilitates movement up steps.

Using as a Hand Truck (2-in-1 Functionality):

• Fjern Oxford-stofposen fra rammen.
• Place items such as boxes or crates onto the plastic base of the trolley.
• Ensure items are stable and do not exceed the maximum weight capacity of 30 kg.
• Use the trolley to transport items as you would a standard hand truck.

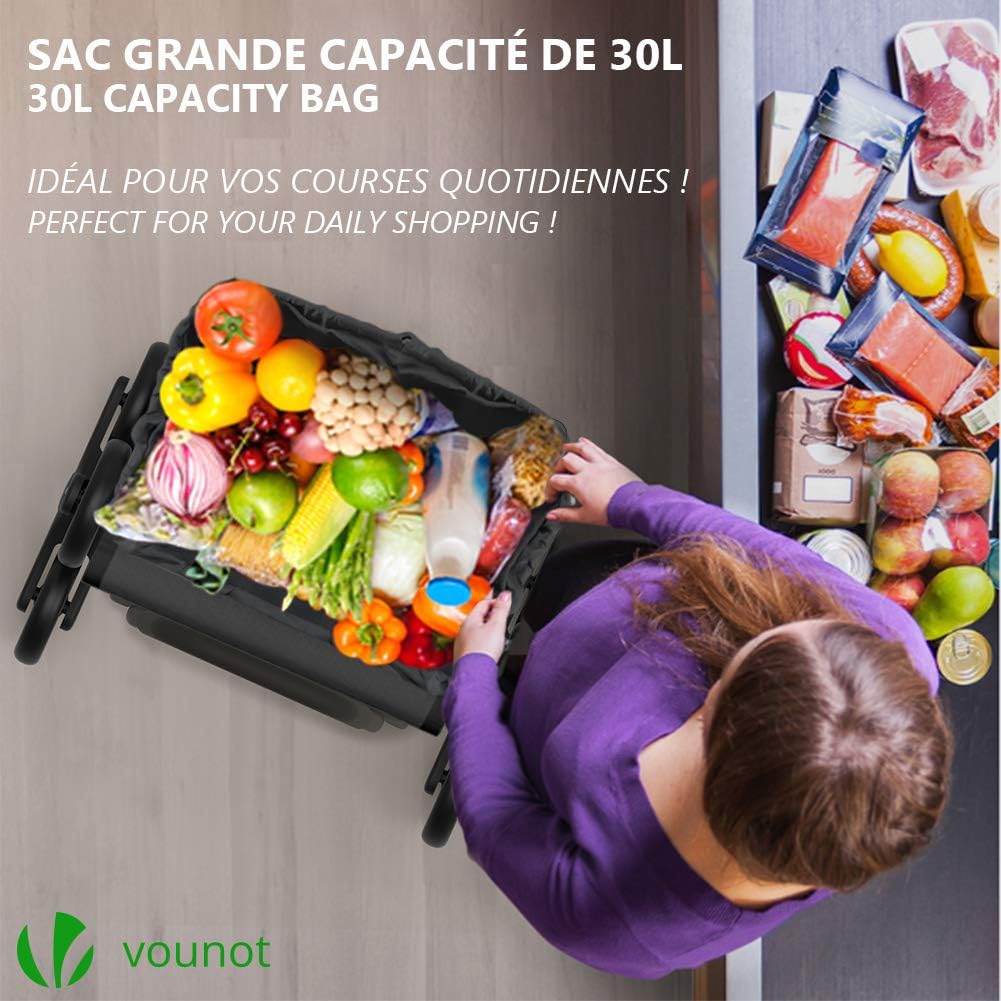

Figure 4: The 30-liter capacity bag filled with groceries, illustrating its practical use for daily shopping.

Opretholdelse

• Rengøring af posen: The Oxford fabric bag is waterproof. Wipe it clean with a damp cloth and mild soap as needed. Allow it to air dry completely before folding or storing. Do not machine wash.
• Rammepleje: Metalrammen kan tørres af med adamp cloth. Avoid abrasive cleaners. Periodically check all screws and joints for tightness and re-tighten if necessary.
• Vedligeholdelse af hjul: Keep the wheels free from debris. If the wheels become stiff, clean around the axles. Lubrication is generally not required for these types of wheels.
• Opbevaring: When not in use, fold the trolley as instructed in the assembly section and store it in a dry place away from direct sunlight to prolong its lifespan.

Fejlfinding

• Trolley does not fold smoothly: Check for any obstructions in the folding mechanism. Ensure the bag is removed and the frame joints are clean.
• Hjulene er stive eller støjende: Inspect the wheels for trapped debris (e.g., hair, string). Clean the wheel axles.
• Trolley feels unstable: Ensure the frame is fully extended and locked into place. Verify that the load is evenly distributed and does not exceed the maximum weight capacity.

Specifikationer

Figure 5: Product dimensions for the VOUNOT shopping trolley.

Sikkerhedsoplysninger

• Do not exceed the maximum weight capacity of 30 kg. Overloading can damage the trolley and cause injury.
• Sørg for, at alle dele er forsvarligt samlet før hver brug.
• Keep hands and fingers clear of folding mechanisms to prevent pinching.
• Do not allow children to play with or ride on the trolley.
• Use caution when navigating uneven terrain or stairs to maintain control.
• Store the trolley in a safe place where it will not pose a tripping hazard.

Garanti og support

Information regarding spare parts availability for this product is currently unavailable. For any questions or support, please refer to the retailer where the product was purchased.
