Danby DUF167A3WDD 16.7 Cu.Ft. Opretstående Fryser Brugermanual

1. Vigtige sikkerhedsoplysninger

Read all instructions before using this appliance. Follow all safety precautions to reduce the risk of fire, electric shock, or injury.

• Elektrisk sikkerhed: Ensure the freezer is connected to a properly grounded 110-volt, 60 Hz electrical outlet. Do not use extension cords or adapter plugs.
• Ventilation: Maintain adequate clearance around the freezer for proper air circulation and cooling efficiency.
• Brandfarlige materialer: Opbevar eller brug ikke benzin eller andre brændbare dampe og væsker i nærheden af ​​dette eller noget andet apparat.
• Børnesikkerhed: Supervise children to ensure they do not play with the appliance. Old freezers can be dangerous if children get trapped inside. Remove the door or take other precautions before disposing of an old unit.
• Håndtering: Use caution when moving the freezer to avoid damage to the refrigeration system.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

2. Opsætning og installation

2.1 Udpakning

Remove all packaging materials, including foam and adhesive tape. Inspect the freezer for any shipping damage. Report any damage to the retailer immediately.

2.2 Beliggenhedskrav

• Place the freezer on a strong, level floor capable of supporting its weight when fully loaded.
• Ensure at least 5 inches (12.7 cm) of space between the back and sides of the freezer and any adjacent walls for proper ventilation.
• Avoid direct sunlight or heat sources (e.g., stove, heater) that could increase energy consumption.
• Omgivelsestemperaturen skal være mellem 10 °C og 43 °C.

2.3 Elektrisk tilslutning

Plug the freezer into a dedicated 110-volt, 60 Hz, 15-amp grounded electrical outlet. Do not use a two-prong adapter or an extension cord. If the power cord is damaged, it must be replaced by a qualified service technician.

2.4 Dørvending

This freezer features a reversible door. Instructions for reversing the door swing are provided in a separate diagram or can be found on the manufacturer's website. This process typically involves removing the top hinge, transferring the door, and reattaching the hinges to the opposite side.

2.5 Indledende rengøring

Before first use, clean the interior and exterior of the freezer with a mild detergent and warm water. Rinse thoroughly and dry with a soft cloth.

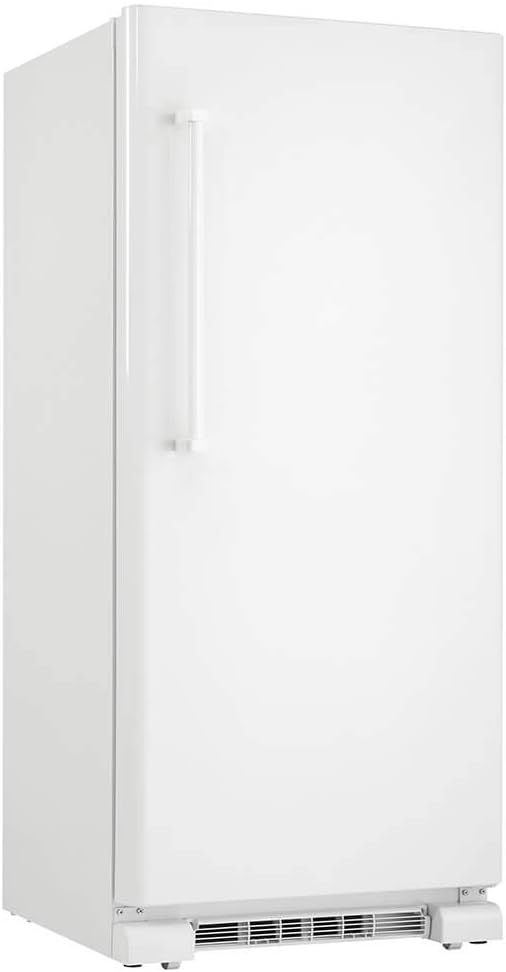

Figur 1: Forside view of the Danby DUF167A3WDD Upright Freezer, showing its white finish and handle.

3. Betjeningsvejledning

3.1 Temperaturkontrol

The temperature control dial is located inside the freezer compartment. Turn the dial to adjust the temperature. A setting of '4' or '5' is generally recommended for optimal freezing. Allow the freezer to operate for several hours before placing food inside to ensure it reaches the desired temperature.

3.2 Fyldning af fryseren

Do not overload the freezer. Allow space between items for cold air to circulate. Avoid placing hot food directly into the freezer; allow it to cool to room temperature first. The freezer is equipped with multiple shelves and door bins for organized storage.

Figur 2: Interiør view of the Danby DUF167A3WDD Upright Freezer, showing the empty shelves and door storage.

Figur 3: Interiør view of the Danby DUF167A3WDD Upright Freezer, demonstrating how various frozen food items can be organized on the shelves and in the door bins.

3.3 Automatisk afrimning

This freezer features an automatic defrost system, which eliminates the need for manual defrosting. Frost buildup on the interior walls is normal and will be periodically melted and drained. Ensure the drain pan (if accessible) is clear of obstructions.

3.4 Strømsvigt

In the event of a power failure, keep the freezer door closed to maintain the internal temperature for as long as possible. Most frozen foods will remain frozen for 24-48 hours if the door is not opened. Discard any food that has thawed completely.

4. Vedligeholdelse

4.1 Rengøring

• Indre: Unplug the freezer before cleaning. Wash the interior surfaces, shelves, and door bins with a solution of two tablespoons of baking soda to one quart of warm water. Rinse and dry thoroughly.
• Ydre: Rengør ydersiden med et mildt rengøringsmiddel og varmt vand. Tør efter med en blød klud.
• Dørpakning: Clean the door gasket regularly to ensure a proper seal. Use a soft cloth and mild soap.

4.2 Inspektion af strømledning

Periodically inspect the power cord for any signs of damage. If the cord is damaged, discontinue use and contact a qualified service technician for replacement.

4.3 Langtidsopbevaring

If the freezer will not be used for an extended period, unplug it, empty all contents, clean the interior thoroughly, and leave the door ajar to prevent odors and mold growth.

Figur 4: Nærbillede view of the door shelves in the Danby DUF167A3WDD Upright Freezer, highlighting their design for storing smaller frozen items.

5. Fejlfinding

Før du kontakter service,view følgende almindelige problemer og løsninger:

6. Specifikationer

7. Garanti og support

This Danby appliance is covered by a limited warranty. For specific warranty terms, registration, or technical support, please refer to the warranty card included with your product or visit the official Danby webwebsted. Gem din købsbevis til garantikrav.

For further assistance, please contact Danby Customer Service:

• Webwebsted: www.danby.com
• Telefon: Se produktdokumentationen for regionale supportnumre.
