Pit Boss Sportsman 820SP Wood Pellet Grill

Indledning

The Pit Boss Sportsman 820SP Wood Pellet Grill is designed to provide a versatile outdoor cooking experience, utilizing all-natural hardwood pellets for rich, smoky flavors. This manual outlines the essential information for safe operation, proper setup, effective use, and routine maintenance of your grill.

With 8-in-1 cooking versatility, this grill allows you to grill, smoke, roast, bake, braise, barbecue, char-grill, and sear, offering a wide range of culinary possibilities.

Sikkerhedsoplysninger

Always prioritize safety when operating your wood pellet grill. Failure to follow these guidelines may result in property damage, injury, or death.

• Kun til udendørs brug: Never operate this grill indoors or in an enclosed area. Ensure adequate ventilation.
• Klarering: Maintain a minimum distance of 10 feet (3 meters) from combustible materials, including walls, fences, and overhanging structures.
• Stabil overflade: Placer grillen på en plan, ikke-brændbar overflade.
• Børn og kæledyr: Hold børn og kæledyr væk fra grillen til enhver tid, især under brug.
• Brændstof: Use only food-grade wood pellets specifically designed for pellet grills. Do not use charcoal, lighter fluid, or other accelerants.
• Elektrisk sikkerhed: Ensure the power cord is not pinched or placed in high-traffic areas. Connect to a grounded outlet.
• Varme overflader: The grill surfaces become extremely hot during operation. Use heat-resistant gloves and tools.
• Fedtbrande: Regularly clean the grease management system to prevent grease fires. In case of a grease fire, close the lid and turn off the grill. Do not use water.
• Pellet opbevaring: Store wood pellets in a dry, airtight container away from heat sources and moisture.

Produkt overview

The Pit Boss Sportsman 820SP is engineered for performance and convenience. Key features include:

• Madlavningsområde: 849 square inches total cooking capacity, including 593 sq. in. on the main grates and 256 sq. in. on the upper rack.
• Temperaturområde: Capable of maintaining temperatures from 180°F to 500°F.
• Hopper kapacitet: A 21 lb. hopper ensures extended cooking times without frequent refills.
• Digital Control Board: Dial-in digital control board for precise temperature management.
• Kødprober: Includes one Pit Boss meat probe for accurate internal temperature monitoring.
• Flame Broiler: Innovative slide plate flame broiler with an easy-access handle for direct flame searing.
• Sidehylde: A 2-in-1 stainless steel side shelf with a removable tray provides amparbejdsområdet.
• Krydderirække: Integrated built-in spice rack for convenient access to seasonings.

Front view of the Pit Boss Sportsman 820SP Wood Pellet Grill, showcasing its overall design and control panel.

The grill with its lid open, revealing the cooking grates and internal components.

En detaljeret view of the digital control panel and the pellet hopper, where wood pellets are loaded.

Demonstration of the integrated spice rack, located conveniently on the side of the grill.

Opsætning og førstegangsbrug

Forsamling

The Pit Boss Sportsman 820SP requires assembly. Refer to the separate assembly guide included with your packaging for detailed, step-by-step instructions. Ensure all components are securely fastened before proceeding.

Initial Burn-In (Seasoning)

Before cooking food for the first time, it is crucial to perform an initial burn-in to season the grill and burn off any manufacturing oils or residues. This process helps to cure the paint and prepare the cooking surfaces.

1. Ensure the grill is fully assembled and placed in a safe outdoor location.
2. Fill the pellet hopper with high-quality wood pellets.
3. Plug in the grill and turn it on. Set the temperature to 350°F (177°C).
4. Allow the grill to operate at this temperature for at least 45 minutes to an hour.
5. After the burn-in, turn off the grill and allow it to cool completely before cleaning the grates.

Betjeningsvejledning

Indlæsning af piller

Open the pellet hopper lid and pour wood pellets into the hopper. Ensure the auger is clear of any obstructions. The 21 lb. capacity allows for long cooks.

Start af grillen

1. Ensure the grill is plugged into a grounded electrical outlet.
2. Open the main lid of the grill.
3. Drej tænd/sluk-knappen til 'ON'-positionen.
4. Set the desired temperature using the dial-in digital control board. The grill will automatically feed pellets and ignite.
5. Once smoke appears and the fire is established (typically 5-10 minutes), close the lid and allow the grill to preheat to your set temperature.

Temperature Control and Cooking Modes

The digital control board allows for precise temperature adjustments. You can set temperatures from 180°F for low-and-slow smoking up to 500°F for high-heat grilling. The grill's 8-in-1 versatility supports various cooking methods:

• Rygning: Use lower temperatures (180-225°F) for extended periods to infuse deep smoky flavor.
• Grilling/Roasting: Use medium to high temperatures (300-400°F) for general grilling and roasting.
• Svidende: Utilize the slide plate flame broiler for direct flame searing at high temperatures (450-500°F).

The easy-access handle for operating the slide plate flame broiler, allowing for direct flame searing.

Using Meat Probes

Insert the included meat probe into the thickest part of your food, avoiding bone. Plug the probe into the designated port on the control panel. The internal temperature of your food will be displayed on the digital screen, allowing you to monitor doneness without opening the lid.

The grill in use, demonstrating its capacity to cook multiple items simultaneously, including large cuts of meat.

Opretholdelse

Regular maintenance ensures the longevity and optimal performance of your Pit Boss grill.

• Efter hver brug: Vacuum the fire pot to remove ash and unburnt pellets. This prevents blockages and ensures proper ignition.
• Fedthåndtering: Regularly empty and clean the grease bucket and grease tray to prevent grease buildup and potential fires.

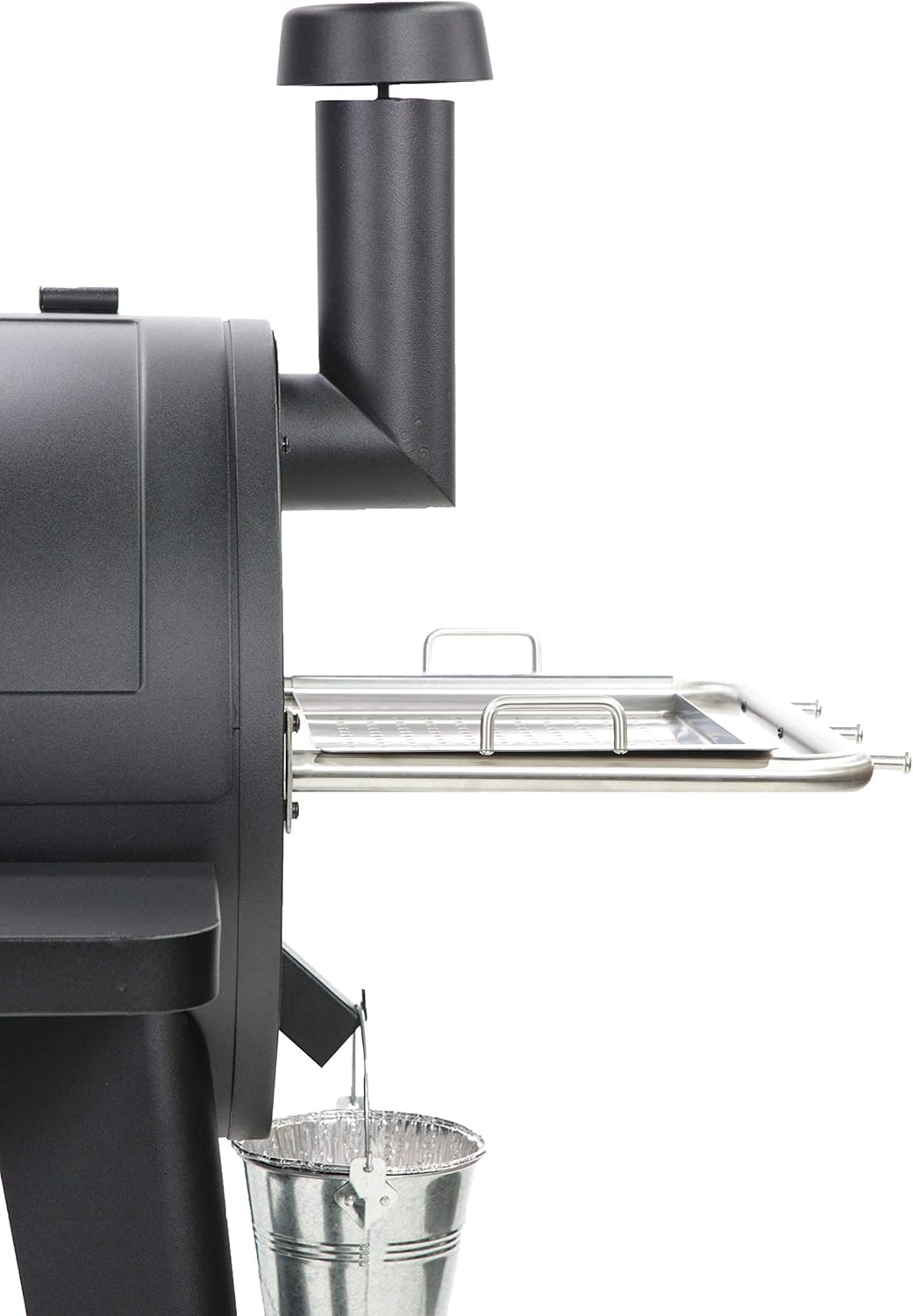

Side view of the grill, highlighting the removable grease bucket for easy cleaning.

• Udvendig rengøring: Clean the exterior surfaces with a soft cloth and warm, soapy water. Avoid abrasive cleaners. Pit Boss Grill Cleaner is recommended.
• Tilberedning af riste: Scrape and clean cooking grates after each use. For deeper cleaning, remove and wash with warm, soapy water.
• Pillebeholder: If storing the grill for an extended period, empty the pellet hopper to prevent moisture absorption and pellet degradation.
• Dække: Keep the grill covered when not in use to protect it from the elements and keep it dry.

Fejlfinding

This section addresses common issues you might encounter with your pellet grill.

For issues not listed here, or if solutions do not resolve the problem, please contact Pit Boss customer support.

Specifikationer

Detailed specifications for the Pit Boss Sportsman 820SP Wood Pellet Grill:

• Modelnavn: PB0820SP
• Varemodelnummer: 10537
• Strømkilde: Træpiller
• Farve: Sort
• Ydermateriale: Støbejern
• Samlet madlavningsareal: 849 kvm.
• Main Grate Cooking Area: 593 kvm.
• Upper Rack Cooking Area: 256 kvm.
• Hopper kapacitet: 21 lb.
• Temperaturområde: 180°F til 500°F
• Product Dimensions (Approximate): 147.88 cm (58.2 in) Width x 82.12 cm (32.3 in) Depth x 132.46 cm (52.2 in) Height
• Product Weight (Approximate): 71.4 kg (157 lb)
• Fabrikant: Dansons

Dimensional diagram of the Pit Boss Sportsman 820SP, indicating width, height, depth, and weight.

Diagram illustrating the total cooking area, main rack area, top rack area, and hopper capacity.

Garanti og support

For information regarding the product warranty, please refer to the warranty card included with your grill packaging or visit the official Pit Boss Grills website. For technical support, replacement parts, or further assistance, please contact Pit Boss customer service directly. Contact details are typically available on the manufacturer's webwebstedet eller i din produktdokumentation.
