Swagelok QC Series Quick Connect SS-QC6-S-6PFK1 Instruction Manual

1. Introduktion

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the Swagelok QC Series Quick Connect, model SS-QC6-S-6PFK1. Please read this manual thoroughly before using the product to ensure proper function and to prevent potential hazards.

2. Produktet er slutview

The Swagelok QC Series Quick Connect, model SS-QC6-S-6PFK1, is a high-quality industrial fitting designed for reliable and efficient fluid system connections. This specific model features a QC6 Stem (SESO-No Valve) with a 3/8-inch Female NPT connection, constructed from durable 316 stainless steel. It includes a 'Black' keying option for system identification and prevention of accidental intermixing with incompatible lines.

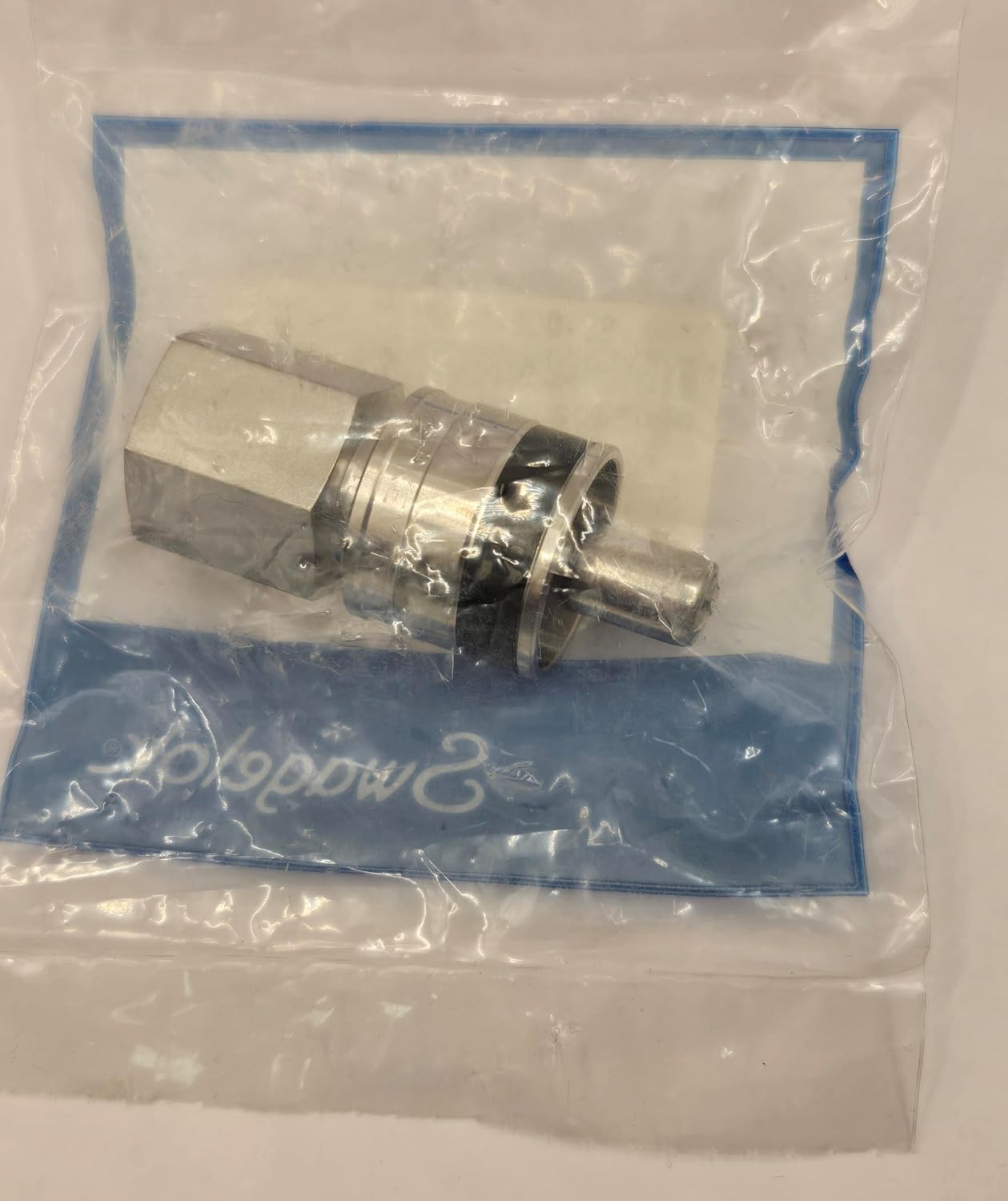

This image displays the Swagelok QC Series Quick Connect, model SS-QC6-S-6PFK1. The component is made of 316 stainless steel, featuring a QC6 stem design and a 3/8-inch female NPT connection. It is shown inside its original clear plastic packaging, highlighting its robust construction and precise threading.

3. Sikkerhedsoplysninger

• Always depressurize the system before connecting or disconnecting quick connects.
• Ensure the quick connect is clean and free of debris before connection.
• Verify that the quick connect is fully engaged before pressurizing the system.
• Do not exceed the maximum pressure ratings specified for coupled or uncoupled conditions.
• Wear appropriate personal protective equipment (PPE) when handling and installing the product.
• Use only compatible quick connect components. The 'Black' keying indicates specific compatibility.

4. Opsætning og installation

1. Forberedelse: Ensure all system components are clean and free from contaminants. Inspect the quick connect for any visible damage.
2. Trådforbindelse: Apply an appropriate thread sealant to the 3/8-inch NPT male thread of the mating component. Carefully thread the SS-QC6-S-6PFK1 female NPT connection onto the male thread. Tighten to the manufacturer's recommended torque specifications to ensure a leak-tight seal.
3. Systemintegration: Connect the quick connect stem to the corresponding quick connect body. Ensure the keying (if applicable) aligns correctly.
4. Verifikation: Pull firmly on the connected components to confirm full engagement.

5. Betjeningsvejledning

5.1 Tilslutning

1. Ensure the system is depressurized before connecting.
2. Align the QC6 stem with the compatible QC Series body, ensuring the 'Black' keying aligns.
3. Push the stem firmly into the body until a positive click is felt or heard, indicating full engagement.
4. Verify the connection by gently pulling on the components.
5. Slowly pressurize the system and check for leaks.

5.2 Frakobling

1. Depressurize the system completely before attempting to disconnect.
2. Tag fat i knurled sleeve of the quick connect body and pull it back.
3. While holding the sleeve back, pull the stem out of the body.
4. Release the sleeve.

6. Vedligeholdelse

Regular inspection and cleaning are crucial for optimal performance and longevity of your Swagelok quick connect.

• Inspektion: Periodically inspect the quick connect for signs of wear, corrosion, or damage to the body, stem, and seals. Replace any damaged components immediately.
• Rensning: Clean the quick connect components with a mild detergent and water, or a solvent compatible with 316 stainless steel and the seal materials. Ensure all cleaning agents are thoroughly rinsed off.
• Smøring: Consult Swagelok's specific guidelines for any recommended lubrication of seals or moving parts.
• Opbevaring: Store disconnected quick connects with protective caps to prevent contamination and damage to the sealing surfaces.

7. Fejlfinding

7.1 Leaks After Connection

• Årsag: Improper connection, damaged seals, or debris on sealing surfaces.
• Løsning: Depressurize the system. Disconnect and inspect the quick connect for debris or damaged O-rings/seals. Clean or replace as necessary. Reconnect firmly.

7.2 Difficulty Connecting/Disconnecting

• Årsag: System pressure, misalignment, or damaged components.
• Løsning: Ensure the system is fully depressurized. Check for proper alignment of the stem and body. Inspect for bent or damaged parts. Do not force connections.

7.3 Incompatible Connection

• Årsag: Attempting to connect incompatible quick connect series or sizes.
• Løsning: Verify that both the stem and body are of the correct QC Series and size, and that keying (e.g., 'Black') matches.

8. Specifikationer

9. Garanti og support

For information regarding product warranty, technical support, or replacement parts, please contact Swagelok directly or refer to their official website. Keep your purchase records for warranty claims.
