1. Introduktion
This manual provides essential information for the safe and effective operation, setup, and maintenance of your Holzmann AKM610ECO Manual Sheet Metal Bender. Please read this manual thoroughly before assembly or operation to ensure proper use and to prevent injury or damage to the machine. Keep this manual in a safe place for future reference.

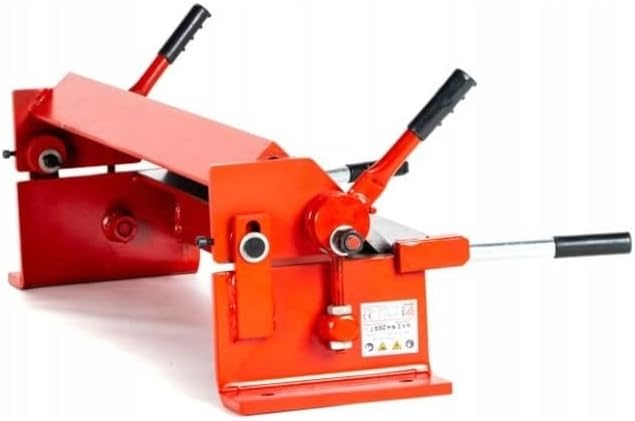

The Holzmann AKM610ECO is designed for bending sheet metal up to 600 mm in width and 1 mm in thickness, suitable for various metal fabrication tasks.
2. Sikkerhedsinstruktioner
ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i alvorlig personskade eller død.
- Brug altid passende personlige værnemidler (PPE), herunder sikkerhedsbriller, handsker og robust fodtøj.
- Ensure the machine is securely mounted to a stable workbench or stand before operation.
- Keep hands and fingers clear of all moving parts, especially the bending and clamping jaws, during operation.
- Do not exceed the machine's specified bending capacity (1 mm thickness, 600 mm width). Exceeding capacity can damage the machine and cause injury.
- Sørg for, at arbejdsemnet er korrekt clamped before initiating a bend to prevent slippage.
- Keep the work area clean and well-lit. Remove any clutter that could cause a tripping hazard.
- Do not operate the machine under the influence of drugs, alcohol, or medication that impairs judgment.
- Regularly inspect the machine for damage or wear. Do not operate a damaged machine.
- Kun uddannet personale bør betjene dette udstyr.
3. Pakkens indhold
Upon unpacking, verify that all components are present and undamaged. If any parts are missing or damaged, contact your supplier immediately.
- Holzmann AKM610ECO Manual Sheet Metal Bender main unit
- Operating handles (2 units)
- Clamping handles/levers (2 units)
- Instruktionsmanual (dette dokument)
4. Opsætning
Korrekt opsætning er afgørende for sikker og effektiv drift.
- Udpakning: Carefully remove all components from the packaging. Retain packaging for future transport if necessary.
- Montering: The bender must be securely mounted to a sturdy workbench or stand using appropriate bolts and fasteners (not included). Ensure the mounting surface can support the weight of the machine and the forces applied during bending.
- Attach Operating Handles: Insert the two main operating handles into their respective sockets on the bending beam. Secure them if necessary with set screws or pins provided.
- Vedhæft Clamping Handles: Insert the two clamping handles/levers into the clamping mechanism. These handles are used to secure the workpiece.
- Indledende inspektion: Before first use, check all bolts and fasteners for tightness. Ensure all moving parts operate smoothly without obstruction.
5. Betjeningsvejledning
Follow these steps for safe and effective sheet metal bending.
- Forbered emnet: Ensure the sheet metal is clean, free of burrs, and cut to the desired dimensions. Mark the bend line clearly.
- Juster ClampTryk: Klamping mechanism can be adjusted to suit different material thicknesses. Use the adjustment knobs/bolts to set the appropriate pressure. The workpiece should be held firmly without deforming the material.
- Placering af emne: Løft clamping bar using the clamping handles. Slide the sheet metal into position, aligning the bend line with the edge of the bending beam. Ensure the workpiece is centered and square.
- Clamp Arbejdsemne: Sænk klamping bar and firmly secure the workpiece by pushing down on the clamping handles. The metal must be held tightly to prevent slipping during the bend.
- Perform the Bend: Grasp both operating handles firmly. Slowly and steadily lift the bending beam upwards. Apply even pressure to both handles to ensure a consistent bend. Continue lifting until the desired angle is achieved.
- Frigør emne: Once the bend is complete, carefully lower the bending beam back to its resting position. Release the clamping handles to free the workpiece.
- Inspect Bend: Examine the bent workpiece for accuracy and quality.
6. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your sheet metal bender.
- Rensning: After each use, clean the machine, especially the bending and clamping surfaces, to remove metal shavings and dust. Use a brush or compressed air.
- Smøring: Påfør regelmæssigt en let maskinolie på alle drejepunkter og bevægelige dele for at sikre jævn drift og forhindre rust.
- Inspektion: Regularly check all bolts, nuts, and fasteners for tightness. Inspect the bending edges for wear or damage. Replace worn parts as necessary.
- Opbevaring: Store the bender in a dry, clean environment to prevent corrosion.
7. Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Workpiece slips during bending. | Utilstrækkelig clamptrykket. | Forøg clamping pressure using the adjustment knobs/bolts. Ensure the workpiece is clean and free of oil. |
| Inconsistent bend angle across the workpiece. | Uneven pressure on operating handles; workpiece not square. | Apply even pressure to both operating handles. Ensure the workpiece is properly aligned and square before clamping. |
| Difficulty in lifting the bending beam. | Exceeding material thickness capacity; lack of lubrication. | Ensure material thickness is within specifications. Lubricate pivot points. |
| Bending edges leave marks on the material. | Sharp edges on bending components; excessive clamptrykket. | Inspect bending edges for burrs and smooth them if necessary. Reduce clamping pressure if possible. |
8. Specifikationer
- Mærke: Holzmann
- Model: AKM610ECO
- Producentreference: HO-AKM610ECO
- Bending Width: 600 mm
- Max. Material Thickness: 1 mm (mild steel)
- Enheder: 1 I alt
- Tilgængelighedsdato på Amazon.com.be: 4. august 2022
9. Garanti og support
Information regarding product warranty and customer support was not available in the provided product data. Please refer to the product packaging or contact your retailer or the manufacturer directly for details on warranty coverage and support services.
