1. Introduktion
Thank you for choosing the PORTAL Collapsible Wagon Cart. This manual provides essential information for the safe and efficient use of your wagon. Please read these instructions carefully before initial use and retain them for future reference.
Image 1.1: The PORTAL Collapsible Wagon Cart in its open state, loaded with various items, demonstrating its large capacity.
2. Sikkerhedsoplysninger
- Do not exceed the maximum weight capacity of 225 pounds (102 kg). Overloading can cause damage to the wagon and potential injury.
- Ensure the wagon is fully unfolded and locked into position before loading any items.
- Fordel vægten jævnt i vognen for at opretholde stabilitet.
- Always pull the wagon on level ground when possible. Exercise caution on inclines or uneven terrain.
- Keep hands and fingers clear of moving parts, especially during folding and unfolding operations.
- Do not allow children to play in or on the wagon unsupervised. This is not a toy.
- Avoid pulling the wagon at excessive speeds.
- Store the wagon in a dry, protected area when not in use.
3. Pakkens indhold
The PORTAL Collapsible Wagon Cart comes fully assembled. Upon opening the package, you will find:
- 1 x PORTAL Collapsible Wagon Cart (Model B08DCTYV5Z)
- 1 x Removable Bottom Cushion/Liner
- 1 x Storage Cover (often integrated or included separately)
4. Setup: Unfolding and Folding
The wagon is designed for quick and easy setup and storage.
4.1 Unfolding the Wagon
- Remove the wagon from its storage cover (if applicable).
- Grasp the top edges of the wagon and pull them apart gently until the wagon begins to expand.
- Press down firmly on the center of the wagon's base until it lies flat and the frame is fully extended.
- Place the removable bottom cushion/liner into the base of the wagon for stability.
- Extend the handle to your desired length.
4.2 Folding the Wagon
- Ensure the wagon is empty and clean.
- Remove the bottom cushion/liner.
- Locate the pull tab or handle in the center of the wagon's base. Pull upwards firmly to begin collapsing the wagon.
- Gently push the sides of the wagon together until it is fully folded.
- Secure the folded wagon with any integrated straps or place it into its storage cover.
Image 4.1: Visual guide for unfolding and folding the wagon cart.
5. Betjeningsvejledning
5.1 Læsning af vognen
- Place items into the wagon, ensuring the weight does not exceed 225 pounds (102 kg).
- Distribute heavier items towards the bottom and center of the wagon for optimal stability.
- Avoid stacking items too high, which could obstruct your view or cause instability.

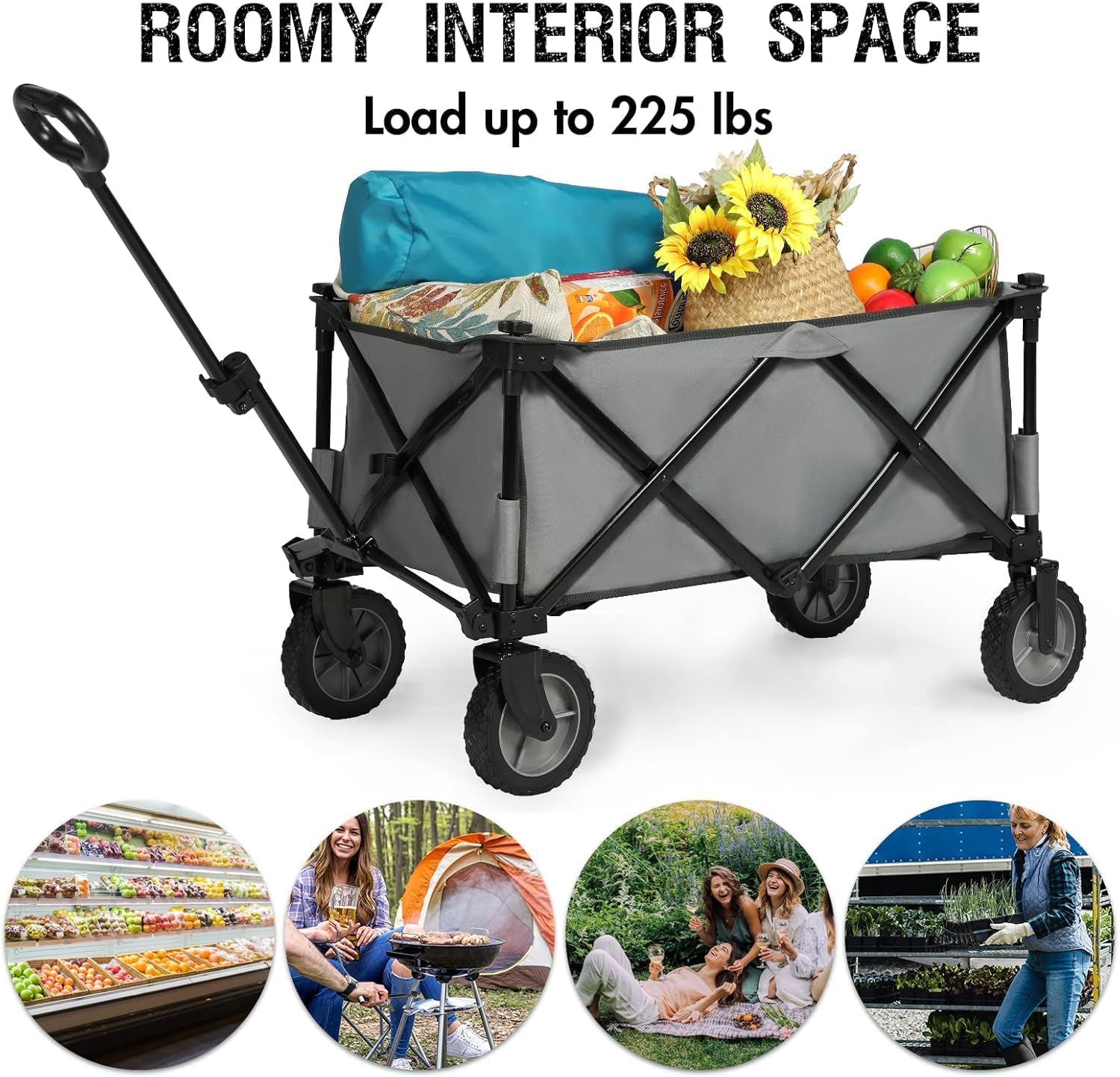

Image 5.1: The wagon's interior space, demonstrating its capacity and recommended load limit.
5.2 Pulling and Steering
- Extend the adjustable handle to a comfortable height.
- The front wheels feature 360-degree rotation, allowing for easy steering and maneuverability.
- Pull the wagon smoothly. Avoid sudden jerks or turns, especially when fully loaded.
- Be mindful of obstacles and uneven surfaces.
Image 5.2: Detail of the 360-degree rotating front wheel, designed for enhanced maneuverability.
6. Vedligeholdelse
6.1 Rengøring af stoffet
The wagon features a detachable fabric liner for easy cleaning.
- Empty the wagon completely.
- Unfasten any velcro straps or clips securing the fabric to the frame.
- Carefully remove the fabric liner from the alloy steel frame.
- The fabric can be hand-washed with mild soap and water, or machine-washed on a gentle cycle with cold water. Air dry thoroughly before reattaching.
- Reattach the clean, dry fabric liner to the frame, ensuring all fasteners are secure.
Image 6.1: Instructions for removing the fabric liner for cleaning.
6.2 Stel og hjul
- Tør stålrammen af med en kludamp klud til at fjerne snavs og rester. Tør grundigt for at forhindre rust.
- Periodically check the wheels for any obstructions or damage. Clean any accumulated dirt from the wheel axles to ensure smooth rotation.
- Inspect all bolts and connections regularly and tighten if necessary.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Wagon does not unfold completely. | Bottom cushion not fully pressed down; frame not fully extended. | Ensure the center of the wagon's base is pressed down firmly until the frame locks into place. |
| Wagon does not fold easily. | Bottom pull tab not fully engaged; items left in wagon. | Ensure the wagon is empty. Pull the center tab upwards firmly and push the sides together. |
| Wheels are stiff or not rotating smoothly. | Dirt or debris in the wheel mechanism; loose axle. | Clean wheels and axles. Check for any obstructions. Ensure wheels are securely attached. |
| Wagon feels unstable when loaded. | Overloaded; weight unevenly distributed. | Reduce load to within 225 lbs capacity. Redistribute items for even weight distribution. |
8. Specifikationer
- Model: B08DCTYV5Z
- Mærke: PORTAL
- Materiale: Detachable 600D Fabric (basket), Alloy Steel (frame, handle)
- Farve: Grå
- Unfolded Dimensions (approx.): 35.6" (D) x 19.1" (W) x 21.7" (H) (basket interior)
- Foldede mål (ca.): 11.8 cm (B) x 7.9 cm (D) x 29.1 cm (H)
- Varens vægt: 23.7 pund (10.8 kg)
- Vægtgrænse: 225 pund (102 kg)
- Antal hjul: 4 (Front wheels with 360° swivel)
- Montering påkrævet: Ingen
Image 8.1: Detailed dimensions of the wagon cart.
Image 8.2: Visual representation of the wagon's compact folded size compared to its open state.

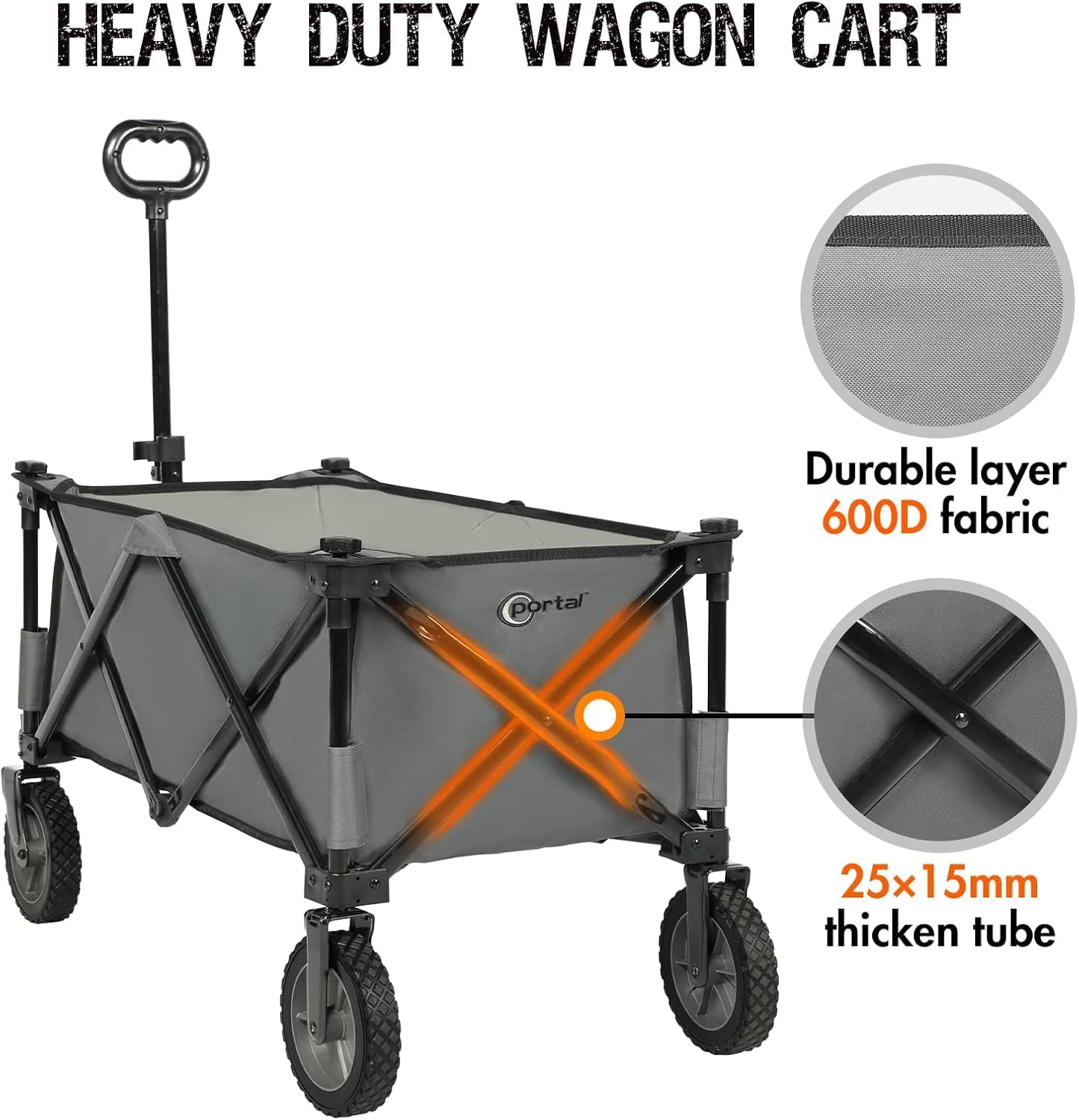

Image 8.3: Detail of the wagon's construction, highlighting the durable 600D fabric and thickened alloy steel tubes.
9. Garanti og support
Specific warranty details may vary. Please refer to the product packaging or the official PORTAL webwebstedet for de seneste garantioplysninger.
For customer support, inquiries, or to report any issues with your PORTAL Collapsible Wagon Cart, please contact PORTAL customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt.
Webwebsted: PORTAL Official Store on Amazon
