BlackVue DR900X-2CH 4K UHD Cloud Dashcam Brugermanual

Model: DR900X-2CH | Brand: BlackVue

1. Introduktion

The BlackVue DR900X-2CH is a high-performance 4K UHD cloud dashcam system designed to provide comprehensive vehicle surveillance. It features a front 4K UHD camera and a Full HD rear camera, built-in Wi-Fi, GPS, and advanced parking mode capabilities. This manual provides detailed instructions for installation, operation, and maintenance, ensuring you get the most out of your BlackVue dashcam.

2. Pakkens indhold

Før du starter installationen, skal du kontrollere, at alle komponenter er til stede i din pakke:

  • BlackVue DR900X-2CH Front Camera Unit
  • BlackVue Rear Camera
  • Rear Camera Connection Cable (Coaxial)
  • Power Cord (Cigarette Lighter Plug)
  • Hardwiring Power Cable
  • MicroSD Card (32GB included)
  • MicroSD kortlæser
  • Cable Clips (8ea)
  • Pry Tool
  • Spare Mounting Tape
  • Hurtig startvejledning
BlackVue DR900X-2CH package contents including front and rear cameras, cables, microSD card, and accessories.
Image 2.1: All components included in the BlackVue DR900X-2CH package.

3. Produktet er slutview

Gør dig bekendt med hovedkomponenterne og deres funktioner.

3.1 Front Camera Unit

Front and rear BlackVue DR900X-2CH dashcam units shown separately.
Image 3.1: Front (top) and Rear (bottom) camera units.

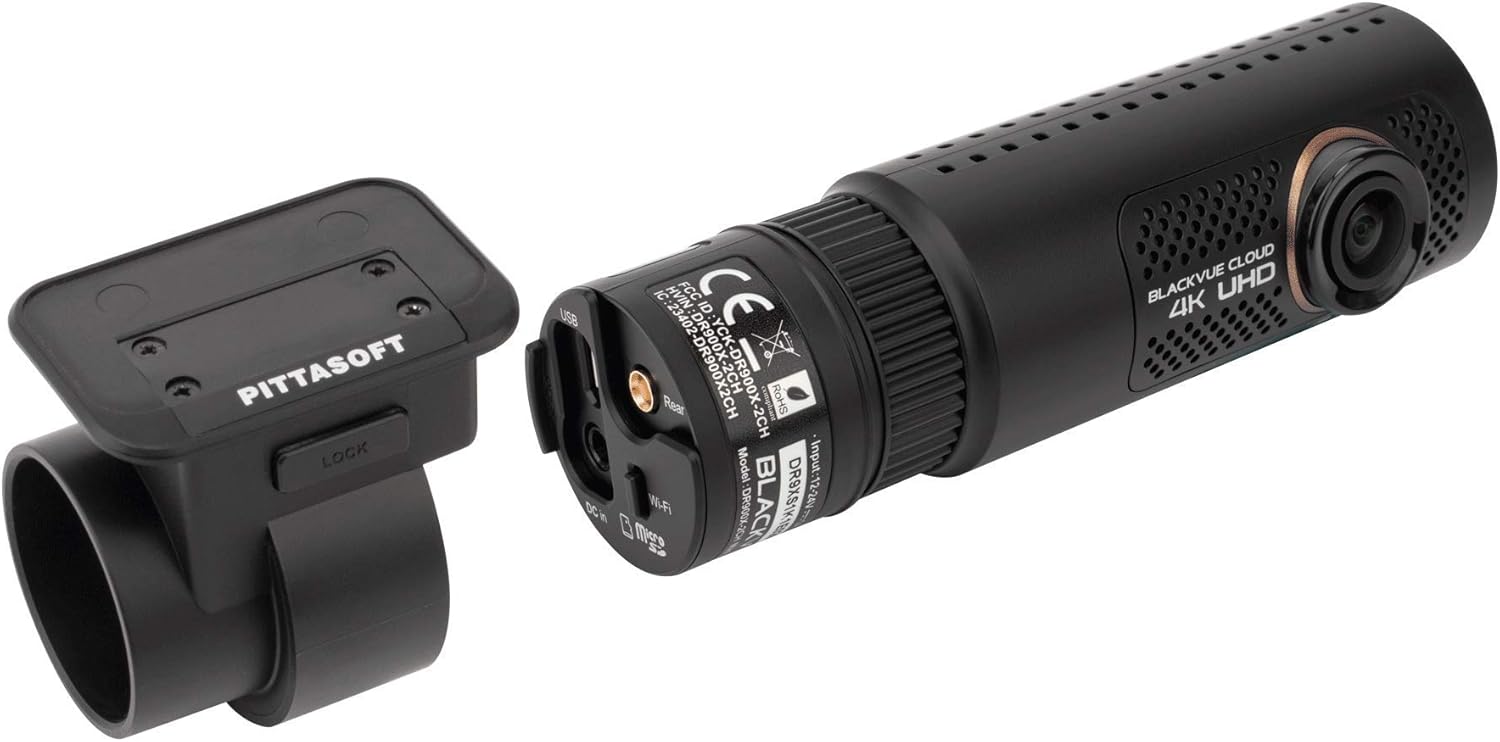

BlackVue DR900X-2CH front camera mounted on its bracket.
Image 3.2: Front camera unit with its mounting bracket.

The front camera unit houses the main processor, 4K UHD lens, Wi-Fi module, GPS, and various ports for power, the rear camera, and the optional LTE module.

Close-up of the BlackVue DR900X-2CH front camera ports, including USB, Rear camera, DC in, and microSD card slot with cover open.
Billede 3.3: Detaljeret view of the front camera's ports and microSD card slot.
  • Frontlinse: Captures 4K UHD video.
  • Wi-Fi knap: Activates/deactivates Wi-Fi.
  • MicroSD -kortplads: Til isætning af hukommelseskortet.
  • DC ind: Strømindgangsport.
  • Bagkameraport: Connects the rear camera via coaxial cable.
  • USB-port: For connecting the optional CM100 LTE module.
  • Højttaler: For voice prompts.
  • LED-indikatorer: Indicate recording status, GPS, Wi-Fi, and LTE connectivity.

3.2 Rear Camera Unit

The rear camera unit captures Full HD video and connects to the front unit via the provided coaxial cable.

4. Opsætning og installation

Proper installation is crucial for optimal performance and video quality.

4.1 Indsættelse af microSD-kort

  1. Ensure the dashcam is powered off.
  2. Open the microSD card cover on the side of the front camera unit.
  3. Insert the microSD card into the slot with the gold contacts facing away from the lens until it clicks into place.
  4. Luk låget sikkert.

4.2 Montering af dashcam'et

  1. Clean the windshield area where you intend to mount the dashcam. Ensure it is free of dust and grease.
  2. Attach the front camera unit to its mounting bracket.
  3. Peel off the protective film from the mounting tape on the bracket.
  4. Mount the front camera on the center of your windshield, ideally behind the rearview spejlet, og sørg for, at det ikke blokerer for din view. Press firmly for 30 seconds.
  5. Monter bakkameraet på bagruden, og sørg for, at linsen har en klar view.
BlackVue DR900X-2CH dashcam installed on a car windshield, viewed inde fra køretøjet.
Image 4.1: Front camera installed on the windshield.

4.3 Wiring the Dashcam

There are two primary wiring options:

  • Cigarettænder strømkabel: For basic operation, plug the power cable into your vehicle's cigarette lighter socket. The dashcam will power on/off with the vehicle's ignition.
  • Hardwiring Power Cable: For advanced parking mode functionality, connect the hardwiring cable to your vehicle's fuse box. This allows the dashcam to continue recording when the vehicle is parked. Refer to your vehicle's manual for fuse box location and proper connection points (ACC, BATT+, GND). It is recommended to have this installed by a professional if you are unsure.
  1. Connect the power cable to the DC In port on the front camera unit.
  2. Route the power cable along the edge of the windshield and down to the power source, using the provided cable clips and pry tool to tuck the cable neatly.
  3. Connect the rear camera cable to the Rear Camera port on the front unit.
  4. Route the rear camera cable to the rear of the vehicle, ensuring it does not interfere with airbags or other vehicle components.

4.4 Initial Setup with BlackVue App

  1. Download the BlackVue App from your smartphone's app store (iOS/Android).
  2. Tænd for dashcam.
  3. On your smartphone, go to Wi-Fi settings and connect to the BlackVue dashcam's Wi-Fi network (SSID: DR900X-2CH-XXXXXX, Password: blackvue).
  4. Open the BlackVue App. The app will automatically connect to the dashcam.
  5. Follow the on-screen prompts to set up basic settings like time zone, recording quality, and parking mode options.

5. Betjening af dashcam'et

Understand the various recording modes and features of your BlackVue dashcam.

5.1 Optagelsestilstande

  • Normal optagelse: Kontinuerlig optagelse under kørsel. Files are saved in segments and overwritten oldest first when the microSD card is full.
  • Hændelsesoptagelse: Triggered by impacts detected by the G-sensor or manual events (e.g., pressing the touch sensor on the dashcam). These files er beskyttet mod at blive overskrevet.
  • Parking Mode Recording: Activated when the vehicle's ignition is turned off (requires hardwiring). Records only when motion or impact is detected, conserving power and storage.

5.2 LED Indicators and Voice Prompts

The dashcam provides visual and audible cues for its status:

  • REC LED: Indicates recording status (e.g., solid for normal, blinking for event).
  • GPS LED: Solid when GPS signal is acquired.
  • Wi-Fi LED: Solid when Wi-Fi is active, blinking during connection.
  • LTE-LED: (If CM100 LTE module is connected) Indicates LTE connectivity.
  • Stemmemeddelelser: The dashcam will announce status changes, such as
