VIVOTEK FE9380-HV User Manual

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of the VIVOTEK FE9380-HV 5MP Outdoor Network Fisheye Dome Camera. Please read this manual thoroughly before using the product to ensure proper setup and functionality. The FE9380-HV is designed for robust outdoor surveillance, offering a 360-degree panoramic view with high-resolution imaging.

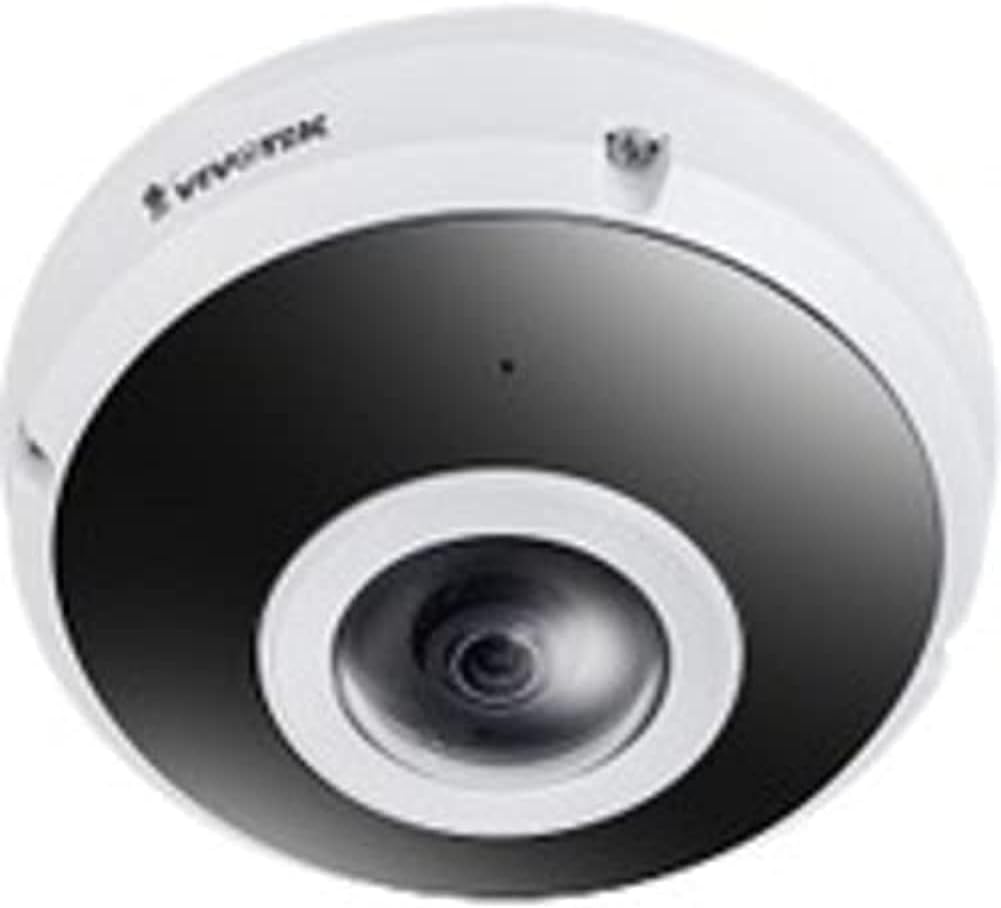

Figure 1: VIVOTEK FE9380-HV Fisheye Dome Camera. This image displays the camera's white dome housing with a central black lens assembly, characteristic of a fisheye surveillance camera.

2. Sikkerhedsoplysninger

Observe the following safety precautions to prevent damage to the camera and ensure safe operation:

• Ensure the power source matches the camera's requirements (220V, Corded Electric).
• Do not expose the camera to extreme temperatures or humidity beyond its specified operating conditions.
• Avoid direct exposure to strong light sources, which may damage the image sensor.
• Installationen skal udføres af kvalificeret personale i overensstemmelse med lokale el-forskrifter.
• Forsøg ikke at skille kameraet ad eller ændre det. Dette vil ugyldiggøre garantien.
• Clean the camera lens and housing with a soft, dry cloth. Avoid abrasive cleaners.

3. Pakkens indhold

Kontroller, at alle dele er til stede i pakken, før du fortsætter installationen:

• VIVOTEK FE9380-HV Fisheye Dome Camera (1 unit)
• Monteringsskruer og ankre
• Hurtig installationsvejledning
• Vandtæt stik (hvis relevant)
• Alignment Sticker (if applicable)

Bemærk: Specifikt tilbehør kan variere afhængigt af region eller pakke.

4. Opsætning og installation

4.1 Monteringssted

The FE9380-HV is designed for outdoor wall mount installation. Choose a location that provides the desired field of view (360 degrees) and is within reach of a power source and network connection. Ensure the mounting surface is strong enough to support the camera's weight (approximately 4.4 pounds).

4.2 Fysisk installation

1. Forbered monteringsoverfladen: Use the provided alignment sticker (if included) to mark drilling points for the mounting screws.
2. Bore huller: Drill pilot holes according to the marks. Insert wall anchors if mounting on drywall or masonry.
3. Fastgør kamerabasen: Attach the camera's mounting base securely to the prepared surface using the provided screws.
4. Tilslut ledninger:
   • Magt: Connect the camera to a 220V corded electric power source. Ensure connections are secure and waterproof for outdoor use.
   • Netværk: Connect an Ethernet cable to the camera's network port. This camera supports Wi-Fi connectivity, but a wired connection is recommended for initial setup and stable performance.
5. Fastgør kamerahus: Secure the main camera body to the mounted base, ensuring all connections are properly seated and sealed.

4.3 Netværkskonfiguration

After physical installation, connect the camera to your network. The camera supports Wi-Fi connectivity. Refer to the Quick Installation Guide for detailed instructions on initial network discovery and IP address assignment. Typically, you will use a VIVOTEK utility or access the camera's web interface via its default IP address to configure network settings, including Wi-Fi connection details.

5. Betjening af kameraet

5.1 Accessing the Camera Interface

The VIVOTEK FE9380-HV can be controlled via a dedicated mobile application or through its web-based interface using a standard web browser. Once the camera is connected to your network, use the VIVOTEK utility to discover its IP address, then enter the IP address into your browser's address bar.

5.2 Grundlæggende funktioner

• Levende View: Access real-time video streams from the camera. The 360-degree fisheye view can be de-warped into various display modes (e.g., panoramic, quad view) through the interface.
• Indspilning: Configure recording schedules, motion detection triggers, and storage locations (e.g., local storage via 128 GB Flash Memory, Network Attached Storage).
• Afspilning: Review optaget footage.
• Indstillinger: Adjust image quality (5 MP resolution), network settings, user accounts, and advanced features like night color technology for low-light conditions.
• App kontrol: Utilize the dedicated VIVOTEK app for remote monitoring and control from your smartphone or tablet.

6. Vedligeholdelse

Regular maintenance ensures optimal performance and longevity of your VIVOTEK FE9380-HV camera:

• Rensning: Periodically clean the camera lens and housing to remove dust, dirt, or water spots. Use a soft, lint-free cloth. For stubborn marks, a mild, non-abrasive cleaning solution can be applied to the cloth (not directly to the camera).
• Firmwareopdateringer: Tjek den officielle VIVOTEK website regularly for firmware updates. Keeping the firmware updated ensures the latest features, security patches, and performance improvements.
• Kabelinspektion: Periodically inspect all cables (power and network) for any signs of wear, damage, or loose connections, especially in outdoor environments.
• Miljøtjek: Ensure the camera's immediate environment remains clear of obstructions that could block its field of view or interfere with its operation.

7. Fejlfinding

This section addresses common issues you might encounter with your VIVOTEK FE9380-HV camera.

8. Specifikationer

9. Garanti og support

For detailed warranty information, please refer to the warranty card included with your product or visit the official VIVOTEK website. VIVOTEK provides technical support for its products. For assistance with installation, configuration, or troubleshooting beyond this manual, please contact VIVOTEK customer support through their official channels.

Online ressourcer:

• VIVOTEK Officiel Webwebsted
• VIVOTEK Support Page
