ASD 2x2 LED fladskærmslampe Standard Series brugermanual

1. Introduktion

Thank you for choosing the ASD 2x2 LED Flat Panel Light Standard Series. This manual provides essential information for the safe installation, operation, and maintenance of your new LED panel light. Please read this manual thoroughly before installation and retain it for future reference.

Image 1.1: ASD 2x2 LED Flat Panel Light Standard Series, showing the product in its packaging.

2. Sikkerhedsoplysninger

For at reducere risikoen for død, personskade eller materielle skader som følge af brand, elektrisk stød, nedfaldende dele, snitsår/skrammen og andre farer, bedes du læse alle advarsler og instruktioner, der følger med og på armaturæsken og alle armaturmærkater.

• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med den nationale elektriske forskrift og lokale forskrifter.
• Afbryd strømmen ved sikringen eller afbryderen før installation eller service.
• Sørg for, at forsyningen voltage er korrekt ved at sammenligne det med armaturets etiketoplysninger.
• Do not install in areas where the operating temperature exceeds the fixture's rated ambient temperature.
• Denne armatur er egnet til damp locations. Do not use in direct contact with water.
• Håndter ikke den strømførende armatur med våde hænder.

3. Produktet er slutview og specifikationer

The ASD 2x2 LED Flat Panel Light is designed for efficient and uniform illumination in commercial and indoor settings. It features a durable construction and advanced LED technology.

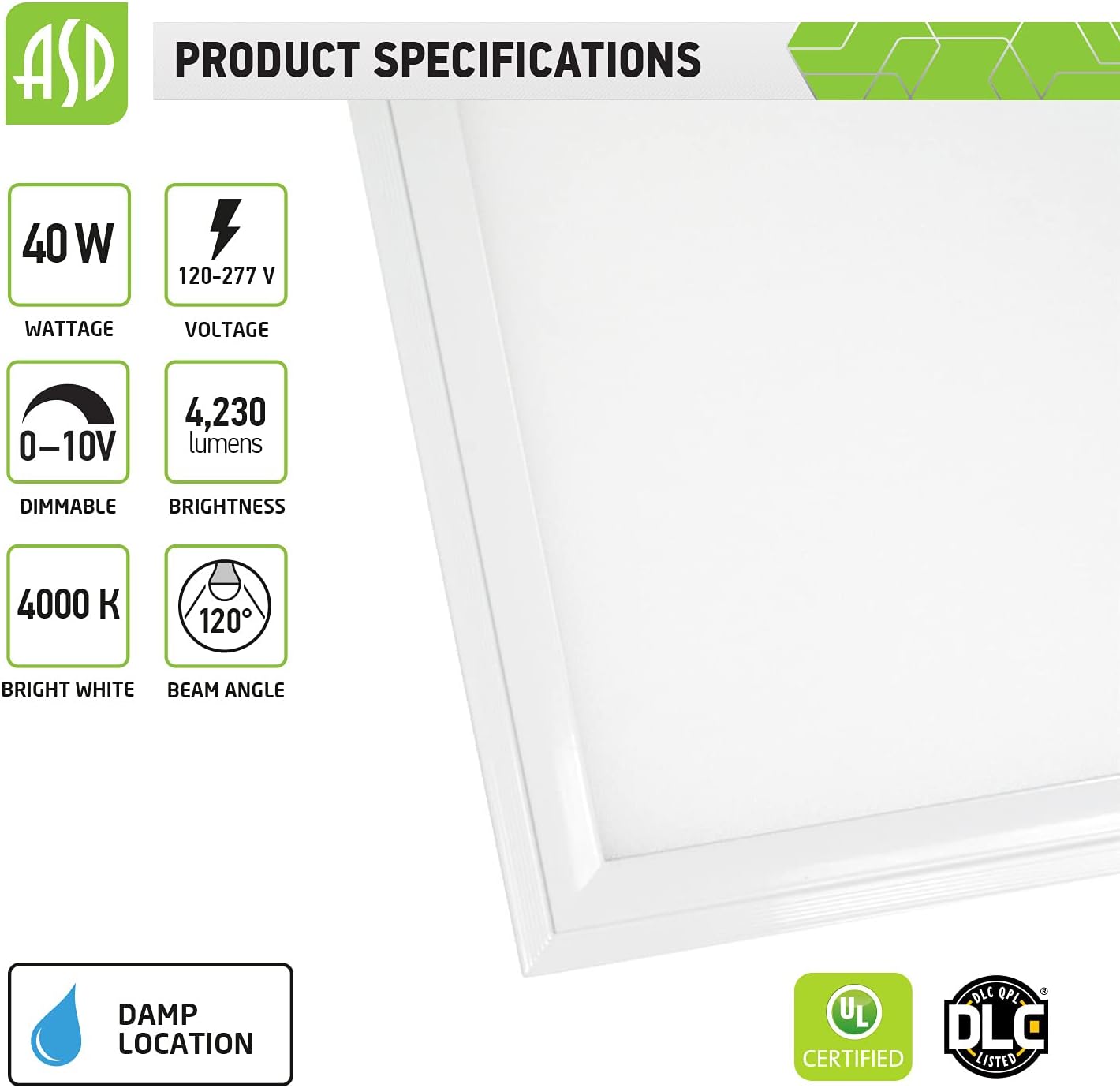

Image 3.1: Detailed product specifications including wattage, bindtage, lumens, and color temperature.

3.1. Tekniske specifikationer

3.2. Dimensioner

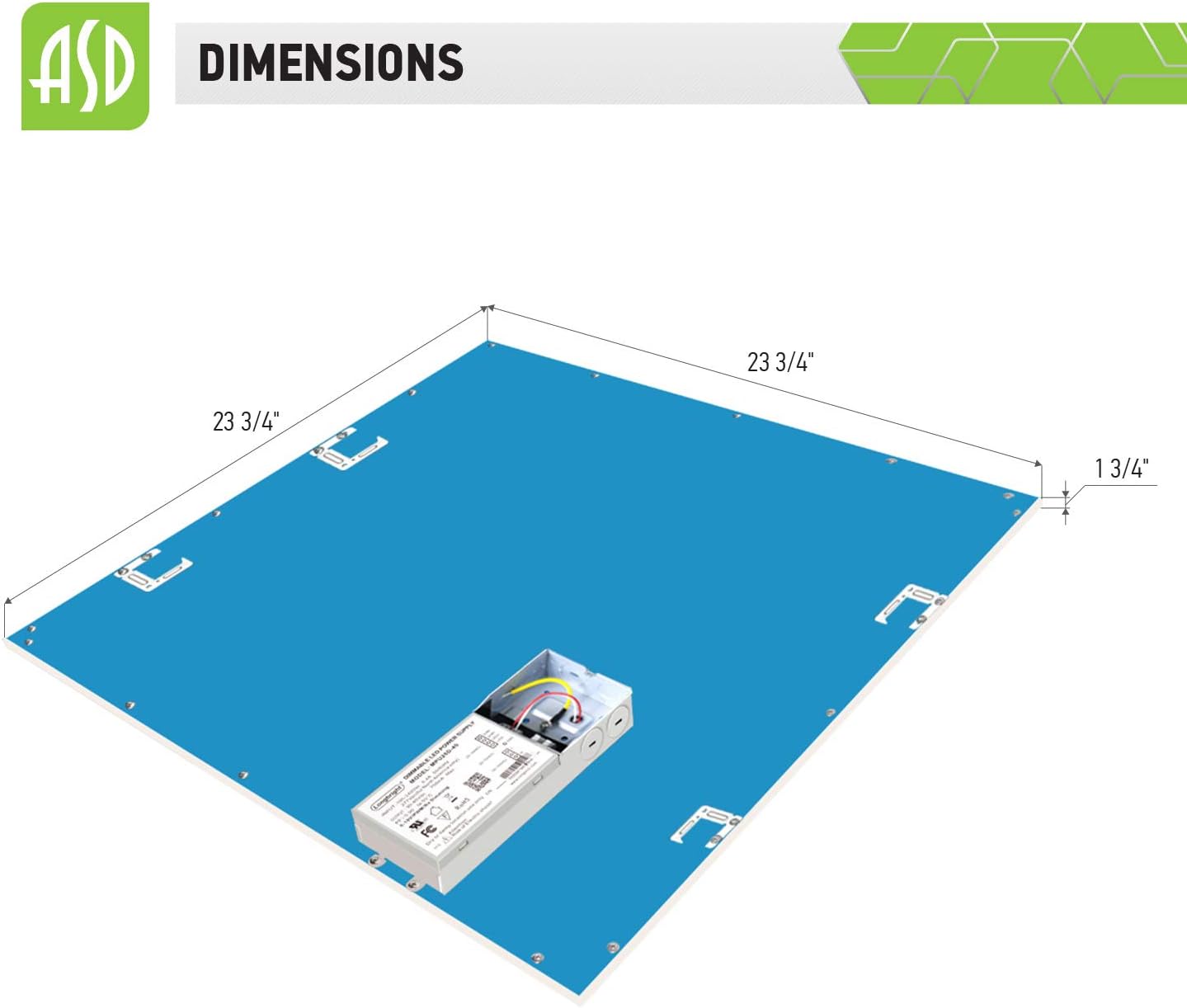

Image 3.2: Diagram showing the physical dimensions of the 2x2 LED panel light.

The panel measures approximately 23 3/4 inches by 23 3/4 inches, with a thickness of 1 3/4 inches.

3.3. Funktioner

Image 3.3: Visual representation of key features including diffuser and frame material.

• Non-Yellowing PC Diffuser: Provides uniform light distribution with no glare.
• Anti-Corrosion Aluminum Frame: Designed for fast heat dissipation and durability.
• 0-10V Dimmable Driver: Includes circuit overload and low-voltage beskyttelse.

3.4. Available Sizes and Finish

Image 3.4: Illustration of various available panel sizes and the standard white finish.

This product series is available in multiple sizes, including 1x4Ft, 2x2Ft (this model), and 2x4Ft. All models feature a clean white finish.

4. Installation

Before beginning installation, ensure power is disconnected at the circuit breaker. Follow the instructions carefully for your specific mounting type.

4.1. Installation af forsænket montering

Image 4.1: Step-by-step guide for installing the LED panel light into a recessed ceiling grid.

1. Trin 1: Choose the ceiling panel where you want to install the product and remove it. For convenience, move adjacent ceiling tiles. Fix the LED panel into the ceiling: raise up the product above the grid, then place it on T-bars. Bend points for all four tabs.
2. Trin 2: Fastgør panelet med gitteret som vist på billedet. Sørg for, at tappen er sikkert fastgjort til gitteret. Tilslut ledningerne til samlingsboksen på panelet, der matcher farverne N, L og G ved hjælp af møtrikker.
3. Trin 3: Sæt de tilstødende loftplader tilbage på plads. Tænd for hovedstrømmen. Installationen er afsluttet.

4.2. Overflademontering

For surface mount installation, a separate surface mount kit (ASD-FELP22-L, ASD-FELP24-L) is required and sold separately.

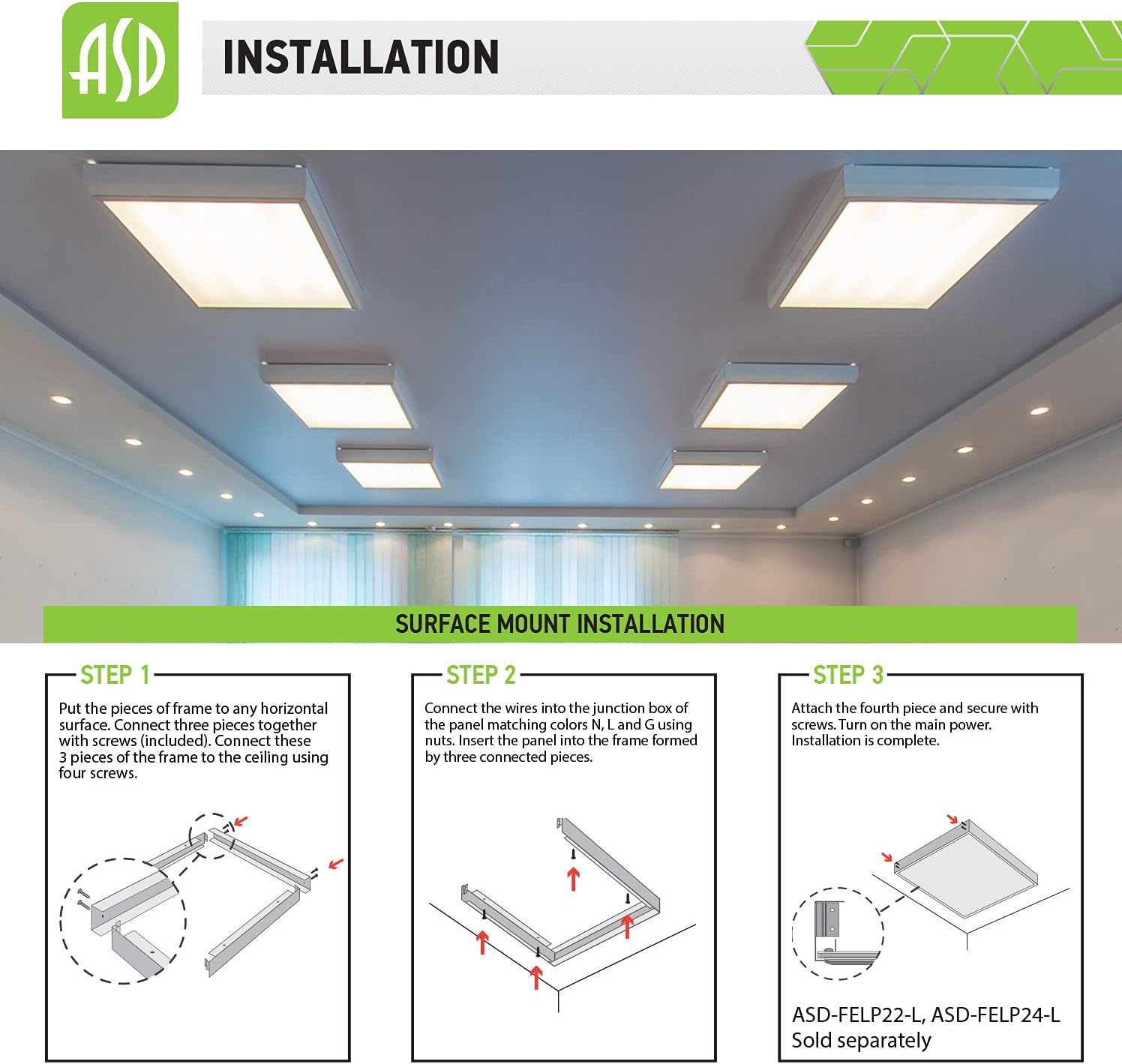

Image 4.2: Step-by-step guide for surface mounting the LED panel light using an external frame kit.

1. Trin 1: Sæt rammestykkerne på en hvilken som helst vandret overflade. Forbind tre stykker sammen med skruer (medfølger). Forbind disse 3 stykker af rammen til loftet med fire skruer.
2. Trin 2: Connect the wires into the junction box of the panel matching colors N, L, and G using nuts. Insert the panel into the frame formed by three connected pieces.
3. Trin 3: Fastgør det fjerde stykke og fastgør det med skruer. Tænd for hovedstrømmen. Installationen er fuldført.

5. Betjeningsvejledning

Once properly installed, the ASD LED Flat Panel Light operates like any standard lighting fixture. Ensure the power supply is connected and the wall switch is in the 'ON' position.

5.1. Dæmpningsfunktionalitet

This fixture supports 0-10V dimming. To utilize the dimming feature, connect the fixture to a compatible 0-10V dimmer switch (sold separately). Follow the dimmer manufacturer's instructions for wiring and operation. The light output will adjust smoothly from 100% down to 10% or lower, depending on the dimmer's capabilities.

6. Vedligeholdelse

The ASD LED Flat Panel Light requires minimal maintenance. Regular cleaning will help maintain its appearance and light output.

• Rensning: Ensure the power is off before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface of the panel. Do not use abrasive cleaners, solvents, or cleaners containing alcohol, as these may damage the finish or diffuser.
• Ingen dele, der kan serviceres af brugeren: The LED components and driver are integrated and not designed for user servicing. Do not attempt to open or repair the fixture.

7. Fejlfinding

If you experience issues with your LED panel light, refer to the following common problems and solutions:

8. Ansøgning

The ASD 2x2 LED Flat Panel Light is versatile and suitable for a wide range of indoor commercial and residential applications, providing bright and even illumination.

Image 8.1: Various indoor settings where the LED panel light can be effectively used, such as offices, hallways, and common areas.

9. Garanti og support

ASD is committed to providing high-quality products and excellent customer service.

Image 9.1: Information regarding product certifications, warranty period, and company origin.

• Garanti: ASD tilbyder en 5 års garanti on this product, guaranteeing top quality and safety.
• Certificeringer: This product is UL and DLC Standard certified, ensuring compliance with industry safety and performance standards.
• Rebates: Top US certifications may allow participation in rebates. Please check the rebate programs available in your state.
• Kundeservice: As an American company, ASD offers exceptional customer service. For support, please visit the ASD Lighting Corporation store on Amazon or contact their customer service directly.
